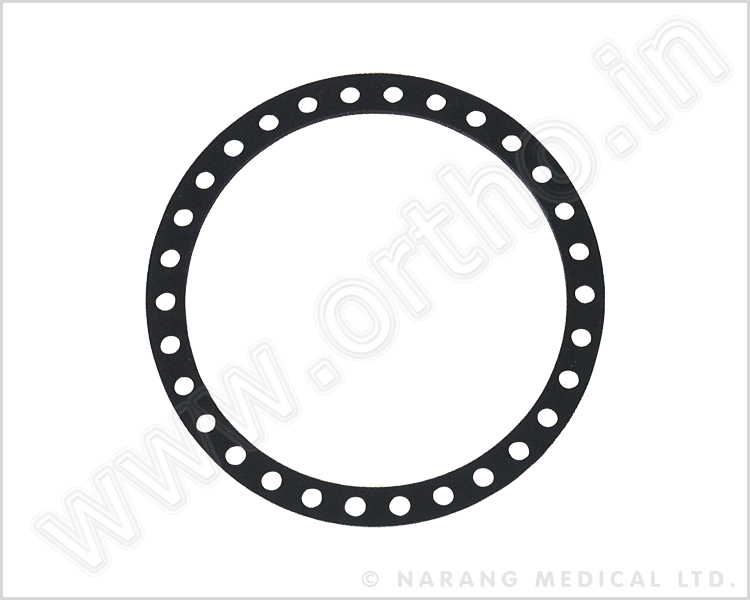

Ilizarov External Fixation System

Code No. Ring Diameter (mm)
Q.780108 Ø 80mm
Q.780110 Ø 100mm
Q.780112 Ø 120mm
Q.780114 Ø 140mm
Q.780118 Ø 180mm
Q.780120 Ø 200mm
Q.780122 Ø 220mm
Ilizarov External Fixation System
Click to Zoom
Top

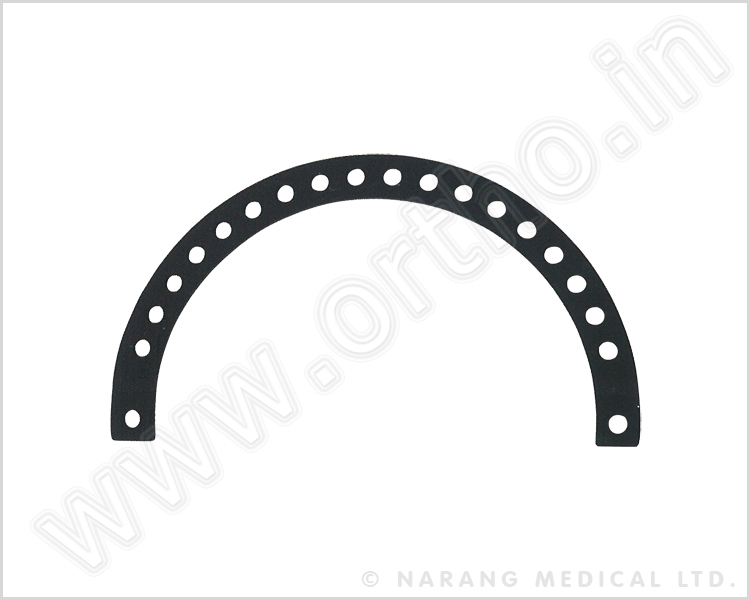

Ilizarov Half Ring, Aluminium

Code No. Ring Diameter (mm)
Q.780408 Ø 80mm
Q.780410 Ø 100mm
Q.780412 Ø 120mm
Q.780414 Ø 140mm
Q.780418 Ø 180mm
Q.780420 Ø 200mm
Q.780422 Ø 220mm
Ilizarov Half Ring, Aluminium
Click to Zoom
Top

Ilizarov 2/3 Ring, Aluminium

Code No. Ring Diameter (mm)
Q.780508 Ø 80mm
Q.780510 Ø 100mm
Q.780512 Ø 120mm
Q.780514 Ø 140mm
Q.780518 Ø 180mm
Q.780520 Ø 200mm
Q.780522 Ø 220mm
Ilizarov 2/3 Ring, Aluminium
Click to Zoom
Top

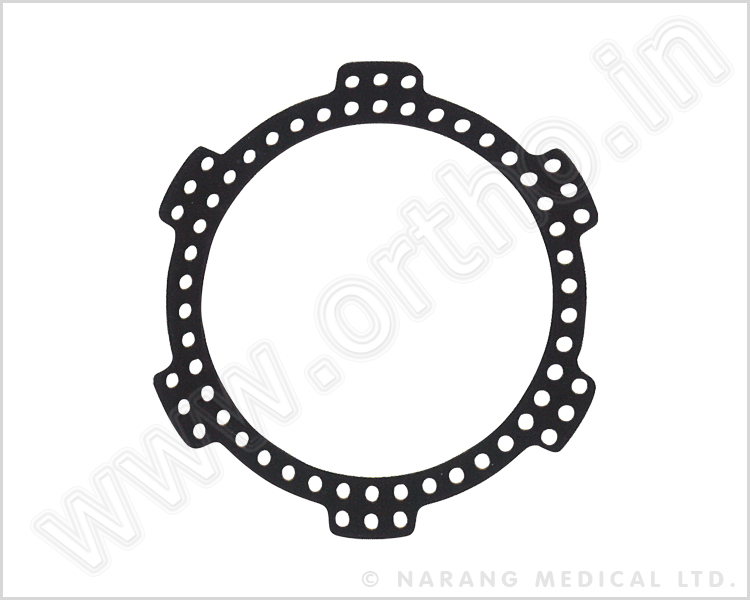

Ilizarov Rings with 6 ears, Aluminium

Code No. Size
Q.7802S Small
Q.7802M Medium
Q.7802L Large
Ilizarov Rings with 6 ears, Aluminium
Click to Zoom
Top

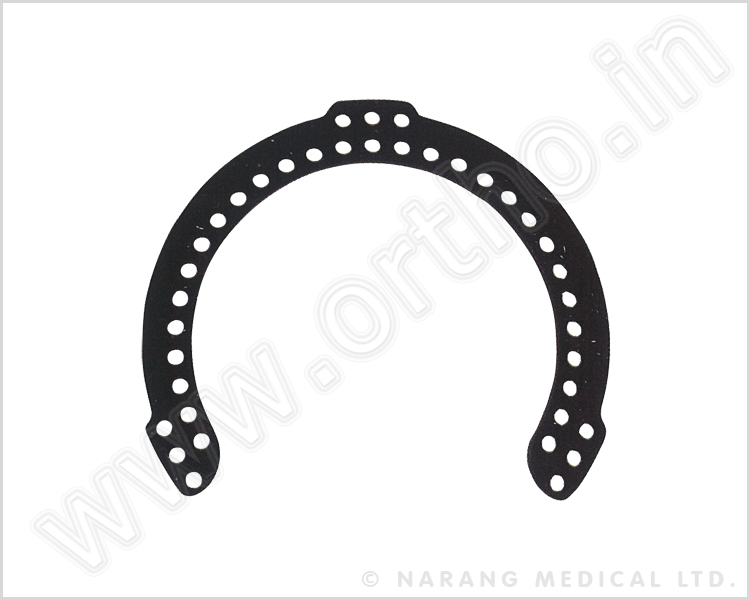

Ilizarov Rings with 3 ears, Aluminium

Code No. Size
Q.7803S Small
Q.7803M Medium
Q.7803L Large
Ilizarov Rings with 3 ears, Aluminium
Click to Zoom
Top

Ilizarov Foot Ring, SS

Code No. Size
Q.7806S Small
Q.7806M Medium
Q.7806L Large
Ilizarov Foot Ring, SS
Click to Zoom
Top

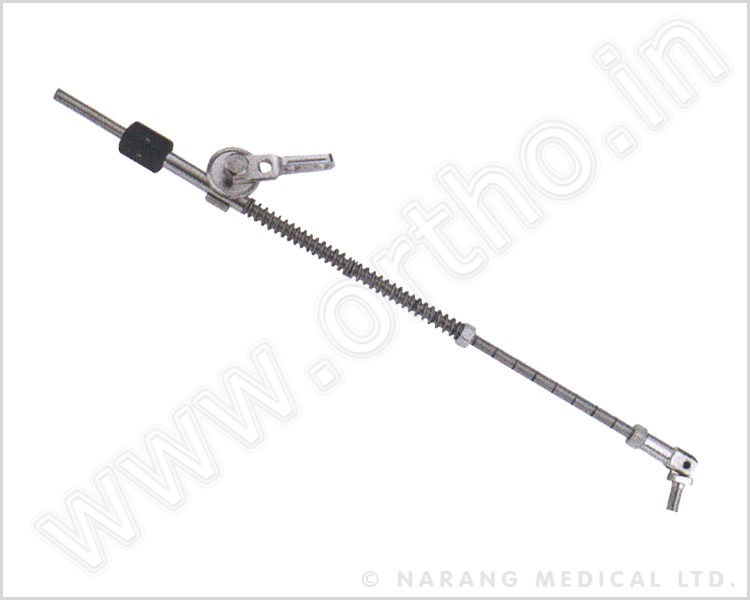

Annular Diagonal Tie

Codes Q.7810
Annular Diagonal Tie
Click to Zoom
Top

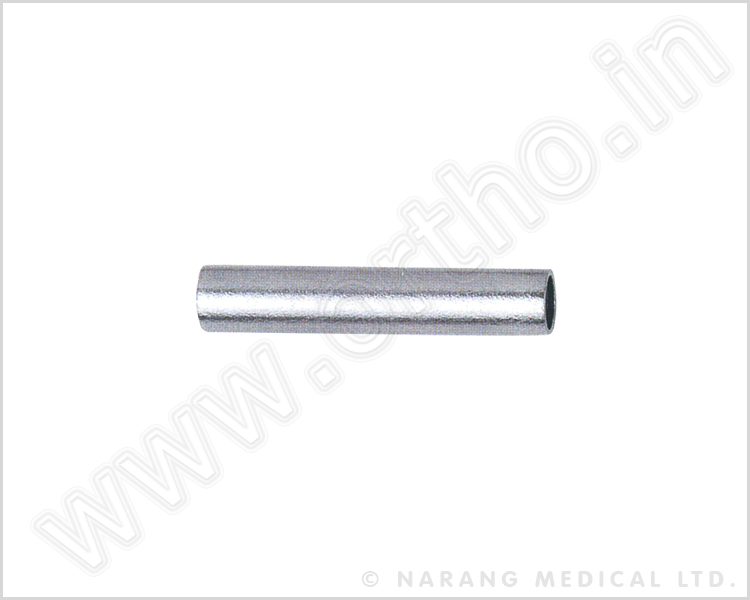

Annular Tubes

Code No. Q.7811
Annular Tubes
Click to Zoom
Top

Spring

Code No. Q.7812
Spring
Click to Zoom
Top

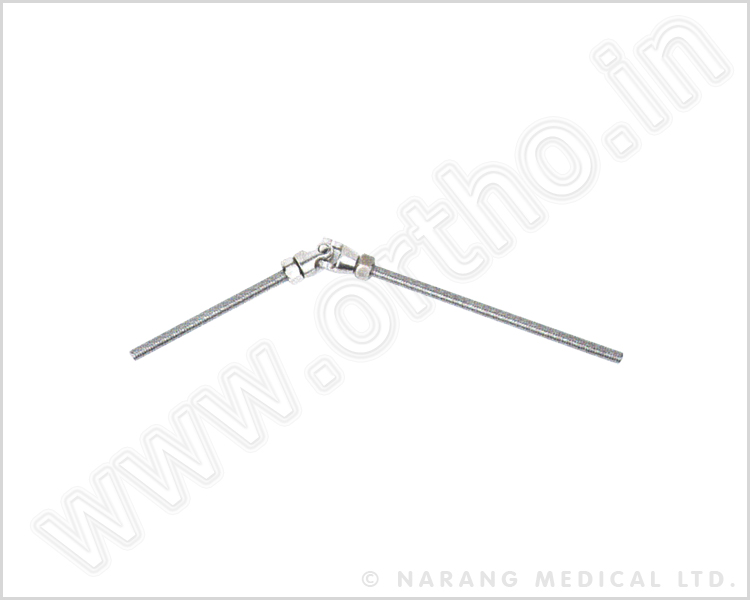

Universal Joint

Code No. Q.7815
Universal Joint
Click to Zoom
Top

Single Joint- A

Code No. Q.7814-A
Single Joint- A
Click to Zoom
Top

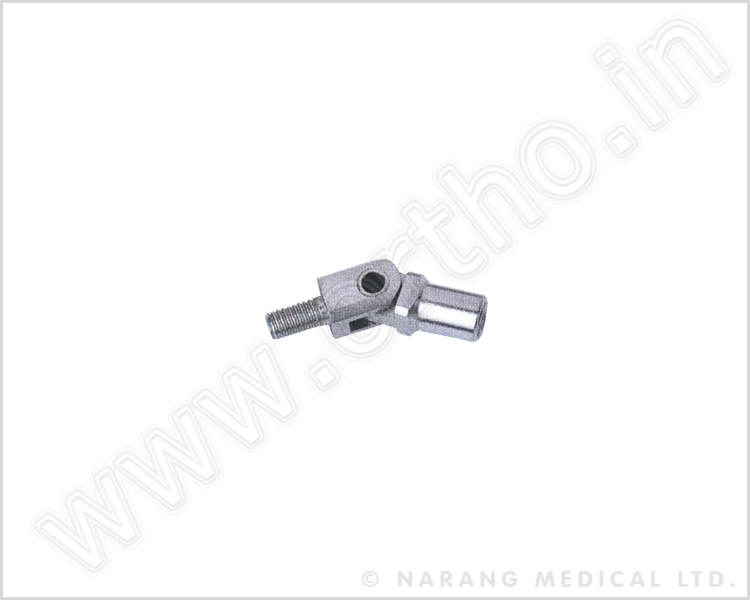

Single Joint - B

Code No. Q.7814-B
Single Joint - B
Click to Zoom
Top

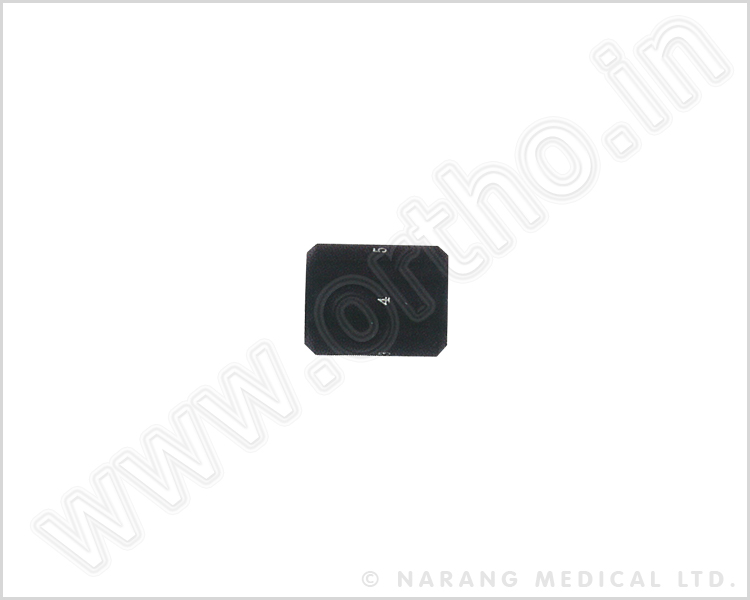

Adjusting nut

Code No. Q.7813
Adjusting nut
Click to Zoom
Top
Ilizarov External Fixation System : 1    2   3
