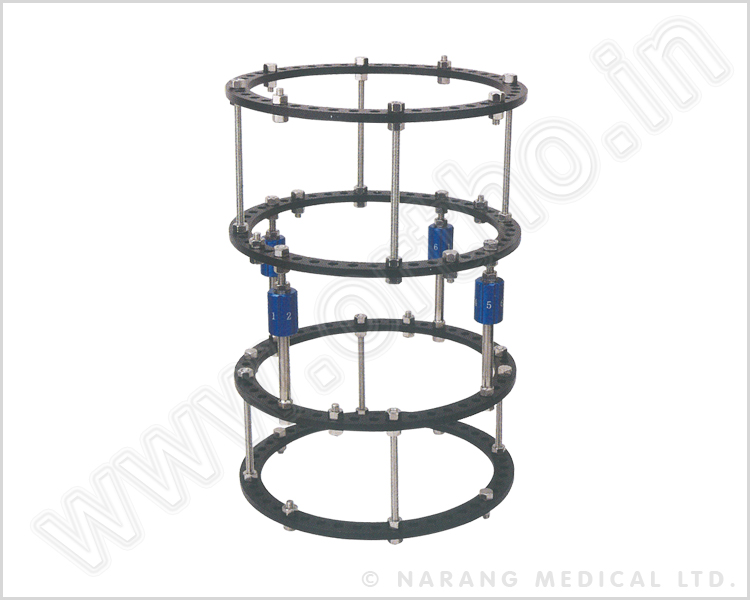

| Description | Units |
| *Rings Ø80 - Ø220mm (Any 4 sizes) | 4 |
| **Inner Threaded Connecting Rod 80/120mm | 4 |
| Threaded Rod 120mm | 4 |
| Threaded Rod 150mm | 4 |
| **Pin Clamp Ø4, Ø5mm (Any Size) | 16 |
| (used for Tibia, Femur) | |

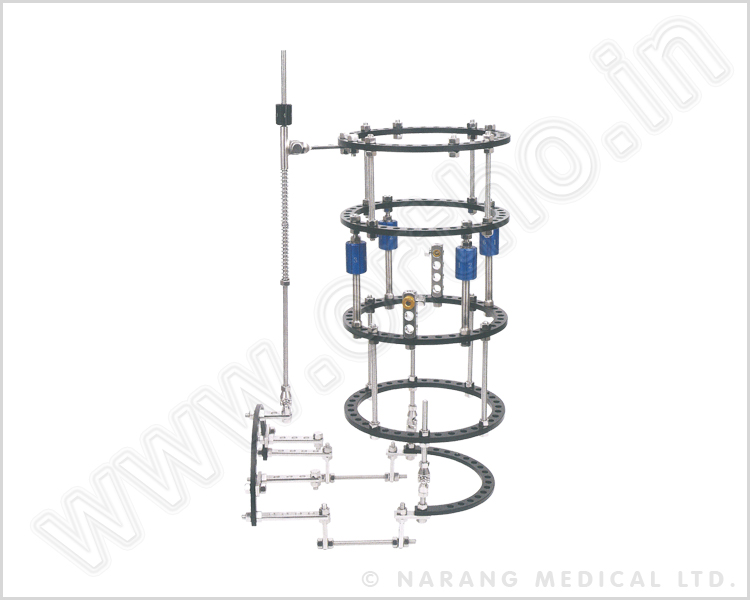

| Description. | Units |
| *Rings Ø80 - Ø220mm (Any 4 sizes) | 4 |
| *Half Rings Ø80 - Ø220mm (Any 2 sizes) | 2 |
| Annular Diagonal Tie | 1 |
| Inner Threaded Connecting Rod 80mm/120mm | 4 |
| Universal Joint | 2 |
| Threaded Column 1, 2, 3, 4, 5, 6, 7, 8 H | 7 |
| **Cross Connecting Plate 2, 3, 4, 5, 6, 7, 8 H | 1 |
| **Connecting Plate 2, 3, 4, 5, 6, 7, 8 H | 2 |
| **Threaded Rod 120, 150mm | 12 |
| *Pin Clamp Ø4, Ø5mm (Any Size) | 24 |
| (used for Humeral & Tibial lateral epicondyle) | |

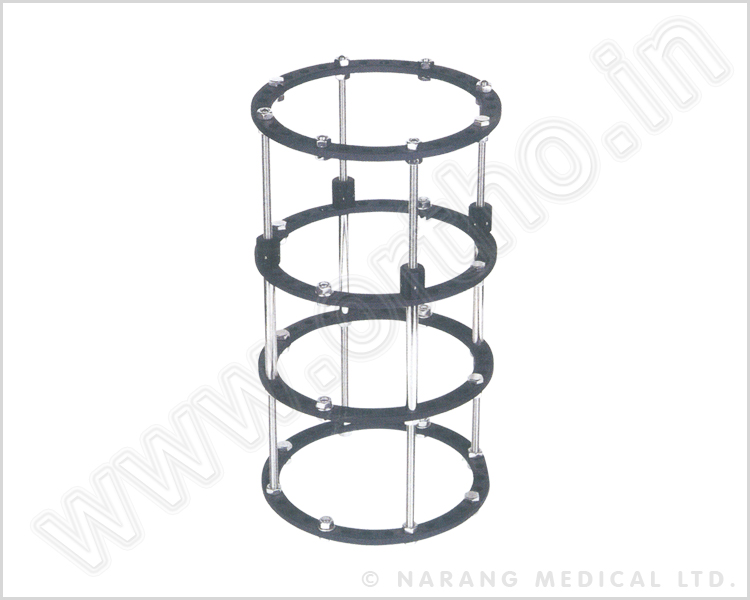

| Description | Units |
| *Rings Ø80 - Ø220mm (Any 4 sizes) | 4 |
| Threaded Rod 400mm | 4 |
| Adjusting Nut | 4 |
| **Pin Clamp Ø4, Ø5mm (Any Size) | 16 |
| (Used for Tibia & Femur) | |

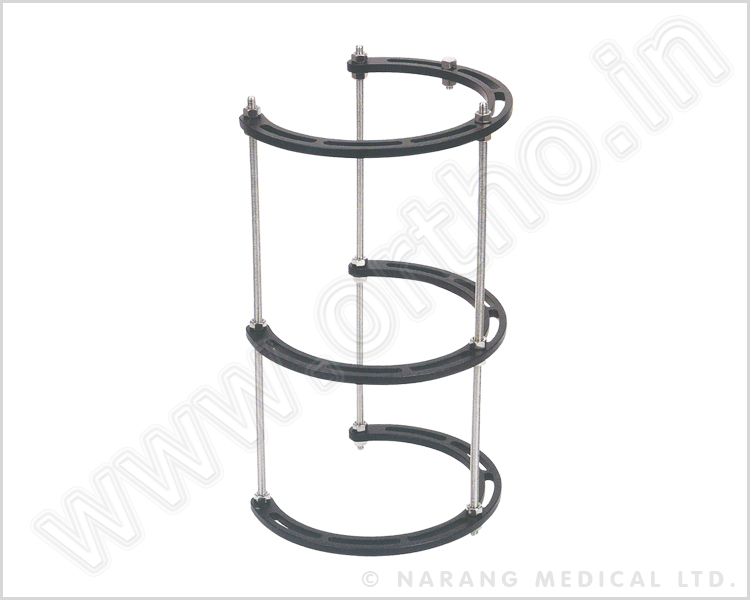

| Description | Units |
| * 2/3 Rings Ø80 - Ø220mm (Any 3 sizes) | 3 |
| Threaded Rod 400mm | 3 |
| **Pin Clamp Ø4, Ø5mm (Any Size) | 12 |
| (used for Tibia, Femur) |
| Description | Units |
| *Rings Ø80 - Ø220mm (Any 2 sizes) | 2 |
| **Foot Ring (Any Size S/M/L) | 1 |
| **L Connecting Plate 5, 6, 7, 8, 9, 10, 11, 12 H | 2 |
| **Half Ring Ø80 - Ø220mm (Any size) | 1 |
| Annular Diagonal Tie | 1 |
| Single Joint -A - B | 2 |
| Threaded Rod 200mm | 3 |
| **Pin Clamp Ø4, Ø5mm (Any Size) | 14 |
| (used for Equinus) | |
| Description | Units |
| *Half Rings Ø80 - Ø220mm (Any 4 sizes) | 6 |
| Threaded Rod 300mm | 3 |
| M6x20 thread | 6 |
| M6x20 Nut | 6 |
| **Pin Clamp Ø4, Ø5mm (Any Size) | 12 |
| (used for Tibia, Femur) | |
