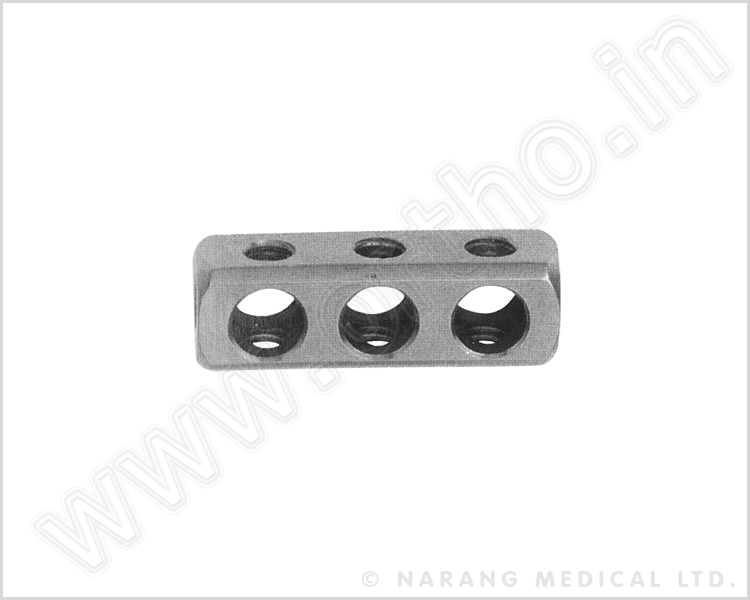

Post with 4 Edges, SS
| Code No. |
Sizes |
| Q.781601 to Q.781606 |
1, 2, 3, 4, 5, 6 Holes |
Click to Zoom

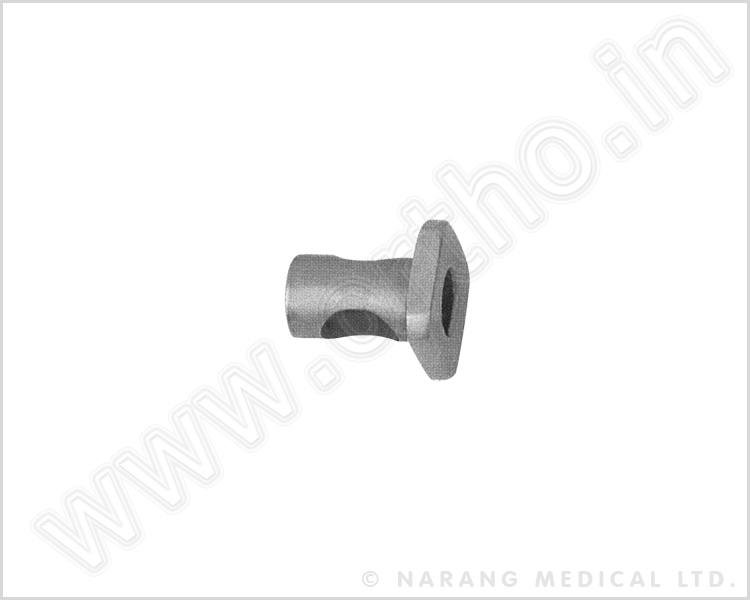

Bush, Aluminum
| Code No. |
Sizes |
| Q.781704 to Q.781706 |
Ø4, Ø5, Ø6 |
Click to Zoom

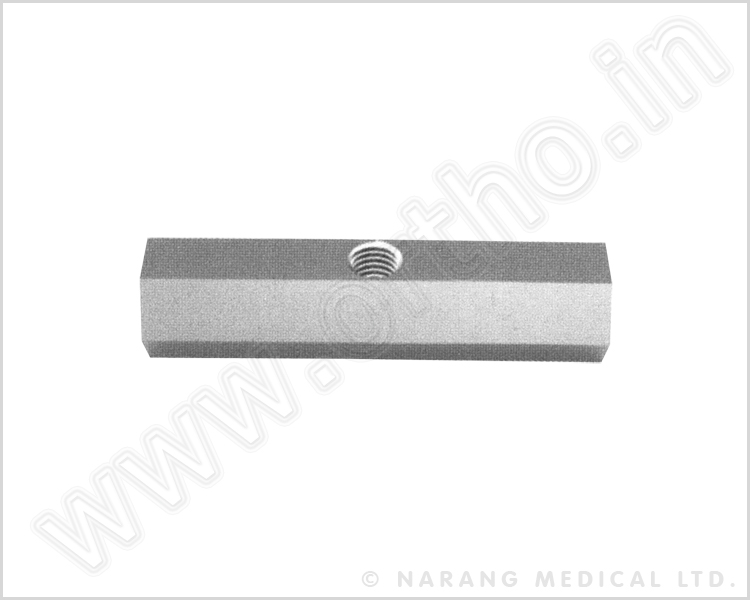

Post with 6 Edges, SS
Click to Zoom
Pin to Ring Coupling, SS
| Code No. |
Size |
| Q.781915, Q.781920, Q.781930 |
Ø1.5, Ø2, Ø3 |
Click to Zoom

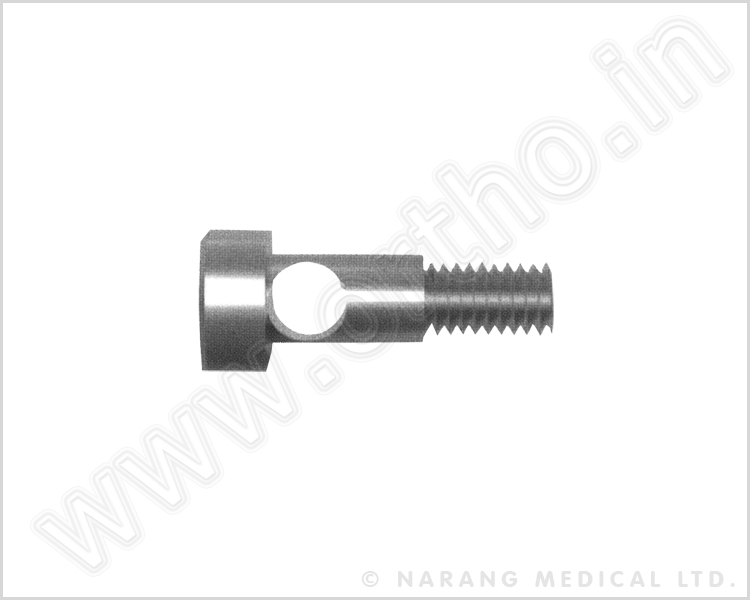

Pin to Post Coupling, SS
| Code No. |
Size |
| Q.782004, Q.782005 |
Ø4, Ø5 |
Click to Zoom

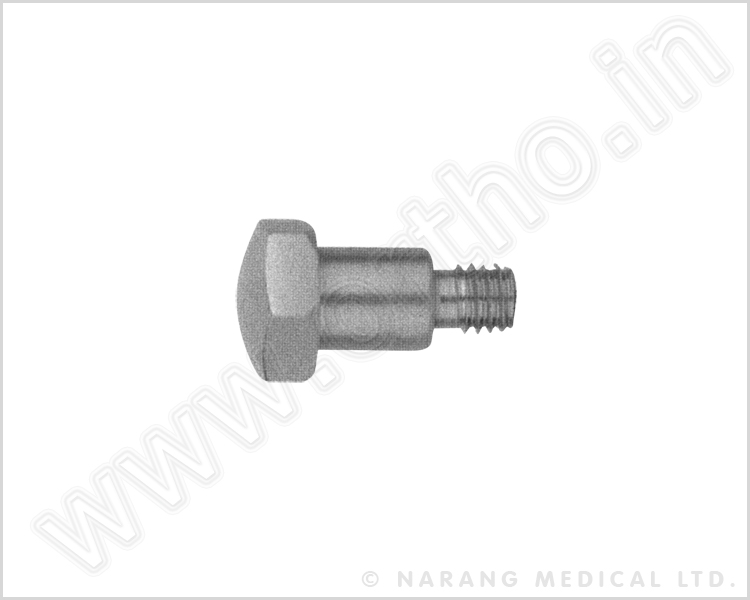

Rod to Ring Bolt, SS
Click to Zoom

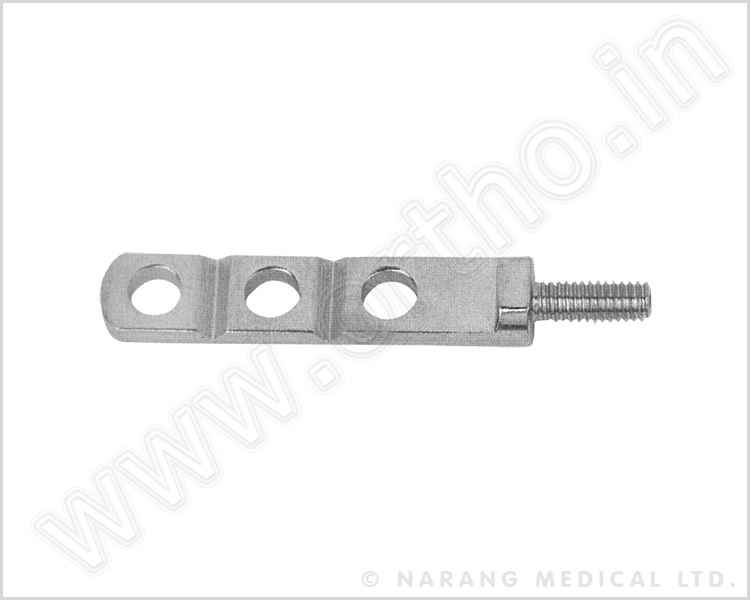

Threaded Column, SS
| Codes |
Sizes |
| Q.782201 to Q.782208 |
1, 2, 3, 4, 5, 6, 7, 8 Holes |
Click to Zoom

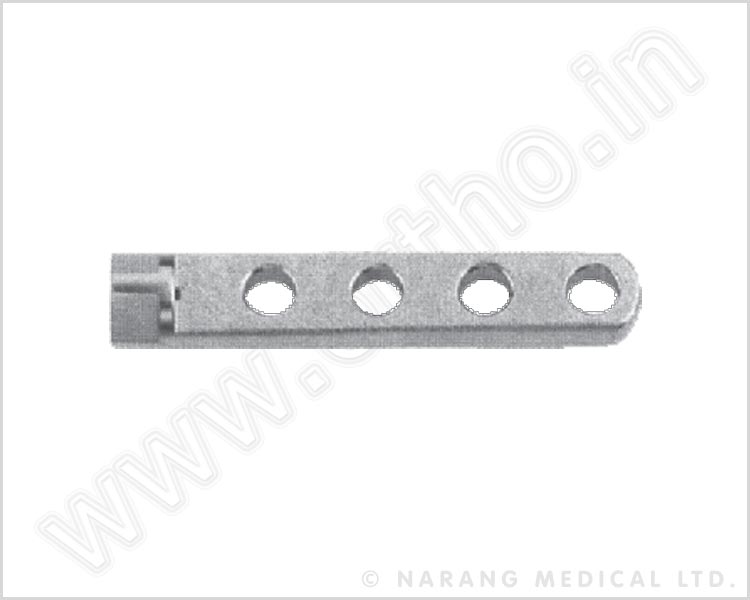

Nut Column, SS
| Code No. |
Sizes |
| Q.782301 to 782308 |
1, 2, 3, 4, 5, 6, 7, 8 Holes |
Click to Zoom

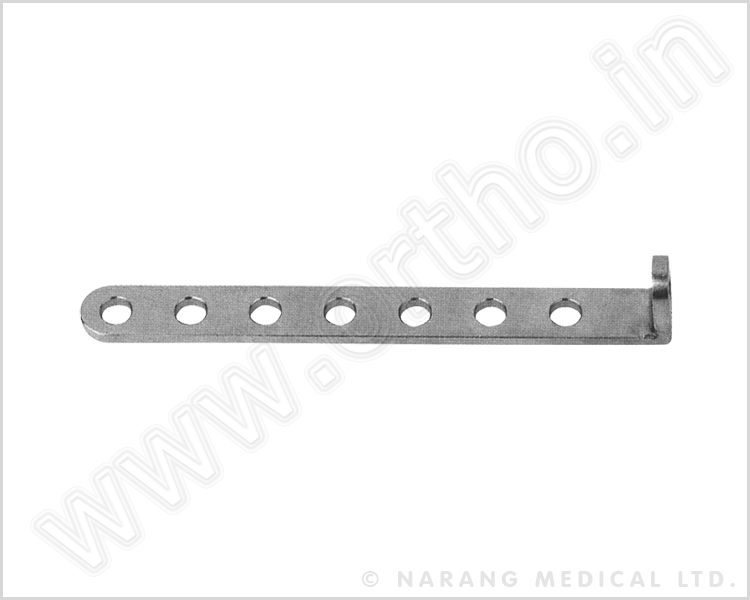

L Connecting Plate, SS
| Code No. |
Sizes |
| Q.782405 to Q.782412 |
5, 6, 7, 8, 9, 10, 11, 12 Holes |
Click to Zoom

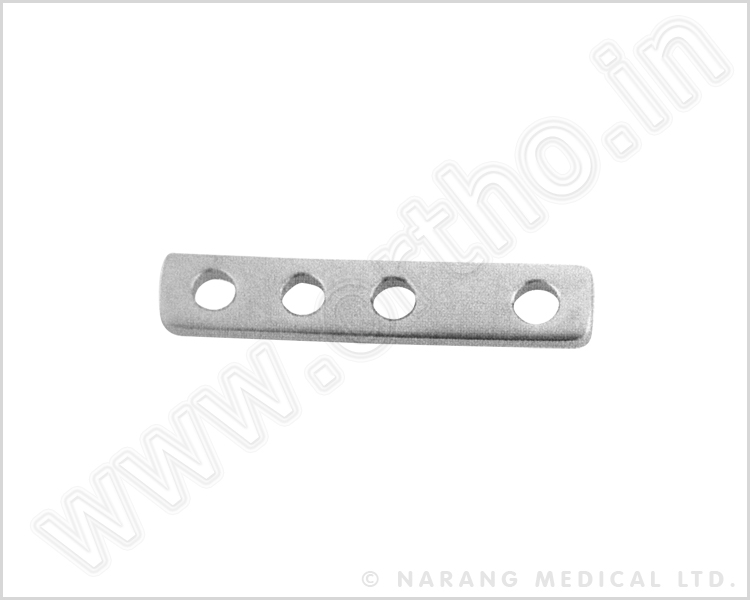

Connecting Plate, SS
| Code No. |
Sizes |
| Q.782502 to Q.782508 |
2, 3, 4, 5, 6, 7, 8 Holes |
Click to Zoom

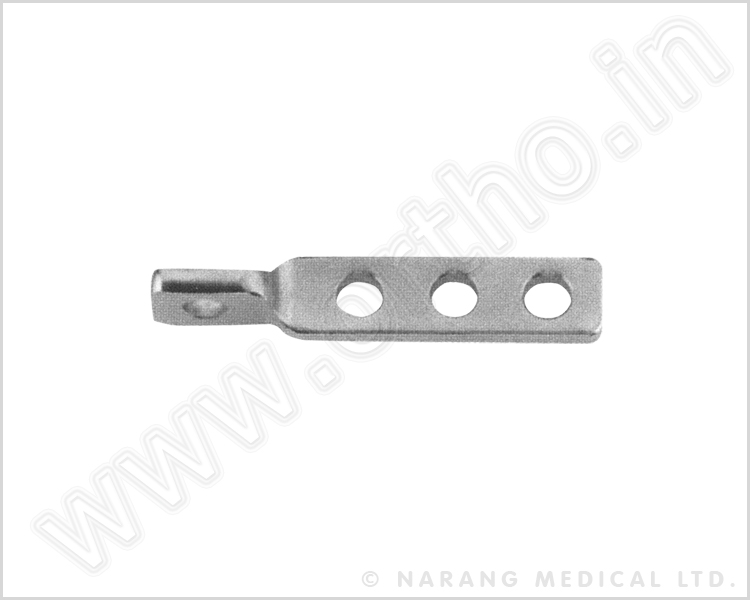

Cross Connecting Plate, SS
| Code No. |
|
| Q.782602 to Q.782608 |
2, 3, 4, 5, 6, 7, 8 Holes |
Click to Zoom
Inner Threaded Connecting Rod, SS
| Code No. |
Sizes |
| Q.7832, Q.7833 |
80mm, 120mm |
Click to Zoom
Pin Clamp, SS
| Code No. |
Sizes |
| Q.782804, Q.782805 |
Ø4, 5mm |
Click to Zoom

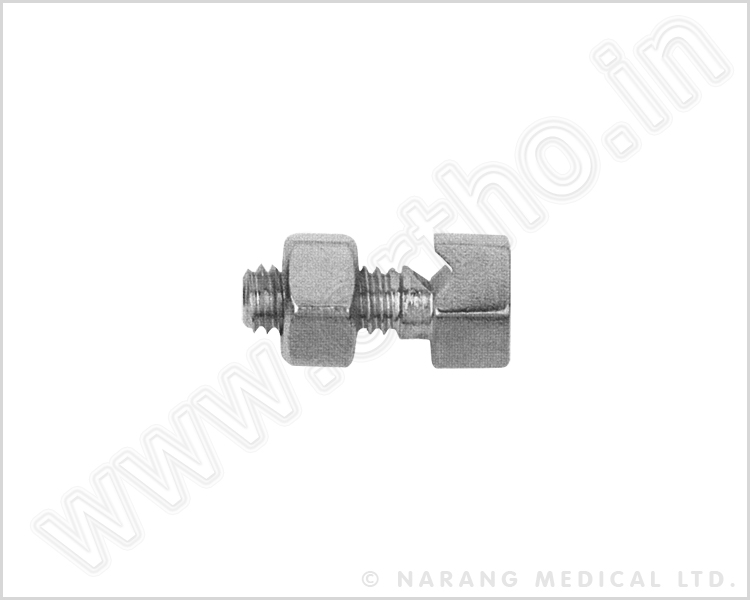

Pin Clamp(Thickening), SS
| Code No. |
Sizes |
| Q.782915, Q.782920 |
Ø1.5-2, Ø2-3mm |
Click to Zoom

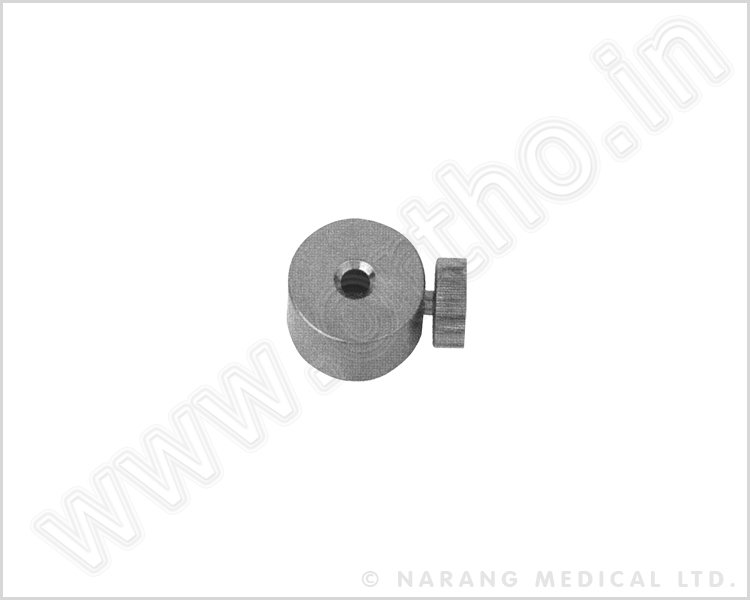

Drill Bit stop Unit, SS
Click to Zoom

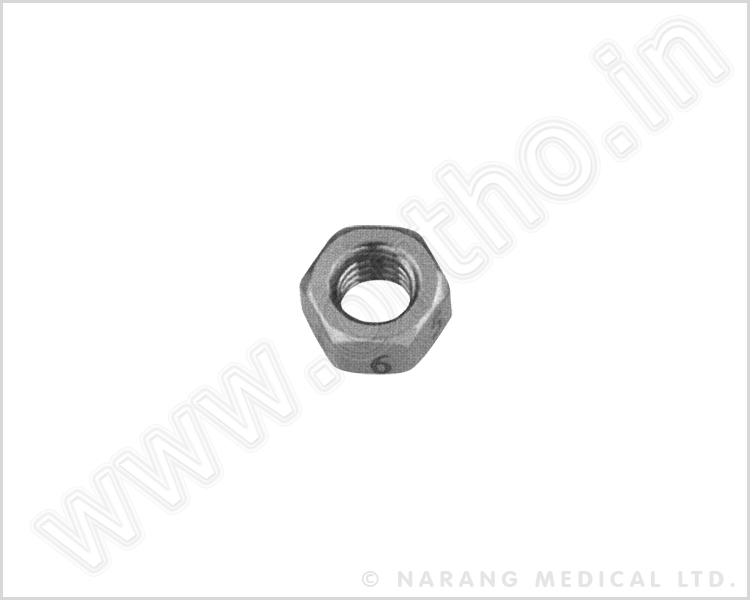

Hex Nut M6 (Thickening), SS
Click to Zoom

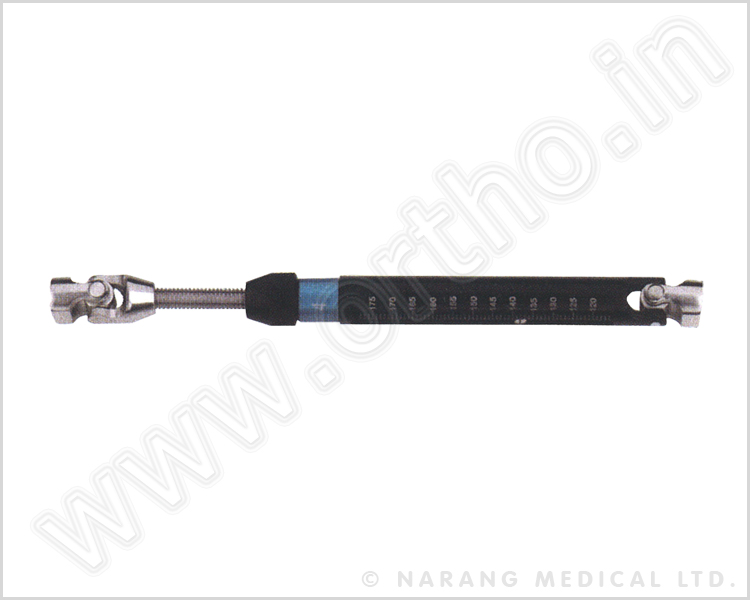

Standard Rod
| Code No. |
Sizes |
| Q.780701 to Q.780703 |
Short, Standard, Long |
Click to Zoom

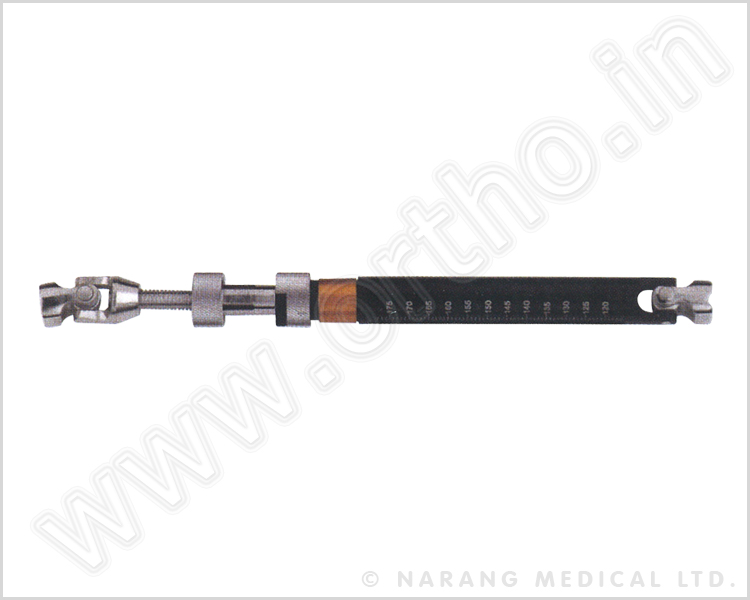

Packaged Rod
| Code No. |
Sizes |
| Q.780801 to Q.780803 |
Short, Standard, Long |
Click to Zoom

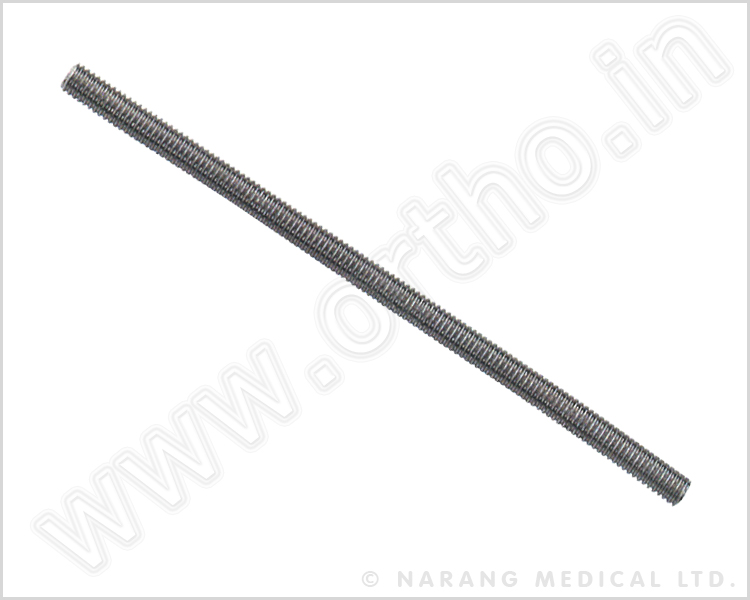

Threaded Rod
| Code No. |
Sizes |
| Q.780912, Q.780915 |
120, 150mm |
Click to Zoom
|
| Ilizarov External Fixation System : 1
2 3 |
|
