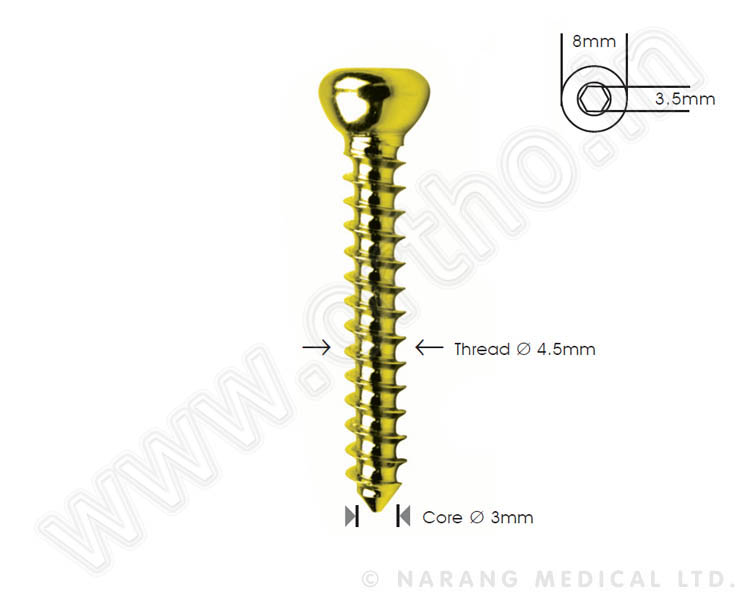

Cortex Screw Ø 4.5mm
- Cortex Screw Ø 4.5mm. These screws are used for interfragmental compression with large fragment bone plates and are used in hard cortical bones.
- Larger core dia of the screw provides strength and spherical under-surface of the head facilitates compression.
- Drill Bit : 3.2mm
Click to Zoom
Length in mm |
Code |
Stainless Steel |
Titanium |
12 |
106.012 |
Ti-106.012 |
14 |
106.014 |
Ti-106.014 |
16 |
106.016 |
Ti-106.016 |
18 |
106.018 |
Ti-106.018 |
20 |
106.020 |
Ti-106.020 |
22 |
106.022 |
Ti-106.022 |
24 |
106.024 |
Ti-106.024 |
26 |
106.026 |
Ti-106.026 |
28 |
106.028 |
Ti-106.028 |
30 |
106.030 |
Ti-106.030 |
32 |
106.032 |
Ti-106.032 |
34 |
106.034 |
Ti-106.034 |
36 |
106.036 |
Ti-106.036 |
38 |
106.038 |
Ti-106.038 |
40 |
106.040 |
Ti-106.040 |
42 |
106.042 |
Ti-106.042 |
44 |
106.044 |
Ti-106.044 |
46 |
106.046 |
Ti-106.046 |
48 |
106.048 |
Ti-106.048 |
50 |
106.050 |
Ti-106.050 |
52 |
106.052 |
Ti-106.052 |
54 |
106.054 |
Ti-106.054 |
56 |
106.056 |
Ti-106.056 |
58 |
106.058 |
Ti-106.058 |
60 |
106.060 |
Ti-106.060 |
62 |
106.062 |
Ti-106.062 |
64 |
106.064 |
Ti-106.064 |
66 |
106.066 |
Ti-106.066 |
68 |
106.068 |
Ti-106.068 |
70 |
106.070 |
Ti-106.070 |
72 |
106.072 |
Ti-106.072 |
74 |
106.074 |
Ti-106.074 |
76 |
106.076 |
Ti-106.076 |
78 |
106.078 |
Ti-106.078 |
80 |
106.080 |
Ti-106.080 |

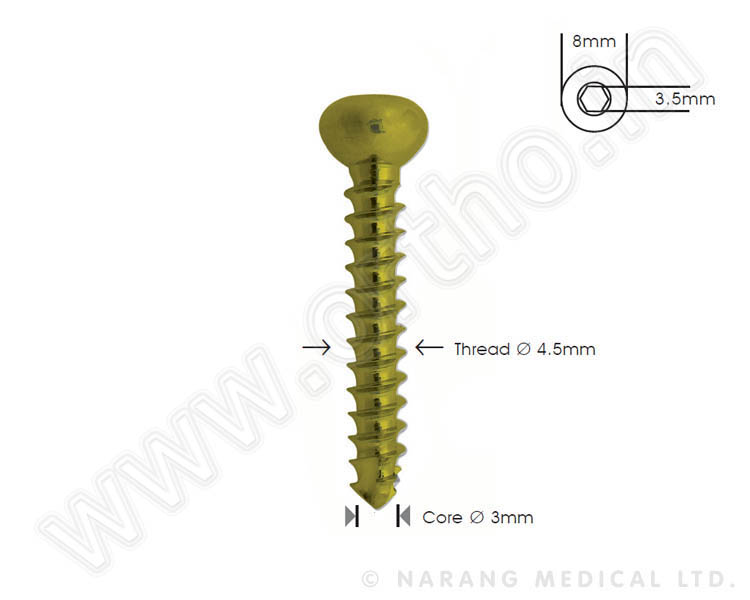

Cortex Screw Ø 4.5mm - Self Tapping
- Cortex Screw Φ 4.5mm - Self Tapping used in the cortical regions of the bone with large fragment plates.
- Larger core dia of the screw provides strength and spherical under surface for better compression.
- Self Tapping feature eliminates the use of bone tap.
- Drill Bit : 3.2mm
Click to Zoom
Length in mm |
Code |
Stainless Steel |
Titanium |
12 |
106.212 |
Ti-106.212 |
14 |
106.214 |
Ti-106.214 |
16 |
106.216 |
Ti-106.216 |
18 |
106.218 |
Ti-106.218 |
20 |
106.220 |
Ti-106.220 |
22 |
106.222 |
Ti-106.222 |
24 |
106.224 |
Ti-106.224 |
26 |
106.226 |
Ti-106.226 |
28 |
106.228 |
Ti-106.228 |
30 |
106.230 |
Ti-106.230 |
32 |
106.232 |
Ti-106.232 |
34 |
106.234 |
Ti-106.234 |
36 |
106.236 |
Ti-106.236 |
38 |
106.238 |
Ti-106.238 |
40 |
106.240 |
Ti-106.240 |
42 |
106.242 |
Ti-106.242 |
44 |
106.244 |
Ti-106.244 |
46 |
106.246 |
Ti-106.246 |
48 |
106.248 |
Ti-106.248 |
50 |
106.250 |
Ti-106.250 |
52 |
106.252 |
Ti-106.252 |
54 |
106.254 |
Ti-106.254 |
56 |
106.256 |
Ti-106.256 |
58 |
106.258 |
Ti-106.258 |
60 |
106.260 |
Ti-106.260 |
62 |
106.262 |
Ti-106.262 |
64 |
106.264 |
Ti-106.264 |
66 |
106.266 |
Ti-106.266 |
68 |
106.268 |
Ti-106.268 |
70 |
106.270 |
Ti-106.270 |
72 |
106.272 |
Ti-106.272 |
74 |
106.274 |
Ti-106.274 |
76 |
106.276 |
Ti-106.276 |
78 |
106.278 |
Ti-106.278 |
80 |
106.280 |
Ti-106.280 |

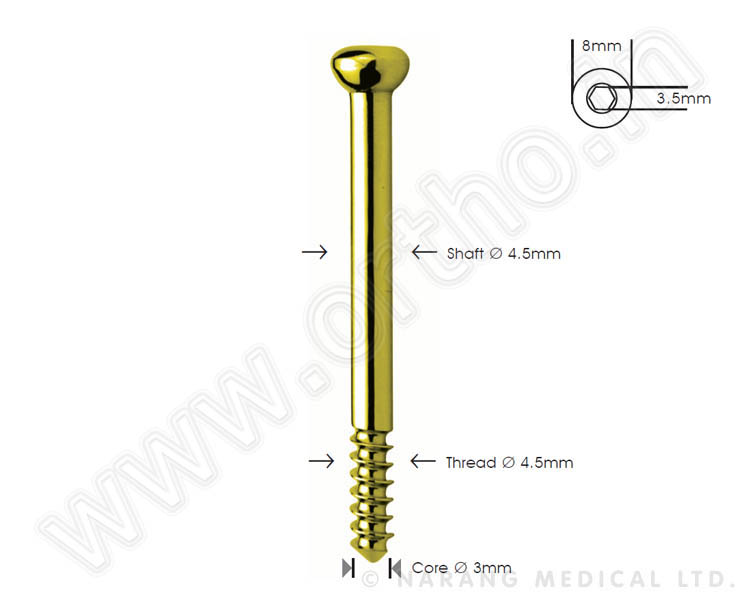

Shaft Screw Ø 4.5mm
Drill Bit : 3.2mm
Drill Bit for Gliding Hole: 4.5mm
For LCDCP Plates
Click to Zoom
Length in mm |
Code |
Thread Length in mm |
Stainless Steel |
Titanium |
22 |
12 |
114.022 |
Ti-114.022 |
24 |
12 |
114.024 |
Ti-114.024 |
26 |
12 |
114.026 |
Ti-114.026 |
28 |
12 |
114.028 |
Ti-114.028 |
30 |
12 |
114.030 |
Ti-114.030 |
32 |
12 |
114.032 |
Ti-114.032 |
34 |
12 |
114.034 |
Ti-114.034 |
36 |
12 |
114.036 |
Ti-114.036 |
38 |
12 |
114.038 |
Ti-114.038 |
40 |
12 |
114.040 |
Ti-114.040 |
42 |
12 |
114.042 |
Ti-114.042 |
44 |
12 |
114.044 |
Ti-114.044 |
46 |
12 |
114.046 |
Ti-114.046 |
48 |
12 |
114.048 |
Ti-114.048 |
50 |
12 |
114.050 |
Ti-114.050 |
55 |
15 |
114.055 |
Ti-114.055 |
60 |
15 |
114.060 |
Ti-114.060 |
65 |
18 |
114.065 |
Ti-114.065 |
70 |
18 |
114.070 |
Ti-114.070 |
75 |
18 |
114.075 |
Ti-114.075 |
80 |
18 |
114.080 |
Ti-114.080 |
85 |
22 |
114.085 |
Ti-114.085 |
90 |
22 |
114.090 |
Ti-114.090 |
95 |
26 |
114.095 |
Ti-114.095 |
100 |
26 |
114.100 |
Ti-114.100 |

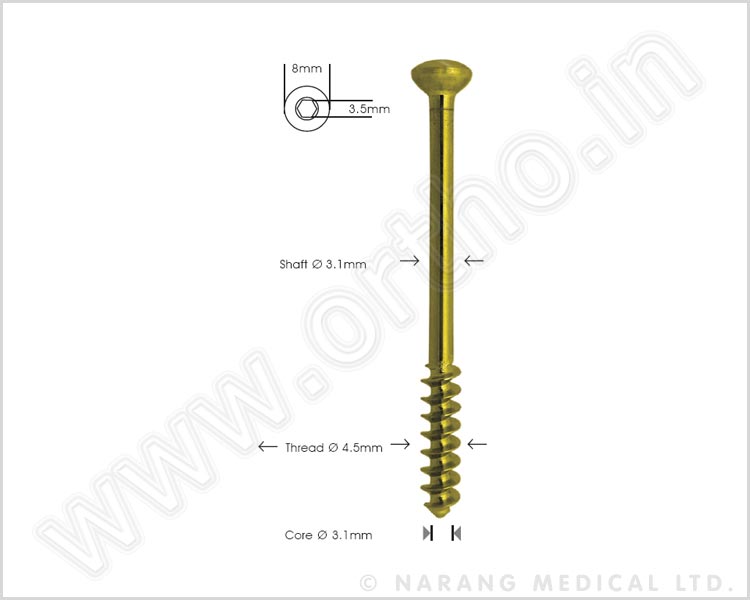

Cancellous Bone Screw Ø 4.5mm Short Thread
Click to Zoom
Length in mm |
Code |
Stainless Steel |
Titanium |
40 |
106.640 |
Ti-106.640 |
45 |
106.645 |
Ti-106.645 |
50 |
106.650 |
Ti-106.650 |
55 |
106.655 |
Ti-106.655 |
60 |
106.660 |
Ti-106.660 |
65 |
106.665 |
Ti-106.665 |
70 |
106.670 |
Ti-106.670 |
75 |
106.675 |
Ti-106.675 |
80 |
106.680 |
Ti-106.680 |
85 |
106.685 |
Ti-106.685 |
90 |
106.690 |
Ti-106.690 |
95 |
106.695 |
Ti-106.695 |
100 |
106.700 |
Ti-106.700 |
105 |
106.705 |
Ti-106.705 |
110 |
106.710 |
Ti-106.710 |
115 |
106.715 |
Ti-106.715 |
120 |
106.720 |
Ti-106.720 |

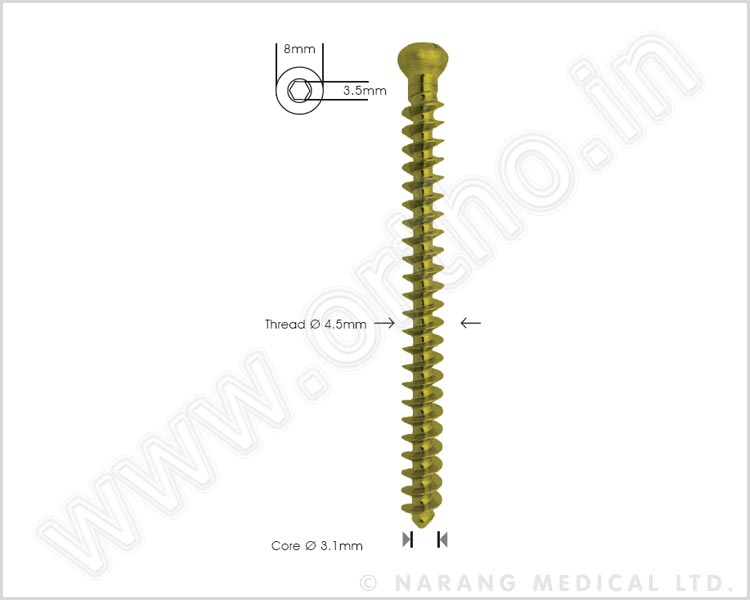

Cancellous Bone Screw Ø 4.5mm Full Thread
Click to Zoom
Length in mm |
Code |
Stainless Steel |
Titanium |
40 |
106.840 |
Ti-106.840 |
45 |
106.845 |
Ti-106.845 |
50 |
106.850 |
Ti-106.850 |
55 |
106.855 |
Ti-106.855 |
60 |
106.860 |
Ti-106.860 |
65 |
106.865 |
Ti-106.865 |
70 |
106.870 |
Ti-106.870 |
75 |
106.875 |
Ti-106.875 |
80 |
106.880 |
Ti-106.880 |
85 |
106.885 |
Ti-106.885 |
90 |
106.890 |
Ti-106.890 |
95 |
106.895 |
Ti-106.895 |
100 |
106.900 |
Ti-106.900 |
105 |
106.905 |
Ti-106.905 |
110 |
106.910 |
Ti-106.910 |
115 |
106.915 |
Ti-106.915 |
120 |
106.920 |
Ti-106.920 |

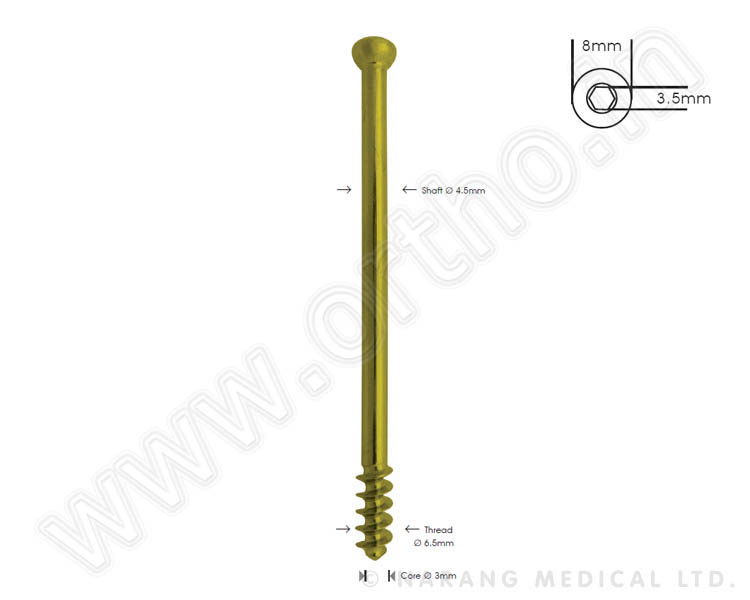

Cancellous Bone Screw Ø 6.5mm, 16mm Thread
- 6.5mm Cancellous Bone Screw 16mm. Cancellous screws are widely used for fastening devices into metaphyseal and epiphyseal areas of bones. These have deeply cut and widely spaced threads to enhance the holding power of the screw in soft bones.
- The deep buttress thread enhance pull-out resistance in soft cancellous bone.
- Drill Bit : 3.2mm
- Drill Bit for Gliding Hole: 4.5mm
Click to Zoom
Length in mm |
Code |
Stainless Steel |
Titanium |
25 |
108.025 |
Ti-108.025 |
30 |
108.030 |
Ti-108.030 |
35 |
108.035 |
Ti-108.035 |
40 |
108.040 |
Ti-108.040 |
45 |
108.045 |
Ti-108.045 |
50 |
108.050 |
Ti-108.050 |
55 |
108.055 |
Ti-108.055 |
60 |
108.060 |
Ti-108.060 |
65 |
108.065 |
Ti-108.065 |
70 |
108.070 |
Ti-108.070 |
75 |
108.075 |
Ti-108.075 |
80 |
108.080 |
Ti-108.080 |
85 |
108.085 |
Ti-108.085 |
90 |
108.090 |
Ti-108.090 |
95 |
108.095 |
Ti-108.095 |
100 |
108.100 |
Ti-108.100 |
105 |
108.105 |
Ti-108.105 |
110 |
108.110 |
Ti-108.110 |
115 |
108.115 |
Ti-108.115 |
120 |
108.120 |
Ti-108.120 |

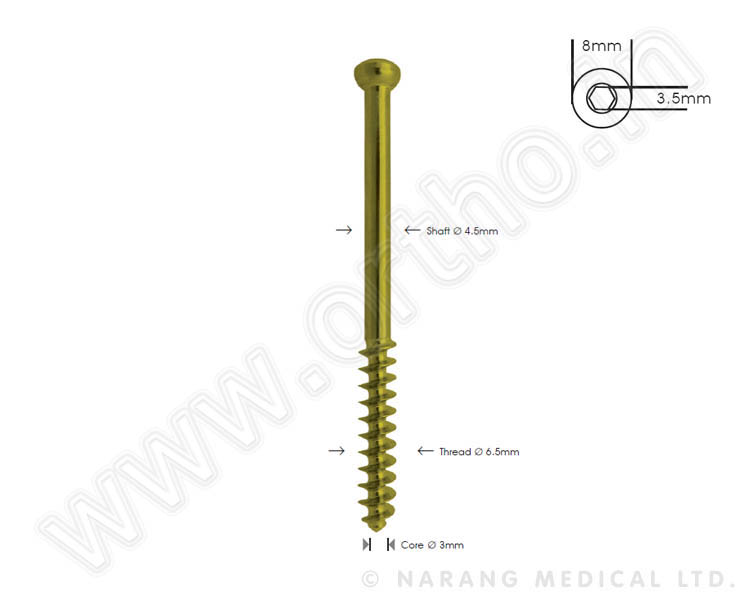

Cancellous Bone Screw Ø 6.5mm, 32mm Thread
- 6.5mm Cancellous Bone Screw 16mm. Cancellous screws are widely used for fastening devices into metaphyseal and epiphyseal areas of bones. These have deeply cut and widely spaced threads to enhance the holding power of the screw in soft bones.
- The deep buttress thread enhance pull-out resistance in soft cancellous bone.
- Drill Bit : 3.2mm
Click to Zoom
Length in mm |
Code |
Stainless Steel |
Titanium |
40 |
109.040 |
Ti-109.040 |
45 |
109.045 |
Ti-109.045 |
50 |
109.050 |
Ti-109.050 |
55 |
109.055 |
Ti-109.055 |
60 |
109.060 |
Ti-109.060 |
65 |
109.065 |
Ti-109.065 |
70 |
109.070 |
Ti-109.070 |
75 |
109.075 |
Ti-109.075 |
80 |
109.080 |
Ti-109.080 |
85 |
109.085 |
Ti-109.085 |
90 |
109.090 |
Ti-109.090 |
95 |
109.095 |
Ti-109.095 |
100 |
109.100 |
Ti-109.100 |
105 |
109.105 |
Ti-109.105 |
110 |
109.110 |
Ti-109.110 |
115 |
109.115 |
Ti-109.115 |
120 |
109.120 |
Ti-109.120 |

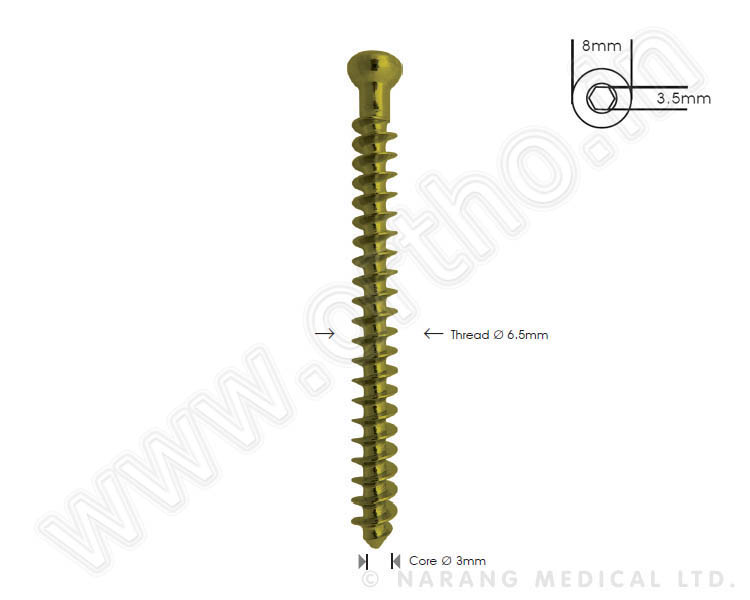

Cancellous Bone Screw Ø 6.5mm, Fully Thread
- 6.5mm Cancellous Bone Screw 16mm. Cancellous screws are widely used for fastening devices into metaphyseal and epiphyseal areas of bones. These have deeply cut and widely spaced threads to enhance the holding power of the screw in soft bones.
- The deep buttress thread enhance pull-out resistance in soft cancellous bone.
- Drill Bit : 3.2mm
Click to Zoom
Length in mm |
Code |
Stainless Steel |
Titanium |
25 |
110.025 |
Ti-110.025 |
30 |
110.030 |
Ti-110.030 |
35 |
110.035 |
Ti-110.035 |
40 |
110.040 |
Ti-110.040 |
45 |
110.045 |
Ti-110.045 |
50 |
110.050 |
Ti-110.050 |
55 |
110.055 |
Ti-110.055 |
60 |
110.060 |
Ti-110.060 |
65 |
110.065 |
Ti-110.065 |
70 |
110.070 |
Ti-110.070 |
75 |
110.075 |
Ti-110.075 |
80 |
110.080 |
Ti-110.080 |
85 |
110.085 |
Ti-110.085 |
90 |
110.090 |
Ti-110.090 |
95 |
110.095 |
Ti-110.095 |
100 |
110.100 |
Ti-110.100 |
105 |
110.105 |
Ti-110.105 |
110 |
110.110 |
Ti-110.110 |
115 |
110.115 |
Ti-110.115 |
120 |
110.120 |
Ti-110.120 |
