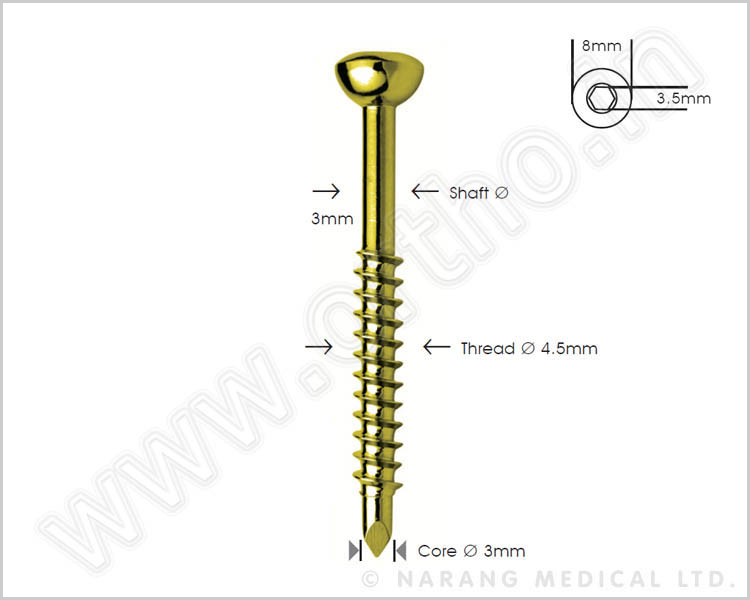

Malleolar Screw Ø 4.5mm

Malleolar Screw Ø 4.5mm. Malleolar screws are used for the fixation of large fragments in cancellous bone.

Malleolar Screw Ø 4.5mm

Click to Zoom

Total Length in mm	Thread Length in mm	Code
Total Length in mm	Thread Length in mm	Stainless Steel	Titanium
25	12	107.025	Ti-107.025
30	15	107.030	Ti-107.030
35	18	107.035	Ti-107.035
40	20	107.040	Ti-107.040
45	22	107.045	Ti-107.045
50	24	107.050	Ti-107.050
55	26	107.055	Ti-107.055
60	28	107.060	Ti-107.060
65	30	107.065	Ti-107.065
70	32	107.070	Ti-107.070
75	34	107.075	Ti-107.075
80	36	107.080	Ti-107.080
85	38	107.085	Ti-107.085
90	40	107.090	Ti-107.090
95	42	107.095	Ti-107.095
100	44	107.100	Ti-107.100

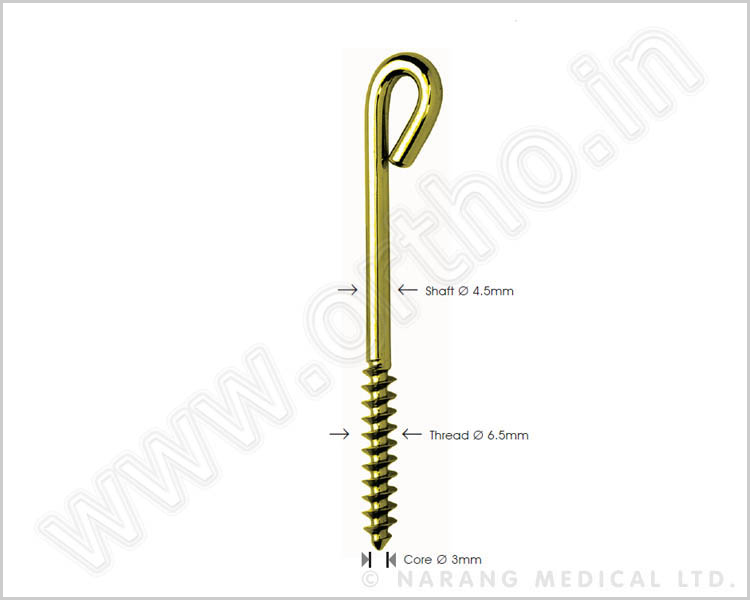

Cancellous Traction Screw Ø 6.5mm

Cancellous Traction Screw, 6.5mm Cancellous Traction Screws are use in traction process to align the distal fragment to the proximal fragment. There is a bend provided on top for holding traction wire.

Cancellous Traction Screw Ø 6.5mm

Click to Zoom

Length in mm	Code
Length in mm	Stainless Steel	Titanium
45	110.245	Ti-110.245
50	110.250	Ti-110.250
55	110.255	Ti-110.255
60	110.260	Ti-110.260
65	110.265	Ti-110.265
70	110.270	Ti-110.270
75	110.275	Ti-110.275
80	110.280	Ti-110.280
85	110.285	Ti-110.285
90	110.290	Ti-110.290
95	110.295	Ti-110.295
100	110.300	Ti-110.300
105	110.305	Ti-110.305
110	110.310	Ti-110.310
115	110.315	Ti-110.315
120	110.320	Ti-110.320
125	110.325	Ti-110.325
130	110.330	Ti-110.330
135	110.335	Ti-110.335

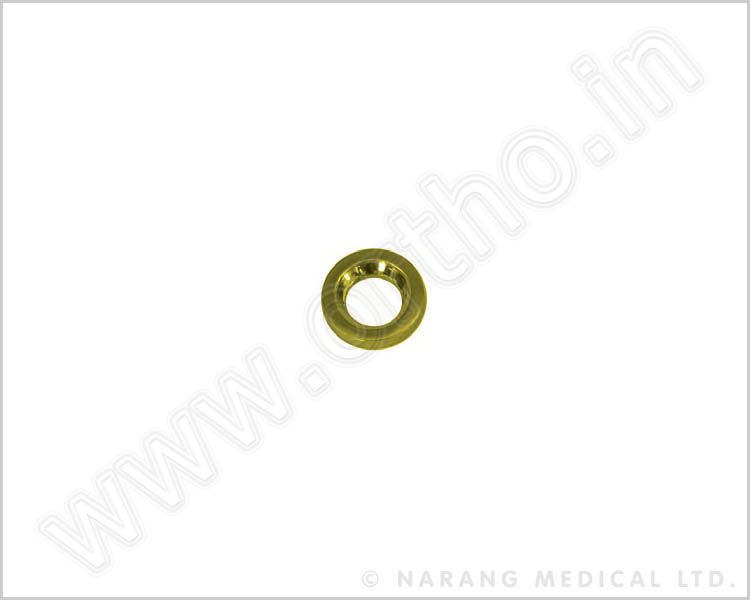

Washer

Washer for 4.5 to 7.0mm Screws. Washers are indicated for use with 4.5 mm to 7.0 mm large screws and are required when screw head is to fix upon large surfacces.

Code
Stainless Steel	Titanium
115.020 - for 4.5 to 7.0mm Screws	Ti-115.020 - for 4.5 to 7.0mm Screws
115.035 - for 7.0mm Cancellous Screws	Ti-115.035 - for 7.0mm Cancellous Screws

Washer for 4.5 to 7.0mm Screws

Click to Zoom

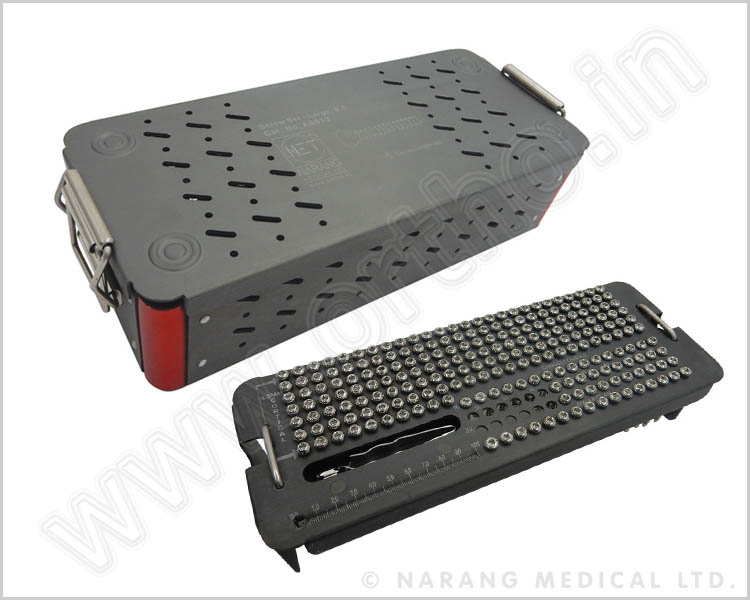

AS013 Large Fragment Screws Set, S.S.

Set Consisting of :			Units
	Cortex Screw Ø 4.5mm, Self-Tapping
	7 each of 14, 16, 18, 20, 22, 24mm		42
	14 each of 26, 28mm		28
	12 each of 30, 32, 34, 36, 38mm		60
	6 each of 40, 42, 44, 46, 48, 50mm		36
	Cancellous Bone Screw ∅ 6.5mm, 16mm thread
	2 each of 25, 30, 35, 40, 45, 50, 55, 60mm		16
	3 each of 65, 70, 75, 80, 85, 90, 95mm		21
	2 each of 100, 105, 110mm		6
	Cancellous Bone Screw Ø 6.5mm, 32mm thread
	4 each of 40, 45, 50, 55, 60mm		20
	4each of 65, 70, 75, 80, 85, 90mm		24
	Malleolar Screw Ø 4.5mm
	2 each of 25, 30, 35, 40, 45, 50, 55, 60mm		16
	Large Washers		12
	Screw Holding Forceps		1
	Empty Container (900.033)

Large Fragments Screws Set, S.S.

Click to Zoom
