Q.4010Mini-Fixator (Finger & Palm) - A
| Description |
Units |
| Metacarpal bone scaffold |
1 |
| Standard Schanz Screws Ø2x50 |
4 |
| Hex Wrench 3mm |
1 |
| Screw Driver Ø2mm |
1 |
| (used for Fingers) |
|
Click to Zoom

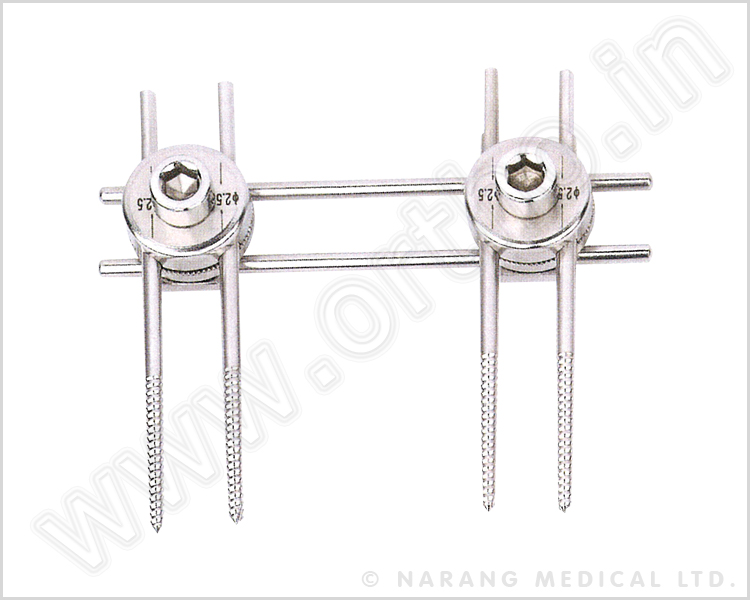

Q.4020Mini-Fixator (Finger & Palm) - B
| Description |
Units |
| Metacarpal bone scaffold |
1 |
| Standard Schanz Screws Ø2.5x60 |
4 |
| Hex Wrench 3mm |
1 |
| Screw Driver Ø2.5mm |
1 |
| (used for Finger, Palm) |
|
Click to Zoom

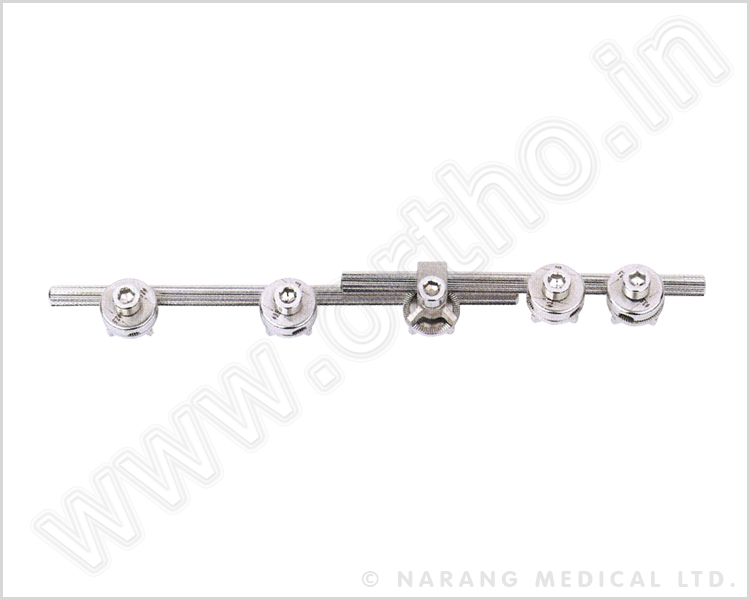

Q.4030Wrist External Fixator
| Description |
Units |
| Metacarpal bone scaffold |
1 |
| Standard Schanz Screws Ø2.5x60 |
2 |
| Standard Schanz Screws Ø3.5x70 |
2 |
| Hex Wrench 4mm |
1 |
| Screw Driver Ø2.5-3.5mm |
1 |
| (used for Wrist Joint) |
|
Click to Zoom

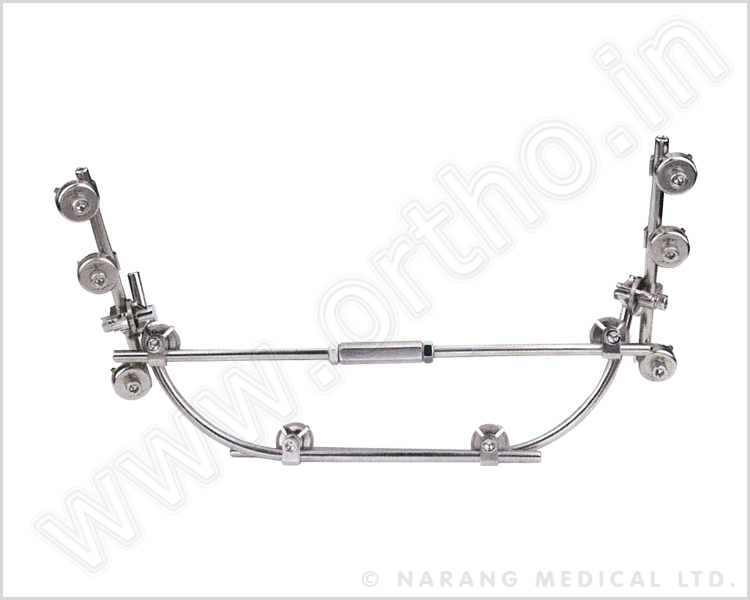

Q.4040Pelvic Fixator
| Description |
Units |
| Double Rod Clamp Ø8 x 8 |
6 |
| Single Rod Clamp Ø8 x 4-5 |
6 |
| Curved Connecting Rod Ø8 |
2 |
| Compression/Distraction Rod Ø8 - A |
1 |
| Connecting Rod Stainless Steel, Ø8x150 |
2 |
| Standard Schanz Screws Ø5x120 |
6 |
| (used for Pelvic) |
|
Click to Zoom

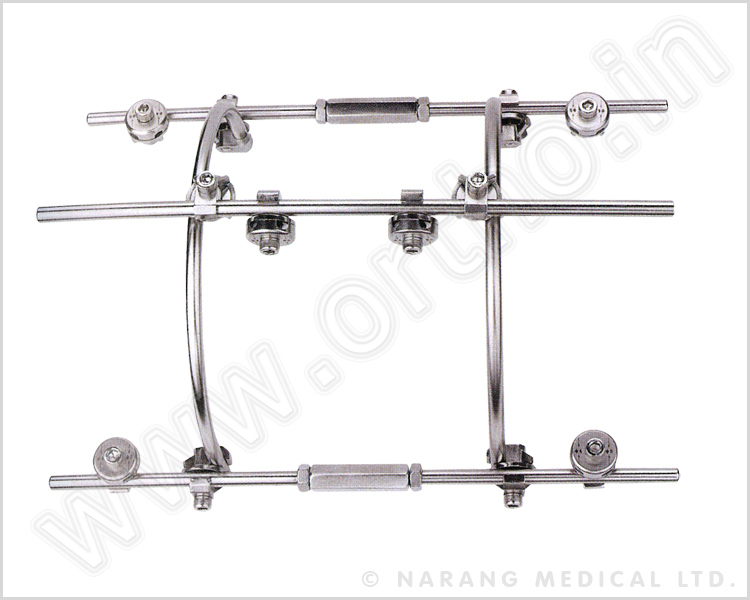

Q.4050Semi Circular Type (Standard) Fixator
| Description |
Units |
| Double Rod Clamp Ø8 x 8 |
6 |
| Single Rod Clamp Ø8 x 4-5 |
6 |
| Semi-circular curved Connecting Rod Ø8 |
2 |
| Connecting Rod Stainless Steel, Ø8x300 |
1 |
| Compression/Distraction Rod Ø8 - A |
2 |
| Standard Schanz Screws Ø4x120 |
2 |
| K-wire Ø4x250 |
2 |
| (used for Tibia & Perone open and closed) |
|
Click to Zoom
Q.4060Double Rod Single Side Fixator
| Description |
Units |
| Double Rod Pin Clamp Ø8 x 4-5 |
4 |
| Connecting Rod Stainless Steel, Ø8x250 |
2 |
| Standard Schanz Screws Ø5x130 |
4 |
| (used for Femur, Tibia) |
|
Click to Zoom

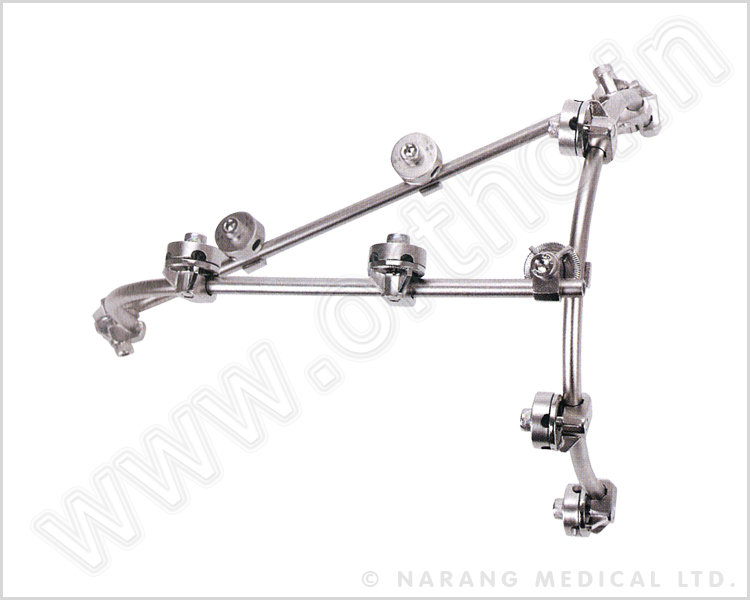

Q.4070Tibial Articular End Frame Fixator (Standard)
| Description |
Units |
| Single Rod Clamp Ø8 x 4-5 |
8 |
| Double Rod Clamp Ø8 x 8 |
3 |
| Semi-circular curved Connecting Rod Ø8 |
1 |
| Connecting Rod Stainless Steel, Ø8x300 |
1 |
| Curved Connecting Rod Ø8 |
1 |
| Standard Schanz Screws Ø5x130 |
6 |
| K-wire Ø4x250 |
1 |
| (used for Proximal, Distal Tibia) |
|
Click to Zoom

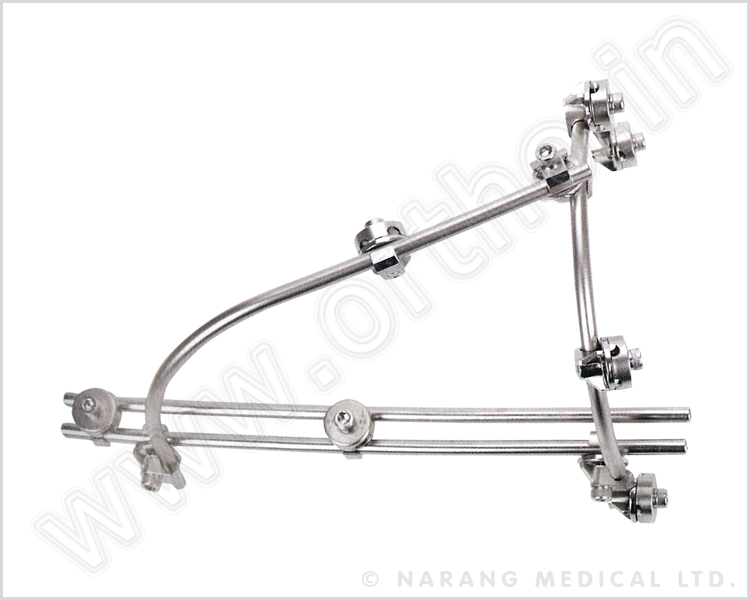

Q.4080Femoral Condylar Fixator
| Description |
Units |
| Double Rod Clamp Ø8 x 8 |
3 |
| Single Rod Clamp Ø8 x 4-5 |
5 |
| Double Rod Pin Clamp Ø8 x 4-5 |
2 |
| Semi-circular curved Connecting Rod Ø8 |
1 |
| Connecting Rod Stainless Steel, Ø8x300 |
2 |
| Standard Schanz Screws Ø5x130 |
1 |
| (used for Proximal, Distal Tibia) |
7 |
Click to Zoom
|
