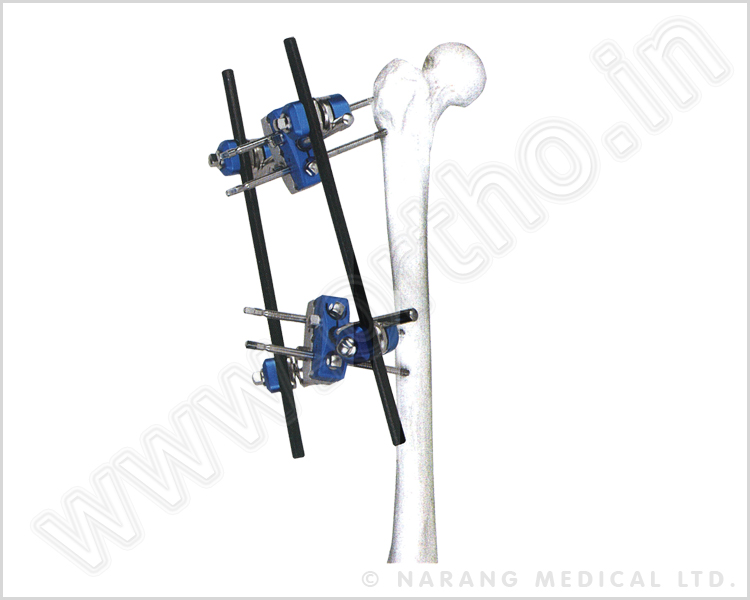

Q.5240Proximal Femur Fixator
| Description |
Units |
| Rod to Rod Coupling Ø8x8 |
4 |
| 5 Hole Coupling Ø8x5 |
2 |
| 30° Post Ø8 |
4 |
| Carbon Connecting Rod Ø8x300mm |
2 |
| Apex Type Pin, Self Drilling/Self Tapping, Ø5x150mm |
2 |
| Apex Type Pin, Self Drilling/Self Tapping, Ø5x180mm |
2 |
| (used for Pertrochanteric) |
|
Click to Zoom

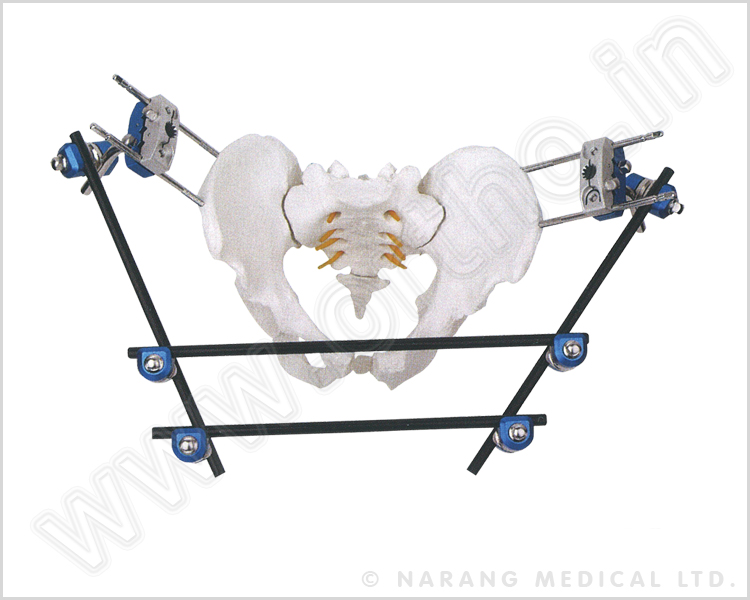

Q.5250 Pelvic Fixator
| Description |
Units |
| Rod to Rod Coupling Ø8x8 |
6 |
| 5 Hole Coupling Ø8x5 |
2 |
| 30° Post Ø8 |
2 |
| Carbon Connecting Rod Ø8x300mm |
2 |
| Carbon Connecting Rod Ø8x200mm |
2 |
| Apex Type Pin, Self Drilling/Self Tapping, Ø5x150mm |
4 |
| (used for Pelvic) |
|
Click to Zoom

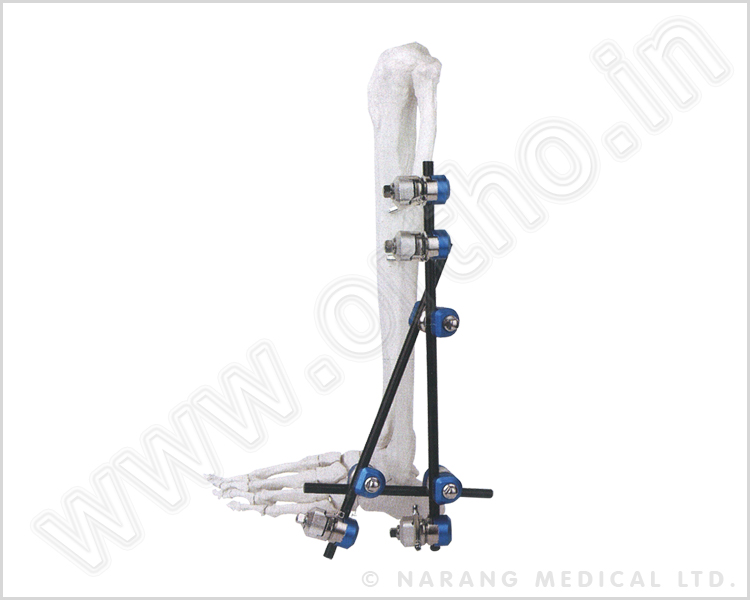

Q.5260Ankle Joint Fixator
| Description |
Units |
| Rod to Rod Coupling Ø8x8 |
3 |
| Pin to Rod Coupling Ø8x5 |
4 |
| Carbon Connecting Rod Ø8x200mm |
1 |
| Carbon Connecting Rod Ø8x250mm |
2 |
| Apex Type Pin, Self Drilling/Self Tapping, Ø5x150mm |
4 |
| (used for Ankle Joint) |
|
Click to Zoom

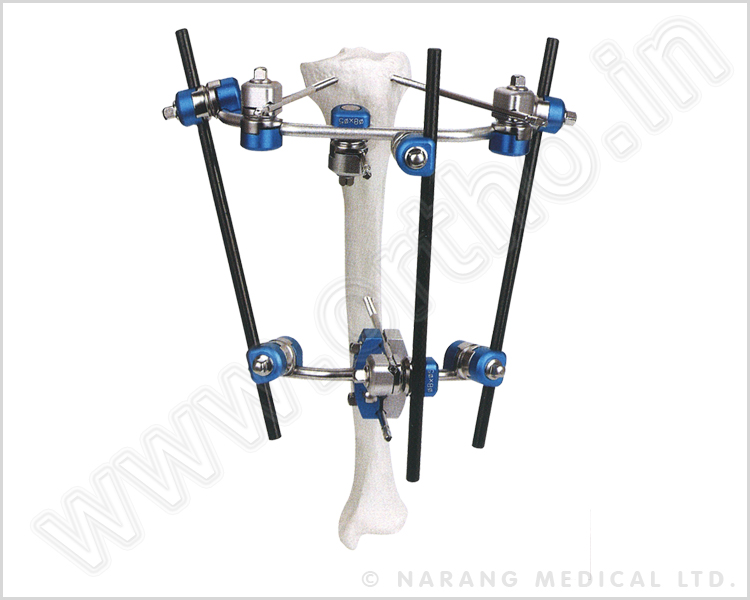

Q.5290Proximal Tibia External Fixator
| Description |
Units |
| Rod to Rod Coupling Ø8x8 |
2 |
| Pin to Rod Coupling Ø8x5 |
2 |
| 5 Hole Coupling Ø8x5 |
2 |
| 30° Post Ø8 |
2 |
| Curved Aluminium Rod Ø8x160mm |
1 |
| Carbon Connecting Rod Ø8x200mm |
1 |
| Apex Type Pin, Self Drilling/Self Tapping, Ø5x150mm |
4 |
| (used for Tibia) |
|
Click to Zoom

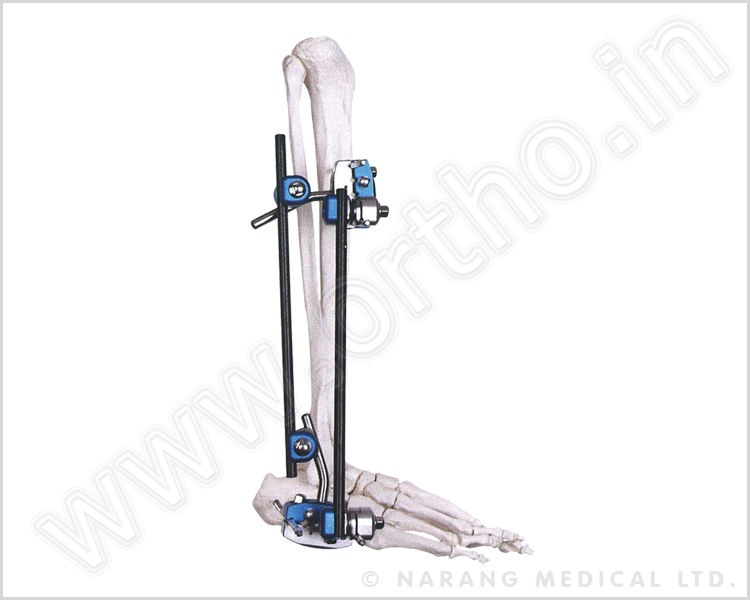

Q.5300Ankle Fusion Joint Fixator
| Description |
Units |
| Rod to Rod Coupling Ø8x8 |
2 |
| Pin to Rod Coupling Ø8x5 |
2 |
| 5 Hole Coupling Ø8x5 |
2 |
| 30° Post Ø8 |
2 |
| Carbon Connecting Rod Ø8x200mm |
2 |
| Apex Type Pin, Self Drilling/Self Tapping, Ø5x150mm |
4 |
| (used for Ankle Joint) |
|
Click to Zoom

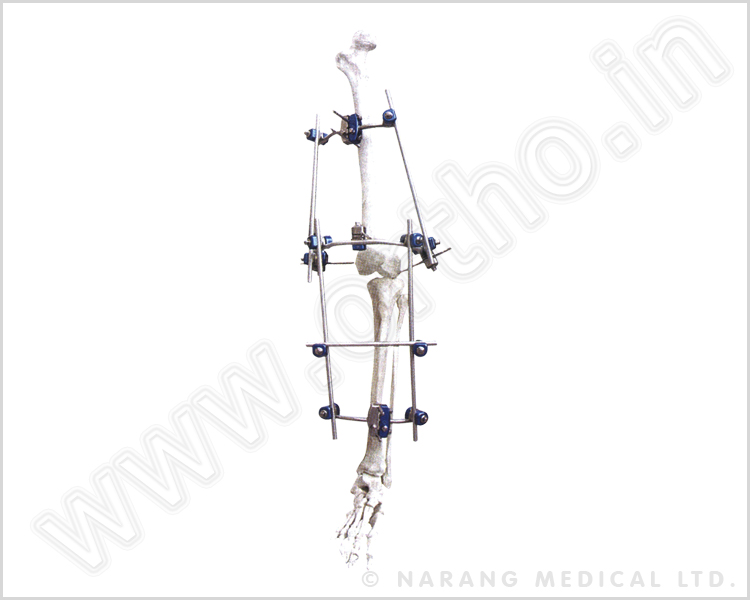

Q.5310Knee Joint External Fixator
| Description |
Units |
| Rod to Rod Coupling Ø8x8 |
10 |
| Pin to Rod Coupling Ø8x5 |
3 |
| 5 Hole Coupling Ø8x5 |
2 |
| 30° Post Ø8 |
4 |
| Curved Aluminium Rod Ø8x160mm |
1 |
| Carbon Connecting Rod Ø8x200mm |
1 |
| Carbon Connecting Rod Ø8x250mm |
2 |
| Carbon Connecting Rod Ø8x300mm |
2 |
| Apex Type Pin, Self Drilling/Self Tapping, Ø5x150mm |
7 |
| (used for Knee Joint Fracture) |
|
Click to Zoom

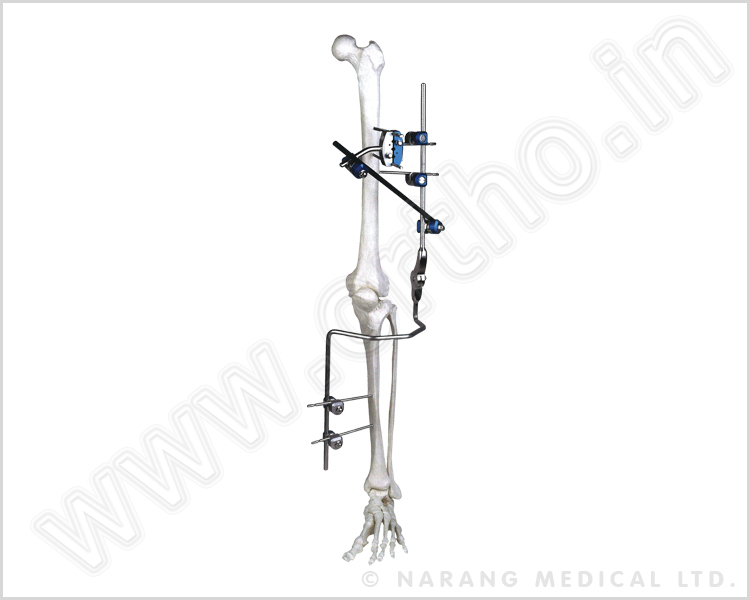

Q.5270Knee Joint Fixator
| Description |
Units |
| Rod to Rod Coupling Ø8x8 |
2 |
| Pin to Rod Coupling Ø8x5 |
4 |
| Knee Joint Mobilizer Ø8 |
1 |
| 5 Hole Coupling Ø8x5 |
1 |
| 30° Post Ø8 |
1 |
| Carbon Connecting Rod Ø8x150mm |
1 |
| Apex Type Pin, Self Drilling/Self Tapping, Ø5x150mm |
6 |
| (used for Knee Joint) |
|
Click to Zoom

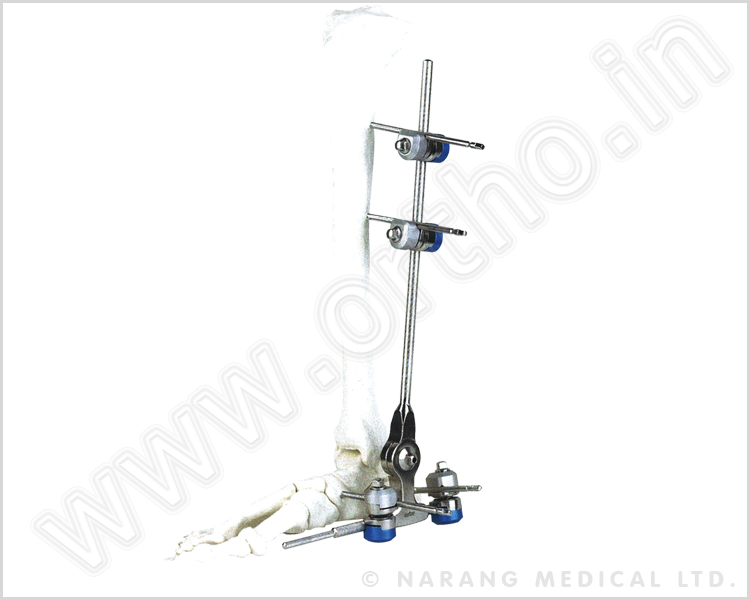

Q.5280Ankle Joint Fixator
| Description |
Units |
| Pin to Rod Coupling Ø8x5 |
4 |
| Ankle Joint Mobilizer Ø8 |
1 |
| Apex Type Pin, Self Drilling/Self Tapping, Ø5x150mm |
4 |
| (used for Ankle Joint) |
|
Click to Zoom
|
