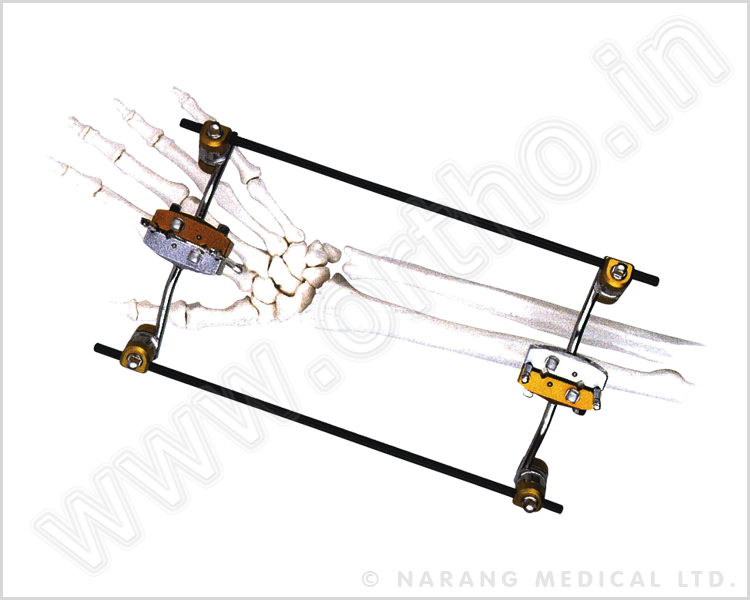

Q.5010Ulna & Radius Connecting External Fixator

Description Units
Rod to Rod Coupling Ø5x5 4
4 Hole Coupling Ø5x3-4 2
30° Post Ø5 4
Carbon Connecting Rod Ø5x200mm 2
Apex Type Pin, Self Drilling/Self Tapping, Ø3x80mm 4
(used for Ulna, Radius)
Q.5010 Ulna & Radius Connecting External Fixator
Click to Zoom
Top

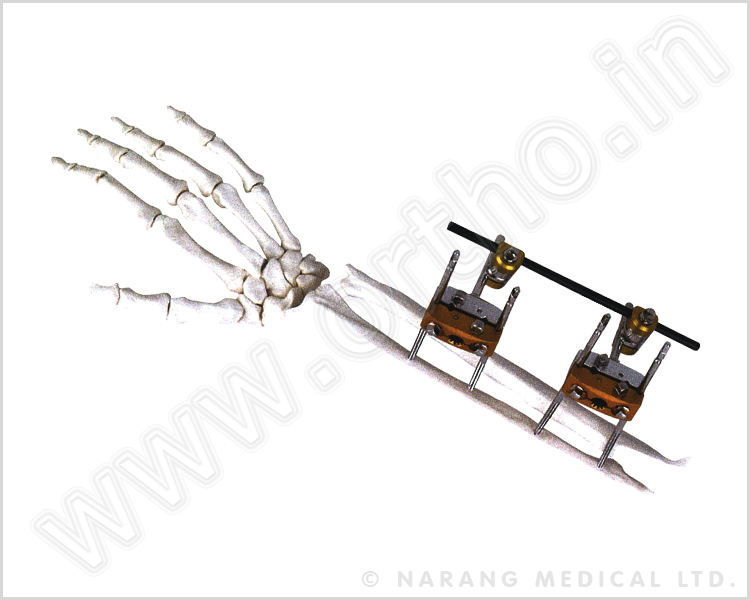

Q.5020Ulna & Radis (Forearm) Fixator

Description Units
Rod to Rod Coupling Ø5x5 2
4 Hole Coupling Ø5x3-4 2
Straight Post Ø5 2
Carbon Connecting Rod Ø5x200mm 1
Apex Type Pin, Self Drilling/Tapping, Ø3x80mm 4
(used for Forearm)
Q.5020 Ulna & Radis (Forearm) Fixator
Click to Zoom
Top

Q.5030Ulna & Radius Fixator

Description Units
Rod to Rod Coupling Ø5x5 1
Pin to Rod Coupling Ø5x3-4 2
Peri-articular Pin Clamp Ø5x3-4 1
Carbon Connecting Rod Ø5x200mm 1
Apex Type Pin, Self Drilling/Self Tapping, Ø3x100mm 4
(used for Ulna, Radius)
Q.5030 Ulna & Radius Fixator
Click to Zoom
Top

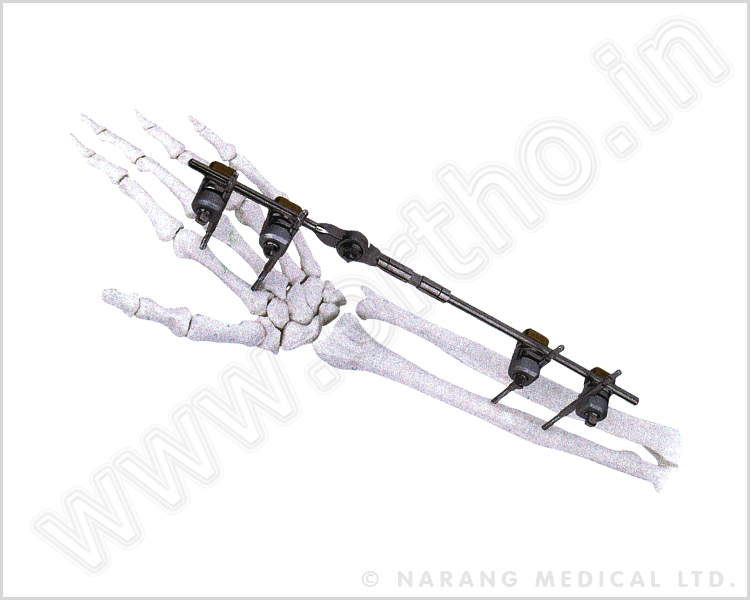

Q.5040Wrist Joint Fixator

Description Units
Wrist Joint Mobilizer Ø5 1
Pin to Rod Coupling Ø5x3-4 4
Apex Type Pin, Self Drilling/Self Tapping, Ø3x100mm 4
(used for Wrist Joint)
Q.5040    Wrist Joint Fixator
Click to Zoom
Top

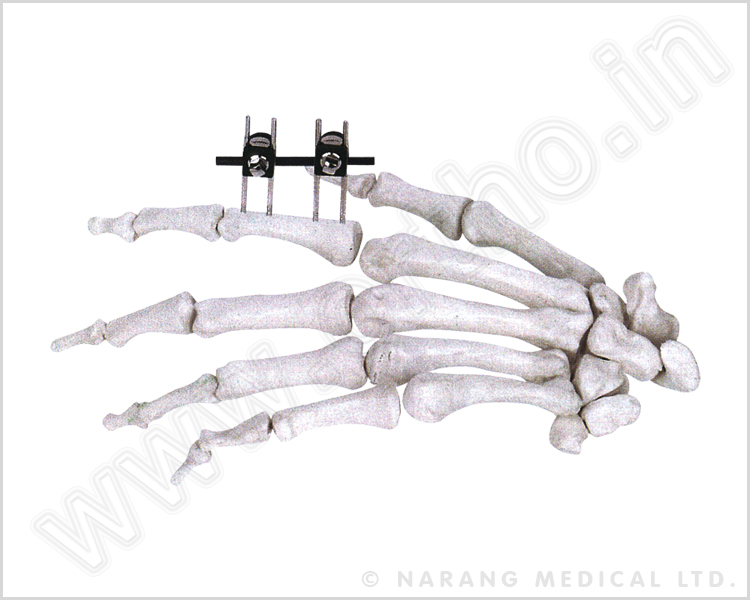

Q.5080Mini-Fixator (Finger & Palm)

Description Units
Pin to Rod Coupling Ø3x2 2
Carbon Connecting Rod Ø3x80 1
Schanz Screws Ø2x60mm 1
(used for Finger, Palm)
Q.5080    Mini-Fixator (Finger & Palm)
Click to Zoom
Top

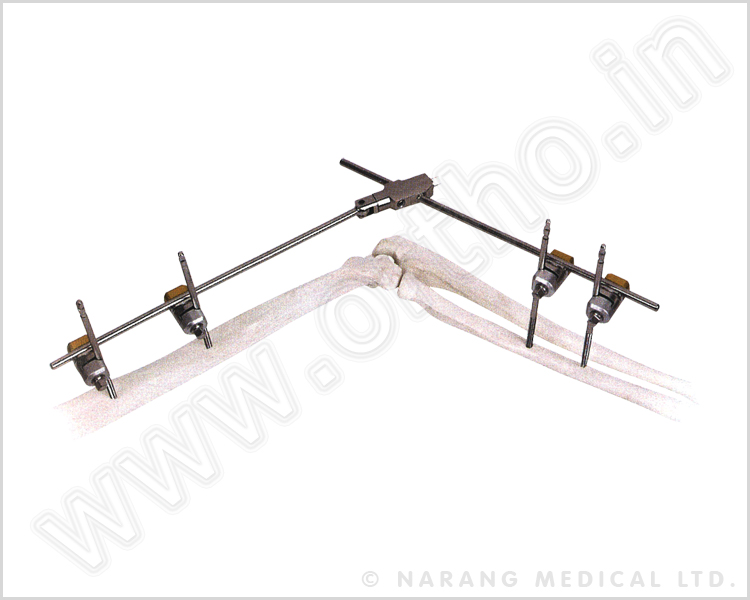

Q.5050Elbow Joint Fixator

Description Units
Elbow Joint Mobilizer Ø5 1
Pin to Rod Coupling Ø5x3-4 4
Apex Type Pin, Self Drilling/Self Tapping, Ø4x120mm 4
(used for Elbow Joint Fracture)
Q.5050 Elbow Joint Fixator
Click to Zoom
Top

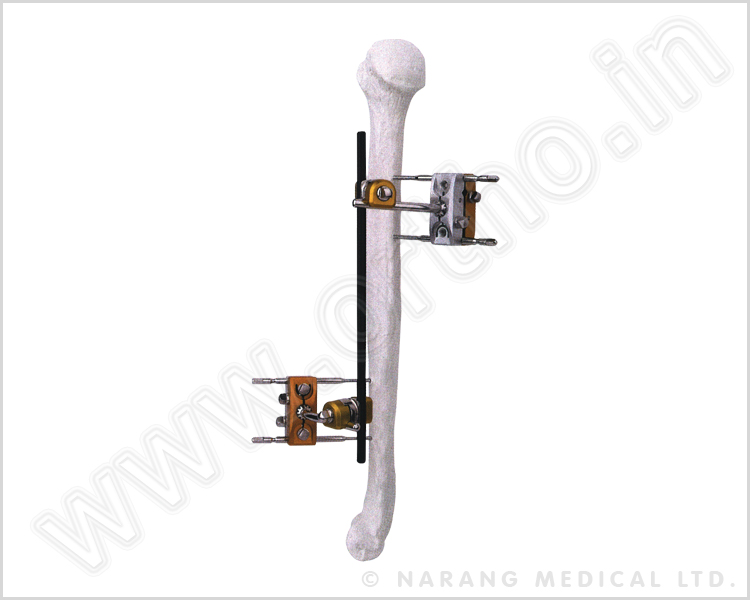

Q.5060Humeral Shaft External Fixator

Description Units
Rod to Rod Coupling Ø5x5 2
4 Hole Coupling Ø5x3-4 2
30° Post Ø5 2
Carbon Connecting Rod Ø5x200 1
Apex Type Pin, Self Drilling/Self Tapping, Ø4x120mm 4
(used for Humeral Shaft)
Q.5050    Humeral Shaft External Fixator
Click to Zoom
Top

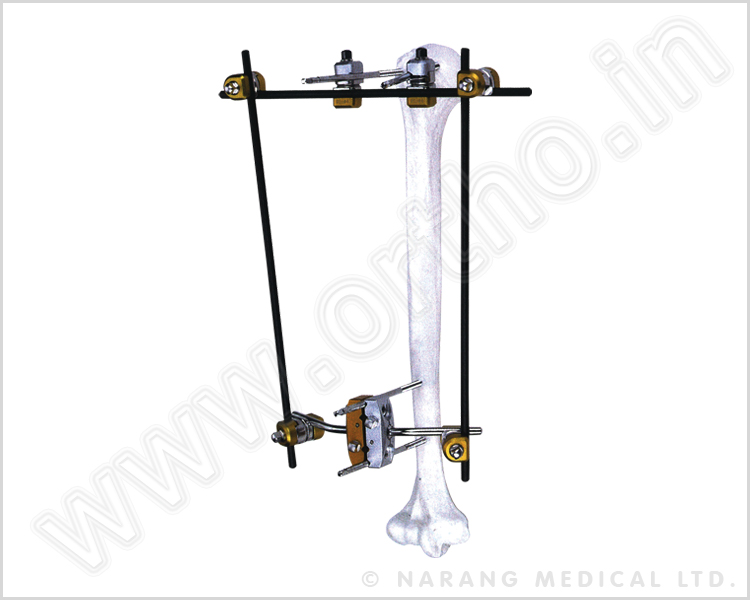

Q.5070Proximal Humerus Fixator

Description Units
Rod to Rod Coupling Ø5x5 4
Pin to Rod Coupling Ø5x3-4 2
4 Hole Coupling Ø5x3-4 1
Carbon Connecting Rod Ø5x250 2
Carbon Connecting Rod Ø5x200 1
30° Post Ø5 2
Apex Type Pin, Self Drilling/Self Tapping, Ø4x120mm 4
(used for Proximal Humerus, Condyle Neck)
Q.5070 Proximal Humerus Fixator
Click to Zoom
Top
Hoffmann Type External Fixators - 5.0mm, Upper Limb : 1   2   3
