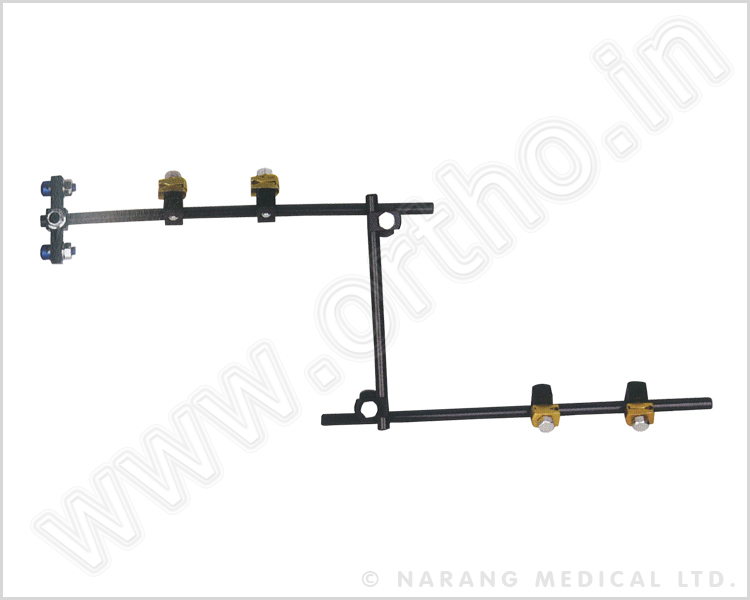

Q.3020Pelvic Fixator

Description Units
Ringent Pin to Rod Coupling Ø8X4.5 4
Ringent Rod to Rod Coupling Ø8X8 2
T Clamp Ø8X4 1
Carbon Connecting Rod Ø8x100 1
Carbon Connecting Rod Ø8x200 2
Schanz Screw, Cortical Ø4x100 4
Schanz Screw, Cancellous Ø4x100 2
(used for Prximal Humerus & Tibia & adjacent Joints)
Q.3020 Pelvic Fixator
Click to Zoom
Top

Q.3030Half Ring Type Fixator

Description Units
Ringent Pin to Rod Coupling Ø8X4.5 6
Ringent Rod to Rod Coupling Ø8X8 6
Semi-circular Trapezoidal curved Rod Ø8 2
Carbon Connecting Rod Ø8x300 1
Compression Distraction Rod Ø8 -A 2
Schanz Screw, Cortical Ø4x120 4
(used for Tibia & Perone open & closed)
Q.3030 Half Ring Type Fixator
Click to Zoom
Top

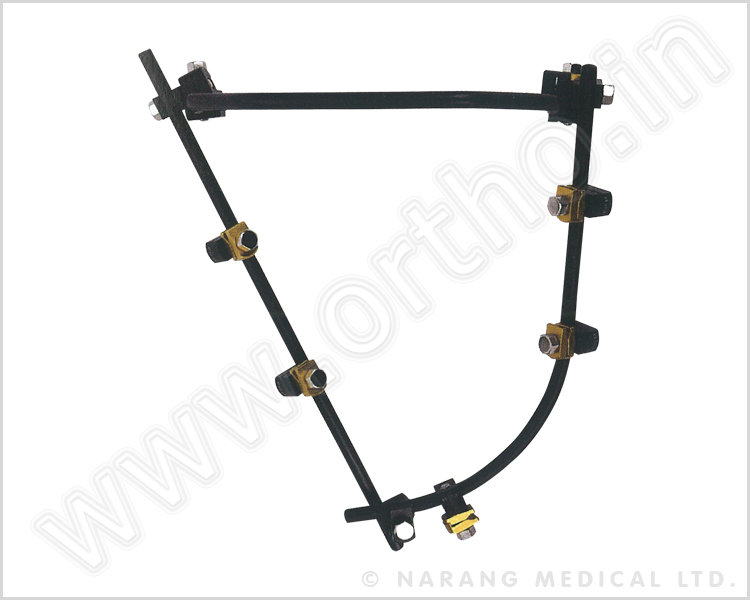

Q.3040Tibial Joint Side Fixator

Description Units
Ringent Pin to Rod Coupling Ø8X4.5 7
Ringent Rod to Rod Coupling Ø8X8 3
Semi-circular Trapezoidal curved Rod Ø8 1
Curved Rod Ø8 1
Carbon Connecting Rod Ø8x300 1
Schanz Screw, Cortical Ø4x120 7
(used for Distal Tibial Joint, proximal fracture)
Q.3040 Tibial Joint Side Fixator
Click to Zoom
Top

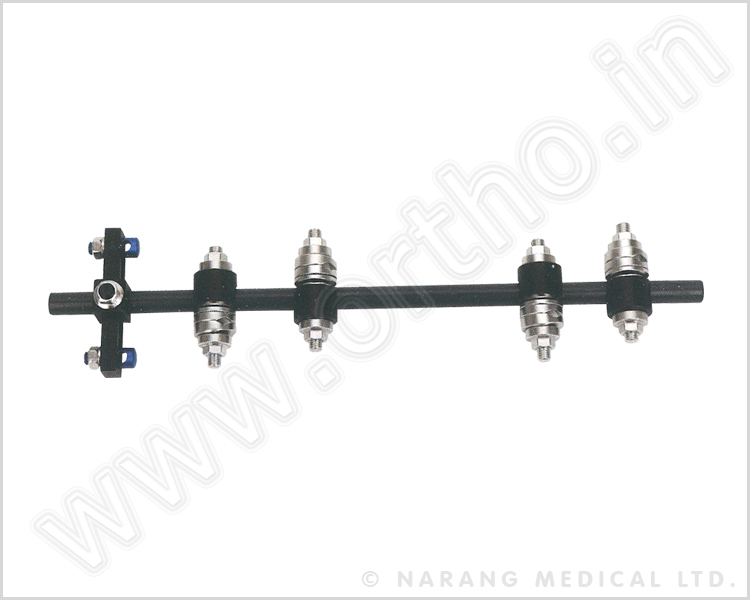

Q.3060T Type Fixator - I

Description Units
Pin to Rod Coupling Ø11X5-6 4
T Clamp Ø11x5 1
Carbon Connecting Rod Ø11x300 1
Schanz Screw, Cortical Ø5x130 4
Schanz Screw, Cancellous Ø5x150 2
(used for Femur,Tibia)
Q.3060 T Type Fixator - I
Click to Zoom
Top

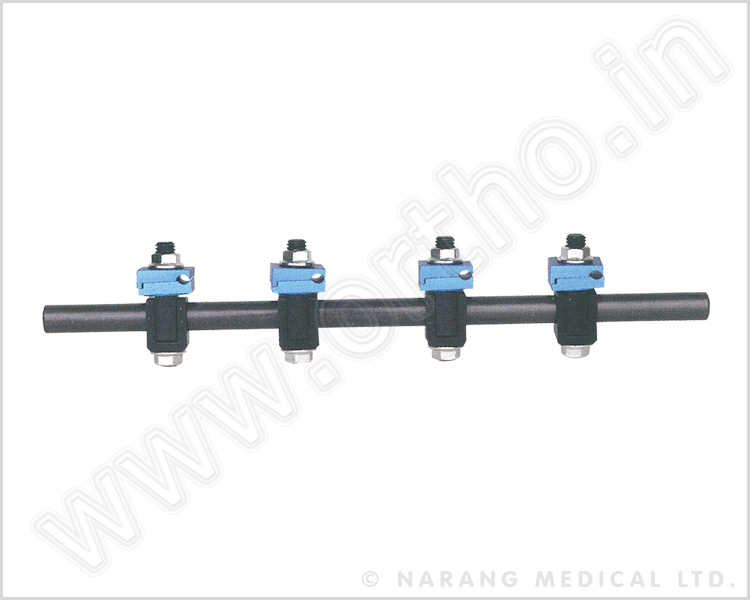

Q.3070Straight Type Fixator - I

Description Units
Pin to Rod Coupling (Enhancement Mode), Ø11x5 4
Carbon Connecting Rod Ø11x250 1
Schanz Screw, Cortical Ø5x120 4
(used for Tibia)
Q.3070 Straight Type Fixator - I
Click to Zoom
Top

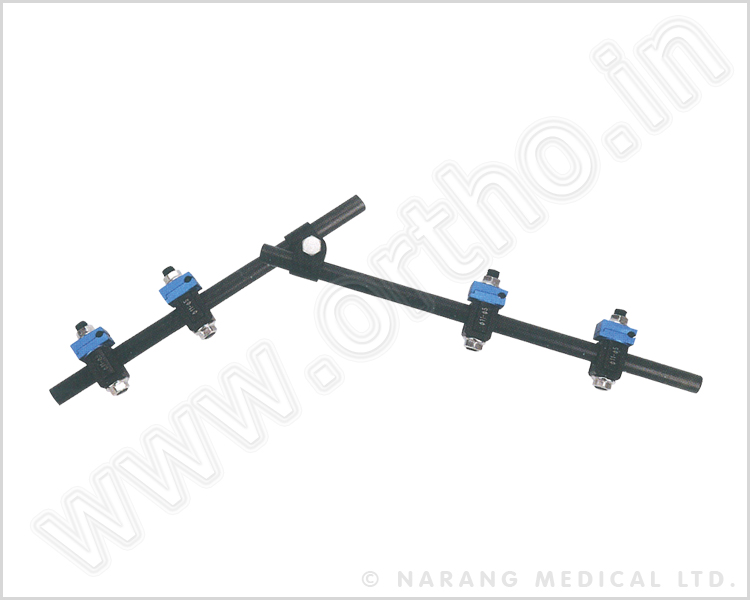

Q.3080Ankle Joint External Fixator

Description Units
Pin to Rod Coupling (Enhancement Mode), Ø11x5 4
Rod to Rod Coupling (Enhancement Mode), Ø11x11 1
Carbon Connecting Rod Ø11x200 1
Carbon Connecting Rod Ø11x250 1
Schanz Screw, Cortical Ø5x130 4
(used for Ankle Joint)
Q.3080 Ankle Joint External Fixator
Click to Zoom
Top

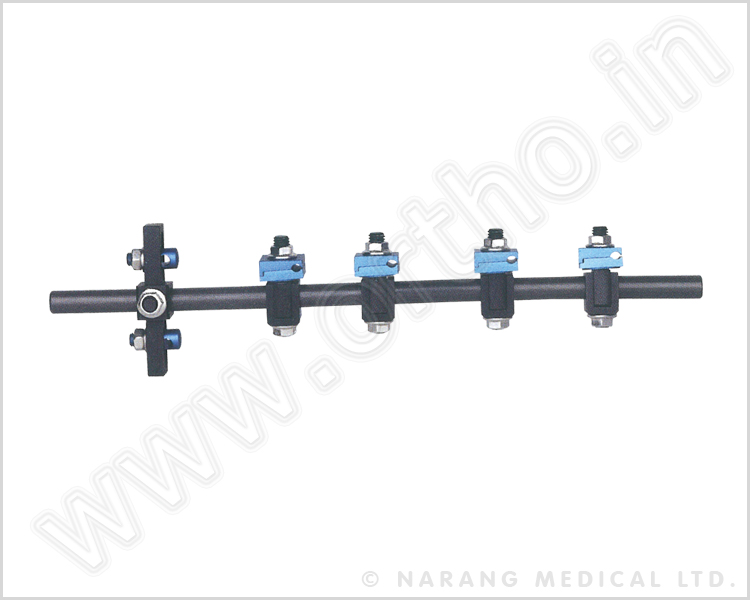

Q.3090T Type Fixator - II

Description Units
Pin to Rod Coupling (Enhancement Mode), Ø11x5 4
T Clamp Ø11x5 1
Carbon Connecting Rod Ø11x300 1
Schanz Screw, Cortical Ø5x130 4
Schanz Screw, Cancellous Ø5x130 2
(used for Tibia comminuated fracture)
Q.3080 T Type Fixator - II
Click to Zoom
Top

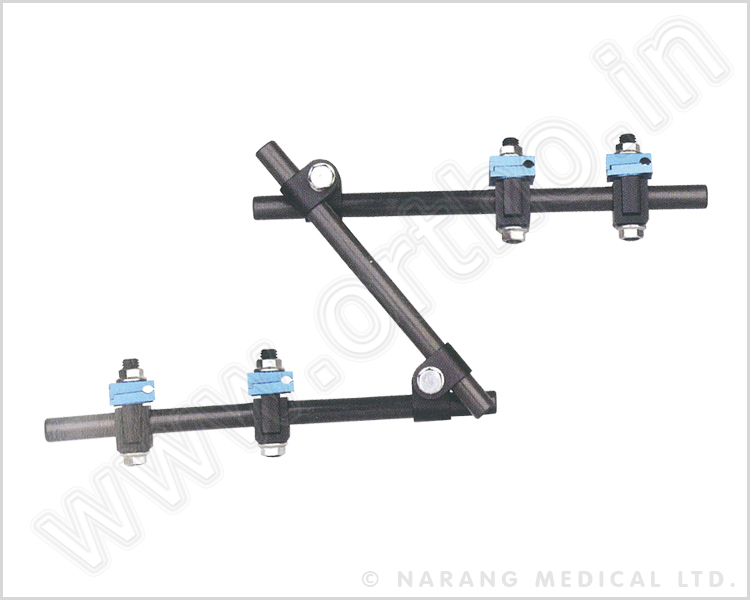

Q.3100Z Frame (Enhancement Mode)

Description Units
Pin to Rod Coupling (Enhancement Mode), Ø11x5 4
Rod to Rod Coupling (Enhancement Mode), Ø11x11 2
Carbon Connecting Rod Ø11x200 2
Carbon Connecting Rod Ø11x150 1
Schanz Screw, Cortical Ø5x130 4
(used for Femur, Tibia)
Q.3100 Z Frame (Enhancement Mode)
Click to Zoom
Top

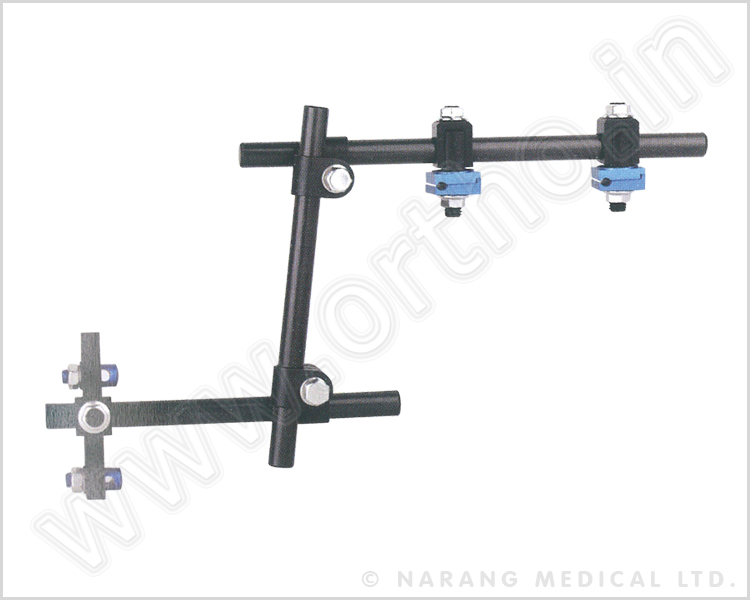

Q.3110Z Frame (T Type) Fixator

Description Units
Pin to Rod Coupling (Enhancement Mode), Ø11x5 2
Rod to Rod Coupling (Enhancement Mode), Ø11x11 2
T Clamp Ø11x5 1
Carbon Connecting Rod Ø11x100 1
Carbon Connecting Rod Ø11x150 2
Schanz Screw, Cortical Ø5x120 2
Schanz Screw, Cancellous Ø5x130 2
(used for Femur comminuated fracture)
Q.3110 Z Frame (T Type) Fixator
Click to Zoom
Top

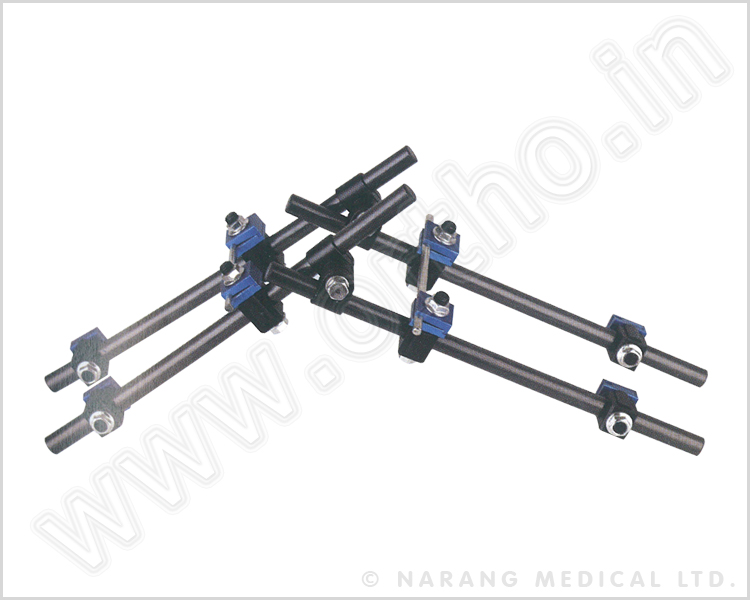

Q.3150Straight Type Fixator - II

Description Units
Pin to Rod Coupling (Enhancement Mode), Ø11x5 8
Rod to Rod Coupling (Enhancement Mode), Ø11x11 2
Carbon Connecting Rod Ø11x250 4
Schanz Screw, Cortical Ø5x120 4
(used for Pelvic)
Q.3150 Straight Type Fixator - II
Click to Zoom
Top
Ao Type External Fixator System : 1   2   3
