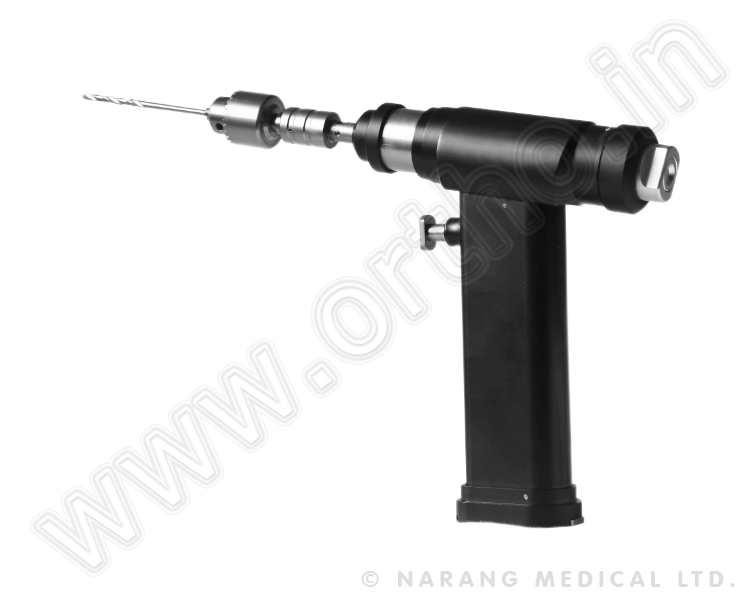

SPT1437 Battery Operated Acetabular Reaming System AO Types (2G SERIES)
Specifications :
- Power Output : ≥ 65W
- Speed : 0-280(r.p.m)
- Torque : 5.5Nm
- Noise : ≤ 40 (db)
- Battery : 9.6 (V), Ni-Mh, 1800 mA/h
- Sterilization : 135° C
Usage: Joint Operation. High torque, Low speed, stepless variable speed control.
Click to Zoom
| Set Consisting of : |
Units |
| SPT1437.1 - Battery powered handpiece with AO/Synthes Reamer Adapter |
1 |
| SPT141 - Battery |
2 |
| SPT142 - Battery Charger 220V, 50Hz |
1 |
| SPT143 - Sterilizing Ring |
2 |
| SPT144 - Jacub Chuck & Key |
1 |
| OPTIONAL ADAPTERS (To be Ordered Separately at Extra Cost) |
|
| SPT08 - Hudson Adapter |
|
| SPT09 - Zimmer Adapter |
|
| SPT10 - Link Adapter |
|
| SPT11 - Aesculup Adapter |
|
| SPT12 - Stryker Adapter |
|
SPT1438 Battery Operated Acetabular Reaming System (2G SERIES)
| Same as SPT37 but with Stryker Reamer Adapter |
|
| To be Ordered Separately at Extra Cost |
Units |
| SPT37.2 - Acetabulum Reamer Shaft (AO/Synthes Type) |
|
| SPT38.2 - Acetabulum Reamer Shaft (Stryker Type) |
|
| OPTIONAL ADAPTERS (To be Ordered Separately at Extra Cost) |
|
| SPT13 - Link Adapter |
|
| SPT14 - Aesculup Adapter |
|
| SPT15 - AO/Synthes Adapter |
|

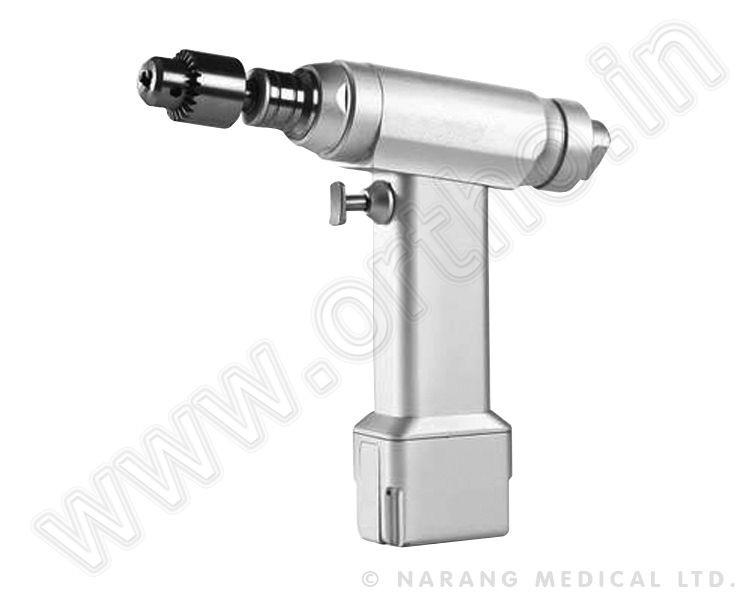

SPT37 Battery Operated Acetabular Reaming System AO Types (4G SERIES)
Same as SPT1437 but with below specifications
Specifications :
- Power Output : ≥85W
- Speed : 0-320(r.p.m)
- Torque : 7.8 Nm
- Noise : ≤ 40 (db)
- Battery : 14.4 (V), Ni-Mh, 1800 mA/h
- Sterilization : 155° C
Usage: Joint Operation. High torque, Low speed, stepless variable speed control.
Click to Zoom
| Set Consisting of : |
Units |
| SPT37.1 - Battery powered handpiece with AO/Synthes Reamer Adapter |
1 |
| SPT01 - Battery |
2 |
| SPT02 - Battery Charger 220V, 50Hz |
1 |
| SPT03 - Sterilizing Ring |
2 |
| SPT04 Jacub Chuck & Key |
1 |
SPT38 Battery Operated Acetabular Reaming System (4G SERIES)
| Same as SPT37 but with Stryker Reamer Adapter |
|
| To be Ordered Separately at Extra Cost |
Units |
| SPT37.2 - Acetabulum Reamer Shaft (AO/Synthes Type) |
|
| SPT38.2 - Acetabulum Reamer Shaft (Stryker Type) |
|
| OPTIONAL ADAPTERS (To be Ordered Separately at Extra Cost) |
|
| SPT13 - Link Adapter |
|
| SPT14 - Aesculup Adapter |
|
| SPT15 - AO/Synthes Adapter |
|

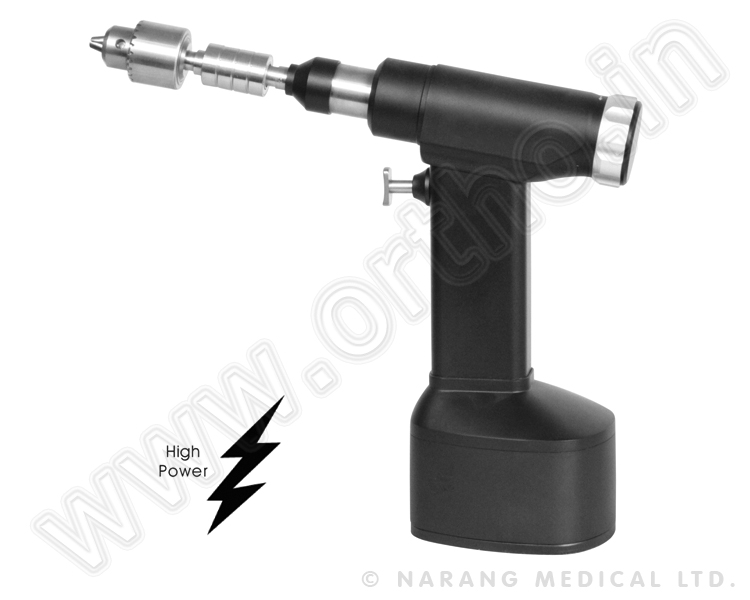

SPT637 Battery Operated Acetabular Reaming System, High Torque / High Power (6G SERIES)
Same as SPT1437 but with below specifications
Specifications :
- Power Output : ≥ 95W
- Speed : 0-350(r.p.m)
- Torque : 9.0Nm
- Noise : ≤ 40 (db)
- Battery : 14.4 (V), Ni-Mh, 1800 mA/h
- Sterilization : 135° C
Usage: Joint Operation. High torque, Low speed, stepless variable speed control.
Click to Zoom
| Set Consisting of : |
Units |
| SPT37.1 - Battery powered handpiece with AO/Synthes Reamer Adapter |
1 |
| SPT61 - Battery |
2 |
| SPT62 - Battery Charger 220V, 50Hz |
1 |
| SPT63 - Sterilizing Ring |
2 |
| SPT64 - Jacub Chuck & Key |
1 |
SPT638 Battery Operated Acetabular Reaming System, High Torque / High Power
Same as SPT637 but with Stryker Reamer Adapter
| To be Ordered Separately at Extra Cost |

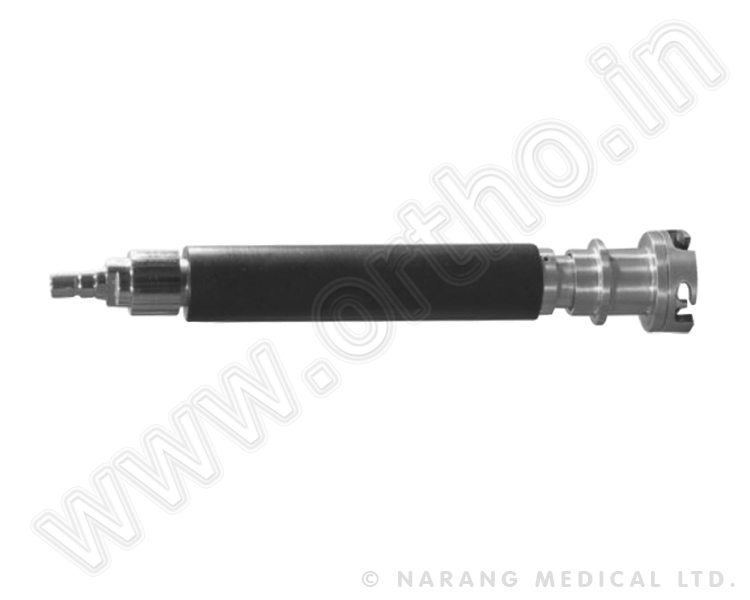

| SPT37.2 - Acetabulum Reamer Shaft (AO/Synthes Type) for SPT1437 / SPT37/ SPT637 |
| SPT38.2 - Acetabulum Reamer Shaft (Stryker Type) for SPT1438 / SPT38/ SPT638 |
Click to Zoom
Click to Zoom

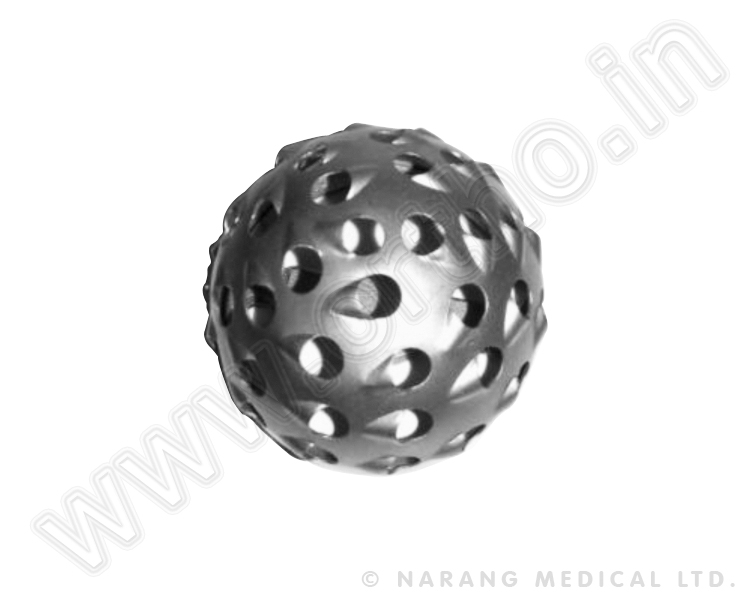

| Acetabulum Reamer (AO/Synthes Type): SPT37.036 to SPT37.064 |
| Code No. |
Size mm |
Code No. |
Size mm |
Code No. |
Size mm |
| SPT37.036 |
36 |
SPT37.046 |
46 |
SPT37.056 |
56 |
| SPT37.038 |
38 |
SPT37.048 |
48 |
SPT37.058 |
58 |
| SPT37.040 |
40 |
SPT37.050 |
50 |
SPT37.060 |
60 |
| SPT37.042 |
42 |
SPT37.052 |
52 |
SPT37.062 |
62 |
| SPT37.044 |
44 |
SPT37.054 |
54 |
SPT37.064 |
64 |
| Acetabulum Reamer (Stryker Type): SPT38.036 to SPT38.064 |
| Code No. |
Size mm |
Code No. |
Size mm |
Code No. |
Size mm |
| SPT38.036 |
36 |
SPT38.046 |
46 |
SPT38.056 |
56 |
| SPT38.038 |
38 |
SPT38.048 |
48 |
SPT38.058 |
58 |
| SPT38.040 |
40 |
SPT38.050 |
50 |
SPT38.060 |
60 |
| SPT38.042 |
42 |
SPT38.052 |
52 |
SPT38.062 |
62 |
| SPT38.044 |
44 |
SPT38.054 |
54 |
SPT38.064 |
64 |
| OPTIONAL Adapters for SPT37, SPT637 & SPT1437 (To be Ordered Separately at Extra Cost) |
| SPT08 - Hudson Adapter |
|
| SPT09 - Zimmer Adapter |
|
| SPT10 - Link Adapter |
|
| SPT11 - Aesculup Adapter |
|
| SPT12 - Stryker Adapter |
|
| OPTIONAL Adapters for SPT38, SPT638 & SPT1438 (To be Ordered Separately at Extra Cost) |
| SPT13 - Link Adapter |
|
| SPT14 - Aesculup Adapter |
|
| SPT15 - AO/Synthes Adapter |
|
