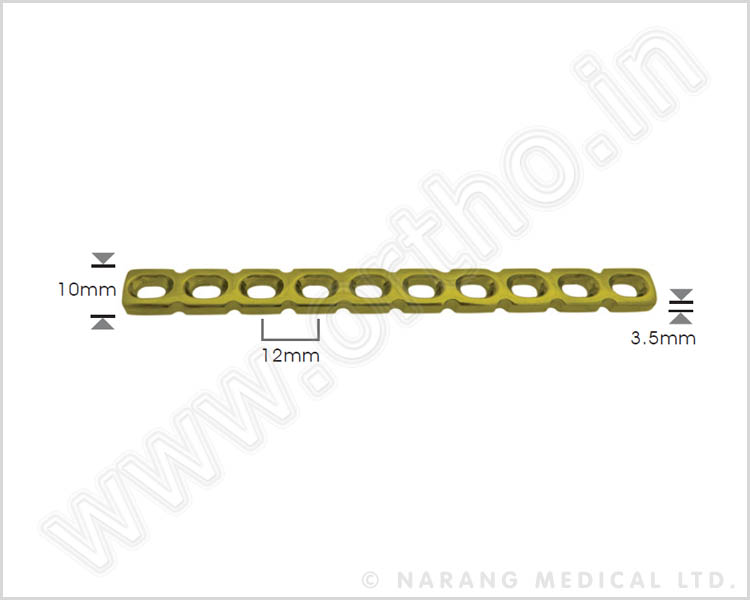

Reconstruction Plate 3.5 - Straight
- Reconstruction Plates 3.5 - Straight is used to fix the pelvic, clavicle and calcaneal fractures.
- Side cuts on these plates make them more flexible and widens the spectrum of their use.
- These plates are used with 3.5mm cortical, 3.5 mm safety locking and 4.0 mm cancellous screws.
Click to Zoom
| No. of Holes |
STAINLESS STEEL |
| 5 |
144.105 |
| 6 |
144.106 |
| 7 |
144.107 |
| 8 |
144.108 |
| 9 |
144.109 |
| 10 |
144.110 |
| 11 |
144.111 |
| 12 |
144.112 |
| 13 |
144.113 |
| 14 |
144.114 |
| 15 |
144.115 |
| 16 |
144.116 |
| 17 |
144.117 |
| 18 |
144.118 |
| 19 |
144.119 |
| 20 |
144.120 |
| 21 |
144.121 |
| 22 |
144.122 |
| No. of Holes |
TITANIUM |
| 5 |
Ti-144.105 |
| 6 |
Ti-144.106 |
| 7 |
Ti-144.107 |
| 8 |
Ti-144.108 |
| 9 |
Ti-144.109 |
| 10 |
Ti-144.110 |
| 11 |
Ti-144.111 |
| 12 |
Ti-144.112 |
| 13 |
Ti-144.113 |
| 14 |
Ti-144.114 |
| 15 |
Ti-144.115 |
| 16 |
Ti-144.116 |
| 17 |
Ti-144.117 |
| 18 |
Ti-144.118 |
| 19 |
Ti-144.119 |
| 20 |
Ti-144.120 |
| 21 |
Ti-144.121 |
| 22 |
Ti-144.122 |

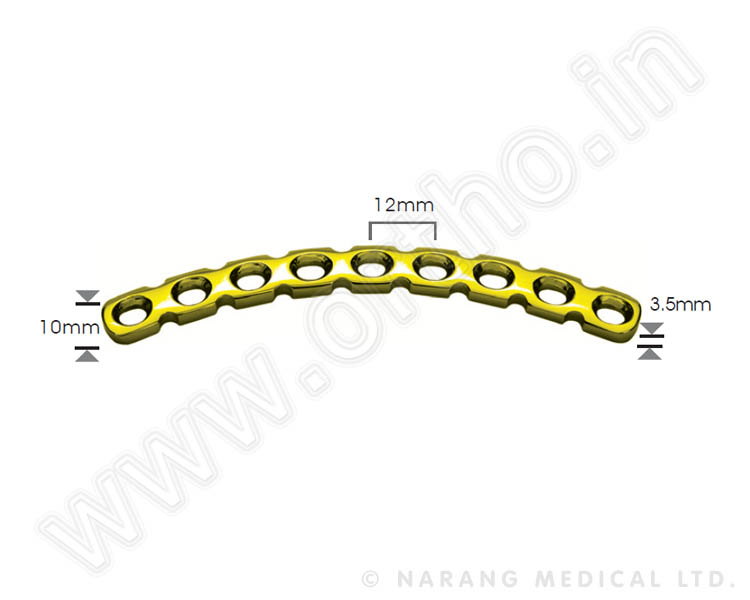

Reconstruction Plate 3.5 - Curved
- Reconstruction Plate 3.5 - Curved is used in the reconstruction of the pelvic fractures.
- These plates are contoured to fit perfectly to the anatomy of the Pelvis and Acetabulum.
- Side cuts on these plates make them more flexible and widens the spectrum of their use.
- These plates are used with 3.5mm cortical, 3.5 mm safety locking and 4.0 mm cancellous screws.
Click to Zoom
| No. of Holes |
STAINLESS STEEL |
| 5 |
144.105C |
| 6 |
144.106C |
| 7 |
144.107C |
| 8 |
144.108C |
| 9 |
144.109C |
| 10 |
144.110C |
| 11 |
144.111C |
| 12 |
144.112C |
| 13 |
144.113C |
| 14 |
144.114C |
| 16 |
144.116C |
| 18 |
144.118C |
| No. of Holes |
TITANIUM |
| 5 |
Ti-144.105C |
| 6 |
Ti-144.106C |
| 7 |
Ti-144.107C |
| 8 |
Ti-144.108C |
| 9 |
Ti-144.109C |
| 10 |
Ti-144.110C |
| 11 |
Ti-144.111C |
| 12 |
Ti-144.112C |
| 13 |
Ti-144.113C |
| 14 |
Ti-144.114C |
| 16 |
Ti-144.116C |
| 18 |
Ti-144.118C |
