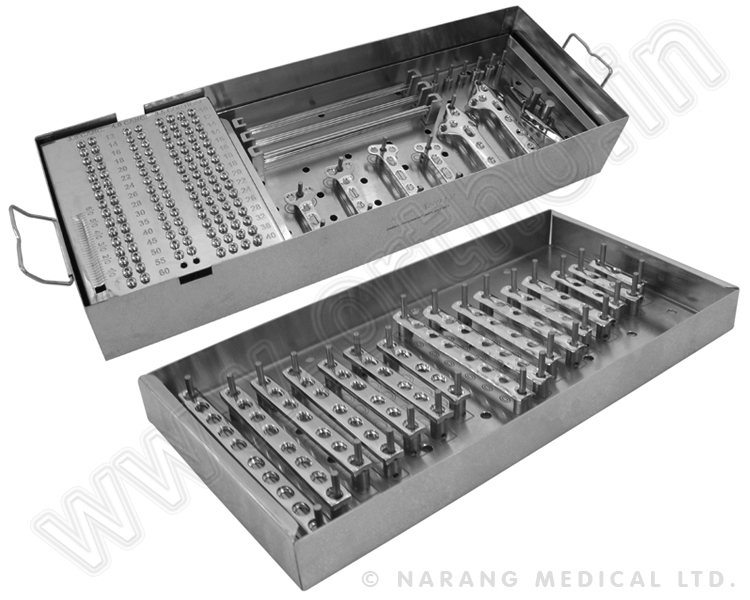

| AS012 Small Fragment Implants Set | ||
| Set Consisting of : | Units | |
| Cortex Screws Ø 3.5mm | 64 | |
| 4 each, Length 10, 12, 20, 22, 24, 26, 28, 32, 36 & 40mm | ||
| 8 each, Length 14, 16 & 18mm | ||
| Cancellous Bone Screw Ø 4.0mm - Short Thread | 32 | |
| 2 each, length, 12,14,16,18,20,22,24,26,28,30,35,40,45,50,55 & 60mm | ||
| Cancellous Bone Screw Ø 3.5mm | 32 | |
| 2 each, length, 12,14,16,18,20,22,24,26,28,30,35,40,45,50,55 & 60mm | ||
| Washer 7.0mm Dia | 6 | |
| One Third Tubular Plate 3.5 with Collar | 9 | |
| 1 each with 3,7 and 8 Holes | ||
| 2 each with 4,5 and 6 Holes | ||
| T-Plate 3.5, Right Angled | 2 | |
| 1 each Shaft with 3 and 4 Holes | ||
| T-Plate 3.5, Oblique Angled | 2 | |
| 1 each , Shaft with 3 and 4 Holes | ||
| Cloverleaf Plate | 2 | |
| 1each, shaft with 3 and 4 Holes | ||
| Dynamic Compress Plate 3.5 | 7 | |
| 2 each with 6 and 7 Holes | ||
| 1 each with 5,8,10 Holes | ||
| Kirschner Wire with Trocar tip, Length 150mm | 30 | |
| 10 each 1.0, 1.5, 2.0mm | ||
| Screw Holding Forceps | 1 | |
| Empty Container (900.032) | ||
