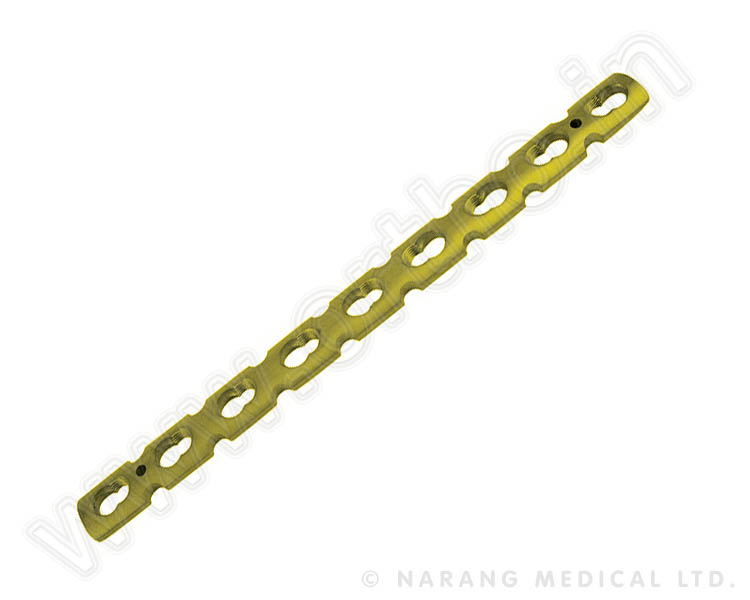

Reconstruction Safety Lock Plate 3.5 - Straight
- All holes Reconstruction Safety Lock Plate 3.5- straight accommodate Cortex Srew Φ 3.5mm, Self Tapping and safety Lock Screw Φ 3.5mm- Self Tapping.
- The Reconstruction Safety Lock Plate 3.5- Straight is indicated for fixation of fractures of the clavicle, Scapula, olecranon, humerus, radius, ulna, pelvis, distal tibia, fibula, particularly in osteopenic bone for adult patients.
Click to Zoom
| No. of Holes |
STAINLESS STEEL |
| 5 |
SF-144.105 |
| 6 |
SF-144.106 |
| 7 |
SF-144.107 |
| 8 |
SF-144.108 |
| 9 |
SF-144.109 |
| 10 |
SF-144.110 |
| 11 |
SF-144.111 |
| 12 |
SF-144.112 |
| 13 |
SF-144.113 |
| 14 |
SF-144.114 |
| 15 |
SF-144.115 |
| 16 |
SF-144.116 |
| 17 |
SF-144.117 |
| 18 |
SF-144.118 |
| 19 |
SF-144.119 |
| 20 |
SF-144.120 |
| No. of Holes |
TITANIUM |
| 5 |
Ti-SF-144.105 |
| 6 |
Ti-SF-144.106 |
| 7 |
Ti-SF-144.107 |
| 8 |
Ti-SF-144.108 |
| 9 |
Ti-SF-144.109 |
| 10 |
Ti-SF-144.110 |
| 11 |
Ti-SF-144.111 |
| 12 |
Ti-SF-144.112 |
| 13 |
Ti-SF-144.113 |
| 14 |
Ti-SF-144.114 |
| 15 |
Ti-SF-144.115 |
| 16 |
Ti-SF-144.116 |
| 17 |
Ti-SF-144.117 |
| 18 |
Ti-SF-144.118 |
| 19 |
Ti-SF-144.119 |
| 20 |
Ti-SF-144.120 |

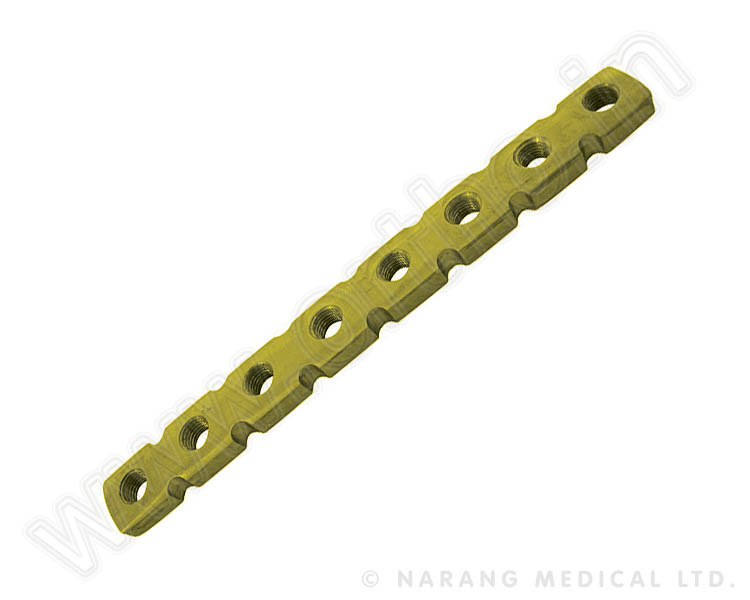

Reconstruction Safety Lock Plate 3.5 Round Holes - Straight
- Reconstruction Safety Lock Plate 3.5 - Straight is used to fix the pelvic, clavicle and calcaneal fractures.
- Side cuts on these plates make them more flexible and widens the spectrum of their use.
- These plates are used with 3.5 mm safety lock screw.
Click to Zoom
| No. of Holes |
STAINLESS STEEL |
| 5 |
SF-444.105 |
| 6 |
SF-444.106 |
| 7 |
SF-444.107 |
| 8 |
SF-444.108 |
| 9 |
SF-444.109 |
| 10 |
SF-444.110 |
| 11 |
SF-444.111 |
| 12 |
SF-444.112 |
| 13 |
SF-444.113 |
| 14 |
SF-444.114 |
| 15 |
SF-444.115 |
| 16 |
SF-444.116 |
| 17 |
SF-444.117 |
| 18 |
SF-444.118 |
| 19 |
SF-444.119 |
| 20 |
SF-444.120 |
| No. of Holes |
TITANIUM |
| 5 |
Ti-SF-444.105 |
| 6 |
Ti-SF-444.106 |
| 7 |
Ti-SF-444.107 |
| 8 |
Ti-SF-444.108 |
| 9 |
Ti-SF-444.109 |
| 10 |
Ti-SF-444.110 |
| 11 |
Ti-SF-444.111 |
| 12 |
Ti-SF-444.112 |
| 13 |
Ti-SF-444.113 |
| 14 |
Ti-SF-444.114 |
| 15 |
Ti-SF-444.115 |
| 16 |
Ti-SF-444.116 |
| 17 |
Ti-SF-444.117 |
| 18 |
Ti-SF-444.118 |
| 19 |
Ti-SF-444.119 |
| 20 |
Ti-SF-444.120 |

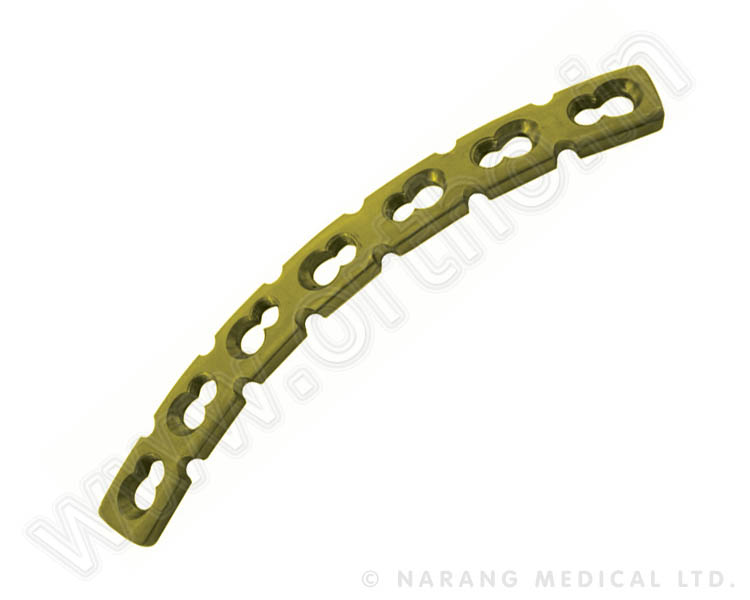

Reconstruction Safety Lock Plate 3.5 - Curved
- Reconstruction Safety Lock Plate 3.5 - Straight is used in the reconstruction of the pelvic fractures
- Side cuts on these plates make them more flexible and widens the spectrum of their use.
- These plates are used with 3.5mm cortical and 3.5 mm safety lock screw.
Click to Zoom
| No. of Holes |
STAINLESS STEEL |
| 5 |
SF-144.205C |
| 6 |
SF-144.206C |
| 7 |
SF-144.207C |
| 8 |
SF-144.208C |
| 9 |
SF-144.209C |
| 10 |
SF-144.210C |
| 11 |
SF-144.211C |
| 12 |
SF-144.212C |
| 13 |
SF-144.213C |
| 14 |
SF-144.214C |
| 16 |
SF-144.216C |
| 18 |
SF-144.218C |
| No. of Holes |
TITANIUM |
| 5 |
Ti-SF-144.205C |
| 6 |
Ti-SF-144.206C |
| 7 |
Ti-SF-144.207C |
| 8 |
Ti-SF-144.208C |
| 9 |
Ti-SF-144.209C |
| 10 |
Ti-SF-144.210C |
| 11 |
Ti-SF-144.211C |
| 12 |
Ti-SF-144.212C |
| 13 |
Ti-SF-144.213C |
| 14 |
Ti-SF-144.214C |
| 16 |
Ti-SF-144.216C |
| 18 |
Ti-SF-144.218C |

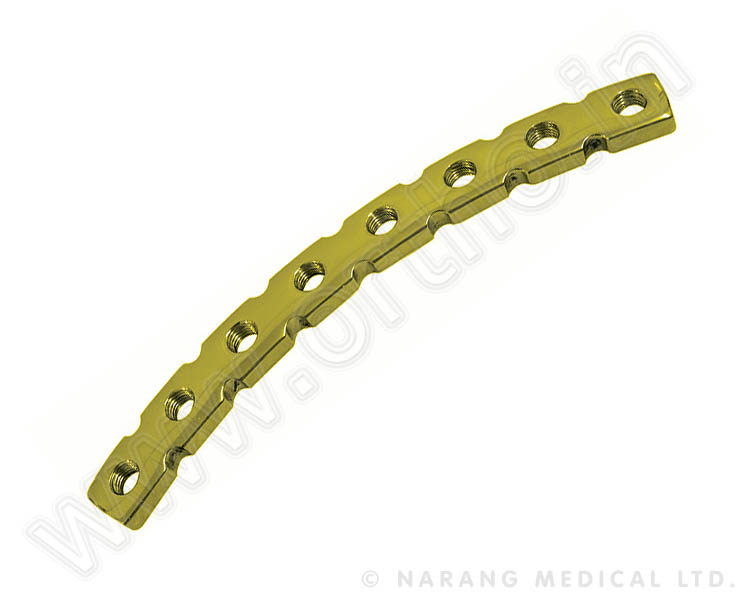

Reconstruction Safety Lock Plate 3.5 Round Holes - Curved
- Reconstruction Safety Lock Plate 3.5 - Straight is used in the reconstruction of the pelvic fractures.
- Side cuts on these plates make them more flexible and widens the spectrum of their use.
- These plates are used with 3.5 mm safety lock screw.
Click to Zoom
| No. of Holes |
STAINLESS STEEL |
| 5 |
SF-444.205C |
| 6 |
SF-444.206C |
| 7 |
SF-444.207C |
| 8 |
SF-444.208C |
| 9 |
SF-444.209C |
| 10 |
SF-444.210C |
| 11 |
SF-444.211C |
| 12 |
SF-444.212C |
| 13 |
SF-444.213C |
| 14 |
SF-444.214C |
| 16 |
SF-444.216C |
| 18 |
SF-444.218C |
| No. of Holes |
TITANIUM |
| 5 |
Ti-SF-444.205C |
| 6 |
Ti-SF-444.206C |
| 7 |
Ti-SF-444.207C |
| 8 |
Ti-SF-444.208C |
| 9 |
Ti-SF-444.209C |
| 10 |
Ti-SF-444.210C |
| 11 |
Ti-SF-444.211C |
| 12 |
Ti-SF-444.212C |
| 13 |
Ti-SF-444.213C |
| 14 |
Ti-SF-444.214C |
| 16 |
Ti-SF-444.216C |
| 18 |
Ti-SF-444.218C |
