Proximal Humerus Safety Lock Plate 3.5  |  Filos - Proximal Humerus Safety Lock Plate 3.5 - Standard  |  Filos - Proximal Humerus Safety Lock Plate 3.5 - Long
Proximal Humerus Safety Lock Plate 3.5

    Locking Proximal Humerus Plate is used for complex and unstable fractures.

    Indications – Proximal Humerus

  • Multifragmentary (dislocated) fractures requiring open reduction
  • Unstable subcapital fractures
  • Subcapital pseudarthrosis
  • Osteotomies

    • Suture holes The fixation of additional wireloops or sutures attached to the tubercles (in 3- or 4-fragment fractures) neutralises the muscle tension and helps to maintain reduction.

    The head of plate allows only 3.5 mm Safety Lock Screws and shaft of the plate allows both 3.5 mm Safety Lock and Cortical screws.

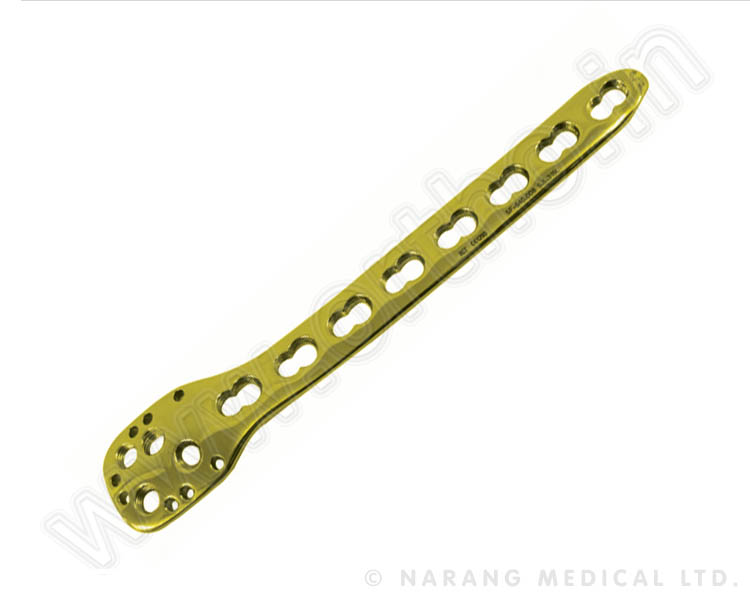

Proximal Humerus Safety Lock Plate 3.5
Click to Zoom
No. of Holes STAINLESS STEEL
5 SF-640.005
6 SF-640.006
7 SF-640.007
8 SF-640.008
No. of Holes TITANIUM
5 Ti-SF-640.005
6 Ti-SF-640.006
7 Ti-SF-640.007
8 Ti-SF-640.008

Top

Filos - Proximal Humerus Safety Lock Plate 3.5 - Standard

  • The Filos - Proximal Humerus safety Plate 3.5 - Standard is designed to match the anatomy of the proximal humerus. The plate is separate used for right and left humerus.
  • The Filos - Proximal Humerus safety Plate 3.5 - Standard, Head Region of the plate accommodates Safety Lock Screw Φ 3.5 mm- Self Tapping and Shaft region accommodates both Cortex Screw Φ 3.5 mm-Self Tapping and Safety Lock Screw Φ 3.5 mm-Self Tapping
  • The Filos - Proximal Humerus safety Plate 3.5 - Standard is indicated for fractures, fracture dislocations, osteotomies, and non-unions of the proximal humerus, particularly in osteopenic bone.

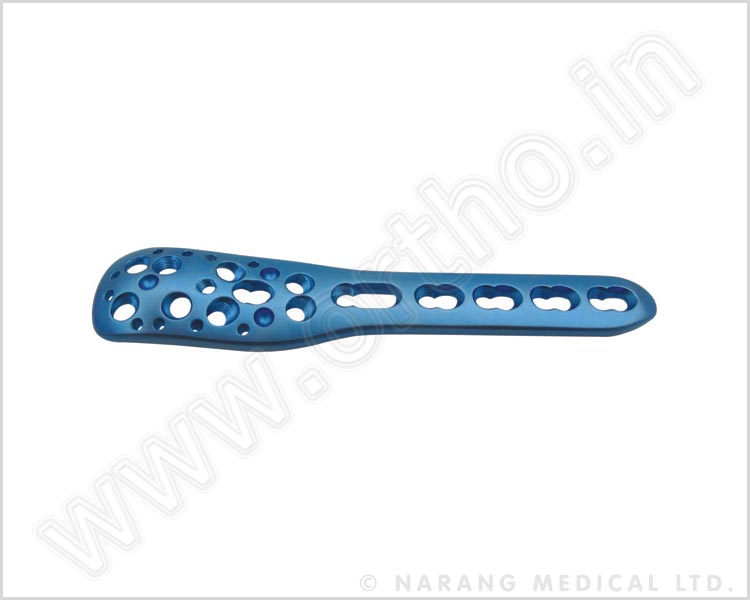

Filos - Proximal Humerus Safety Lock Plate 3.5 - Standard
Click to Zoom
No. of Holes STAINLESS STEEL
3 SF-642.003
4 SF-642.004
5 SF-642.005
No. of Holes TITANIUM
3 Ti-SF-642.003
4 Ti-SF-642.004
5 Ti-SF-642.005

Top

Filos - Proximal Humerus Safety Lock Plate 3.5 - Long

    FILOS LONG - The anatomic fixation system for the proximal humerus.

  • Angular stability, Anatomic design, Dedicated screw.
  • 9 proximal screw holes for Safety Locking Screws Ø 3.5 mm enable an angular stable construct to enhance the grip in multifragment fractures.
  • Anatomic reduction: Fracture reduction and fixation to restore anatomical relationships.
  • Stable fixation: Stability by fixation or splintage, as the personality of the fracture and the injury requires. The products optimize purchase for maximum compression and stability.
  • Preservation of blood supply: Preservation of the blood supply to soft tissue and bone by careful handling, atraumatic surgery. A limited-contact plate design reduces plate-to-bone contact and helps to preserve the periosteal blood supply.

    • INDICATIONS:

    FILOS LONG

  • Dislocated two-, three-, and four-fragment fractures of the proximal humerus.
  • Pseudarthroses in the proximal humerus
  • The long plate is required for fractures extending to the proximal diaphysis.

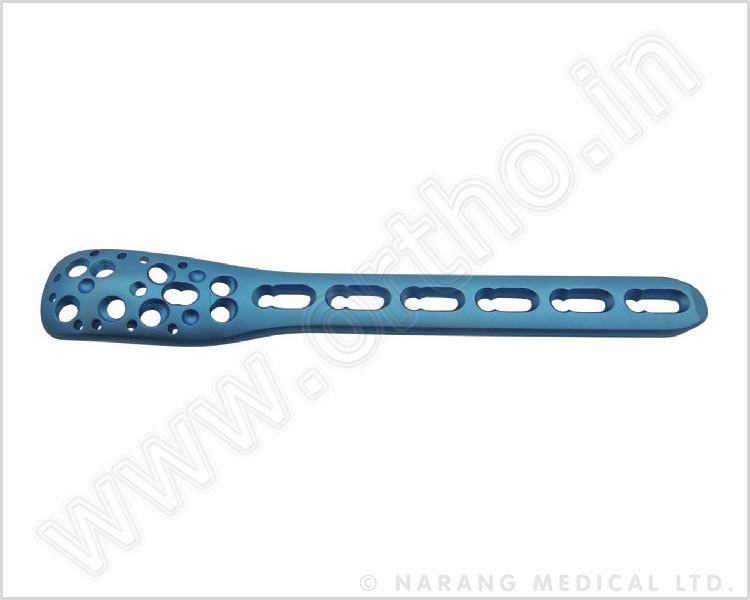

Filos - Proximal Humerus Safety Lock Plate 3.5-Long
Click to Zoom
No. of Holes STAINLESS STEEL
5 SF-642.205
6 SF-642.206
8 SF-642.208
10 SF-642.210
12 SF-642.212
No. of Holes TITANIUM
5 Ti-SF-642.205
6 Ti-SF-642.206
8 Ti-SF-642.208
10 Ti-SF-642.210
12 Ti-SF-642.212
