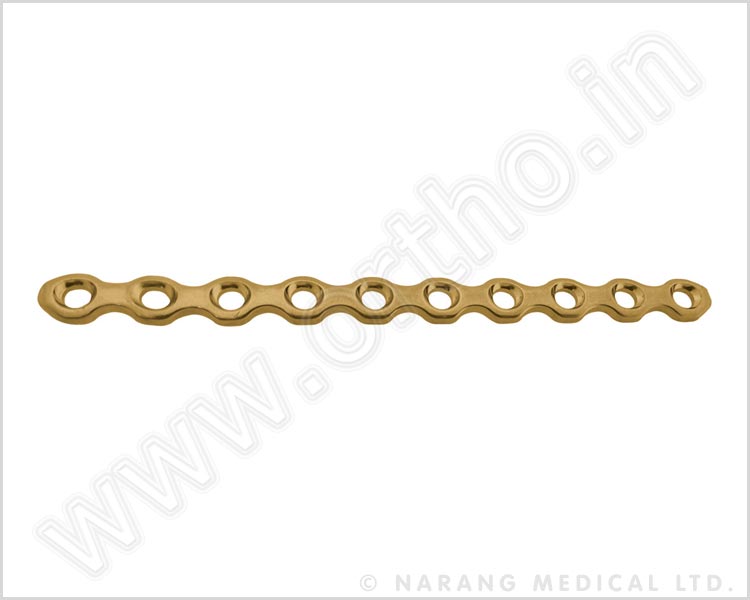

Pelvic Reconstruction Plate With Low Profile - Straight

Rib Plates
Click to Zoom
No. of Holes Code:
S.S		 Code:
Titanium
3 144.303 Ti-144.303
4 144.304 Ti-144.304
5 144.305 Ti-144.305
6 144.306 Ti-144.306
7 144.307 Ti-144.307
8 144.308 Ti-144.308
9 144.309 Ti-144.309
10 144.310 Ti-144.310
11 144.311 Ti-144.311
12 144.312 Ti-144.312
13 144.313 Ti-144.313
14 144.314 Ti-144.314
15 144.315 Ti-144.315
16 144.316 Ti-144.316
18 144.318 Ti-144.318
20 144.320 Ti-144.320

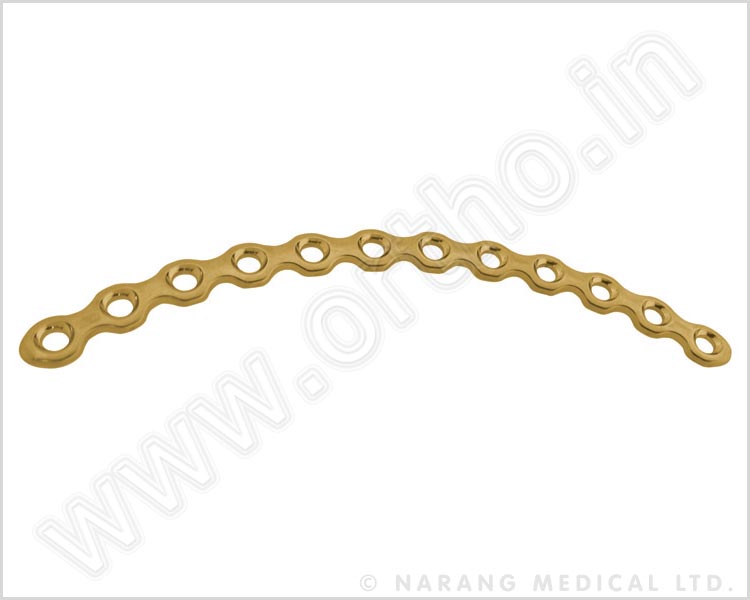

Pelvic Reconstruction Plate With Low Profile - Curved

Rib Plates
Click to Zoom
No. of Holes Code:
S.S		 Code:
Titanium
6 144.306C Ti-144.306C
8 144.308C Ti-144.308C
10 144.310C Ti-144.310C
12 144.312C Ti-144.312C
14 144.314C Ti-144.314C
16 144.316C Ti-144.316C

Cortex Screw Ø 3.5mm, Self Tapping

  • Cortex Screw Φ 3.5mm are used for the fixation of small fragment implants.
  • Larger Core of the screw provides strength and spherical surface under the head of the screw is for better compression.
  • Self tapping feature eliminates the use of bone tap.
  • Use 2.5mm Drill Bit.
Cortex Screw Ø 3.5mm, Self Tapping
Click to Zoom
Length in mm Codes
Stainless Steel Titanium
10 102.210 Ti-102.210
12 102.212 Ti-102.212
14 102.214 Ti-102.214
16 102.216 Ti-102.216
18 102.218 Ti-102.218
20 102.220 Ti-102.220
22 102.222 Ti-102.222
24 102.224 Ti-102.224
26 102.226 Ti-102.226
28 102.228 Ti-102.228
30 102.230 Ti-102.230
32 102.232 Ti-102.232
34 102.234 Ti-102.234
36 102.236 Ti-102.236
38 102.238 Ti-102.238
40 102.240 Ti-102.240
42 102.242 Ti-102.242
44 102.244 Ti-102.244
46 102.246 Ti-102.246
48 102.248 Ti-102.248
50 102.250 Ti-102.250

Pelvic Reconstruction Plate Instruments Set - Q-SERIES

Femoral Head
Click to Zoom

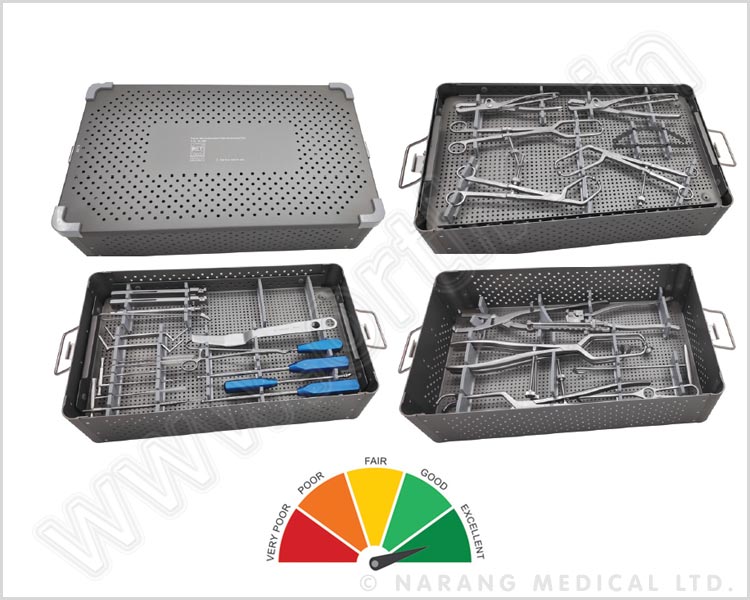

  Q.302 Pelvic Reconstruction Plate Instruments Set - Q-SERIES
  Set Consisting of : Units

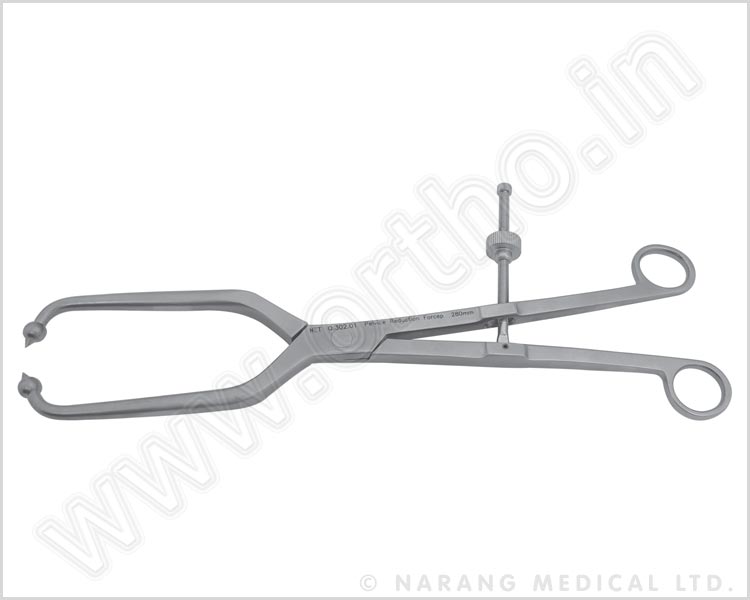

  Q.302.01 - Pelvice Reduction Forcep 280mm 1

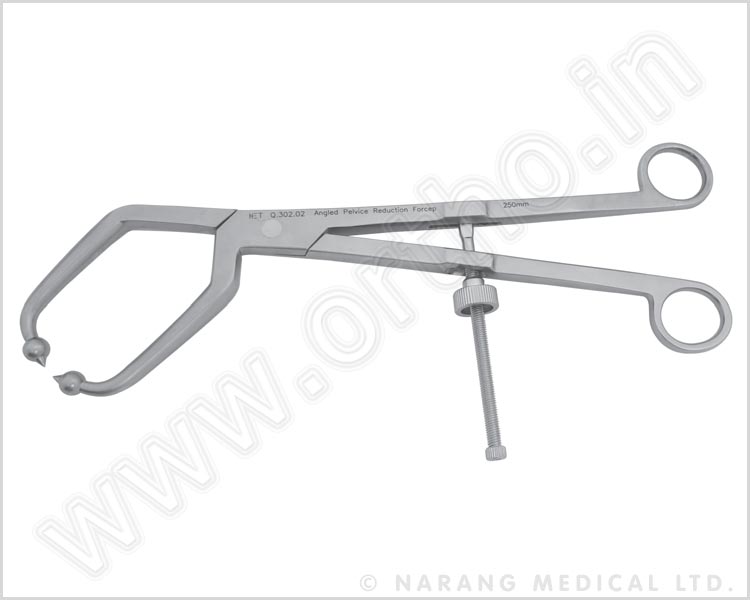

  Q.302.02 - Angled Pelvic Reduction Forcep 250mm 1

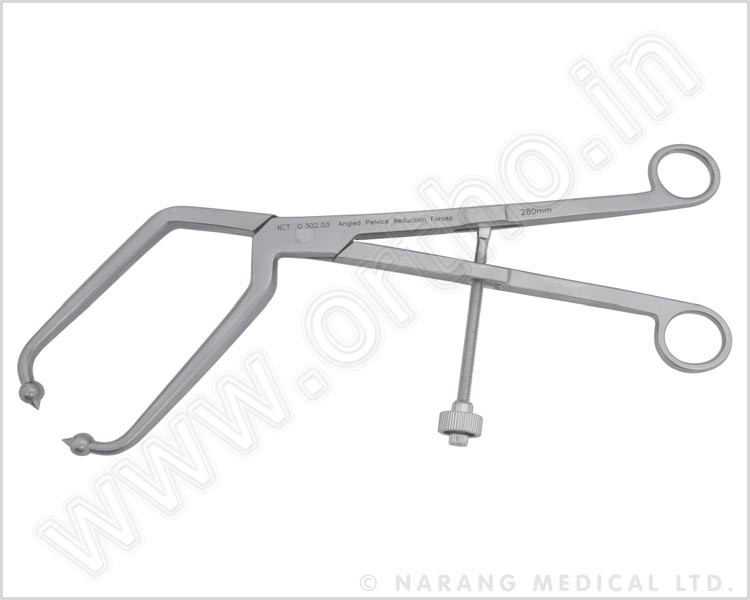

  Q.302.03 - Angled Pelvic Reduction Forcep 280mm 1

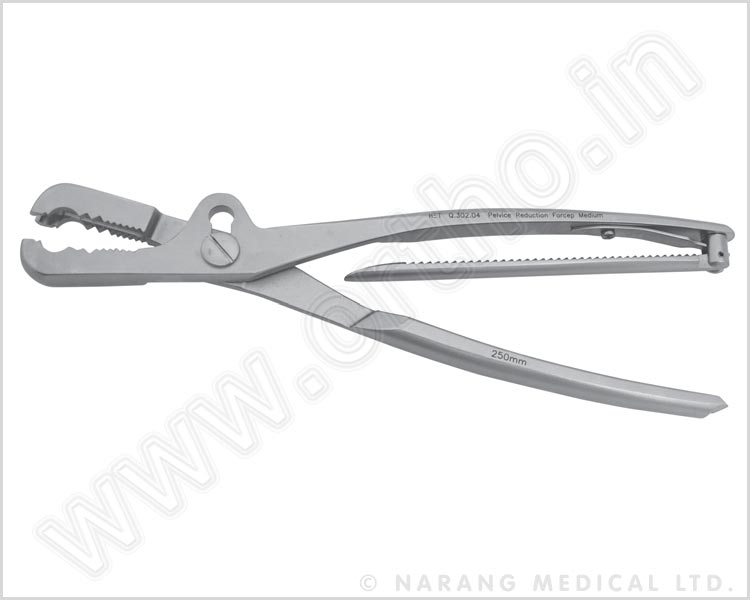

  Q.302.04 - Pelvice Reduction Forcep Medium 250mm 1
  Q.302.05 - Pelvic Reduction Forcep Small 200mm 1

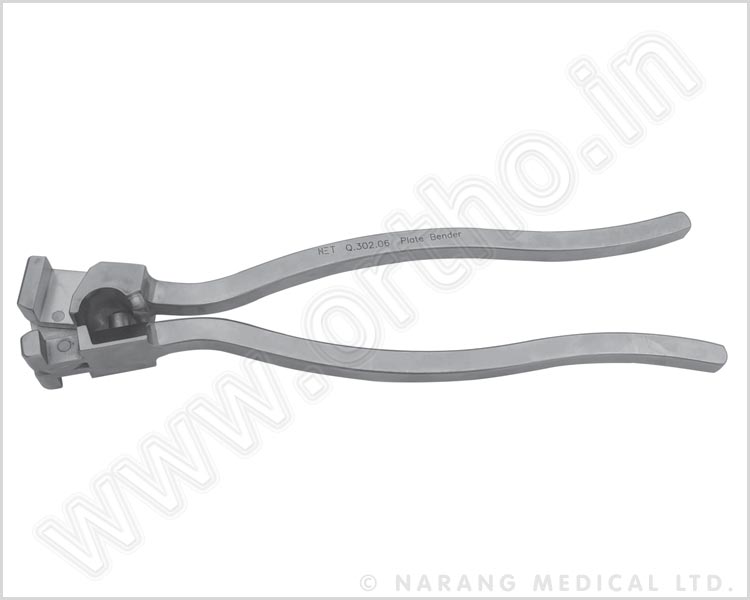

  Q.302.06 - Plate Bender 1

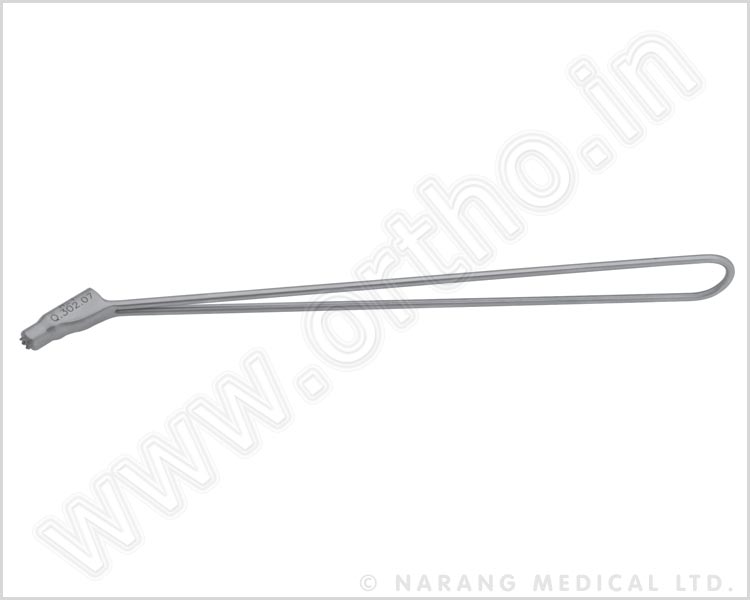

  Q.302.07 - Drill Guide 2.5 for Flexible Drill Bit 1

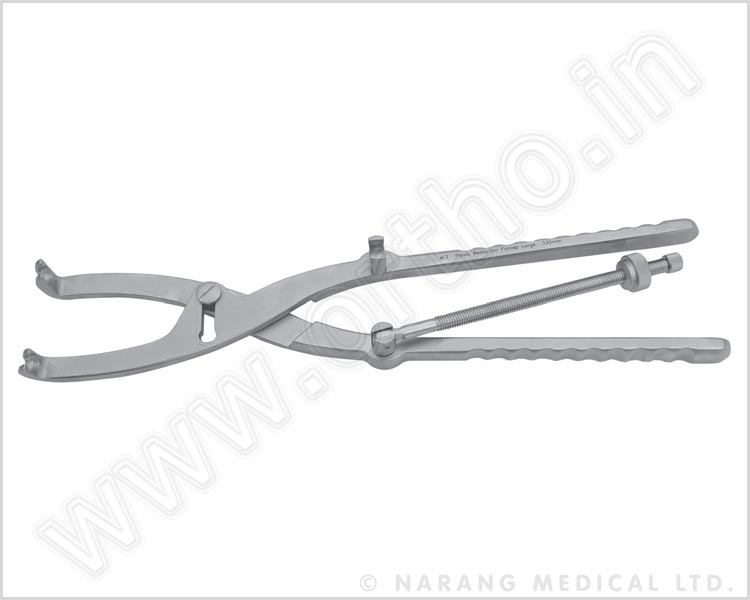

  Q.302.08 - Pelvic Reduction Forcep Large 330mm 1
  Q.302.09 - Straight Ball Spike 300mm 2

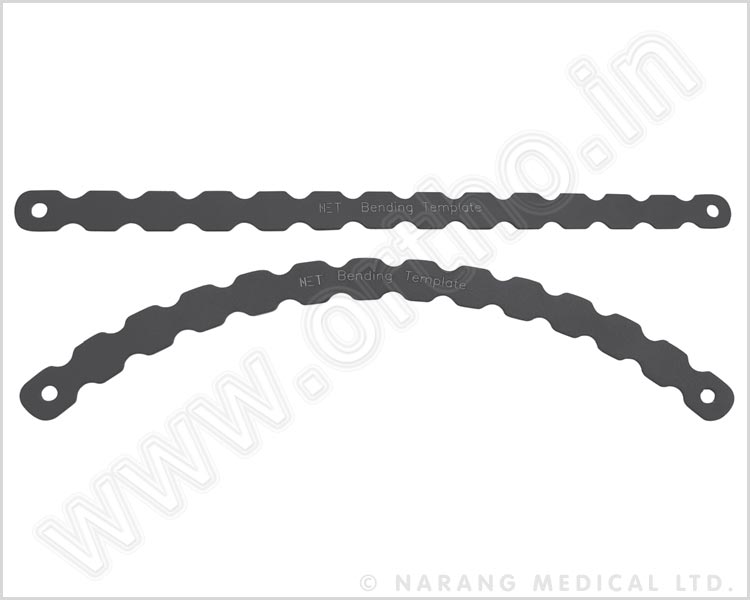

  Q.302.10 - Bending Template 2

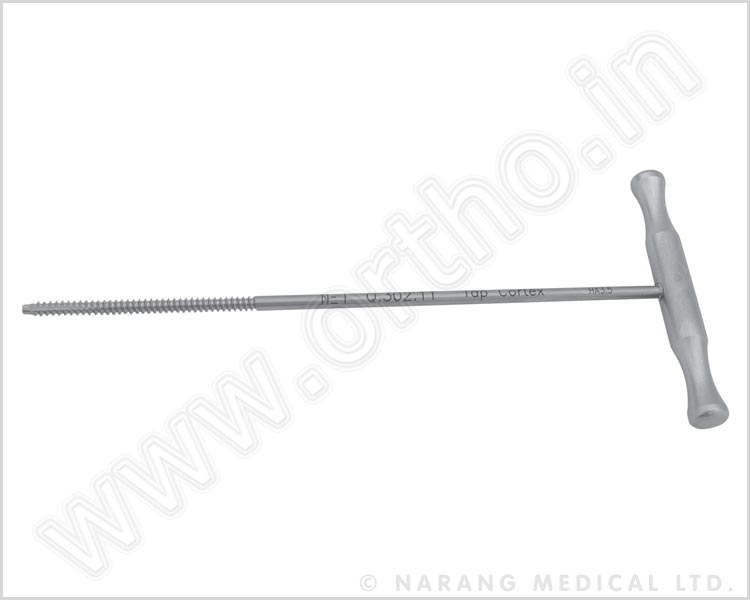

  Q.302.11 - Tap Cortex 3.5mm 1

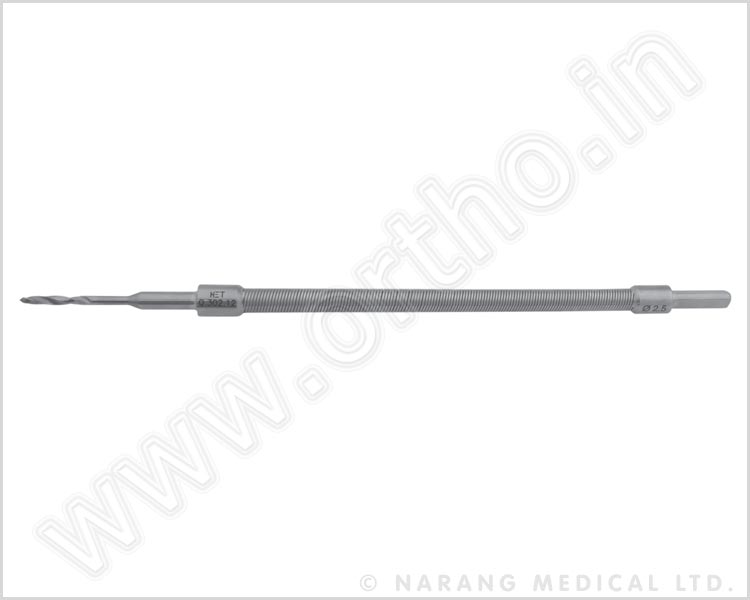

  Q.302.12 - Flexible Drill Bit ÿ2.5mm 1

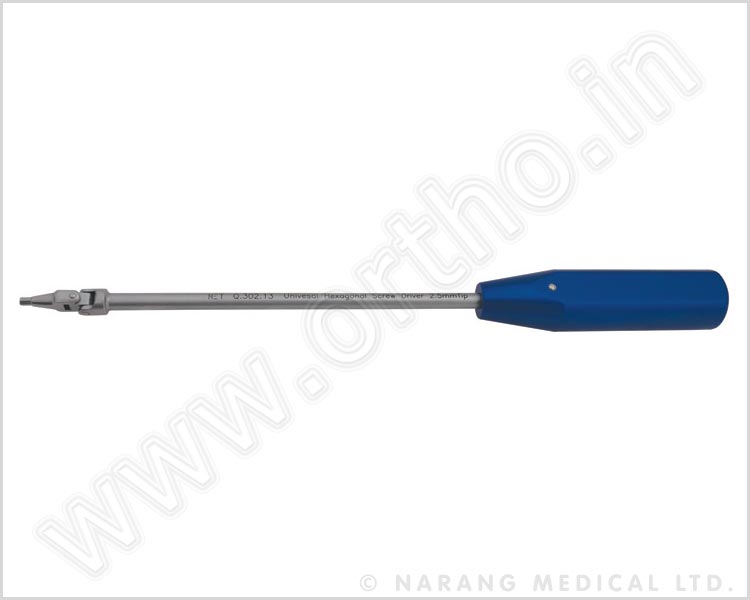

  Q.302.13 - Universal Hexagonal Screwdriver 2.5mm Tip 1

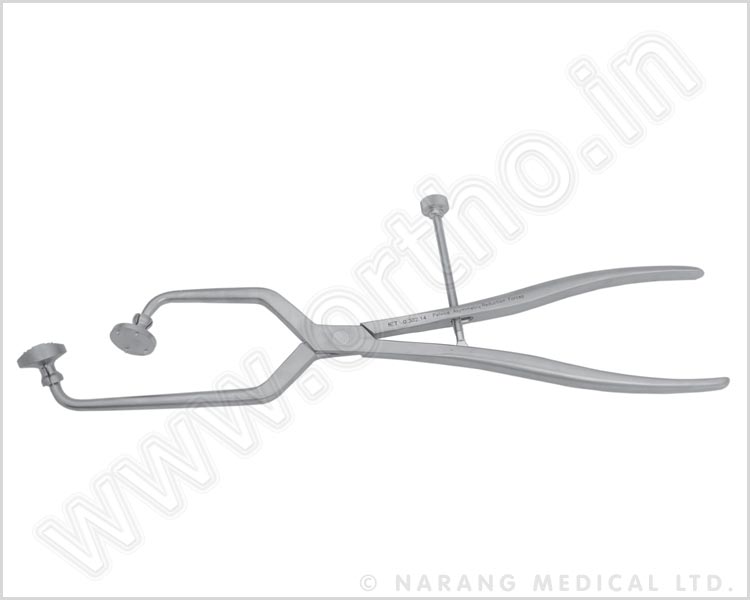

  Q.302.14 - Pelvic Asymmetric Reduction Forcep with Spiked Disc Round Curved/Flat 1

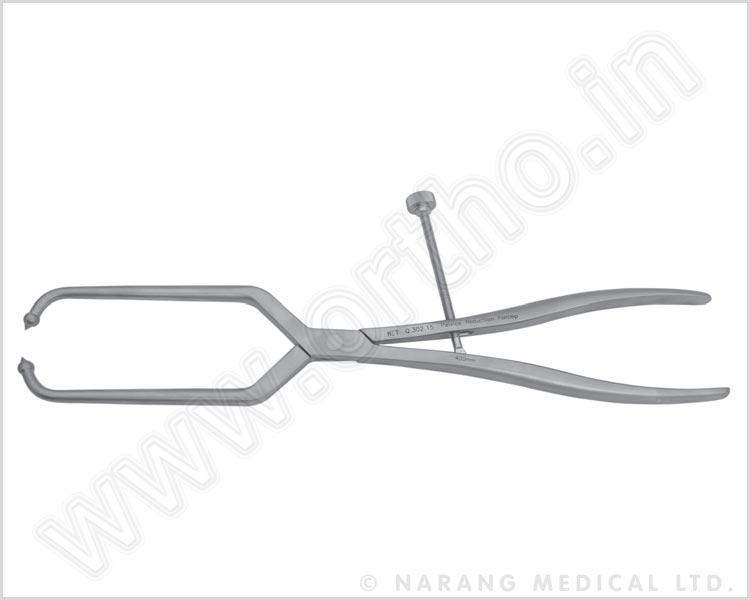

  Q.302.15 - Pelvic Reduction Forcep 400mm 1

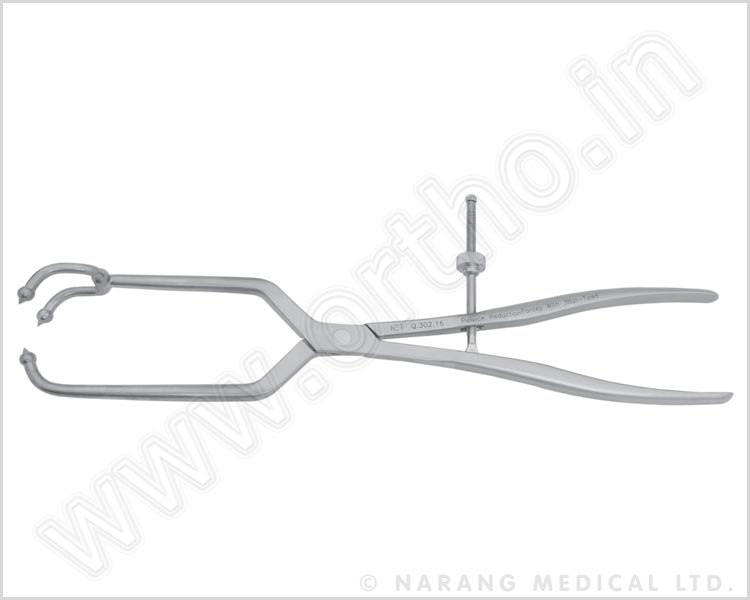

  Q.302.16 - Pelvic Reduction Forcep with 3 Ball-Tiped 1
  Q.302.17 - Bone Hook - Medium 1

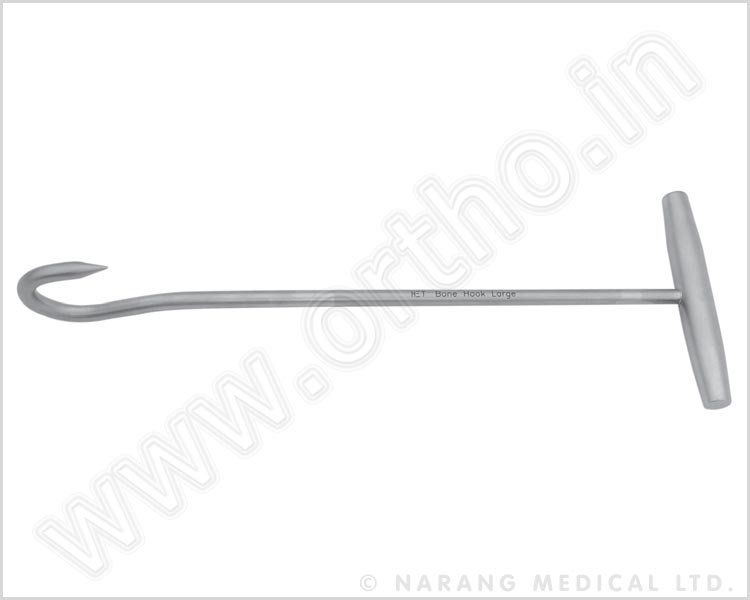

  Q.302.18 - Bone Hook - Large 1

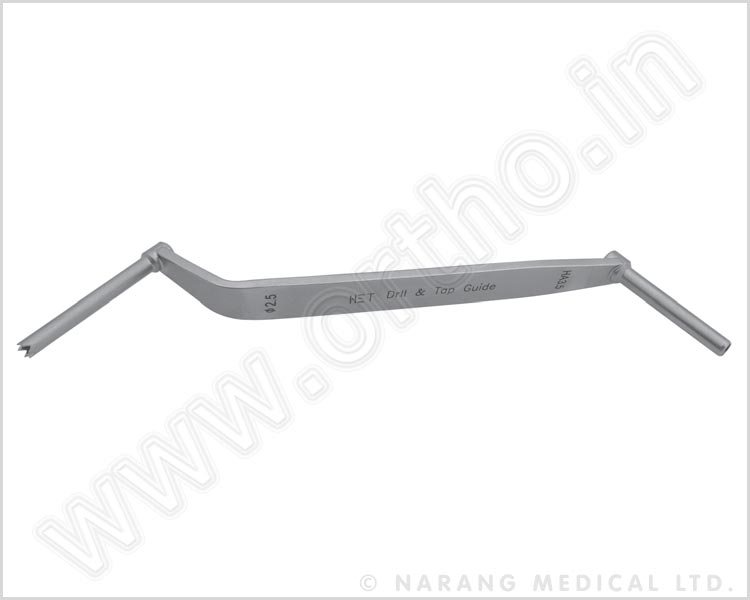

  Q.302.19 - Drill & Tap Guide ÿ2.5/3.5mm 1

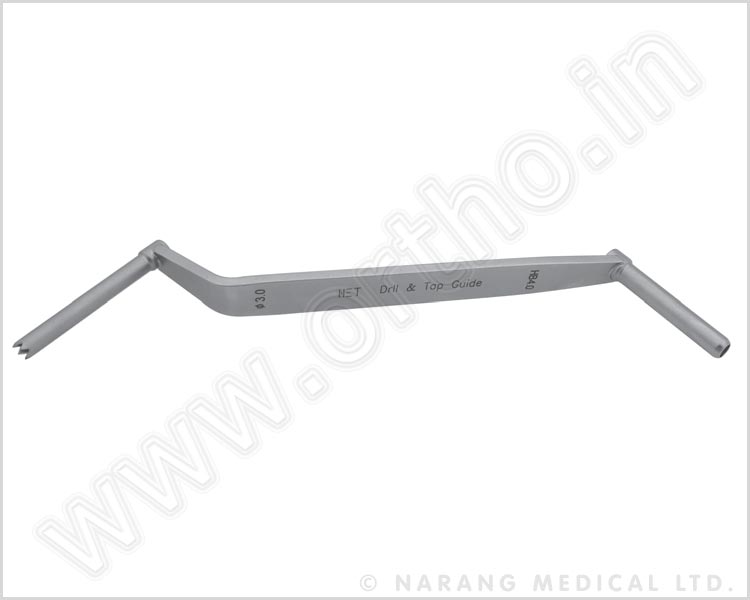

  Q.302.20 - Drill & Tap Guide ÿ3.2/4.0mm 1
  Q.302.21 - Pelvic Reduction Forcep Large 330mm 5

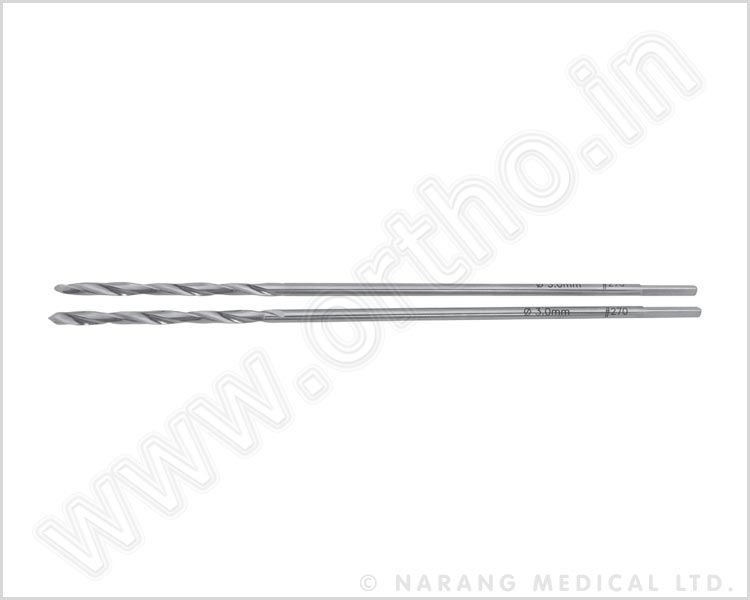

  Q.302.22 - Drill Bit ÿ3.0mm 2

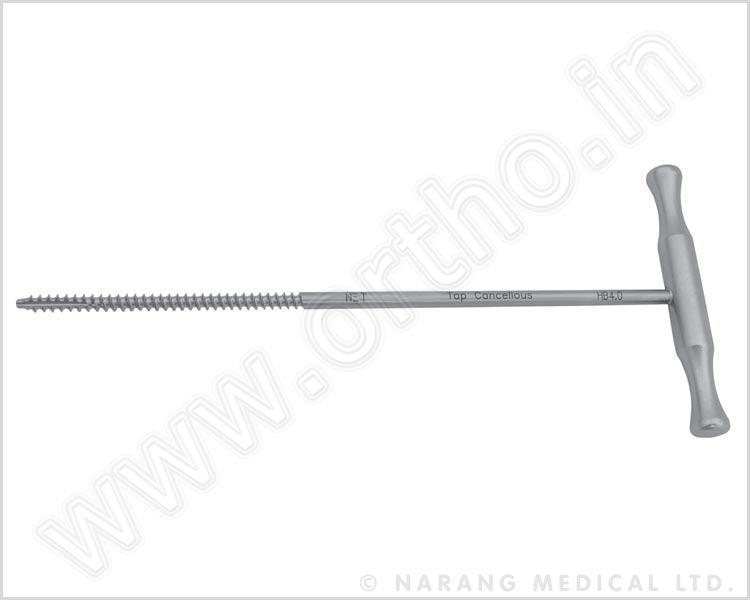

  Q.302.23 - Tap Cancellous 4mm 1

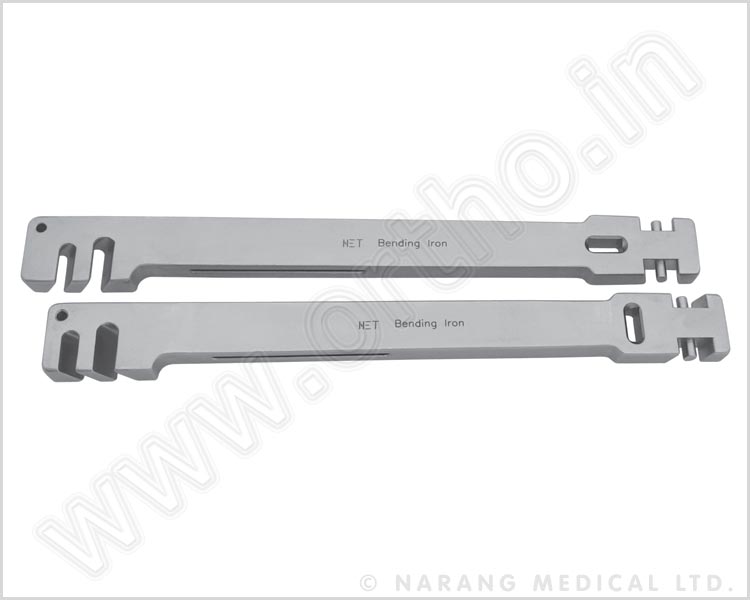

  Q.302.24 - Bending Iron 2
  Q.302.25 - Depth Gauge (0-60mm) 1
  Q.302.26 - Hexagonal Screwdriver 2.5mm Tip 1

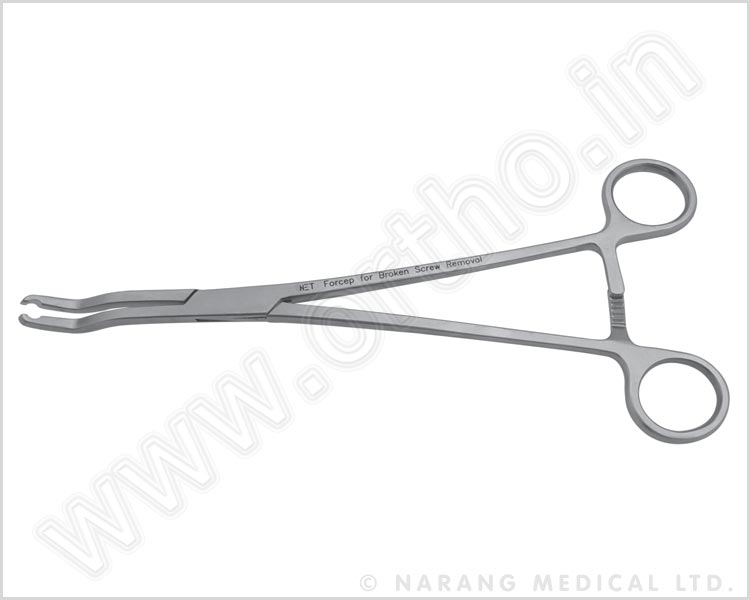

  Q.302.27 - Broken Screw Removal Forceps 1

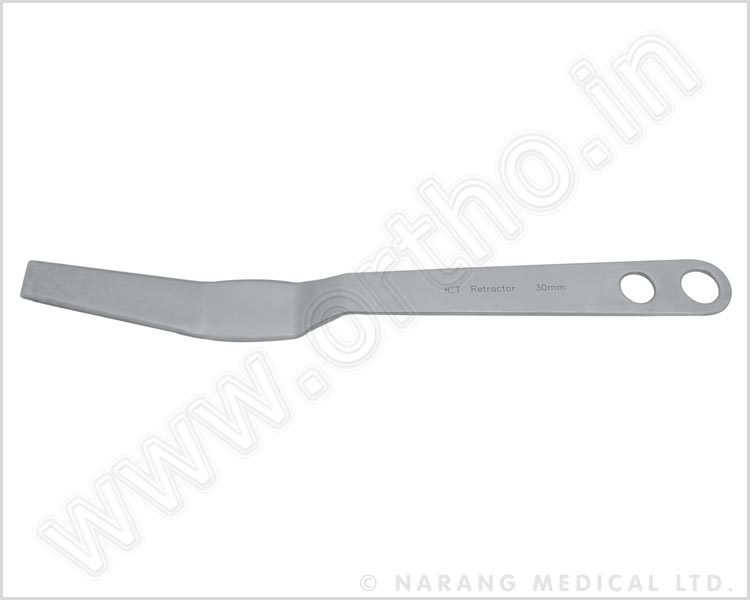

  Q.302.28 - Retractor 30mm width 1
  Q.302.29 - Universal Chuck with T-Handle 1
  Q.302.000 - Empty Container
