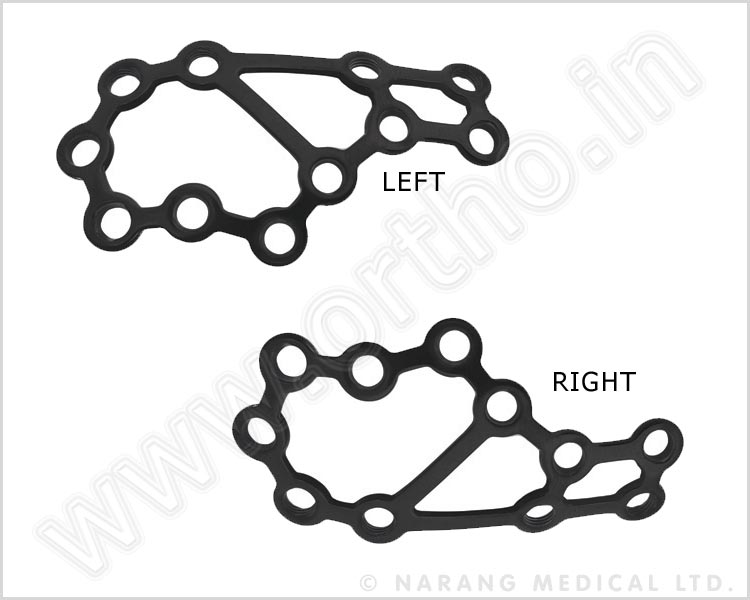

Calcaneous Anatomic Safety Lock Plate 3.5 Left & Right

Length mm	No. of Holes	Code: Titanium (Left)	Code: Titanium (Right)
60	11	Ti-SF-110.60L	Ti-SF-110.60R
68	11	Ti-SF-110.68L	Ti-SF-110.68R
73	11	Ti-SF-110.73L	Ti-SF-110.73R

Click to Zoom

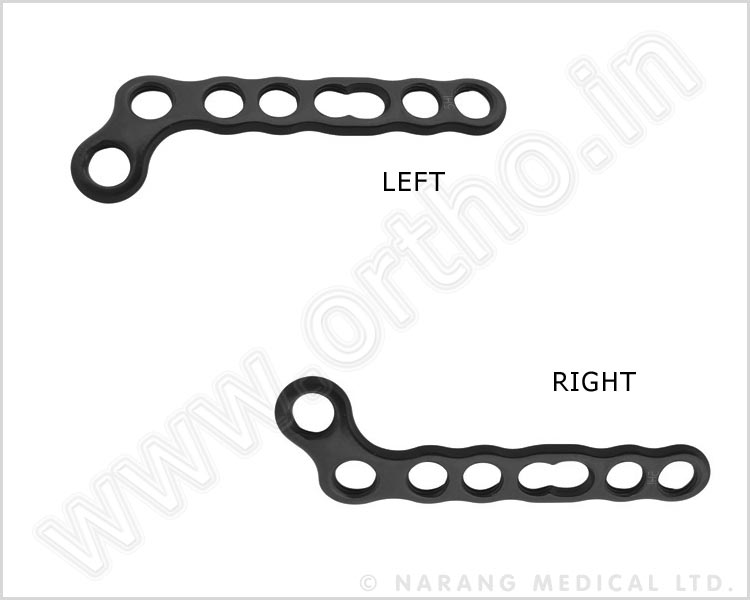

Proximal Metatarsus Anatomic Safety Lock Plate 3.5

No. of Holes	L/R	Code: Titanium
3	Left	Ti-SF-112.03L
3	Right	Ti-SF-112.03R
4	Left	Ti-SF-112.04L
4	Right	Ti-SF-112.04R
5	Left	Ti-SF-112.05L
5	Right	Ti-SF-112.05R
6	Left	Ti-SF-112.06L
6	Right	Ti-SF-112.06R

Click to Zoom

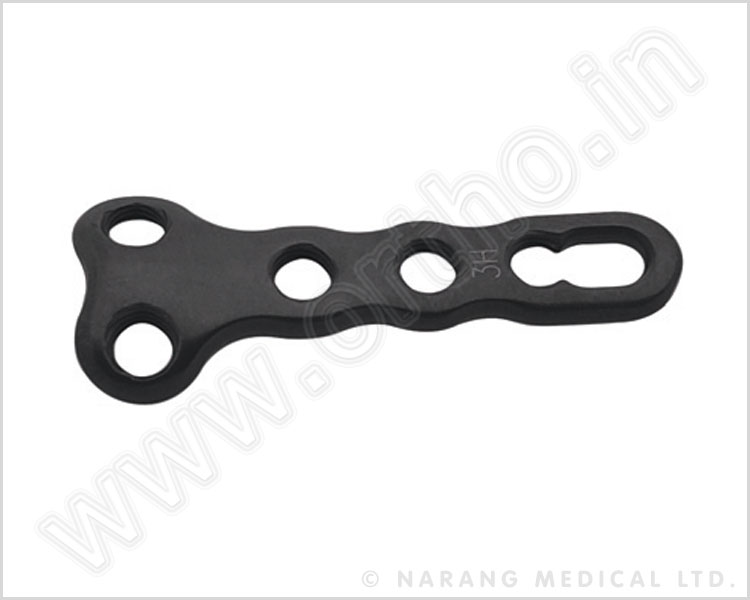

Metatarsus T Shape Safety Lock Plate 2.7

No. of Holes	Code Titanium
2	Ti-SF-111.102
3	Ti-SF-111.103
4	Ti-SF-111.104
5	Ti-SF-111.105
6	Ti-SF-111.106

Click to Zoom

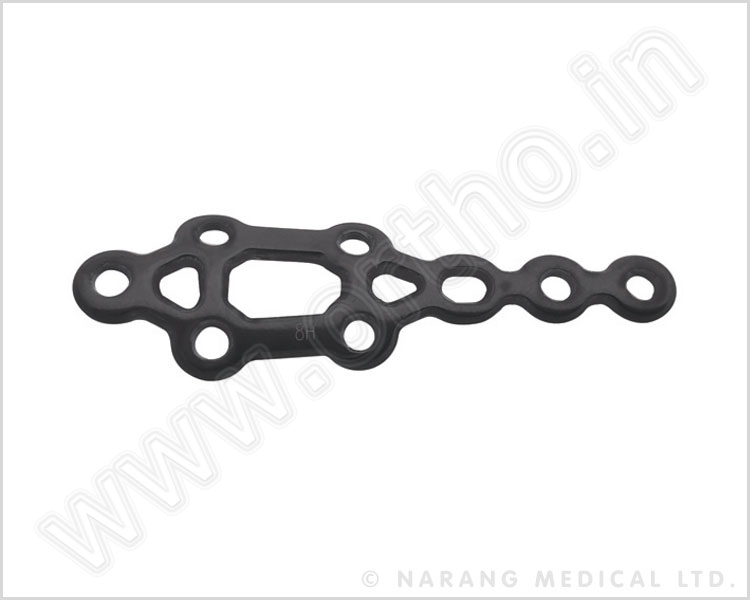

Metatarsus Wedge Arthrodesis Safety Lock Plate 2.7

No. of Holes	Code Titanium
8	Ti-SF-111.000

Click to Zoom

X Shape Safety Lock Plate 3.5

No. of Holes	Code Titanium
4	Ti-SF-119.000

Click to Zoom

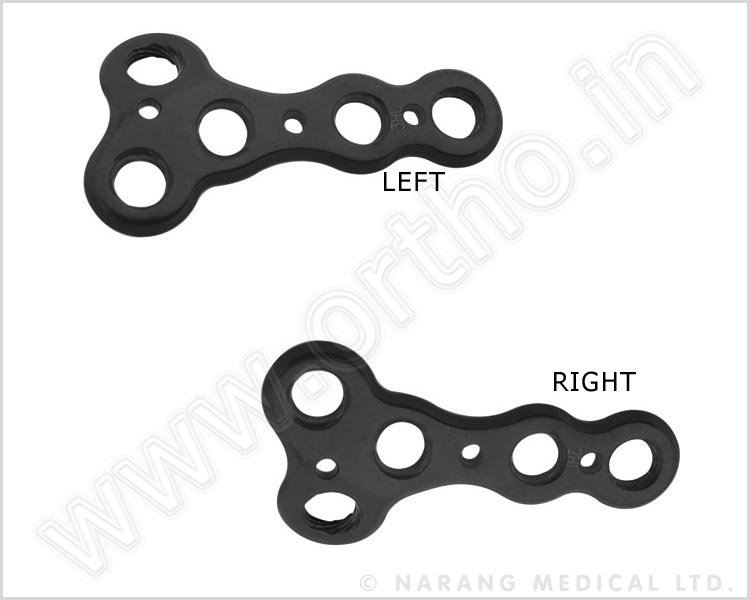

Minimally Invasive Anatomy Of The Posterior Calcaneous Lock Plate 3.5

No. of Holes	L/R	Code Titanium
3	Left	Ti-SF-113.03L
3	Right	Ti-SF-113.03R
4	Left	Ti-SF-113.04L
4	Right	Ti-SF-113.04R

Click to Zoom

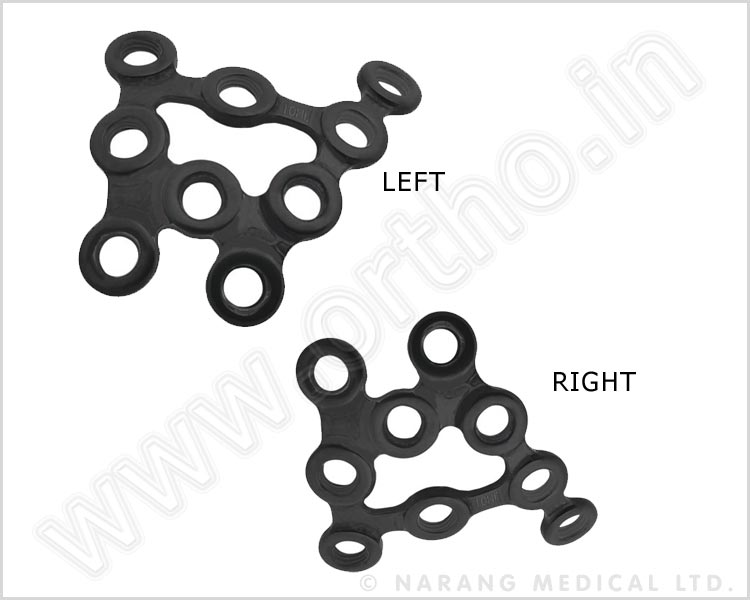

Cuboid Safety Lock Plate 2.7

No. of Holes	L/R	Code Titanium
9	Left	Ti-SF-114.09L
9	Right	Ti-SF-114.09R

Click to Zoom

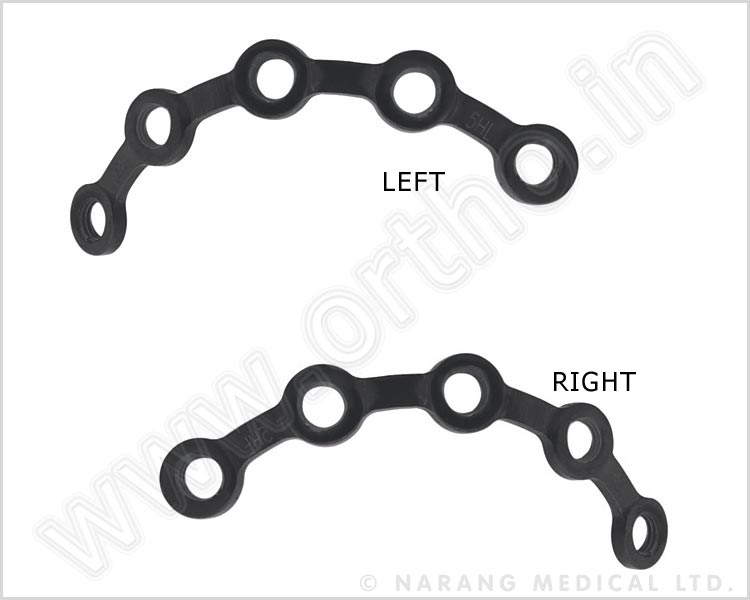

Talus Safety Lock Plate 2.7

No. of Holes	L/R	Code Titanium
5	Left	Ti-SF-115.05L
5	Right	Ti-SF-115.05R

Click to Zoom

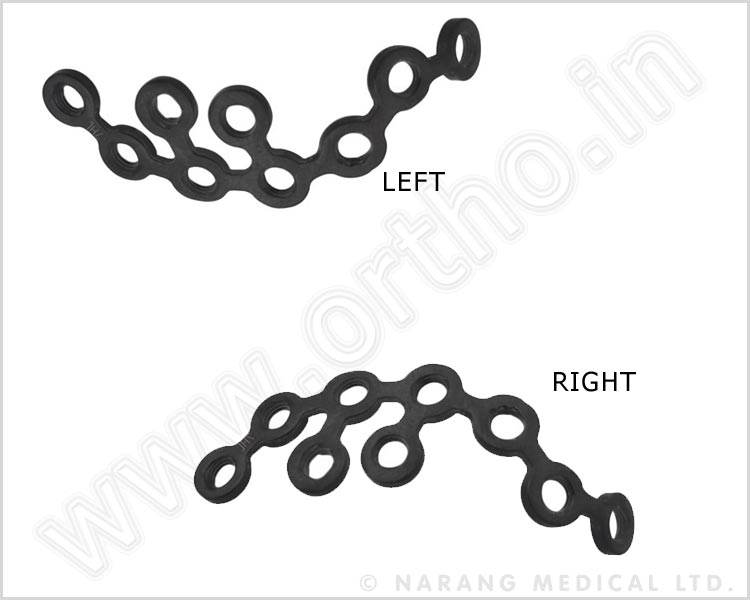

Scaphoid Safety Lock Plate 2.7

No. of Holes	L/R	Code Titanium
7	Left	Ti-SF-116.07L
7	Right	Ti-SF-116.07R

Click to Zoom

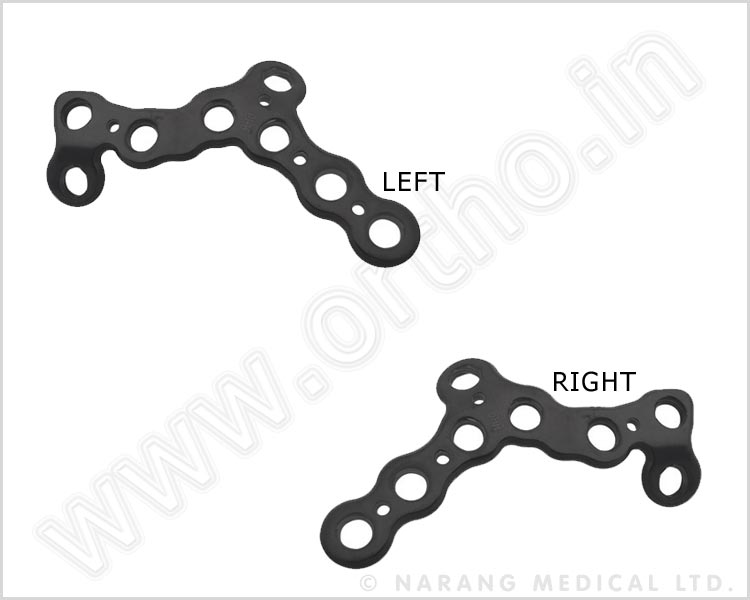

Calcaneous Combined Minimally Invasive Anatomical Safety Lock Plate 3.5

No. of Holes	L/R	Code Titanium
6	Left	Ti-SF-117.06L
6	Right	Ti-SF-117.06R
7	Left	Ti-SF-117.07L
7	Right	Ti-SF-117.07R

Click to Zoom

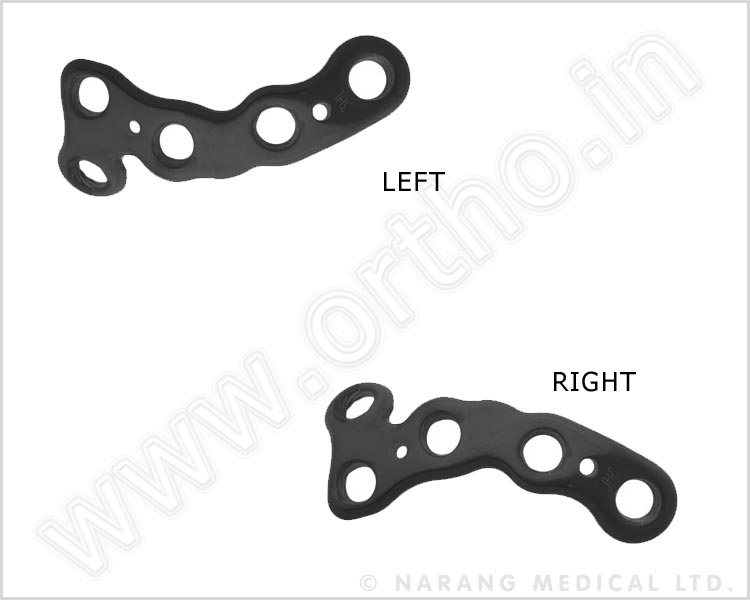

Calcaneous Anterior Convex Minimally Invasive Anatomical Safety Lock Plate 3.5

No. of Holes	L/R	Code Titanium
3	Left, Small	Ti-SF-118S.03L
3	Right, Small	Ti-SF-118S.03R
3	Left, Big	Ti-SF-118B.03L
3	Right, Big	Ti-SF-118B.03R

Click to Zoom

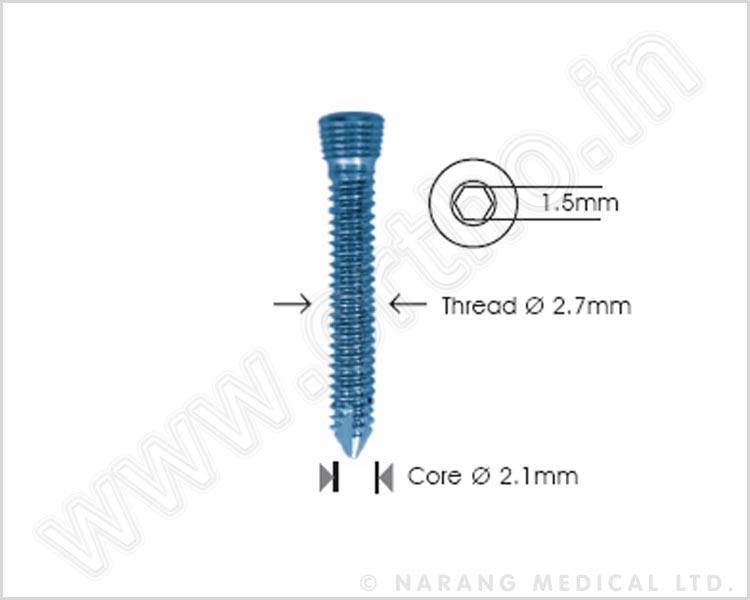

Safety Lock Screw Ø 2.7mm Self Tapping

Drill Bit: 2.8mm

Length in mm	Code Titanium
20	Ti-SF-101.420
22	Ti-SF-101.422
24	Ti-SF-101.424
26	Ti-SF-101.426
28	Ti-SF-101.428
30	Ti-SF-101.430
32	Ti-SF-101.432
34	Ti-SF-101.434
36	Ti-SF-101.436
38	Ti-SF-101.438
40	Ti-SF-101.440
42	Ti-SF-101.442
44	Ti-SF-101.444
46	Ti-SF-101.446
48	Ti-SF-101.448
50	Ti-SF-101.450
52	Ti-SF-101.452
54	Ti-SF-101.454
56	Ti-SF-101.456
58	Ti-SF-101.458
60	Ti-SF-101.460

Click to Zoom

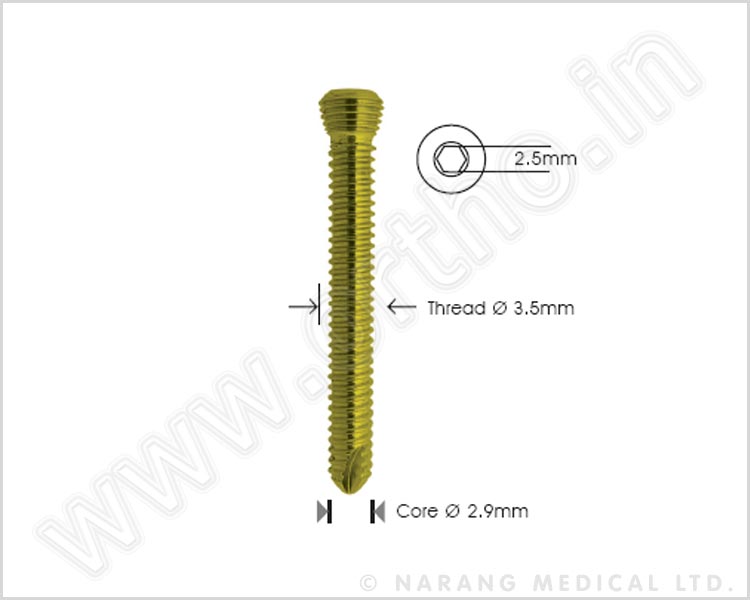

Safety Lock Screw Ø 3.5mm Self Tapping

Drill Bit: 2.8mm

Length in mm	Code Titanium
10	Ti-SF-102.210
12	Ti-SF-102.212
14	Ti-SF-102.214
16	Ti-SF-102.216
18	Ti-SF-102.218
20	Ti-SF-102.220
22	Ti-SF-102.222
24	Ti-SF-102.224
26	Ti-SF-102.226
28	Ti-SF-102.228
30	Ti-SF-102.230
32	Ti-SF-102.232
34	Ti-SF-102.234
36	Ti-SF-102.236
38	Ti-SF-102.238
40	Ti-SF-102.240
42	Ti-SF-102.242
44	Ti-SF-102.244
46	Ti-SF-102.246
48	Ti-SF-102.248
50	Ti-SF-102.250
52	Ti-SF-102.252
54	Ti-SF-102.254
56	Ti-SF-102.256
58	Ti-SF-102.258
60	Ti-SF-102.260

Click to Zoom

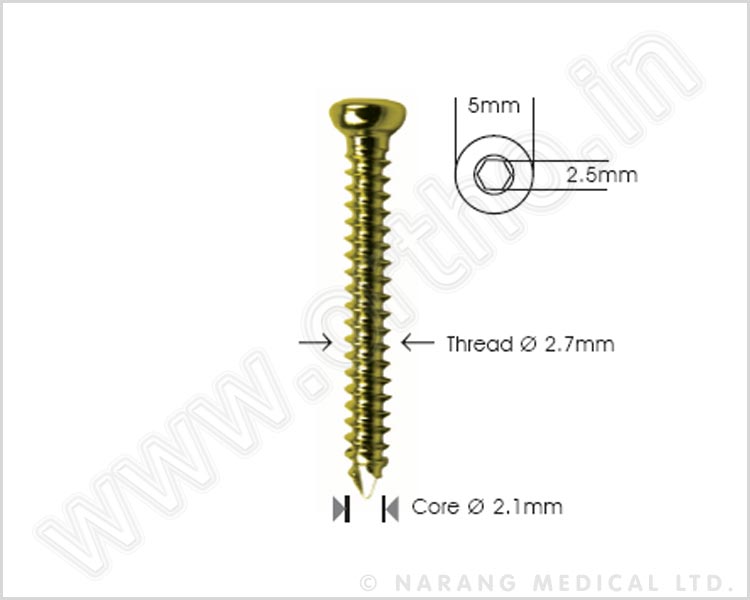

Cortex Screw Ø 2.7mm Self Tapping

Drill Bit: 2mm
Length 32 to 55mm available on request.

Length in mm	Code Titanium
6	Ti-101.206
8	Ti-101.208
10	Ti-101.210
12	Ti-101.212
14	Ti-101.214
16	Ti-101.216
18	Ti-101.218
20	Ti-101.220
22	Ti-101.222
24	Ti-101.224
26	Ti-101.226
28	Ti-101.228
30	Ti-101.230

Click to Zoom

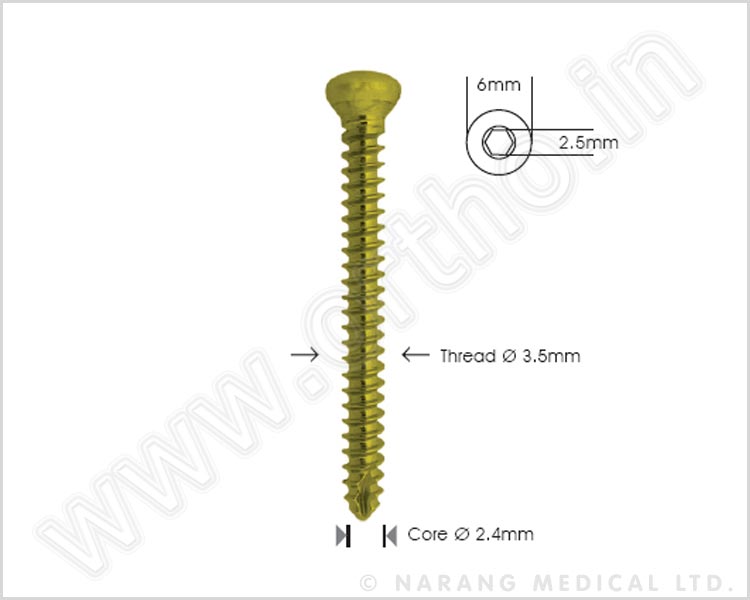

Cortex Screw Ø 3.5mm Self Tapping

Drill Bit: 2.5mm
Drill Bit for Gliding Hole: 3.5mm

Length in mm	Code Titanium
10	Ti-102.210
12	Ti-102.212
14	Ti-102.214
16	Ti-102.216
18	Ti-102.218
20	Ti-102.220
22	Ti-102.222
24	Ti-102.224
26	Ti-102.226
28	Ti-102.228
30	Ti-102.230
32	Ti-102.232
34	Ti-102.234
36	Ti-102.236
38	Ti-102.238
40	Ti-102.240
42	Ti-102.242
44	Ti-102.244
46	Ti-102.246
48	Ti-102.248
50	Ti-102.250

Click to Zoom

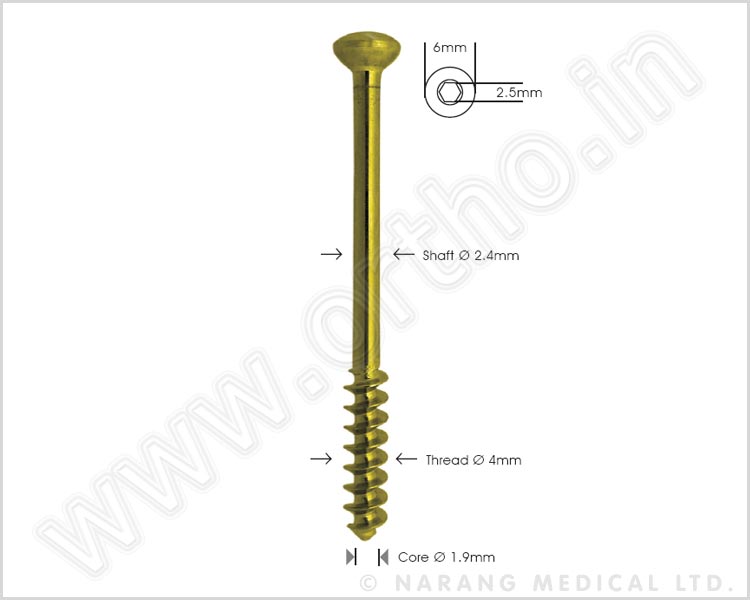

Cancellous Bone Screw Ø 4.0mm Short-Thread - Self Tapping

Drill Bit: 2.5mm

Length in mm	Code Titanium
10	Ti-104.210
12	Ti-104.212
14	Ti-104.214
16	Ti-104.216
18	Ti-104.218
20	Ti-104.220
22	Ti-104.222
24	Ti-104.224
26	Ti-104.226
28	Ti-104.228
30	Ti-104.230
35	Ti-104.235
40	Ti-104.240
45	Ti-104.245
50	Ti-104.250
55	Ti-104.255
60	Ti-104.260

Cancellous Bone Screw Ø 4.0mm Short-Thread - Self Tapping

Click to Zoom

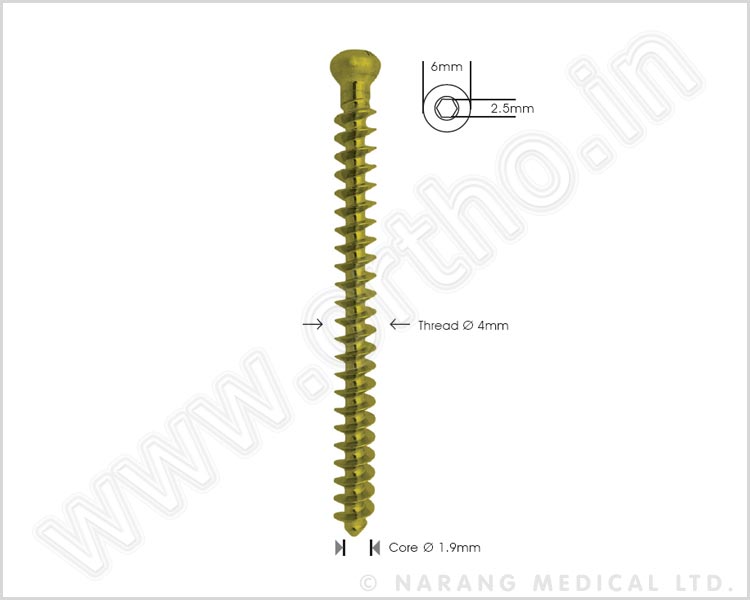

Cancellous Bone Screw Ø 4.0mm Full-Thread - Self Tapping

Drill Bit: 2.5mm

Length in mm	Code Titanium
10	Ti-105.210
12	Ti-105.212
14	Ti-105.214
16	Ti-105.216
18	Ti-105.218
20	Ti-105.220
22	Ti-105.222
24	Ti-105.224
26	Ti-105.226
28	Ti-105.228
30	Ti-105.230
35	Ti-105.235
40	Ti-105.240
45	Ti-105.245
50	Ti-105.250
55	Ti-105.255
60	Ti-105.260

Cancellous Bone Screw Ø 4.0mm Full-Thread - Self Tapping

Click to Zoom

Instrtuments Set For Foot System "Q"- SERIES

Click to Zoom

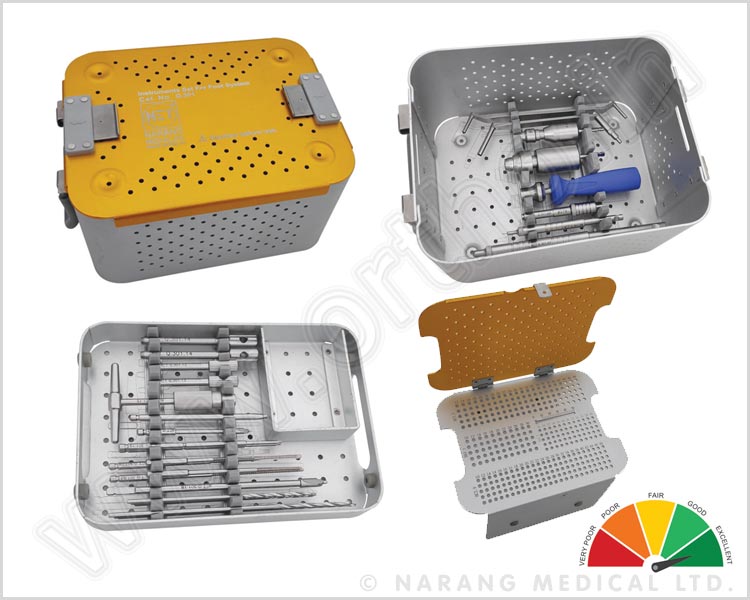

	Q.301 Instruments Set For Foot System "Q"- SERIES
	Set Consisting of :	Units

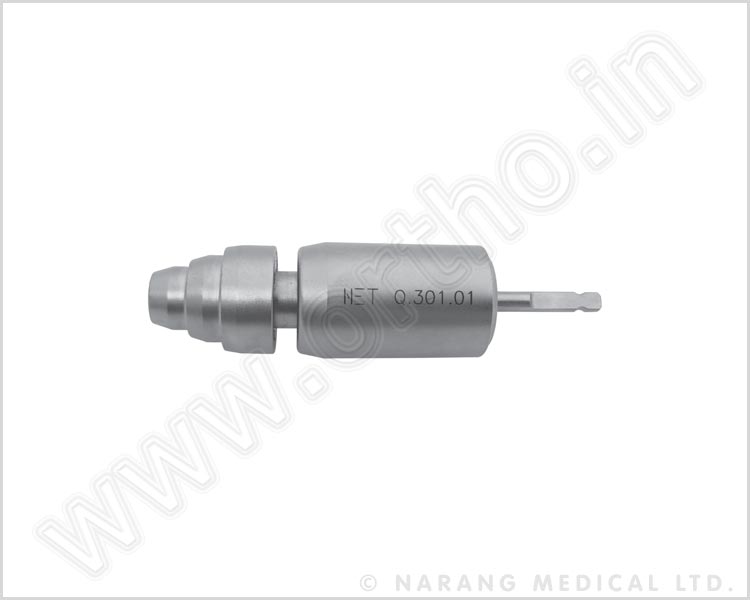

	Q.301.01 - Torque screw Driver handle 1.5NM Q.301.01 - Torque screw Driver handle 1.5NM	1

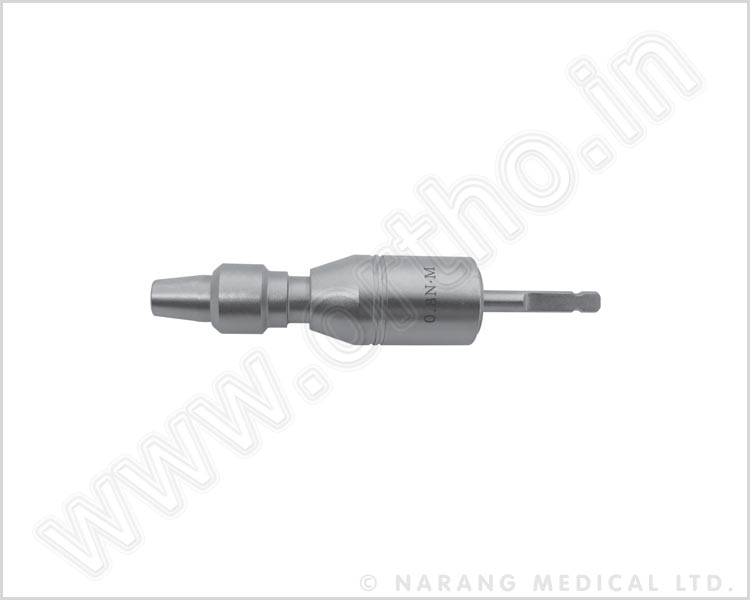

	Q.301.02 - Torque screw Driver handle 0.8NM Q.301.02 - Torque screw Driver handle 0.8NM	1

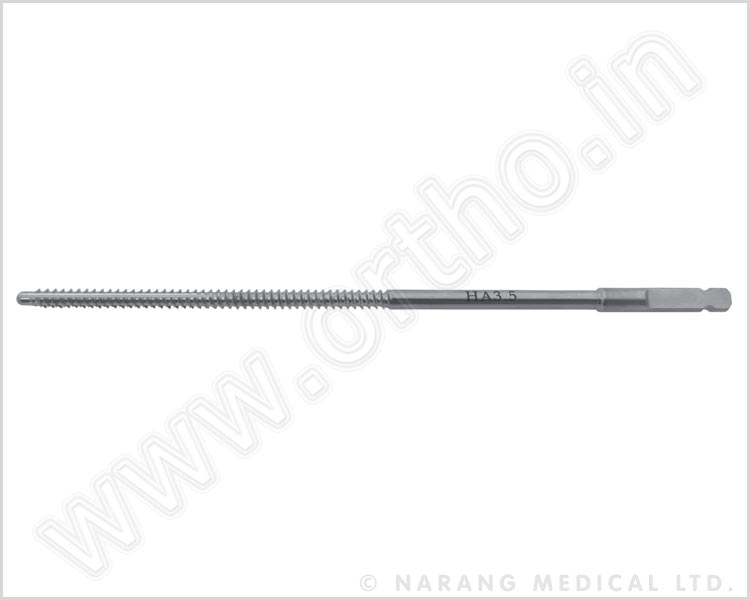

	Q.301.03 - Tap Cortical 3.5mm (HA3.5mm) Q.301.03 - Tap Cortical 3.5mm (HA3.5mm)	1

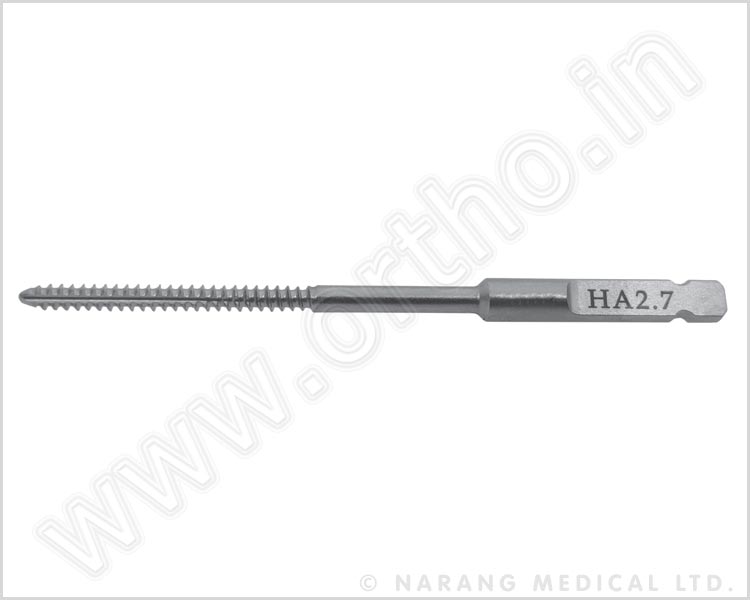

	Q.301.04 - Tap Cortical 2.7mm (HA2.7mm) Q.301.04 - Tap Cortical 2.7mm (HA2.7mm)	1
	Q.301.05 - Tap Locking 2.7mm (HC 2.7mm) Q.301.05 - Tap Locking 2.7mm (HC 2.7mm)	1

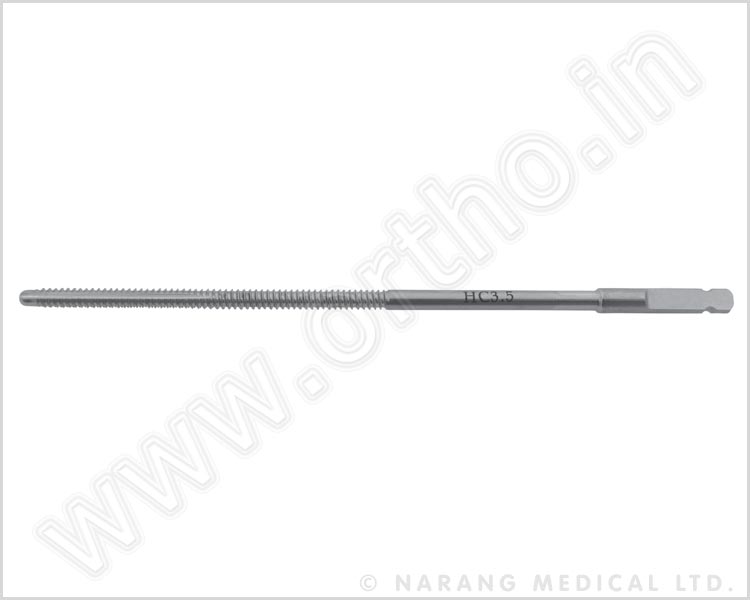

	Q.301.06 - Tap Locking 3.5mm (HC3.5mm) Q.301.06 - Tap Locking 3.5mm (HC3.5mm)	1

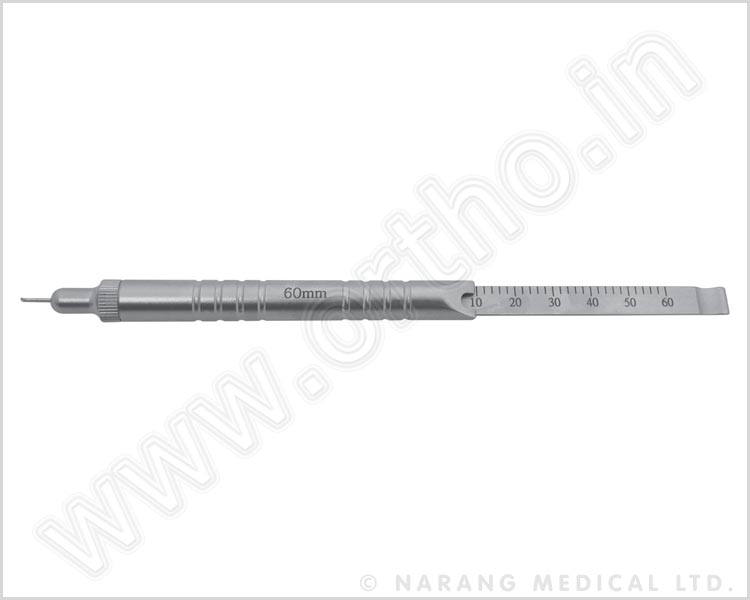

	Q.301.07 - Depth Gauge 60mm Q.301.07 - Depth Gauge 60mm	1

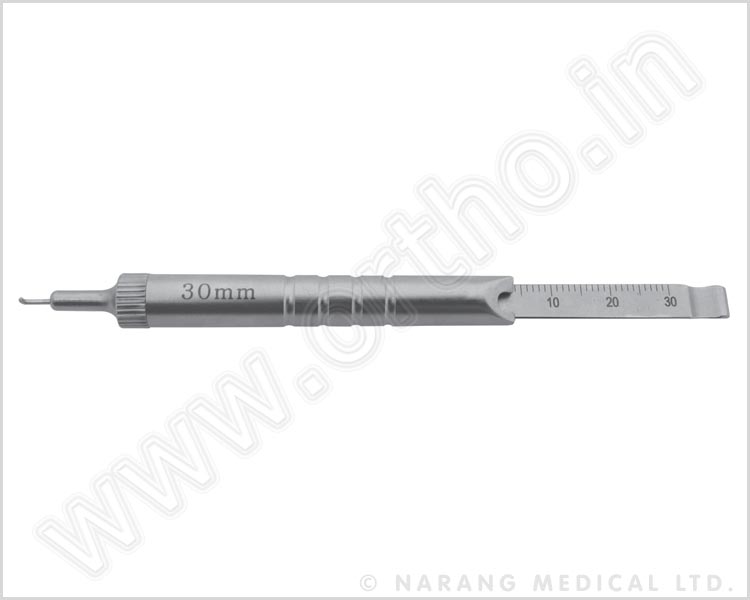

	Q.301.08 - Depth Gauge 30mm Q.301.08 - Depth Gauge 30mm	1

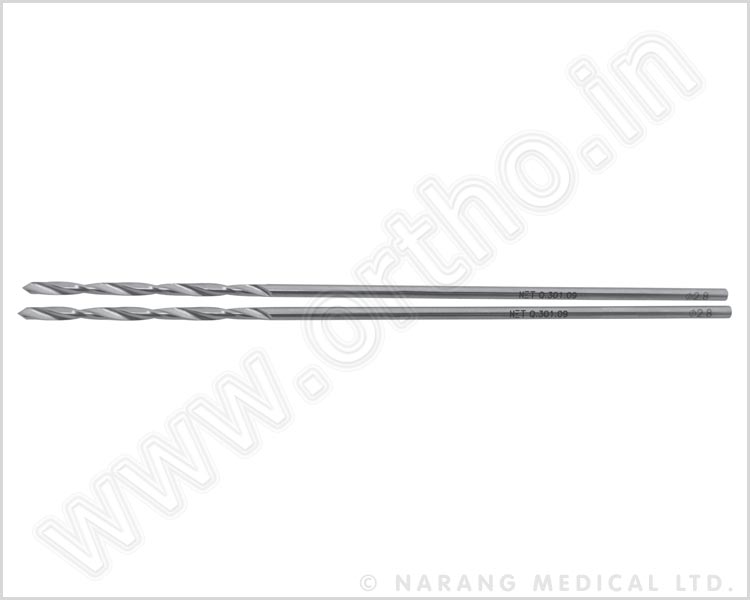

	Q.301.09 - Drill bit ÿ2.8mm, for Locking Screw 3.5mm Q.301.09 - Drill bit ÿ2.8mm, for Locking Screw 3.5mm	2

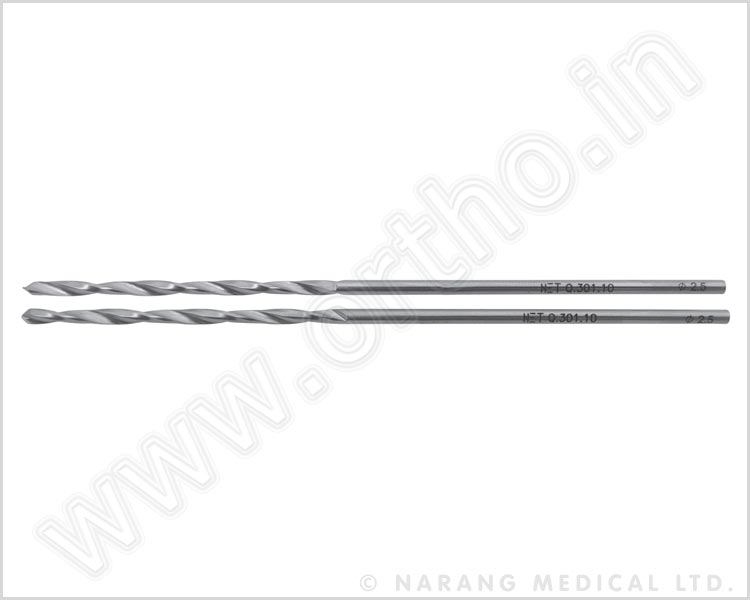

	Q.301.10 - Drill bit ÿ2.5mm, for Cortical Screw 3.5mm Q.301.10 - Drill bit ÿ2.5mm, for Cortical Screw 3.5mm	2
	Q.301.11 - Drill bit ÿ2.2mm, for Locking Screw 2.7mm Q.301.11 - Drill bit ÿ2.2mm, for Locking Screw 2.7mm	2

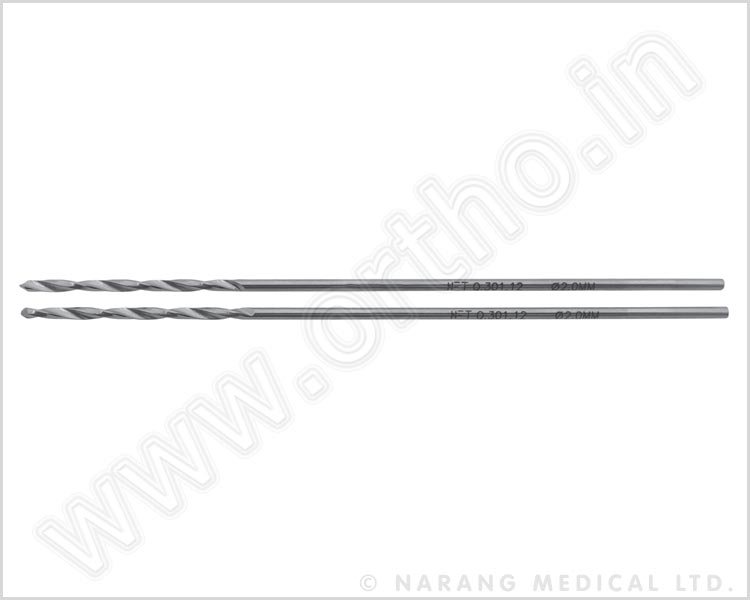

	Q.301.12 - Dril bit ÿ2.0mm, for Cortical Screw 2.7mm Q.301.12 - Dril bit ÿ2.0mm, for Cortical Screw 2.7mm	2

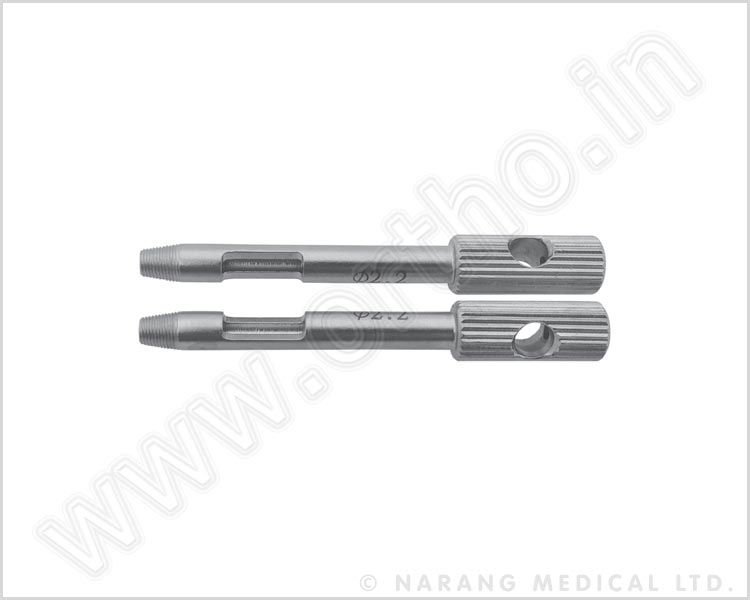

	Q.301.13 - Drill sleeve ÿ2.2mm, for locking 2.7mm Q.301.13 - Drill sleeve ÿ2.2mm, for locking 2.7mm	2
	Q.301.14 - Drill sleeve ÿ2.9mm, for locking 3.5mm Q.301.14 - Drill sleeve ÿ2.9mm, for locking 3.5mm	2

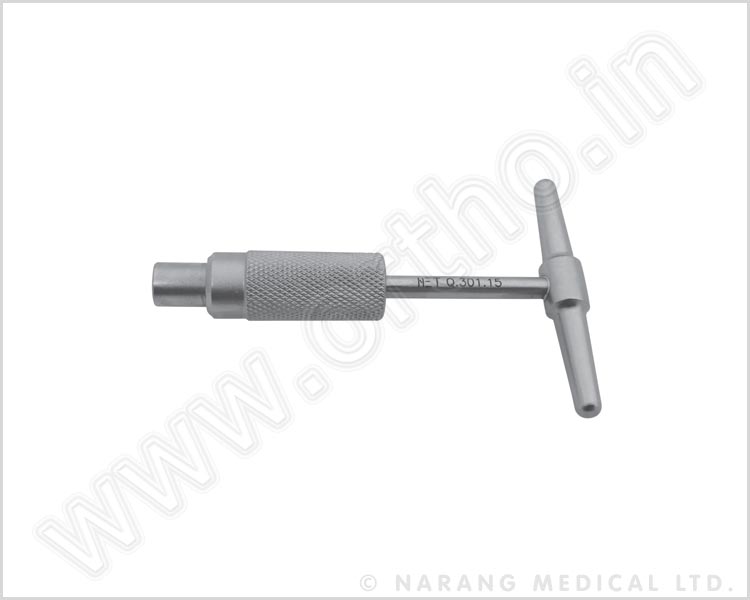

	Q.301.15 - T shape Quick assembling Handle Q.301.15 - T shape Quick assembling Handle	1
	Q.301.16 - Straight Quick assembling Handle Q.301.16 - Straight Quick assembling Handle	1

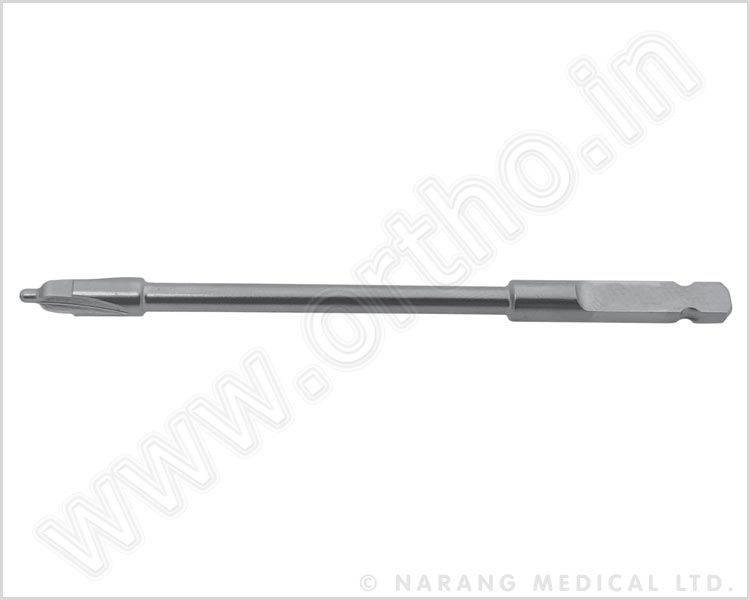

	Q.301.17 - Counter sink Drill for 2.7mm Q.301.17 - Counter sink Drill for 2.7mm	1

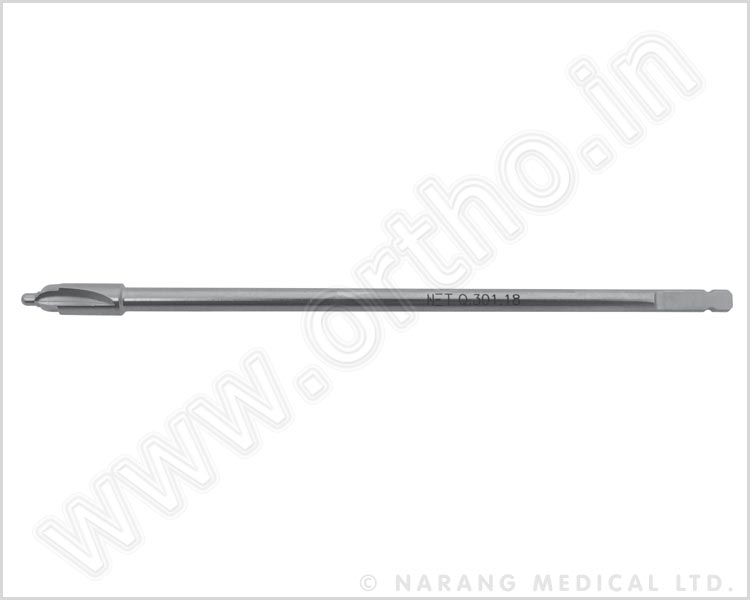

	Q.301.18 - Counter sink Drill for upper limb Q.301.18 - Counter sink Drill for upper limb	1
	Q.301.19 - screwdriver Rod star shape, for Radius Screw Q.301.19 - screwdriver Rod star shape, for Radius Screw	2
	Q.301.20 - Screwdriver Rod Hex for 3.5mm screw Q.301.20 - Screwdriver Rod Hex for 3.5mm screw	1

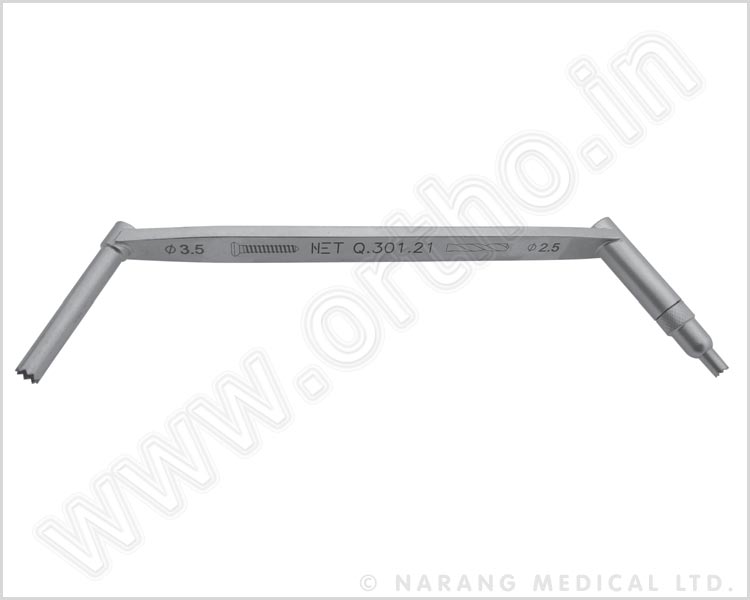

	Q.301.21 - Double head guide drill for 3.5mm screw Q.301.21 - Double head guide drill for 3.5mm screw	1

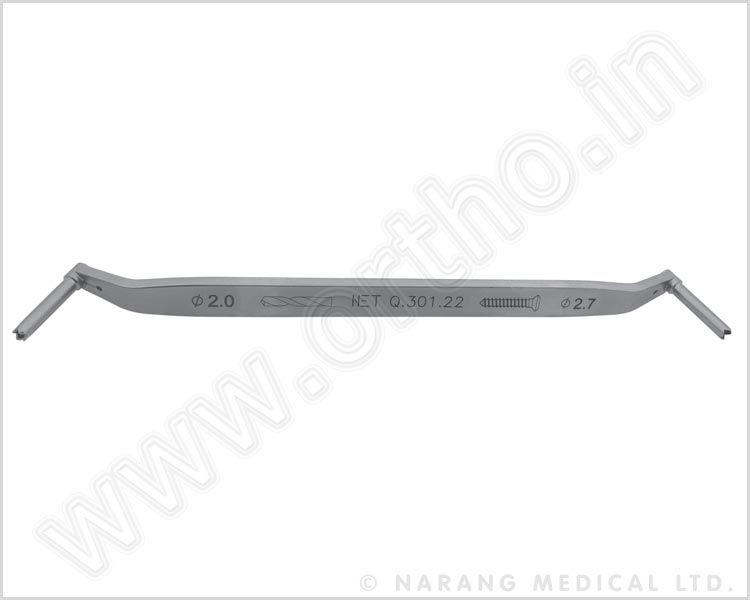

	Q.301.22 - Double head guide drill for 2.9mm screw Q.301.22 - Double head guide drill for 2.9mm screw	1

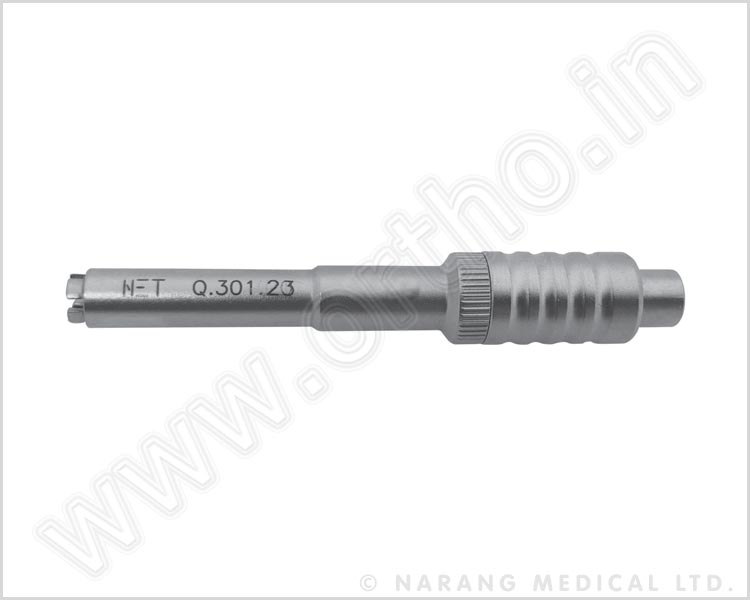

	Q.301.23 - Handle for star shape Screwdriver Rod Q.301.23 - Handle for star shape Screwdriver Rod	1
	Q.301.000 - Empty Container
