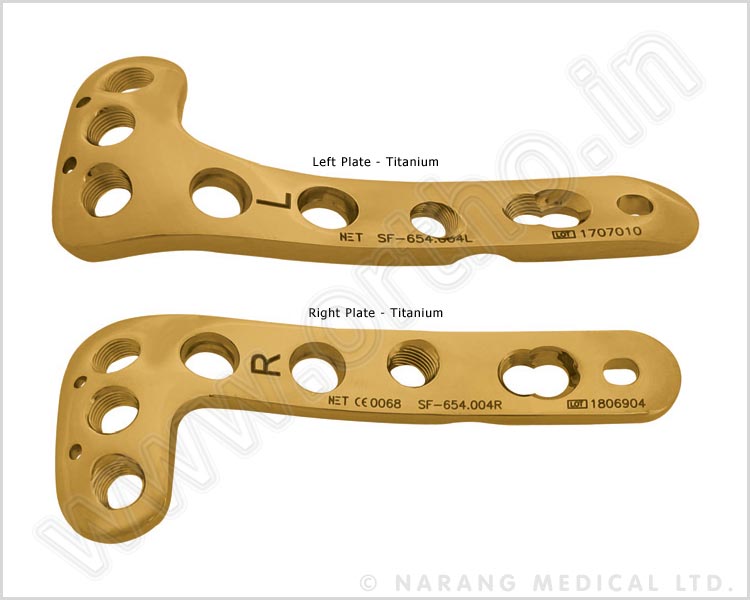

Proximal Tibial Safety Lock Plate 4.5/5.0
- Proximal Tibial Safety Lock Plate 4.5/5.0. These plates are indicated for Proximal Extra-articular (Metaphyseal simple), proximal partial articular (Pure split or Split depression), proximal complete articular (Articular simple with Metaphyseal simple or Articula simple with Metaphyseal multifragmentary) and proximal fractures associated with shaft fracture.
- Anatomically designed plate fits over proximal condyle from lateral side.
- Low Contact plate design reduces the plate and bone contact, this feature reduces vascular trauma.
- Two K-Wire hole on the head for temporary fixation of the plate.
- Three head holes and three proximal holes allow 5.0 mm safety locking screws and rest holes on the shaft allow both 4.5 mm cortex and 5.0 mm safety locking screws.
Click to Zoom
No. of
Holes |
STAINLESS STEEL |
| Left |
Right |
| 4 |
SF-654.004L |
SF-654.004R |
| 6 |
SF-654.006L |
SF-654.006R |
| 8 |
SF-654.008L |
SF-654.008R |
| 10 |
SF-654.010L |
SF-654.010R |
| 12 |
SF-654.012L |
SF-654.012R |
| 14 |
SF-654.014L |
SF-654.014R |
| 16 |
SF-654.016L |
SF-654.016R |
No. of
Holes |
TITANIUM |
| Left |
Right |
| 4 |
Ti-SF-654.004L |
Ti-SF-654.004R |
| 6 |
Ti-SF-654.006L |
Ti-SF-654.006R |
| 8 |
Ti-SF-654.008L |
Ti-SF-654.008R |
| 10 |
Ti-SF-654.010L |
Ti-SF-654.010R |
| 12 |
Ti-SF-654.012L |
Ti-SF-654.012R |
| 14 |
Ti-SF-654.014L |
Ti-SF-654.014R |
| 16 |
Ti-SF-654.016L |
Ti-SF-654.016R |
Proximal Lateral Tibial Safety Lock Plate 4.5/5.0
- The proximal lateral Tibial Safety Lock Plate 4.5/5.0 is intended for treatment of nonunious, malunions, and fractures of the proximal tibia, including simple, comminuted, lateral wedge, depression medial wedge, bicondylar, combination of lateral wedge and depression, and fractures with associated shaft fracture.
- All holes accommodate Cortex Screw Φ 4.5mm, Self Tapping and safety Lock Screw Φ 5.0mm.
Click to Zoom
No. of
Holes |
STAINLESS STEEL |
| Left |
Right |
| 5 |
SF-165.105L |
SF-165.005R |
| 7 |
SF-165.107L |
SF-165.007R |
| 9 |
SF-165.109L |
SF-165.009R |
| 11 |
SF-165.111L |
SF-165.011R |
| 13 |
SF-165.113L |
SF-165.013R |
No. of
Holes |
STAINLESS STEEL |
| Left |
Right |
| 5 |
Ti-SF-165.105L |
Ti-SF-165.005R |
| 7 |
Ti-SF-165.107L |
Ti-SF-165.007R |
| 9 |
Ti-SF-165.109L |
Ti-SF-165.009R |
| 11 |
Ti-SF-165.111L |
Ti-SF-165.011R |
| 13 |
Ti-SF-165.113L |
Ti-SF-165.013R |

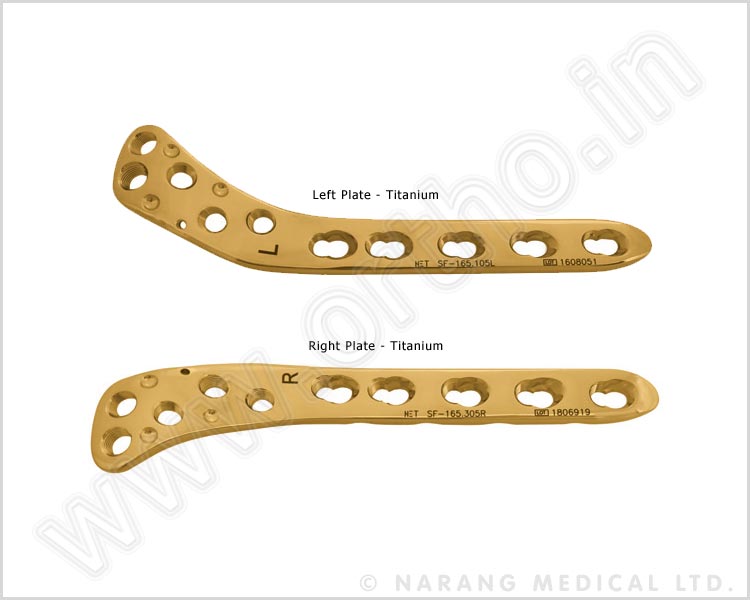

Proximal Lateral Tibial Safety Lock Plate LC Cuts 4.5/5.0
- Proximal Lateral Tibial Safety Lock Plate LC Cuts 4.5/5.0. These plates are indicated for Proximal shaft fractures, Metaphyseal fractures, Intra-articular fractures and Periprosthetic fractures of Proximal tibia.
- Anatomically designed plate fits over proximal metaphysis from lateral side.
- Low Contact plate design reduces the plate and bone contact, this feature reduces vascular trauma.
- All head holes allow 5.0 mm safety locking and holes on the shaft allow both 4.5 mm cortex and 5.0 mm safety locking screws.
Click to Zoom
No. of
Holes |
STAINLESS STEEL |
| Left |
Right |
| 5 |
SF-165.405L |
SF-165.305R |
| 7 |
SF-165.407L |
SF-165.307R |
| 9 |
SF-165.409L |
SF-165.309R |
| 11 |
SF-165.411L |
SF-165.311R |
| 13 |
SF-165.413L |
SF-165.313R |
No. of
Holes |
TITANIUM |
| Left |
Right |
| 5 |
Ti-SF-165.405L |
Ti-SF-165.305R |
| 7 |
Ti-SF-165.407L |
Ti-SF-165.307R |
| 9 |
Ti-SF-165.409L |
Ti-SF-165.309R |
| 11 |
Ti-SF-165.411L |
Ti-SF-165.311R |
| 13 |
Ti-SF-165.413L |
Ti-SF-165.313R |

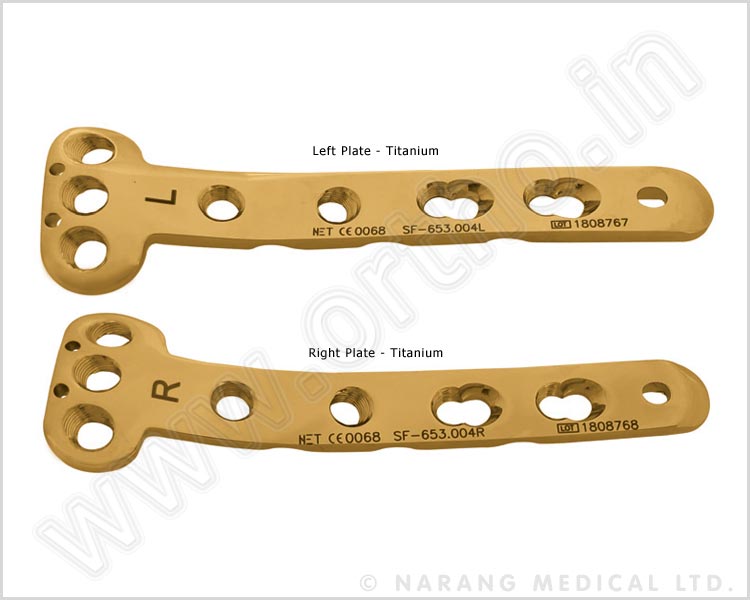

Medial Proximal Tibial Safety Lock Plate 4.5/5.0
- Medial Proximal Tibial Safety Lock Plate 4.5/5.0 is used to fix the fracture of Proximal Tibia.
- These plates are separately designed for Right and Left leg.
- The head of the plate is designed as per anatomy of the Anteromedial Proximal Tibia. Two holes on the head for the temporary fixation with Kirschner Wire.
- The head and two Proximal holes support only 5.0mm safety lock screw and the shaft of the plate supports both 4.5mm cortical and 5.0mm safety lock screw.
Click to Zoom
No. of
Holes |
STAINLESS STEEL |
| Left |
Right |
| 4 |
SF-653.004L |
SF-653.004R |
| 6 |
SF-653.006L |
SF-653.006R |
| 8 |
SF-653.008L |
SF-653.008R |
| 10 |
SF-653.010L |
SF-653.010R |
| 12 |
SF-653.012L |
SF-653.012R |
| 14 |
SF-653.014L |
SF-653.014R |
| 16 |
SF-653.016L |
SF-653.016R |
No. of
Holes |
TITANIUM |
| Left |
Right |
| 4 |
Ti-SF-653.004L |
Ti-SF-653.004R |
| 6 |
Ti-SF-653.006L |
Ti-SF-653.006R |
| 8 |
Ti-SF-653.008L |
Ti-SF-653.008R |
| 10 |
Ti-SF-653.010L |
Ti-SF-653.010R |
| 12 |
Ti-SF-653.012L |
Ti-SF-653.012R |
| 14 |
Ti-SF-653.014L |
Ti-SF-653.014R |
| 16 |
Ti-SF-653.016L |
Ti-SF-653.016R |

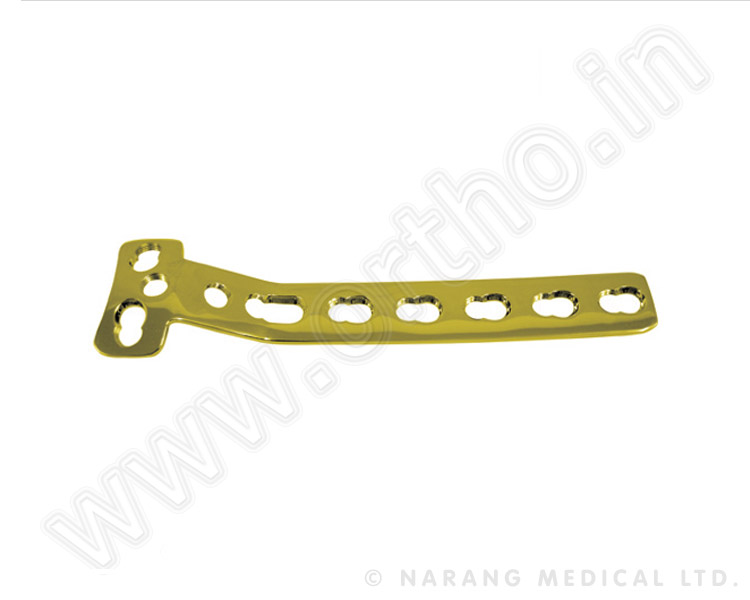

T Buttress Safety Lock Plate 4.5/5.0
- T Buttress safety Lock Plate 4.5/5.0 are indicated for fixation of fractures, osteotomies and non-unions of the clavicle, scapula, olecranon , humerus, radius, ulna, pelvis, distal tibia, fibula, particularly in osteopenic bones.
- All holes of the shaft accommodate Cortex Screw Φ 4.5mm, Self Tapping and Safety Lock Screw Φ5.0mm.
Click to Zoom
| No. of Holes |
STAINLESS STEEL |
| 4 |
SF-160.104 |
| 5 |
SF-160.105 |
| 6 |
SF-160.106 |
| 7 |
SF-160.107 |
| 8 |
SF-160.108 |
| 9 |
SF-160.109 |
| 10 |
SF-160.110 |
| 12 |
SF-160.112 |
| No. of Holes |
|
TITANIUM |
| 4 |
|
Ti-SF-160.104 |
| 5 |
|
Ti-SF-160.105 |
| 6 |
|
Ti-SF-160.106 |
| 7 |
|
Ti-SF-160.107 |
| 8 |
|
Ti-SF-160.108 |
| 9 |
|
Ti-SF-160.109 |
| 10 |
|
Ti-SF-160.110 |
| 12 |
|
Ti-SF-160.112 |

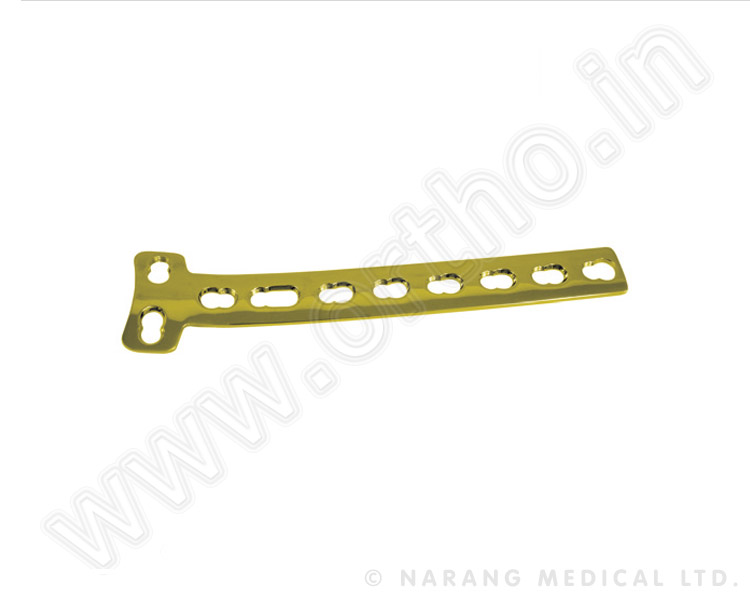

Safety Lock 'T' Plate 4.5/5.0
- Safety Lock ‘T’ 4.5/5.0 are indicated for fixation of fractures, osteotomies and non-unions of the clavicle, scapula, olecrenon, humerus, radius, ulna, pelvis,distal tibia, fibula, particularly in osteopenic bones.
- All holes of the shaft accommodate Cortex Screw Φ 4.5, Self tapping and safety Lock screw Φ 5.0mm.
Click to Zoom
| No. of Holes |
STAINLESS STEEL |
| 3 |
SF-159.103 |
| 4 |
SF-159.104 |
| 5 |
SF-159.105 |
| 6 |
SF-159.106 |
| 7 |
SF-159.107 |
| 8 |
SF-159.108 |
| 9 |
SF-159.109 |
| No. of Holes |
TITANIUM |
| 3 |
Ti-SF-159.103 |
| 4 |
Ti-SF-159.104 |
| 5 |
Ti-SF-159.105 |
| 6 |
Ti-SF-159.106 |
| 7 |
Ti-SF-159.107 |
| 8 |
Ti-SF-159.108 |
| 9 |
Ti-SF-159.109 |
L Buttress Safety Lock Plate 4.5/5.0
- L Buttress safety Lock Plate 4.5/5.0 are indicated for fixation of fractures, osteotomies and non-unions of the clavicle, scapula, olecrenon, humerus, radius ulne, pelvis, distal tibia, fibula, particularly in osteopenic bones.
- All holes of the shaft accommodate Cortex Screw Φ 4.5mm, Self tapping and safety Lock Screw Φ 5.0mm.
Click to Zoom
No. of
Holes |
STAINLESS STEEL |
| Left |
Right |
| 3 |
SF-161.133L |
SF-161.103R |
| 4 |
SF-161.134L |
SF-161.104R |
| 5 |
SF-161.135L |
SF-161.105R |
| 6 |
SF-161.136L |
SF-161.106R |
| 7 |
SF-161.137L |
SF-161.107 |
| 8 |
SF-161.138L |
SF-161.108R |
| 9 |
SF-161.139L |
SF-161.109R |
| 10 |
SF-161.140L |
SF-161.140R |
No. of
Holes |
TITANIUM |
| Left |
Right |
| 3 |
Ti-SF-161.133L |
Ti-SF-161.103R |
| 4 |
Ti-SF-161.134L |
Ti-SF-161.104R |
| 5 |
Ti-SF-161.135L |
Ti-SF-161.105R |
| 6 |
Ti-SF-161.136L |
Ti-SF-161.106R |
| 7 |
Ti-SF-161.137L |
Ti-SF-161.107R |
| 8 |
Ti-SF-161.138L |
Ti-SF-161.108R |
| 9 |
Ti-SF-161.139L |
Ti-SF-161.109R |
| 10 |
Ti-SF-161.140L |
Ti-SF-161.140R |
