Perfect Tibial Nail - Cannulated  |  End Caps |  Perfect Tibial Nail Implants Set
Perfect Tibial Nail - Cannulated

  • Our Perfect Tibial Nail is indicated for fractures in the Tibial Shaft as well as for Metaphyseal and certain intraarticular fracture of the tibial head and pilon tibaile with :
  • Advanced Nail Design : New Anatomic bend for ease of nail insertion. Titanium Alloy for improved mechanical and fatigue propertieis.
  • Advanced Distal Locking Options : Distal Oblique Locking Option to prevent soft tissue damage and increase stability of the distal fragment.
  • Versatile Proximal Locking Option : Three unique and innovative locking options, in combination with Cancellous Dual Core locking Screws to increase the stability of the proximal fragment for proximal third fractures.
  • Medio Lateral Locking options enable primary compression or secondary controlled dynamization.
  • Same Nail for Right & Left Tibia
  • Use with Instrument Set - AS075

  • Use 4.35mm Locking Screw for Nails Dia. 8mm & 9mm and
  • Use 4.8mm Locking Screw for Nails Dia. 10mm & 11mm and
  • Use 4.8mm Cancellous Locking Screw (Dual Core) for 3 most Proximal Holes.
  • Note: Distal Jig will work upto Nail Length 375 and beyond that use C-Arm both on the Nails Page and on the Jig Photos.
Perfect Tibial Nails:
Click to Zoom

Length
in mm		 STAINLESS STEEL - Diameter in mm
8 mm 9 mm 10 mm 11 mm 12 mm 13 mm
255 PT008-255 PT09-255 PT10-255 PT11-255 PT12-255 PT13-255
270 PT008-270 PT09-270 PT10-270 PT11-270 PT12-270 PT13-270
285 PT008-285 PT09-285 PT10-285 PT11-285 PT12-285 PT13-285
300 PT008-300 PT09-300 PT10-300 PT11-300 PT12-300 PT13-300
315 PT008-315 PT09-315 PT10-315 PT11-315 PT12-315 PT13-315
330 PT008-330 PT09-330 PT10-330 PT11-330 PT12-330 PT13-330
345 PT008-345 PT09-345 PT10-345 PT11-345 PT12-345 PT13-345
360 PT008-360 PT09-360 PT10-360 PT11-360 PT12-360 PT13-360
375 PT008-375 PT09-375 PT10-375 PT11-375 PT12-375 PT13-375
390 PT008-390 PT09-390 PT10-390 PT11-390 PT12-390 PT13-390
405 PT008-405 PT09-405 PT10-405 PT11-405 PT12-405 PT13-405
420 PT008-420 PT09-420 PT10-420 PT11-420 PT12-420 PT13-420
435 PT008-435 PT09-435 PT10-435 PT11-435 PT12-435 PT13-435
450 PT008-450 PT09-450 PT10-450 PT11-450 PT12-450 PT13-450
465 PT008-465 PT09-465 PT10-465 PT11-465 PT12-465 PT13-465
Length
in mm		 TITANIUM - Diameter in mm
8 mm 9 mm 10 mm 11 mm 12 mm 13 mm
255 Ti-PT008-255 Ti-PT09-255 Ti-PT10-255 Ti-PT11-255 Ti-PT12-255 Ti-PT13-255
270 Ti-PT008-270 Ti-PT09-270 Ti-PT10-270 Ti-PT11-270 Ti-PT12-270 Ti-PT13-270
285 Ti-PT008-285 Ti-PT09-285 Ti-PT10-285 Ti-PT11-285 Ti-PT12-285 Ti-PT13-285
300 Ti-PT008-300 Ti-PT09-300 Ti-PT10-300 Ti-PT11-300 Ti-PT12-300 Ti-PT13-300
315 Ti-PT008-315 Ti-PT09-315 Ti-PT10-315 Ti-PT11-315 Ti-PT12-315 Ti-PT13-315
330 Ti-PT008-330 Ti-PT09-330 Ti-PT10-330 Ti-PT11-330 Ti-PT12-330 Ti-PT13-330
345 Ti-PT008-345 Ti-PT09-345 Ti-PT10-345 Ti-PT11-345 Ti-PT12-345 Ti-PT13-345
360 Ti-PT008-360 Ti-PT09-360 Ti-PT10-360 Ti-PT11-360 Ti-PT12-360 Ti-PT13-360
375 Ti-PT008-375 Ti-PT09-375 Ti-PT10-375 Ti-PT11-375 Ti-PT12-375 Ti-PT13-375
390 Ti-PT008-390 Ti-PT09-390 Ti-PT10-390 Ti-PT11-390 Ti-PT12-390 Ti-PT13-390
405 Ti-PT008-405 Ti-PT09-405 Ti-PT10-405 Ti-PT11-405 Ti-PT12-405 Ti-PT13-405
420 Ti-PT008-420 Ti-PT09-420 Ti-PT10-420 Ti-PT11-420 Ti-PT12-420 Ti-PT13-420
435 Ti-PT008-435 Ti-PT09-435 Ti-PT10-435 Ti-PT11-435 Ti-PT12-435 Ti-PT13-435
450 Ti-PT008-450 Ti-PT09-450 Ti-PT10-450 Ti-PT11-450 Ti-PT12-450 Ti-PT13-450
465 Ti-PT008-465 Ti-PT09-465 Ti-PT10-465 Ti-PT11-465 Ti-PT12-465 Ti-PT13-465
Top

End Cap for Perfect Tibial Nails

  • Securely locks the most proximal oblique cancellous bone locking screw

Extn. in mm ITEM CODE
S.S TITANIUM
0 PTE.00 Ti-PTE.00
5 PTE.05 Ti-PTE.05
10 PTE.10 Ti-PTE.10
15 PTE.15 Ti-PTE.15
End Cap for Perfect Tibial Nails
Click to Zoom
Top

End Cap for Perfect Tibial Nails

  • Securely locks the second proximal oblique cancellous bone locking screw.

Extn. in mm ITEM CODE
S.S TITANIUM
0 PTES.00 Ti-PTES.00
End Cap for Perfect Tibial Nails
Click to Zoom
Top

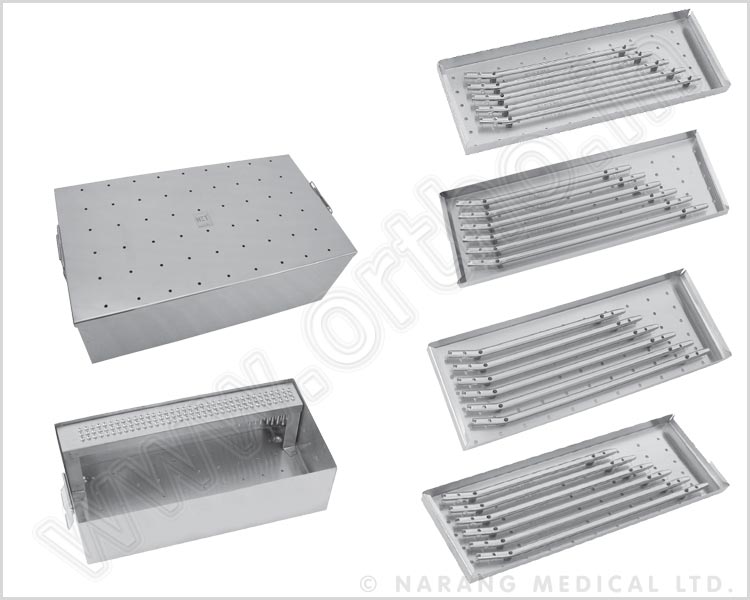

Perfect Tibial Nail Implants Set

PERFECT TIBIAL NAIL IMPLANTS SET
Click to Zoom
AS101 - Perfect Tibial Nail Implants Set
Set Consisting of : Units
Tibial Nails
8.0mm Dia
1 Each Length 255, 270, 285, 300, 315, 330, 345, 360, 375mm 9
9mm Dia
1 Each Length 255, 270, 285, 300, 315, 330, 345, 360, 375mm 9
10mm Dia
1 Each Length 255, 270, 285, 300, 315, 330, 345, 360, 375mm 9
11mm Dia
1 Each Length 255, 270, 285, 300, 315, 330, 345, 360, 375mm 9
Locking Screw 4.35mm Dia
2 Each Length 18, 20, 22, 24, 26, 28mm 12
4 Each Length 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60mm 64
2 Each Length 62, 64, 66, 68, 70, 72, 74, 76, 78, 80mm 20
Locking Screw 4.8mm Dia
4 Each Length 26, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60, 62mm 76
2 Each Length 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 85mm 22
4.8mm Cancellous Locking Screw (Dual Core)
6 Each Length 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90mm 84
End Caps
4 Each Extn 00, 0, 5, 10, 15 20
101.000 Empty Containder 1
