Multi-Fix Femoral Nail - Cannulated  |   Multi-Fix Femoral Nail - Unreamed  |  End Caps  |  Implants Set

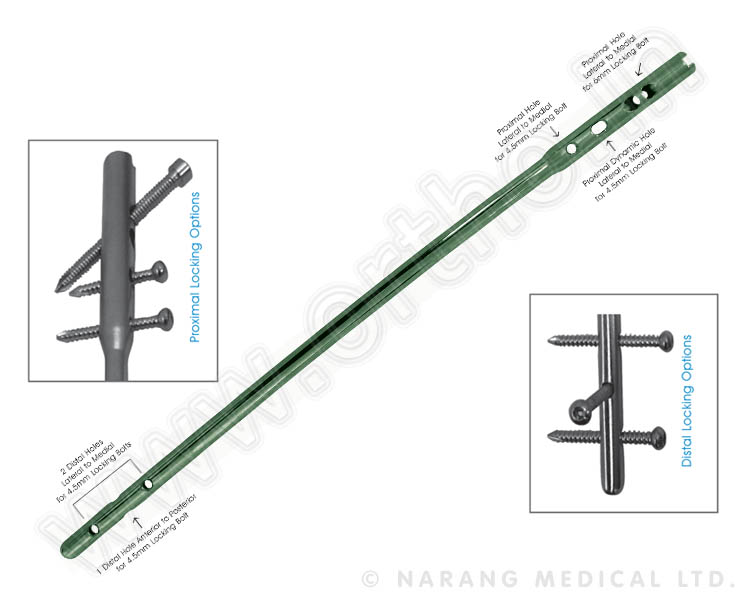

Multi-Fix Femoral Nail - Cannulated, with Multiple Locking Options

  • Multi-Fix Femoral Nails – Cannulated are intended for Subtrochanteric fractures and Femoral Shaft fractures.
  • Nail is designed to fit anatomically in the medullary canal, allowing indirect reduction.
  • First proximal hole from the top allows 6.0 mm locking bolt and is directed towards lesser trochanter.
  • Third hole from the top is dynamic hole and supports 4.5 mm locking bolt, fourth hole from top is static and supports 4.5 mm locking bolt.
  • All the three distal holes allow 4.5 mm locking bolts, first and third holes from bottom are directed lateral to medial and second hole is directed anterior and posterior.
  • Instrument Sets - AS071/AS071DJ
  • Same Nail for Right & Left Leg.
Multi-Fix Femoral Nail - Cannulated, with Multiple Locking Options
Click to Zoom
Length
(cm)		 STAINLESS STEEL - Diameter in mm
9 mm 10 mm 11 mm 12 mm 13 mm 14 mm
32 XPF09-32 XPF10-32 XPF11-32 XPF12-32 XPF13-32 XPF14-32
33 XPF09-33 XPF10-33 XPF11-33 XPF12-33 XPF13-33 XPF14-33
34 XPF09-34 XPF10-34 XPF11-34 XPF12-34 XPF13-34 XPF14-34
35 XPF09-35 XPF10-35 XPF11-35 XPF12-35 XPF13-35 XPF14-35
36 XPF09-36 XPF10-36 XPF11-36 XPF12-36 XPF13-36 XPF14-36
37 XPF09-37 XPF10-37 XPF11-37 XPF12-37 XPF13-37 XPF14-37
38 XPF09-38 XPF10-38 XPF11-38 XPF12-38 XPF13-38 XPF14-38
39 XPF09-39 XPF10-39 XPF11-39 XPF12-39 XPF13-39 XPF14-39
40 XPF09-40 XPF10-40 XPF11-40 XPF12-40 XPF13-40 XPF14-40
41 XPF09-41 XPF10-41 XPF11-41 XPF12-41 XPF13-41 XPF14-41
42 XPF09-42 XPF10-42 XPF11-42 XPF12-42 XPF13-42 XPF14-42
43 XPF09-43 XPF10-43 XPF11-43 XPF12-43 XPF13-43 XPF14-43
44 XPF09-44 XPF10-44 XPF11-44 XPF12-44 XPF13-44 XPF14-44
45 XPF09-45 XPF10-45 XPF11-45 XPF12-45 XPF13-45 XPF14-45
46 XPF09-46 XPF10-46 XPF11-46 XPF12-46 XPF13-46 XPF14-46
Length
(cm)		 TITANIUM - Diameter in mm
9 mm 10 mm 11 mm 12 mm 13 mm 14 mm
32 Ti-XPF09-32 Ti-XPF10-32 Ti-XPF11-32 Ti-XPF12-32 Ti-XPF13-32 Ti-XPF14-32
33 Ti-XPF09-33 Ti-XPF10-33 Ti-XPF11-33 Ti-XPF12-33 Ti-XPF13-33 Ti-XPF14-33
34 Ti-XPF09-34 Ti-XPF10-34 Ti-XPF11-34 Ti-XPF12-34 Ti-XPF13-34 Ti-XPF14-34
35 Ti-XPF09-35 Ti-XPF10-35 Ti-XPF11-35 Ti-XPF12-35 Ti-XPF13-35 Ti-XPF14-35
36 Ti-XPF09-36 Ti-XPF10-36 Ti-XPF11-36 Ti-XPF12-36 Ti-XPF13-36 Ti-XPF14-36
37 Ti-XPF09-37 Ti-XPF10-37 Ti-XPF11-37 Ti-XPF12-37 Ti-XPF13-37 Ti-XPF14-37
38 Ti-XPF09-38 Ti-XPF10-38 Ti-XPF11-38 Ti-XPF12-38 Ti-XPF13-38 Ti-XPF14-38
39 Ti-XPF09-39 Ti-XPF10-39 Ti-XPF11-39 Ti-XPF12-39 Ti-XPF13-39 Ti-XPF14-39
40 Ti-XPF09-40 Ti-XPF10-40 Ti-XPF11-40 Ti-XPF12-40 Ti-XPF13-40 Ti-XPF14-40
41 Ti-XPF09-41 Ti-XPF10-41 Ti-XPF11-41 Ti-XPF12-41 Ti-XPF13-41 Ti-XPF14-41
42 Ti-XPF09-42 Ti-XPF10-42 Ti-XPF11-42 Ti-XPF12-42 Ti-XPF13-42 Ti-XPF14-42
43 Ti-XPF09-43 Ti-XPF10-43 Ti-XPF11-43 Ti-XPF12-43 Ti-XPF13-43 Ti-XPF14-43
44 Ti-XPF09-44 Ti-XPF10-44 Ti-XPF11-44 Ti-XPF12-44 Ti-XPF13-44 Ti-XPF14-44
45 Ti-XPF09-45 Ti-XPF10-45 Ti-XPF11-45 Ti-XPF12-45 Ti-XPF13-45 Ti-XPF14-45
46 Ti-XPF09-46 Ti-XPF10-46 Ti-XPF11-46 Ti-XPF12-46 Ti-XPF13-46 Ti-XPF14-46

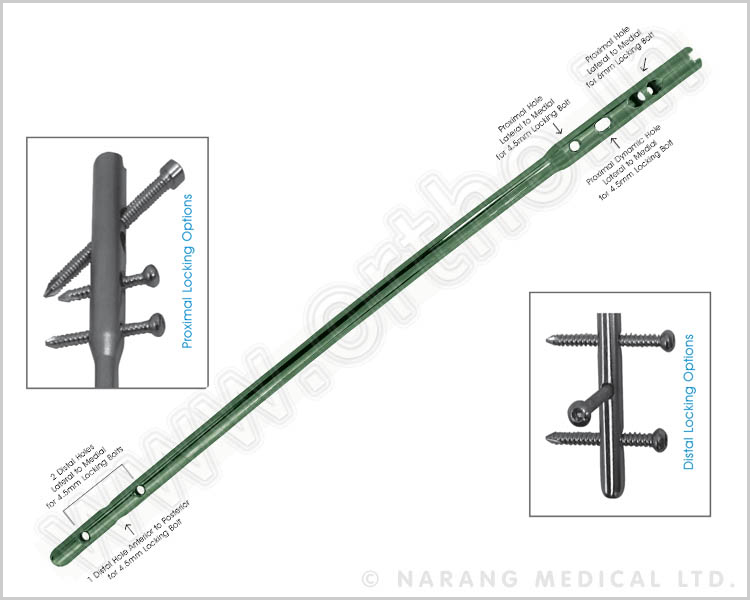

Multi-Fix Femoral Nail – Unreamed with Multiple Locking Options

  • Our Multi-fix Tibial & Femoral Nails have dynamic compression hole. Active compression, through intramedullary compression nailing Dynamic Holes, has great utility for treating non-unions where it provides greater degree of impaction of its irregular ends. This may prove greatly advantageous to the fracture union through increased stability and the osteogenic potential, particularly when utilized in combination with the small diameter unreamed nails.
  • Use with Instrument Set - AS071/AS071DJ
  • Same Nail for Right & Left Leg.
Multi-Fix Femoral Nail – Unreamed with Multiple Locking Options
Click to Zoom
Length
(cm)		 STAINLESS STEEL - Diameter in mm
9 mm 10 mm
32 XPUFN09-32U XPUFN10-32U
33 XPUFN09-33U XPUFN10-33U
34 XPUFN09-34U XPUFN10-34U
35 XPUFN09-35U XPUFN10-35U
36 XPUFN09-36U XPUFN10-36U
37 XPUFN09-37U XPUFN10-37U
38 XPUFN09-38U XPUFN10-38U
39 XPUFN09-39U XPUFN10-39U
40 XPUFN09-40U XPUFN10-40U
41 XPUFN09-41U XPUFN10-41U
42 XPUFN09-42U XPUFN10-42U
43 XPUFN09-43U XPUFN10-43U
44 XPUFN09-44U XPUFN10-44U
45 XPUFN09-45U XPUFN10-45U
46 XPUFN09-46U XPUFN10-46U
Length
(cm)		 TITANIUM - Diameter in mm
9 mm 10 mm
32 Ti-XPUFN09-32U Ti-XPUFN10-32U
33 Ti-XPUFN09-33U Ti-XPUFN10-33U
34 Ti-XPUFN09-34U Ti-XPUFN10-34U
35 Ti-XPUFN09-35U Ti-XPUFN10-35U
36 Ti-XPUFN09-36U Ti-XPUFN10-36U
37 Ti-XPUFN09-37U Ti-XPUFN10-37U
38 Ti-XPUFN09-38U Ti-XPUFN10-38U
39 Ti-XPUFN09-39U Ti-XPUFN10-39U
40 Ti-XPUFN09-40U Ti-XPUFN10-40U
41 Ti-XPUFN09-41U Ti-XPUFN10-41U
42 Ti-XPUFN09-42U Ti-XPUFN10-42U
43 Ti-XPUFN09-43U Ti-XPUFN10-43U
44 Ti-XPUFN09-44U Ti-XPUFN10-44U
45 Ti-XPUFN09-45U Ti-XPUFN10-45U
46 Ti-XPUFN09-46U Ti-XPUFN10-46U

Top

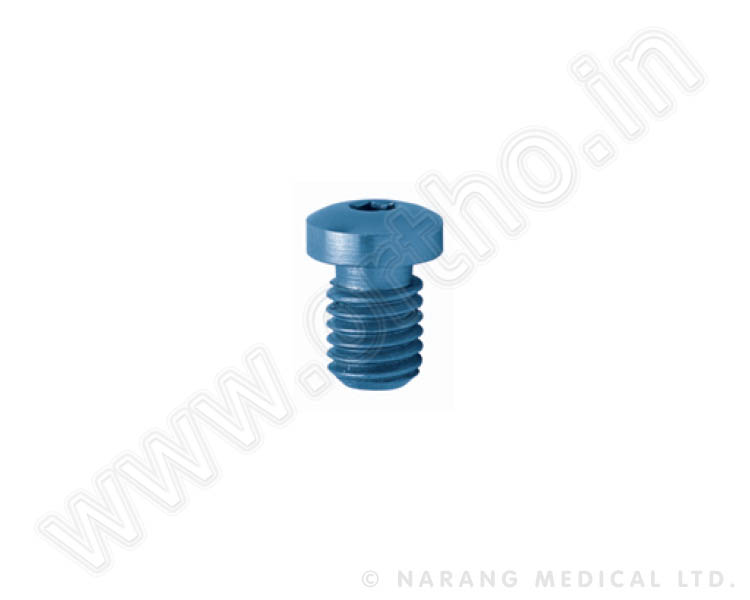

End Cap for Multi-Fix Nails

Nails STAINLESS STEEL TITANIUM
Tibial XLT-045-SS XLT-045-Ti
Femoral XLT-046-SS XLT-046-Ti
End Cap for XL & Multi-Fix Nails
Click to Zoom
Top

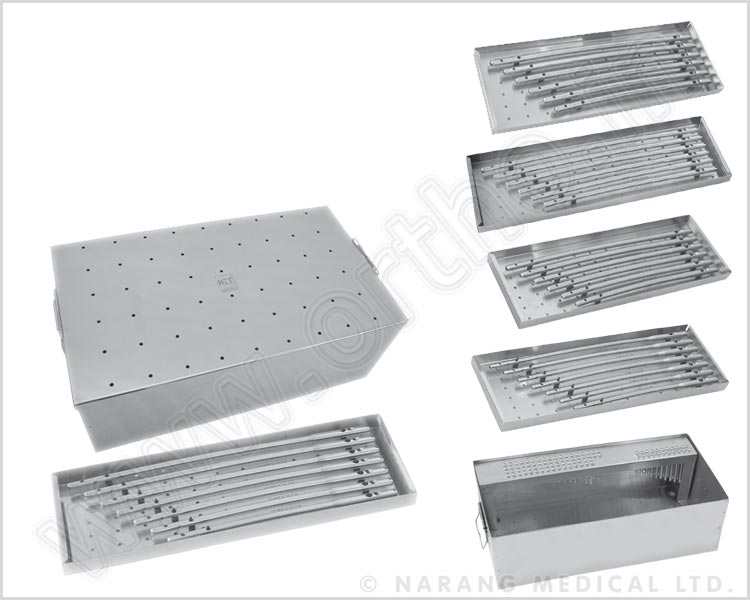

AS195 Multi-Fix Femoral Nail Implants Set

Set Consisting of : Units
  Multi-Fix Femoral Nail
  9mm Dia
  1 each, Length 32, 34, 36, 38, 40, 42, 44cm 7
  10mm Dia
  1 each, Length 32, 34, 36, 38, 40, 42, 44cm 7
  11mm Dia
  1 each, Length 34, 36, 38, 40, 42, 44cm 6
  12mm Dia
  1 each, Length 34, 36, 38, 40, 42, 44cm 6
  13mm Dia
  1 each, Length 34, 36, 38, 40, 42, 44cm 6
  Locking Bolt 4.5mm Dia
  4 each, Length 24, 26, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 55, 60mm
2 each, Length 65, 70mm		 64
4
  Locking Bolt 6.0mm Dia
  2 each, Length 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100mm 22
  903.085 Empty Container

Multi-Fix Femoral Nails Implants Set, S.S.
Click to Zoom
