Carbon Fibre Full Ring

Carbon Fibre Full Ring
Click to Zoom
ID mm OD mm No. of Holes Full Ring
80 120 18 360.80-120
100 140 22 360.100-140
110 150 24 360.110-150
120 160 26 360.120-160
130 170 28 360.130-170
140 180 30 360.140-180
150 190 32 360.150-190
160 200 34 360.160-200
180 220 38 360.180-220
200 240 40 360.200-240
220 260 44 360.220-260
Top

Carbon Fibre 3/4 Ring

Carbon Fibre 3/4 Ring
Click to Zoom
ID mm OD mm No. of Holes 3/4 Ring
80 120 14 34.80-120
100 140 17 34.100-140
110 150 19 34.110-150
120 160 20 34.120-160
130 170 21 34.130-170
140 180 23 34.140-180
150 190 24 34.150-190
160 200 26 34.160-200
180 220 29 34.180-220
200 240 30 34.200-240
220 260 33 34.220-260
Top

Carbon Fibre 5/8 Ring

Carbon Fibre 5/8 Ring
Click to Zoom
ID mm OD mm No. of Holes 5/8 Ring
80 120 12 58.80-120
100 140 14 58.100-140
110 150 15 58.110-150
120 160 16 58.120-160
130 170 18 58.130-170
140 180 19 58.140-180
150 190 20 58.150-190
160 200 21 58.160-200
180 220 24 58.180-220
200 240 25 58.200-240
220 260 28 58.220-260
Top

Carbon Fibre 3/8 Ring

Carbon Fibre 3/8 Ring
Click to Zoom
ID mm OD mm No. of Holes 3/8 Ring
80 120 7 38.80-120
100 140 9 38.100-140
110 150 10 38.110-150
120 160 11 38.120-160
130 170 11 38.130-170
140 180 12 38.140-180
150 190 13 38.150-190
160 200 14 38.160-200
180 220 15 38.180-220
200 240 16 38.200-240
220 260 17 38.220-260
Top

Carbon Fibre 1/2 Ring

Carbon Fibre 1/2 Ring
Click to Zoom
ID mm OD mm No. of Holes Half Ring
80 120 9 180.80-120
100 140 11 180.100-140
110 150 11 180.110-150
120 160 13 180.120-160
130 170 13 180.130-170
140 180 15 180.140-180
150 190 15 180.150-190
160 200 17 180.160-200
180 220 19 180.180-220
200 240 21 180.200-240
220 260 23 180.220-260
240 280 25 180.240-280
260 300 27 180.260-300
Top

Carbon Fibre 1/2 Ring (Pediatric)

Carbon Fibre 1/2 Ring (Pediatric)
Click to Zoom
ID mm OD mm No. of Holes Half Ring
80 112 13 P180.80-112
90 122 14 P180.90-122
100 132 17 P180.100-132
120 152 19 P180.120-152
Top
Carbon Fibre 1/4 Ring

Carbon Fibre 1/4 Ring
Click to Zoom
ID mm OD mm No. of Holes 1/4 Ring
80 120 5 14.80-120
100 140 6 14.100-140
110 150 6 14.110-150
120 160 7 14.120-160
130 170 8 14.130-170
140 180 8 14.140-180
150 190 9 14.150-190
160 200 9 14.160-200
180 220 10 14.180-220
200 240 11 14.200-240
220 260 12 14.220-260
Top

Carbon Fibre Italian Femoral Arche 90°

Code No. ID mm OD mm
90.120-25 120 170
90.140-25 140 190
90.160-25 160 210
90.180-25 180 230
90.200-25 200 250
Carbon Fibre Italian Femoral Arche 90°
Click to Zoom
Top

Carbon Fibre Italian Femoral Arche 120°

Code No. ID mm OD mm
120.120-25 120 170
120.140-25 140 190
120.160-25 160 210
120.180-25 180 230
120.200-25 200 250
Carbon Fibre Italian Femoral Arche 120°
Click to Zoom
Top

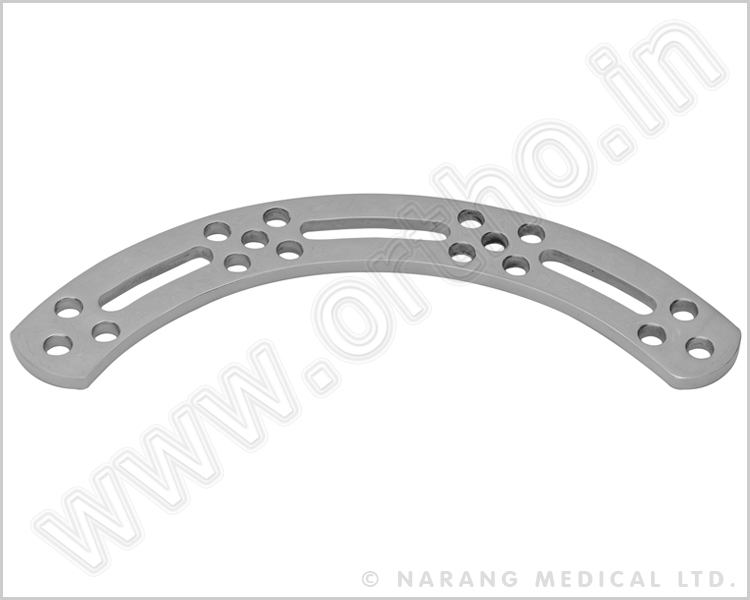

Italian Femoral Arche 90° Stainless Steel

Size in mm Code No.
100 232.010
120 232.012
140 232.014
160 232.016
180 232.018
200 232.020
220 232.022
240 232.024
260 232.026
Italian Femoral Arche 90° Stainless Steel
Click to Zoom

Top

Italian Femoral Arche 120° Stainless Steel

Size in mm Code No.
100 233.010
120 233.012
140 233.014
160 233.016
180 233.018
200 233.020
220 233.022
240 233.024
260 233.026
Italian Femoral Arche 120° Stainless Steel
Click to Zoom

Top

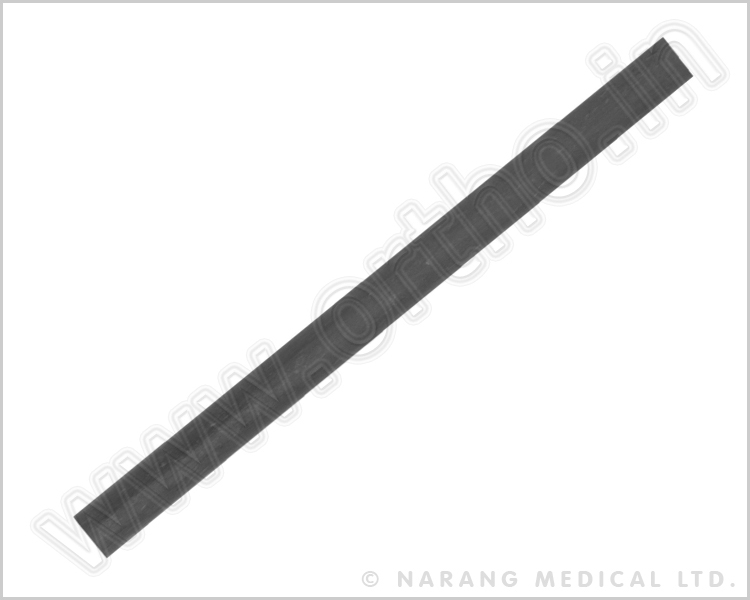

Carbon Rod

Carbon Rod
Click to Zoom
Length mm Diameter / Code
4 mm 6.3 mm 8 mm 9.5 mm 11 mm 1/8 inch 3/16 inch 5/16 inch
50   CR.63-50
75           CR.18-75
80 CR.4-80
100 CR.4-100 CR.63-100 CR.8-100 CR.95-100 CR.11-100 CR.18-100

CR.31-100

CR.51-100
125 CR.4-125
150 CR.4-150 CR.63-150 CR.8-150 CR.95-150 CR.11-150 CR.18-150

CR.31-150

CR.51-150
160 CR.4-160
175 CR.4-175
200 CR.4-200 CR.63-200 CR.8-200 CR.95-200 CR.11-200   CR.31-200

CR.51-200
250 CR.4-250 CR.63-250 CR.8-250 CR.95-250 CR.11-250   CR.31-250

CR.51-250
300     CR.8-300 CR.95-300 CR.11-300
350     CR.8-350 CR.95-350 CR.11-350
400     CR.8-400 CR.95-400 CR.11-400
450         CR.11-450
500         CR.11-500
Top
