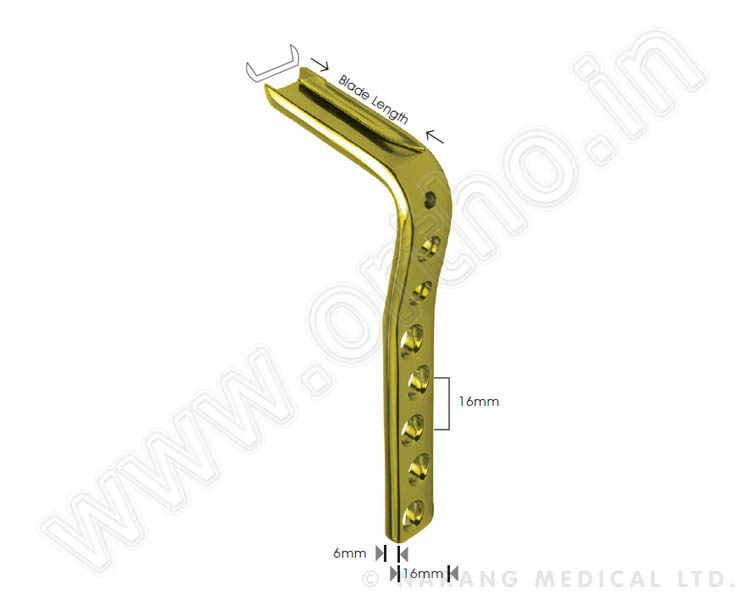

Condylar Plate 95° (With Dynamic Compression Holes)
- Condylar Plate 95° (With Dynamic Compression Holes). These plates are principally used for fractures in distal and proximal areas of femur, intertrochanteric valgisation osteotomy. It is designed to perform reconstructive osteotomies.
- These plates have an angle of 95° between blade and shaft.
- Fixation with 4.5 mm cortical screws and proximal two holes next to the blade are suitable for 6.5 mm cancellous screws.
- The Two Holes next to the Blade are round and accept 6.5mm Cancellous Bone Screws.
- The DCP Holes accepts 4.5mm Cortex Screws.
Click to Zoom
No. of
Holes |
Blade Length / STAINLESS STEEL |
| 50mm |
60mm |
70mm |
80mm |
| 5 |
162.051 |
162.052 |
162.053 |
162.054 |
| 7 |
162.071 |
162.072 |
162.073 |
162.074 |
| 9 |
162.091 |
162.092 |
162.093 |
162.094 |
| 12 |
162.011 |
162.012 |
162.013 |
162.014 |
| 14 |
162.021 |
162.022 |
162.023 |
162.024 |
| 16 |
162.031 |
162.032 |
162.033 |
162.034 |
| 18 |
162.041 |
162.042 |
162.043 |
162.044 |
No. of
Holes |
Blade Length / TITANIUM |
| 50mm |
60mm |
70mm |
80mm |
| 5 |
Ti-162.051 |
Ti-162.052 |
Ti-162.053 |
Ti-162.054 |
| 7 |
Ti-162.071 |
Ti-162.072 |
Ti-162.073 |
Ti-162.074 |
| 9 |
Ti-162.091 |
Ti-162.092 |
Ti-162.093 |
Ti-162.094 |
| 12 |
Ti-162.011 |
Ti-162.012 |
Ti-162.013 |
Ti-162.014 |
| 14 |
Ti-162.021 |
Ti-162.022 |
Ti-162.023 |
Ti-162.024 |
| 16 |
Ti-162.031 |
Ti-162.032 |
Ti-162.033 |
Ti-162.034 |
| 18 |
Ti-162.041 |
Ti-162.042 |
Ti-162.043 |
Ti-162.044 |

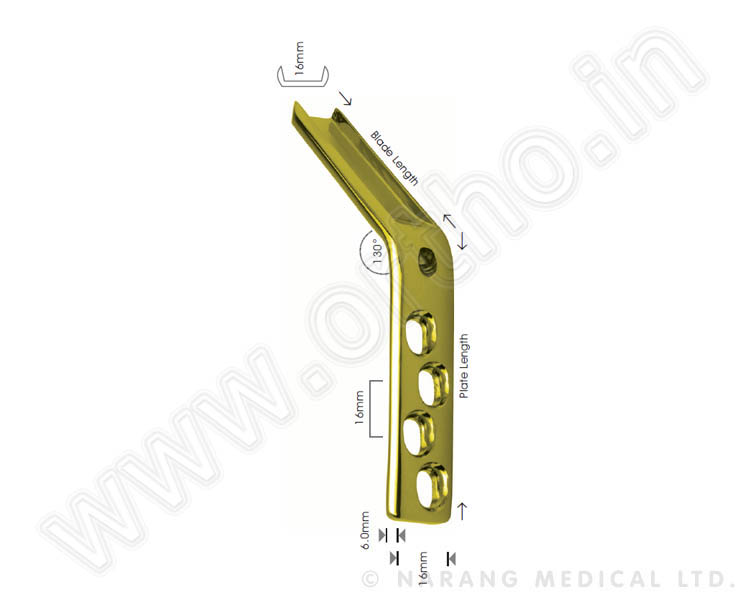

Angled Blade Plate 130° (With Dynamic Compression Holes)
- Angled Blade Plate 130° (With Dynamic Compression Holes). These plates are used for the treatment of proximal femoral neck fractures in association with subtrochanteric fractures.
- Not indicated for condylar region.
- This plate has angle of 130º between blade and shaft.
- Fixation with 4.5 mm cortical screw.
Click to Zoom
| No. of Holes |
Plate L in mm |
Blade L in mm |
STAINLESS STEEL |
| 4 |
60 |
50 |
163.041 |
| 4 |
60 |
60 |
163.042 |
| 4 |
60 |
70 |
163.043 |
| 4 |
60 |
75 |
163.045 |
| 4 |
60 |
80 |
163.044 |
| 4 |
60 |
85 |
163.046 |
| 4 |
60 |
90 |
163.047 |
| 4 |
60 |
95 |
163.048 |
| 4 |
60 |
100 |
163.049 |
| 6 |
104 |
50 |
163.061 |
| 6 |
104 |
60 |
163.062 |
| 6 |
104 |
70 |
163.063 |
| 6 |
104 |
75 |
163.050 |
| 6 |
104 |
80 |
163.064 |
| 6 |
104 |
85 |
163.051 |
| 6 |
104 |
90 |
163.052 |
| 6 |
104 |
95 |
163.053 |
| 6 |
104 |
100 |
163.054 |
| 9 |
152 |
50 |
163.091 |
| 9 |
152 |
60 |
163.092 |
| 9 |
152 |
70 |
163.093 |
| 9 |
152 |
75 |
163.080 |
| 9 |
152 |
80 |
163.094 |
| 9 |
152 |
85 |
163.081 |
| 9 |
152 |
90 |
163.082 |
| 9 |
152 |
95 |
163.083 |
| 12 |
200 |
50 |
163.001 |
| 12 |
200 |
60 |
163.002 |
| 12 |
200 |
70 |
163.003 |
| 12 |
200 |
80 |
163.004 |
| No. of Holes |
Plate L in mm |
Blade L in mm |
TITANIUM |
| 4 |
60 |
50 |
Ti-163.041 |
| 4 |
60 |
60 |
Ti-163.042 |
| 4 |
60 |
70 |
Ti-163.043 |
| 4 |
60 |
75 |
Ti-163.045 |
| 4 |
60 |
80 |
Ti-163.044 |
| 4 |
60 |
85 |
Ti-163.046 |
| 4 |
60 |
90 |
Ti-163.047 |
| 4 |
60 |
95 |
Ti-163.048 |
| 4 |
60 |
100 |
Ti-163.049 |
| 6 |
104 |
50 |
Ti-163.061 |
| 6 |
104 |
60 |
Ti-163.062 |
| 6 |
104 |
70 |
Ti-163.063 |
| 6 |
104 |
75 |
Ti-163.050 |
| 6 |
104 |
80 |
Ti-163.064 |
| 6 |
104 |
85 |
Ti-163.051 |
| 6 |
104 |
90 |
Ti-163.052 |
| 6 |
104 |
95 |
Ti-163.053 |
| 6 |
104 |
100 |
Ti-163.054 |
| 9 |
152 |
50 |
Ti-163.091 |
| 9 |
152 |
60 |
Ti-163.092 |
| 9 |
152 |
70 |
Ti-163.093 |
| 9 |
152 |
75 |
Ti-163.080 |
| 9 |
152 |
80 |
Ti-163.094 |
| 9 |
152 |
85 |
Ti-163.081 |
| 9 |
152 |
90 |
Ti-163.082 |
| 9 |
152 |
95 |
Ti-163.083 |
| 12 |
200 |
50 |
Ti-163.001 |
| 12 |
200 |
60 |
Ti-163.002 |
| 12 |
200 |
70 |
Ti-163.003 |
| 12 |
200 |
80 |
Ti-163.004 |

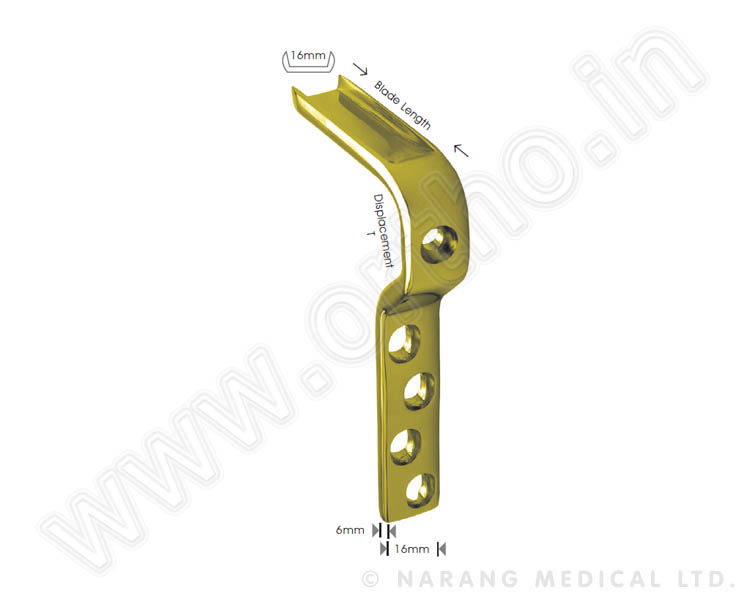

Angled Blade Plate for Intertrochanteric Femoral Osteotomies in Adults with Dynamic Compression Holes
- Angled Blade Plate for Intertrochanteric Femoral Osteotomies in Adults with Dynamic Compression Holes. These plates are indicated for intertrochanteric femoral osteotomies in adults.
- These plates are available in two different angles - 90º and 100º ( angle between blade and shaft).
- Fixation with 4.5 mm cortical screws.
Click to Zoom
| Blade L mm |
Displacement T mm |
Angle Degree |
STAINLESS STEEL |
| 40 |
10 |
90° |
170.140 |
| 50 |
10 |
90° |
170.150 |
| 60 |
10 |
90° |
170.160 |
| 70 |
10 |
90° |
170.170 |
| 40 |
15 |
90° |
170.240 |
| 50 |
15 |
90° |
170.250 |
| 60 |
15 |
90° |
170.260 |
| 70 |
15 |
90° |
170.270 |
| 50 |
20 |
90° |
170.350 |
| 60 |
20 |
90° |
170.360 |
| 70 |
20 |
90° |
170.370 |
| 50 |
10 |
100° |
170.450 |
| 60 |
10 |
100° |
170.460 |
| 70 |
10 |
100° |
170.470 |
| Blade L mm |
Displacement T mm |
Angle Degree |
TITANIUM |
| 40 |
10 |
90° |
Ti-170.140 |
| 50 |
10 |
90° |
Ti-170.150 |
| 60 |
10 |
90° |
Ti-170.160 |
| 70 |
10 |
90° |
Ti-170.170 |
| 40 |
15 |
90° |
Ti-170.240 |
| 50 |
15 |
90° |
Ti-170.250 |
| 60 |
15 |
90° |
Ti-170.260 |
| 70 |
15 |
90° |
Ti-170.270 |
| 50 |
20 |
90° |
Ti-170.350 |
| 60 |
20 |
90° |
Ti-170.360 |
| 70 |
20 |
90° |
Ti-170.370 |
| 50 |
10 |
100° |
Ti-170.450 |
| 60 |
10 |
100° |
Ti-170.460 |
| 70 |
10 |
100° |
Ti-170.470 |

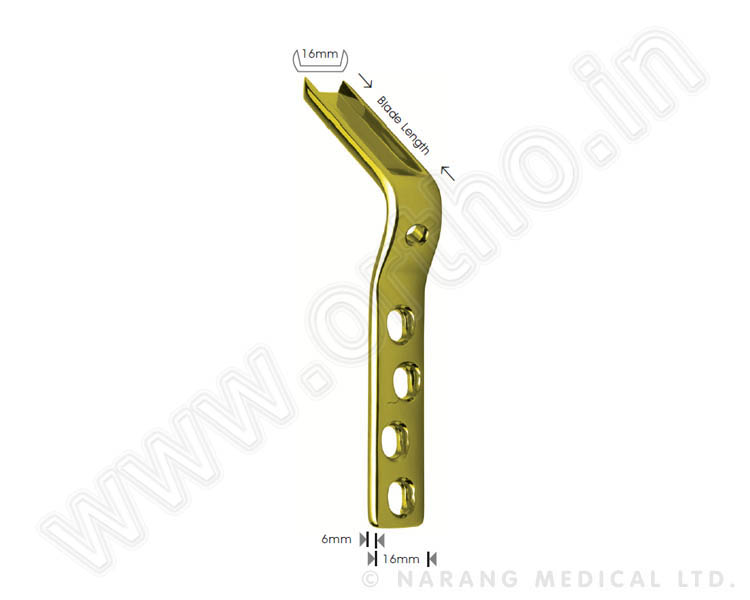

Angled Blade Plate for Intertrochanteric Femoral Osteotomies in Adults with Dynamic Compression Holes
- Angled Blade Plate for Intertrochanteric Femoral Osteotomies in Adults with Dynamic Compression Holes. These plates are indicated for intertrochanteric femoral osteotomies in adults.
- These plates are available in three different angles - 110º, 120º and 130º ( angle between blade and shaft).
- Fixation with 4.5 mm cortical screws.
Click to Zoom
| Blade L mm |
Angle Degree |
STAINLESS STEEL |
| 65 |
110° |
171.265 |
| 75 |
110° |
171.275 |
| 85 |
110° |
171.285 |
| 60 |
120° |
171.060 |
| 65 |
120° |
171.065 |
| 70 |
120° |
171.070 |
| 75 |
120° |
171.075 |
| 80 |
120° |
171.080 |
| 85 |
120° |
171.085 |
| 65 |
130° |
171.565 |
| 70 |
130° |
171.570 |
| 75 |
130° |
171.575 |
| 80 |
130° |
171.580 |
| 85 |
130° |
171.585 |
| 90 |
130° |
171.590 |
| 95 |
130° |
171.595 |
| 100 |
130° |
171.510 |
| 105 |
130° |
171.515 |
| Blade L mm |
Angle Degree |
TITANIUM |
| 65 |
110° |
Ti-171.265 |
| 75 |
110° |
Ti-171.275 |
| 85 |
110° |
Ti-171.285 |
| 60 |
120° |
Ti-171.060 |
| 65 |
120° |
Ti-171.065 |
| 70 |
120° |
Ti-171.070 |
| 75 |
120° |
Ti-171.075 |
| 80 |
120° |
Ti-171.080 |
| 85 |
120° |
Ti-171.085 |
| 65 |
130° |
Ti-171.565 |
| 70 |
130° |
Ti-171.570 |
| 75 |
130° |
Ti-171.575 |
| 80 |
130° |
Ti-171.580 |
| 85 |
130° |
Ti-171.585 |
| 90 |
130° |
Ti-171.590 |
| 95 |
130° |
Ti-171.595 |
| 100 |
130° |
Ti-171.510 |
| 105 |
130° |
Ti-171.515 |

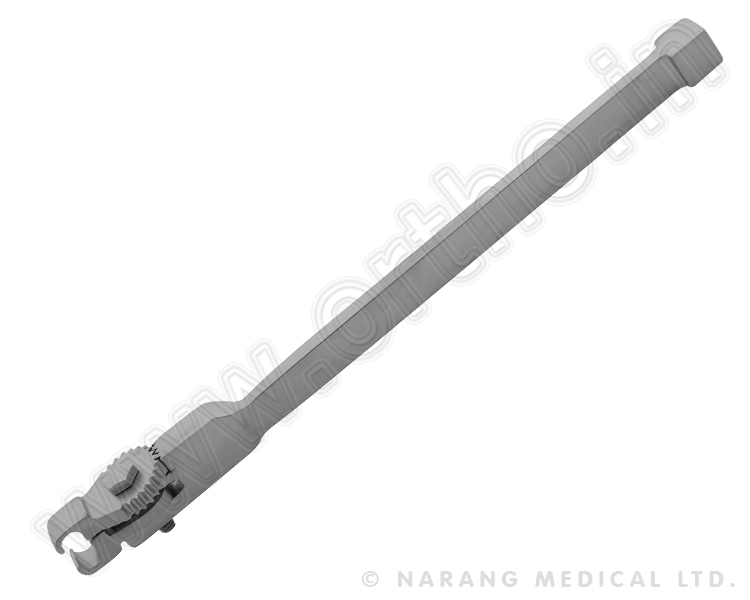

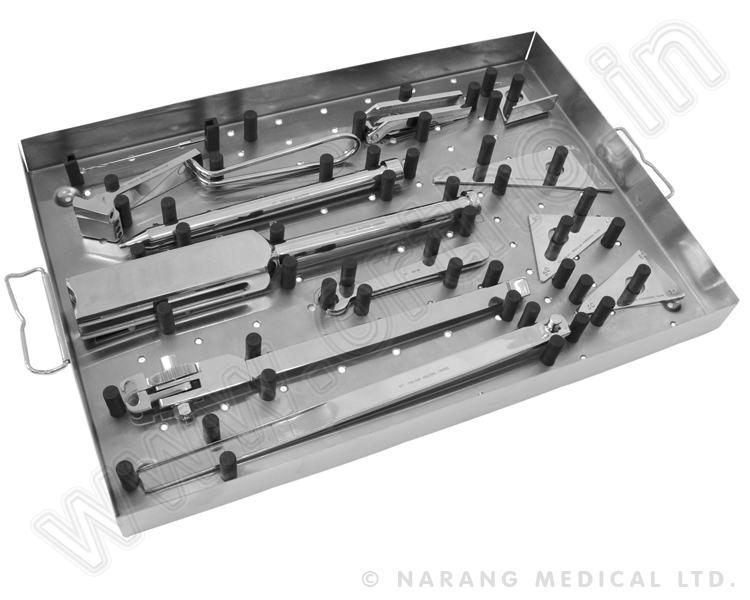

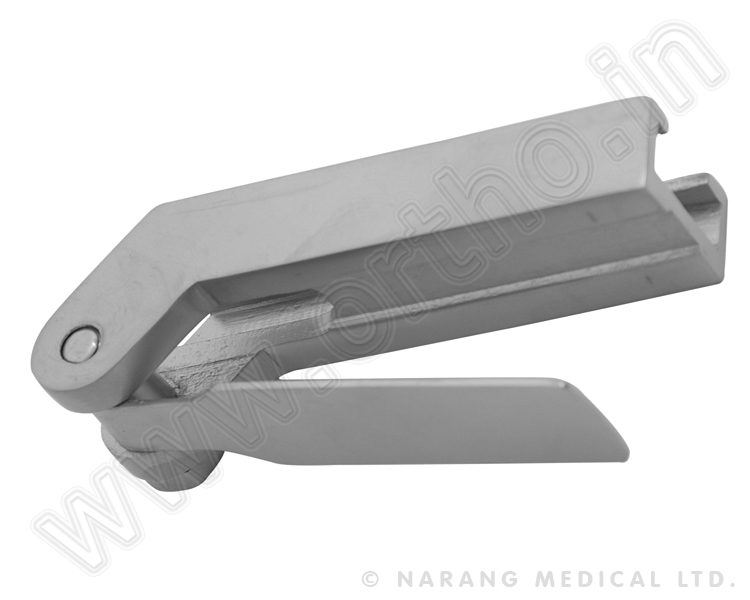

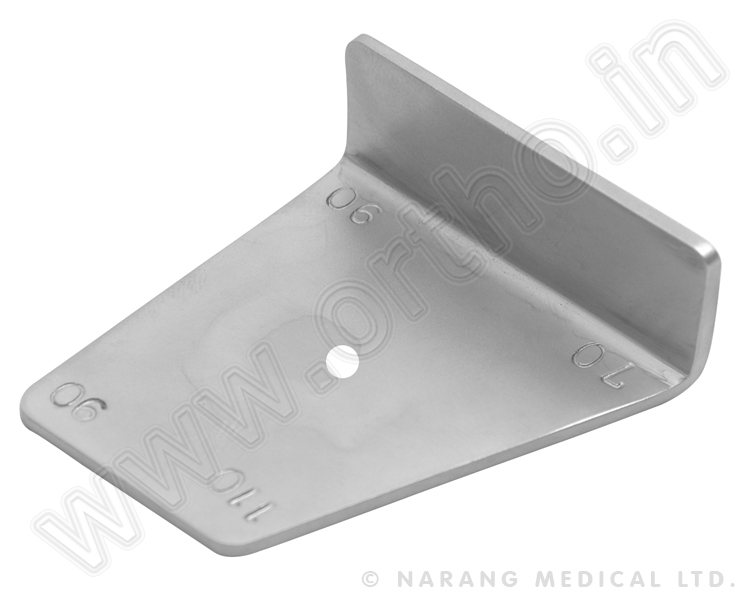

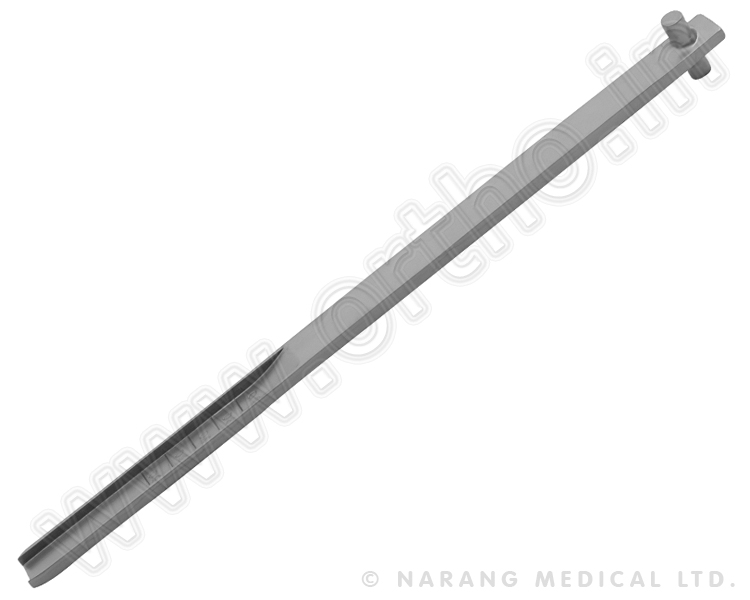

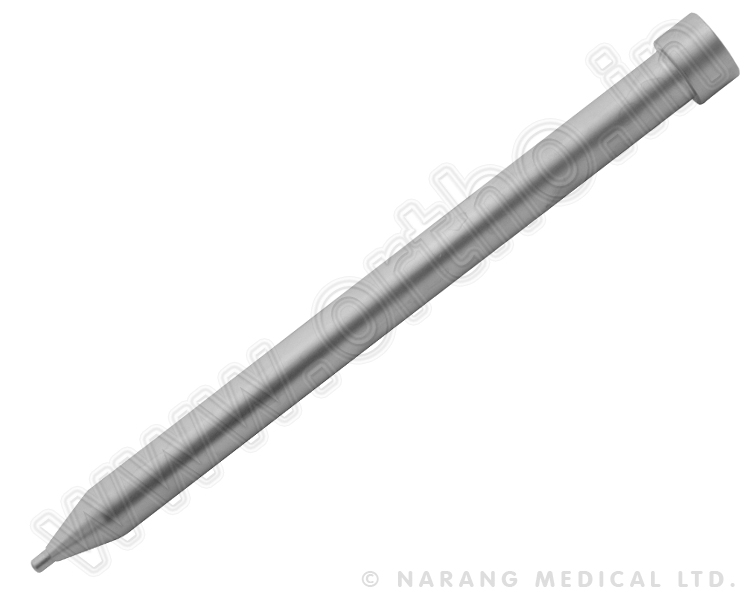

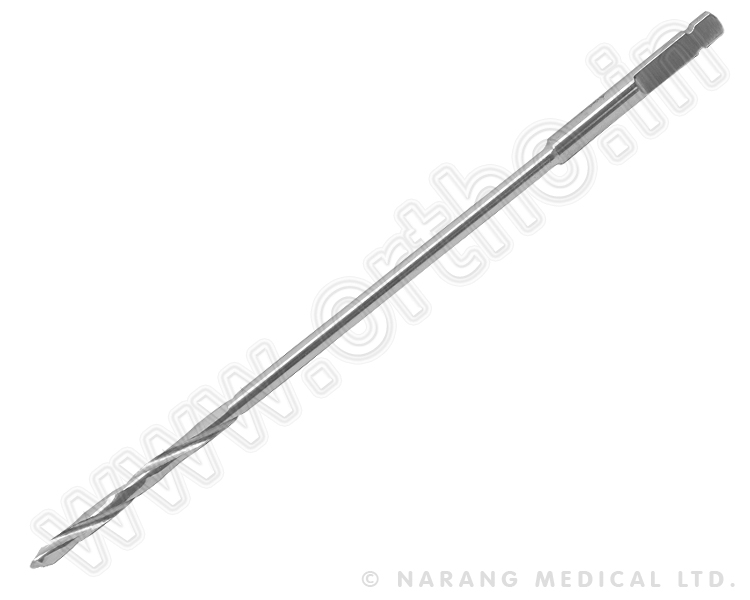

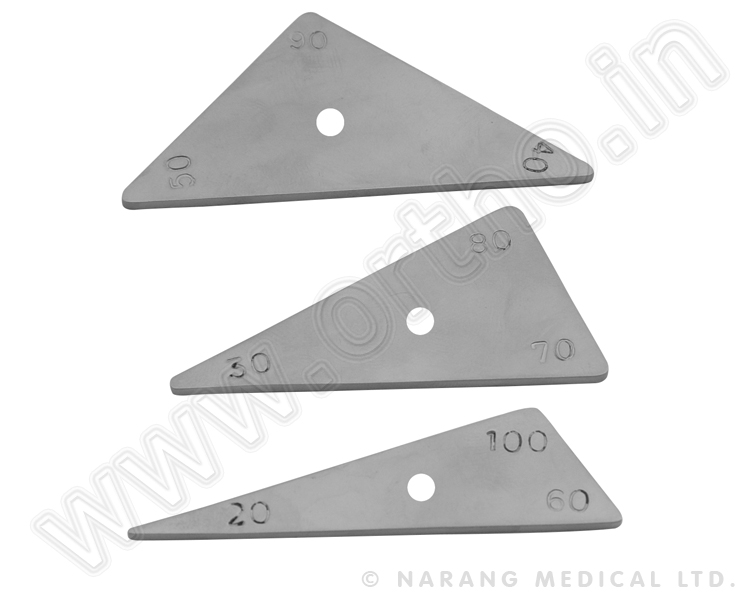

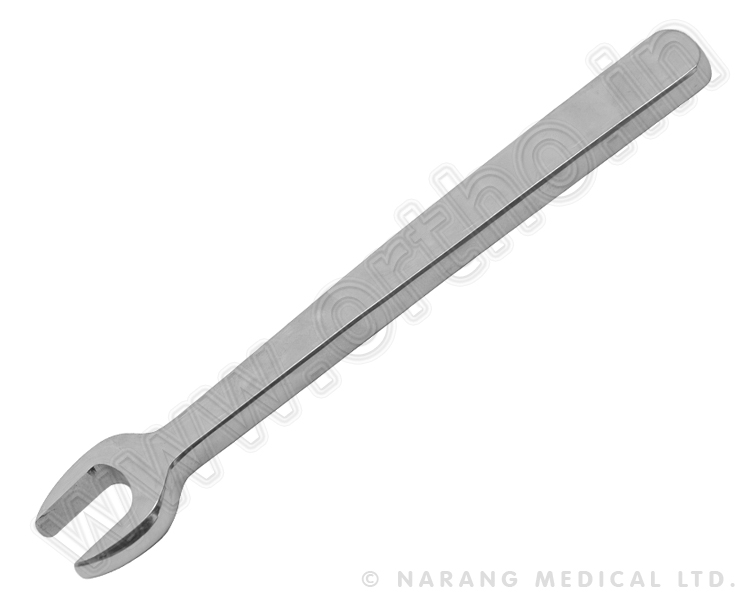

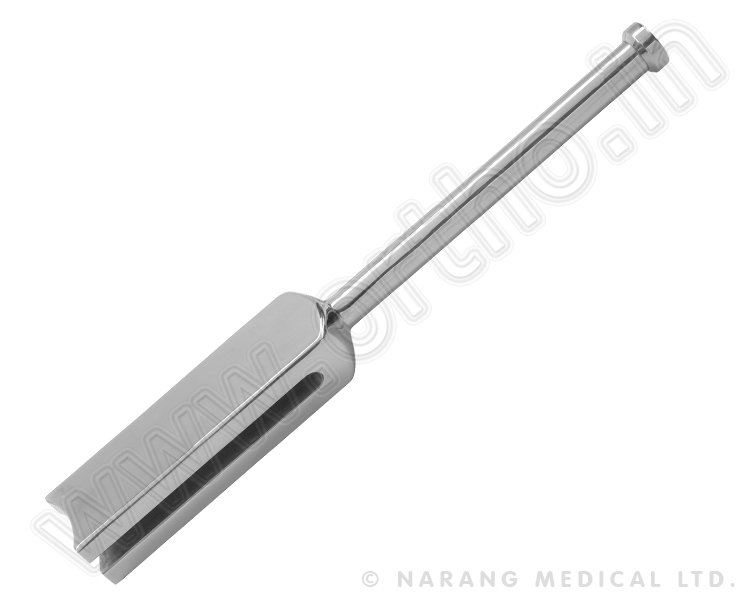

Instruments Set for Angled Blade Plate
Click to Zoom
