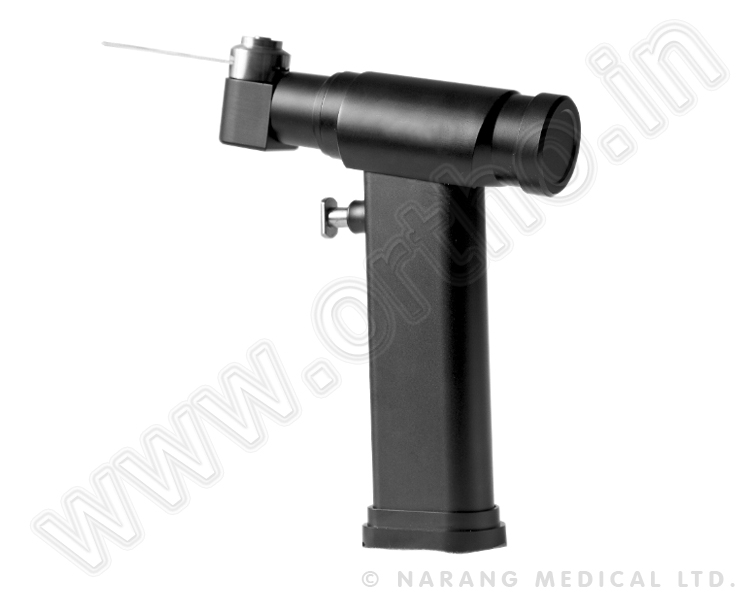

SPT1427 Battery Operated Oscillating Saw System (2G SERIES)

Specifications :
  • Power Output : ≥ 80W
  • Speed : 0-15000(osc/min)
  • Noise : ≤ 75 (db)
  • Battery : 9.6 (V), Ni-Mh, 1800 mA/h
  • Sterilization : 135° C

 Usage: Joint Operation. Powerful, Stepless Variable Speed Control.

Battery Operated Oscillating Saw System
Click to Zoom
  Set Consisting of : Units
  SPT1427.1 - Battery powered handpiece 1
  SPT141 - Battery 2
  SPT142 - Battery Charger 220V, 50Hz 1
  SPT143 - Sterilizing Ring 2

Set of 3 Blades as below 1 Set
Item Code Cutting Thickness mm Usable Length mm Width mm Qty
SPT27.20 0.80 70 22 1
SPT27.38 1.00 90 22 1
SPT27.35 1.00 90 14 1

  (For spare blades refer end of the page)
Top

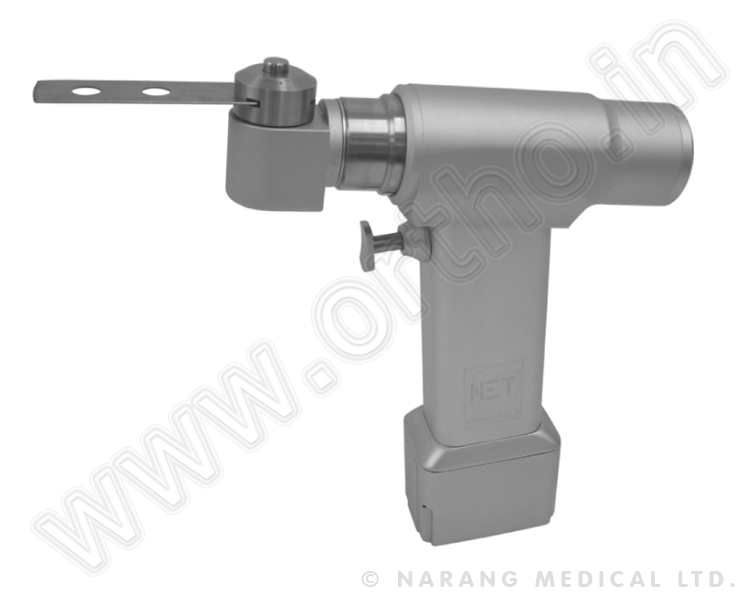

SPT27 Battery Operated Oscillating Saw System (4G SERIES)

 Same as SPT1427 but with below specifications


Specifications :
  • Power Output : ≥ 100W
  • Speed : 0-16000(osc/min)
  • Noise : ≤ 75 (db)
  • Battery : 14.4 (V), Ni-Mh, 1800 mA/h
  • Sterilization : 155° C

 Usage: Joint Operation. Powerful, Stepless Variable Speed Control.

Battery Operated Oscillating Saw System
Click to Zoom
  Set Consisting of : Units
  SPT27.1 - Battery powered handpiece 1
  SPT01 - Battery 2
  SPT02 - Battery Charger 220V, 50Hz 1
  SPT03 - Sterilizing Ring 2

Top

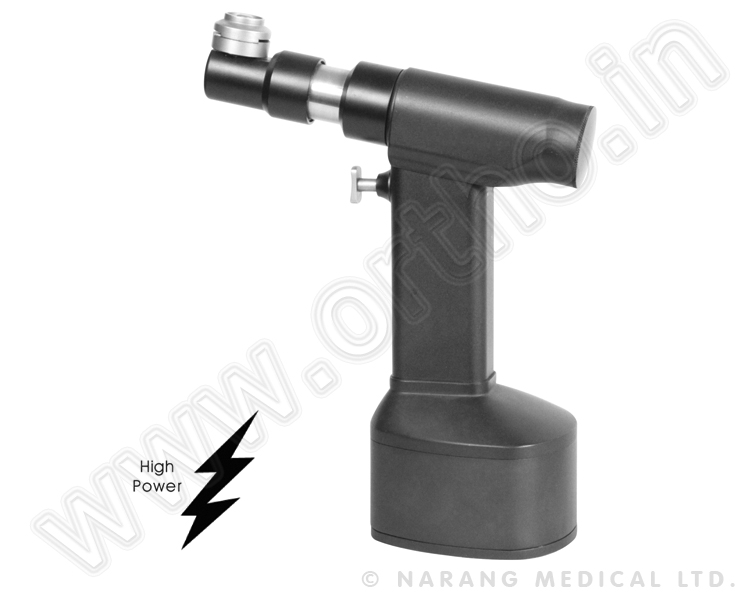

SPT627 Battery Operated Oscillating, Saw System, High Torque / High Power (6G SERIES)

 Same as SPT1427 but with below specifications


Specifications :
  • Power Output : ≥ 110W
  • Speed : 0-16000(osc/min)
  • Noise : ≤ 75 (db)
  • Battery : 14.4 (V), Ni-Mh, 1800 mA/h
  • Sterilization : 135° C

 Usage: Joint Operation. Powerful, Stepless Variable Speed Control.

Battery Operated Oscillating, Saw System, High Torque / High Power
Click to Zoom
  Set Consisting of : Units
  SPT27.1 - Battery powered handpiece 1
  SPT61 - Battery 2
  SPT62 - Battery Charger 220V, 50Hz 1
  SPT63 - Sterilizing Ring 2

Set of 3 Blades as below 1 Set
Item Code Cutting Thickness mm Usable Length mm Width mm Qty
SPT27.22 0.8 70 24 1
SPT27.38 1.0 90 22 1
SPT27.35 1.0 90 14 1

  (For spare blades refer end of the page)
Top

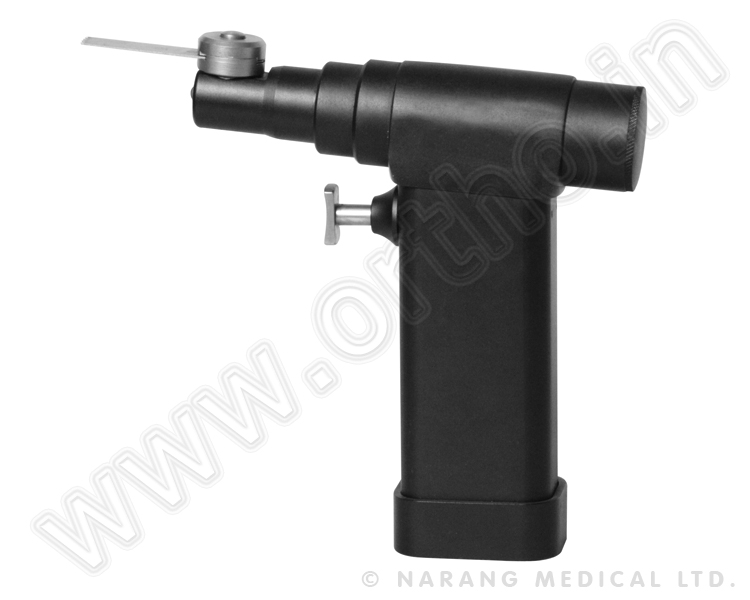

SPT827 Battery Operated Oscillating Saw System, for Small Bone (8G SERIES)

 Same as SPT1427 but with below specifications


Specifications :
  • Power Output : ≥ 40W
  • Speed : 0-15000(osc/min)
  • Noise : ≤ 50 (db)
  • Battery : 7.2 (V), Ni-Mh, 1800 mA/h
  • Sterilization : 135° C

 Usage: Joint Operation. Powerful, Stepless Variable Speed Control.

Battery Operated Oscillating Saw System, for Small Bone
Click to Zoom
  Set Consisting of : Units
  SPT827.1 - Battery powered handpiece 1
  SPT81 - Battery 2
  SPT82 - Battery Charger 220V, 50Hz 1
  SPT83 - Sterilizing Ring 2

With One Blade as per details below : 1 Set
Item Code Cutting Thickness mm Usable Length mm Width mm Qty
SPT827.22 0.8 50 16 1
  (For spare blades refer end of the page)
Top

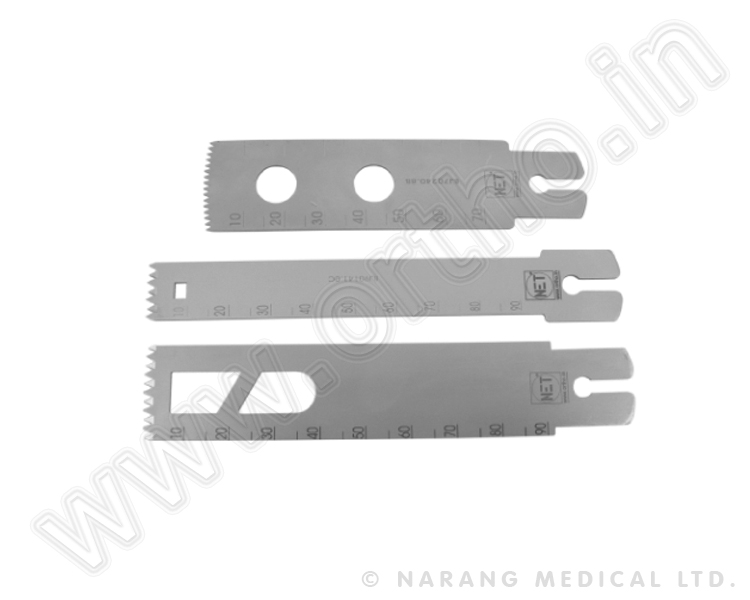

Spare Oscillating Saw Blades for SPT27, SPT627 & SPT1427

Spare Oscillating Saw Blades for SPT27 and SPT627
Click to Zoom
Item Code Cutting Thickness Usable Length mm Width mm
SPT27.20 0.80 70 22
SPT27.22 0.80 70 24
SPT27.35 1.00 90 14
SPT27.38 1.00 90 22
SPT27.44 1.20 70 22
SPT27.47 1.20 90 14
SPT27.56 1.27 70 22
SPT27.59 1.27 90 14
Top

Spare Oscillating Saw Blades for Small Bones - SPT827

Item Code Cutting Thickness Usable Length mm Width mm
SPT827.22 0.50 25 9.5
SPT827.24 0.50 35 7.5
SPT827.26 0.50 41 14
Top

Spare Saw Blades (as Per Specific Requirement)
Length mm Width mm Height mm
35 9.5 0.5
37 8 0.8
41/45 9.5/10/14 0.5/1.0
50/55/60 10/13.5/16/20 0.5/0.8/1.0
70/80 13/14/20/21/22/23/24/34 0.8/1.0/1.2/1.27
90 13/14/18/19/22/24/25 0.8./1.0/1.2/1.27
100 24/25 1.2/1.27
110 24 1.2/1.27
115 18/22 1.2/1.27
Top
