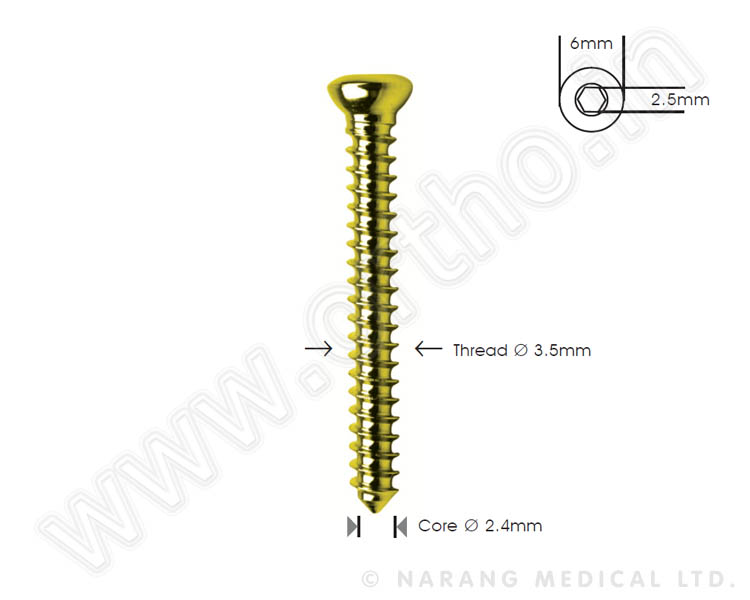

Cortex Screw Ø 3.5mm
- Cortex Screw Ø 3.5mm. These screws are used for the fixation of small fragment implants.
- Larger core dia of the screw provides strength and spherical surface under the head of the screw is for better compression.
- Self tapping feature eliminates the use of bone tap.
- Use 2.5mm Drill Bit
Click to Zoom
Length in mm |
Codes |
Stainless Steel |
Titanium |
10 |
102.010 |
Ti-102.010 |
12 |
102.012 |
Ti-102.012 |
14 |
102.014 |
Ti-102.014 |
16 |
102.016 |
Ti-102.016 |
18 |
102.018 |
Ti-102.018 |
20 |
102.020 |
Ti-102.020 |
22 |
102.022 |
Ti-102.022 |
24 |
102.024 |
Ti-102.024 |
26 |
102.026 |
Ti-102.026 |
28 |
102.028 |
Ti-102.028 |
30 |
102.030 |
Ti-102.030 |
32 |
102.032 |
Ti-102.032 |
34 |
102.034 |
Ti-102.034 |
36 |
102.036 |
Ti-102.036 |
38 |
102.038 |
Ti-102.038 |
40 |
102.040 |
Ti-102.040 |
42 |
102.042 |
Ti-102.042 |
44 |
102.044 |
Ti-102.044 |
46 |
102.046 |
Ti-102.046 |
48 |
102.048 |
Ti-102.048 |
50 |
102.050 |
Ti-102.050 |

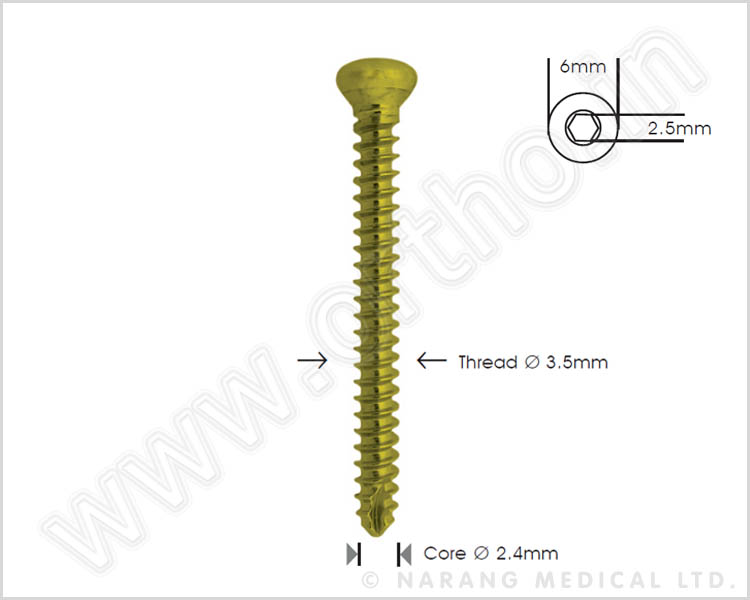

Cortex Screw Ø 3.5mm, Self Tapping
- Cortex Screw Φ 3.5mm are used for the fixation of small fragment implants.
- Larger Core of the screw provides strength and spherical surface under the head of the screw is for better compression.
- Self tapping feature eliminates the use of bone tap.
- Use 2.5mm Drill Bit.
Click to Zoom
Length in mm |
Codes |
Stainless Steel |
Titanium |
10 |
102.210 |
Ti-102.210 |
12 |
102.212 |
Ti-102.212 |
14 |
102.214 |
Ti-102.214 |
16 |
102.216 |
Ti-102.216 |
18 |
102.218 |
Ti-102.218 |
20 |
102.220 |
Ti-102.220 |
22 |
102.222 |
Ti-102.222 |
24 |
102.224 |
Ti-102.224 |
26 |
102.226 |
Ti-102.226 |
28 |
102.228 |
Ti-102.228 |
30 |
102.230 |
Ti-102.230 |
32 |
102.232 |
Ti-102.232 |
34 |
102.234 |
Ti-102.234 |
36 |
102.236 |
Ti-102.236 |
38 |
102.238 |
Ti-102.238 |
40 |
102.240 |
Ti-102.240 |
42 |
102.242 |
Ti-102.242 |
44 |
102.244 |
Ti-102.244 |
46 |
102.246 |
Ti-102.246 |
48 |
102.248 |
Ti-102.248 |
50 |
102.250 |
Ti-102.250 |

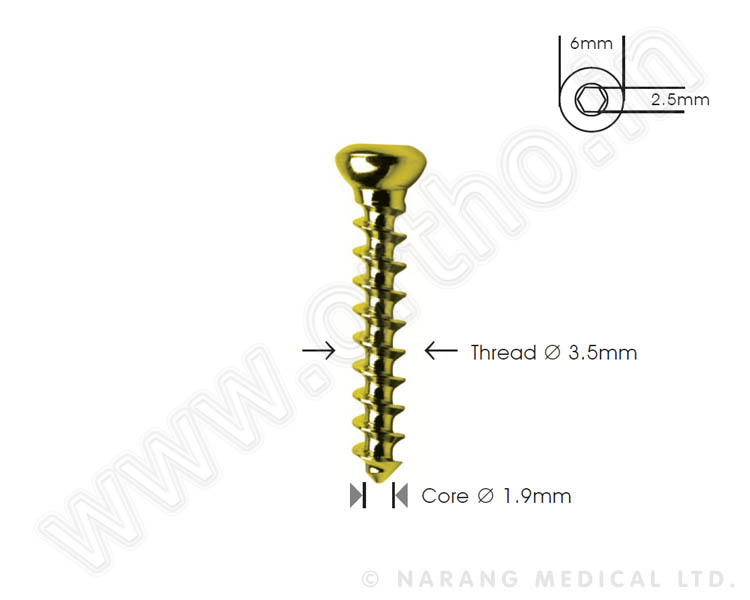

Cancellous Bone Screw Ø 3.5mm
Drill Bit: 2.5mm
Click to Zoom
Length in mm |
Code - Stainless Steel |
Code - Titanium |
Full Thread |
Short Thread |
Full Thread |
Short Thread |
10 |
103.010 |
103.310 |
Ti-103.010 |
Ti-103.310 |
12 |
103.012 |
103.312 |
Ti-103.012 |
Ti-103.312 |
14 |
103.014 |
103.314 |
Ti-103.014 |
Ti-103.314 |
16 |
103.016 |
103.316 |
Ti-103.016 |
Ti-103.316 |
18 |
103.018 |
103.318 |
Ti-103.018 |
Ti-103.318 |
20 |
103.020 |
103.320 |
Ti-103.0201 |
Ti-103.320 |
22 |
103.022 |
103.322 |
Ti-103.022 |
Ti-103.322 |
24 |
103.024 |
103.324 |
Ti-103.024 |
Ti-103.324 |
26 |
103.026 |
103.326 |
Ti-103.026 |
Ti-103.326 |
28 |
103.028 |
103.328 |
Ti-103.028 |
Ti-103.328 |
30 |
103.030 |
103.330 |
Ti-103.030 |
Ti-103.330 |
35 |
103.035 |
103.335 |
Ti-103.035 |
Ti-103.335 |
40 |
103.040 |
103.340 |
Ti-103.040 |
Ti-103.340 |
45 |
103.045 |
103.345 |
Ti-103.045 |
Ti-103.345 |
50 |
103.050 |
103.350 |
Ti-103.050 |
Ti-103.350 |
55 |
103.055 |
103.355 |
Ti-103.055 |
Ti-103.355 |
60 |
103.060 |
103.360 |
Ti-103.060 |
Ti-103.360 |

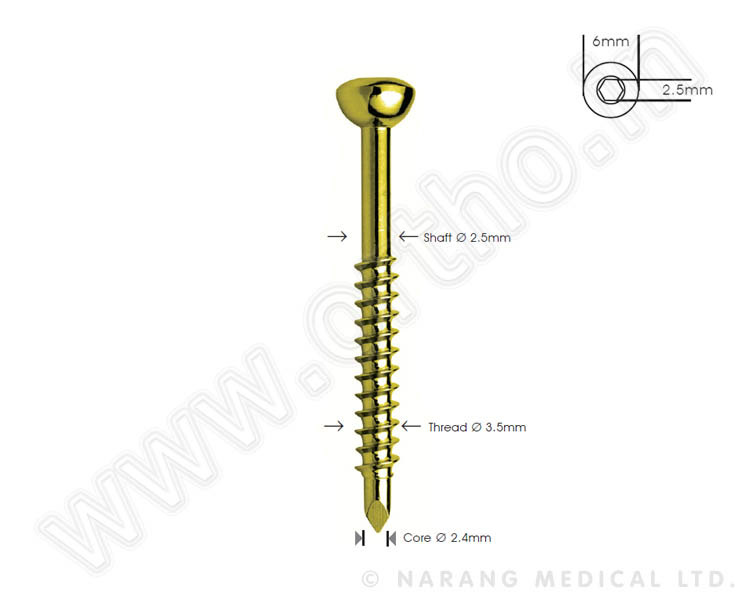

Malleolar Screw Ø 3.5mm
Drill Bit for Gliding Hole: 3.5mm
Drill Bit: 2.5mm
Click to Zoom
Length in mm |
Codes |
Stainless Steel |
Titanium |
25 |
107.225 |
Ti-107.225 |
30 |
107.230 |
Ti-107.230 |
35 |
107.235 |
Ti-107.235 |
40 |
107.240 |
Ti-107.240 |
45 |
107.245 |
Ti-107.245 |
50 |
107.250 |
Ti-107.250 |
55 |
107.255 |
Ti-107.255 |
60 |
107.260 |
Ti-107.260 |
65 |
107.265 |
Ti-107.265 |
70 |
107.270 |
Ti-107.270 |

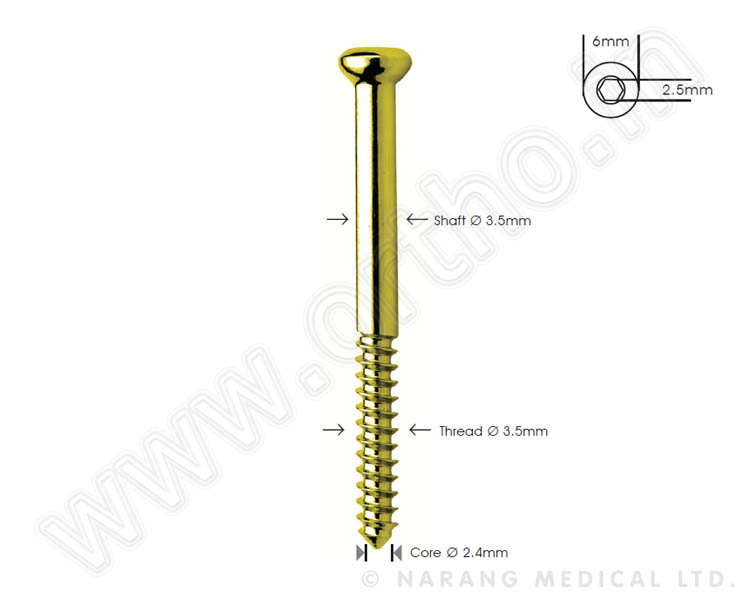

Shaft Screw Ø 3.5mm
For low contact dynamic compression plate
Drill Bit for Gliding Hole: 3.5mm
Drill Bit : 2.5mm
Click to Zoom
Length in mm |
Codes |
Stainless Steel |
Titanium |
12 |
113.012 |
Ti-113.012 |
14 |
113.014 |
Ti-113.014 |
16 |
113.016 |
Ti-113.016 |
18 |
113.018 |
Ti-113.018 |
20 |
113.020 |
Ti-113.020 |
22 |
113.022 |
Ti-113.022 |
24 |
113.024 |
Ti-113.024 |
26 |
113.026 |
Ti-113.026 |
28 |
113.028 |
Ti-113.028 |
30 |
113.030 |
Ti-113.030 |
32 |
113.032 |
Ti-113.032 |
34 |
113.034 |
Ti-113.034 |
36 |
113.036 |
Ti-113.036 |
38 |
113.038 |
Ti-113.038 |
40 |
113.040 |
Ti-113.040 |
45 |
113.045 |
Ti-113.045 |
50 |
113.050 |
Ti-113.050 |
55 |
113.055 |
Ti-113.055 |
60 |
113.060 |
Ti-113.060 |

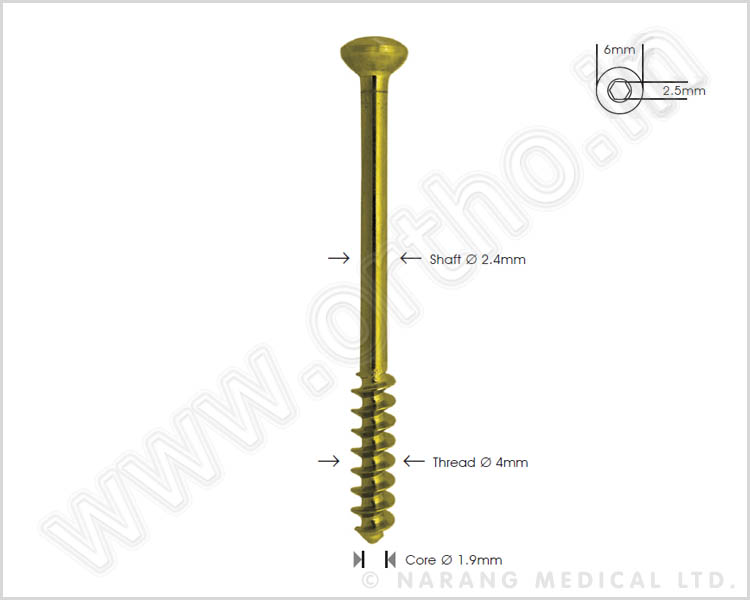

Cancellous Bone Screw Ø 4.0mm, Short-thread
- Cancellous Bone Screw Ø 4.0mm, Short-thread.
- These screws are used to fix small fragment implants.
- The cancellous screws are indicated for use in cancellous regions of the bone.
- The deep and widely spaced cuts increase pull out resistance in soft cancellous bones.
- Drill Bit: 2.5mm
Click to Zoom
Length in mm |
Code: Stainless Steel |
Code: Titanium |
Standard |
Self Tapping |
Standard |
Self Tapping |
10 |
104.010 |
104.210 |
Ti-104.010 |
Ti-104.210 |
12 |
104.012 |
104.212 |
Ti-104.012 |
Ti-104.212 |
14 |
104.014 |
104.214 |
Ti-104.014 |
Ti-104.214 |
16 |
104.016 |
104.216 |
Ti-104.016 |
Ti-104.216 |
18 |
104.018 |
104.218 |
Ti-104.018 |
Ti-104.218 |
20 |
104.020 |
104.220 |
Ti-104.020 |
Ti-104.220 |
22 |
104.022 |
104.222 |
Ti-104.022 |
Ti-104.222 |
24 |
104.024 |
104.224 |
Ti-104.024 |
Ti-104.224 |
26 |
104.026 |
104.226 |
Ti-104.026 |
Ti-104.226 |
28 |
104.028 |
104.228 |
Ti-104.028 |
Ti-104.228 |
30 |
104.030 |
104.230 |
Ti-104.030 |
Ti-104.230 |
35 |
104.035 |
104.235 |
Ti-104.035 |
Ti-104.235 |
40 |
104.040 |
104.240 |
Ti-104.040 |
Ti-104.240 |
45 |
104.045 |
104.245 |
Ti-104.045 |
Ti-104.245 |
50 |
104.050 |
104.250 |
Ti-104.050 |
Ti-104.250 |
55 |
104.055 |
104.255 |
Ti-104.055 |
Ti-104.255 |
60 |
104.060 |
104.260 |
Ti-104.060 |
Ti-104.260 |

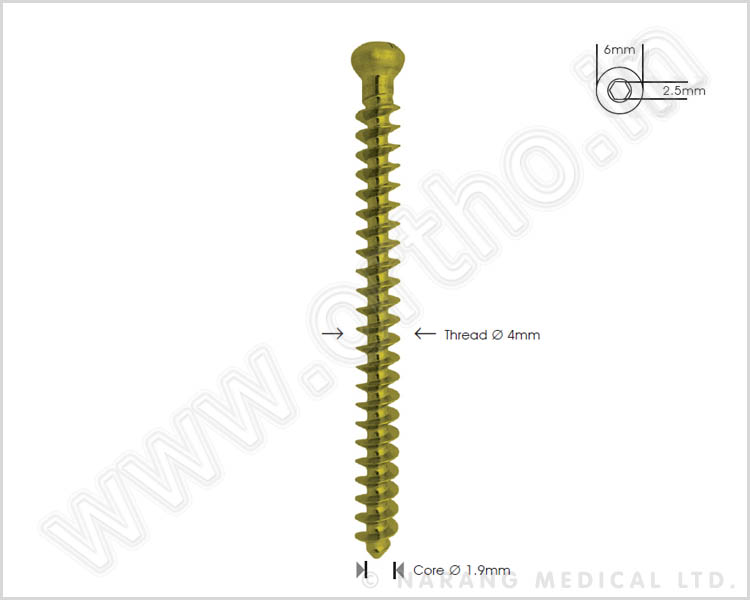

Cancellous Bone Screw Ø 4.0mm, Full-thread
Profile:
Not to be used as lag screw.
Drill Bit: 2.5mm
Click to Zoom
Length in mm |
Code: Stainless Steel |
Code: Titanium |
Standard |
Self Tapping |
Standard |
Self Tapping |
10 |
105.010 |
105.210 |
Ti-105.010 |
Ti-105.210 |
12 |
105.012 |
105.212 |
Ti-105.012 |
Ti-105.212 |
14 |
105.014 |
105.214 |
Ti-105.014 |
Ti-105.214 |
16 |
105.016 |
105.216 |
Ti-105.016 |
Ti-105.216 |
18 |
104.018 |
104.218 |
Ti-104.018 |
Ti-104.218 |
20 |
105.020 |
105.220 |
Ti-105.020 |
Ti-105.220 |
22 |
105.022 |
105.222 |
Ti-105.022 |
Ti-105.222 |
24 |
105.024 |
105.224 |
Ti-105.024 |
Ti-105.224 |
26 |
105.026 |
105.226 |
Ti-105.026 |
Ti-105.226 |
28 |
105.028 |
105.228 |
Ti-105.028 |
Ti-105.228 |
30 |
105.030 |
105.230 |
Ti-105.030 |
Ti-105.230 |
35 |
105.035 |
105.235 |
Ti-105.035 |
Ti-105.235 |
40 |
105.040 |
105.240 |
Ti-105.040 |
Ti-105.240 |
45 |
105.045 |
105.245 |
Ti-105.045 |
Ti-105.245 |
50 |
105.050 |
105.250 |
Ti-105.050 |
Ti-105.250 |
55 |
105.055 |
105.255 |
Ti-105.055 |
Ti-105.255 |
60 |
105.060 |
105.260 |
Ti-105.060 |
Ti-105.260 |
|
