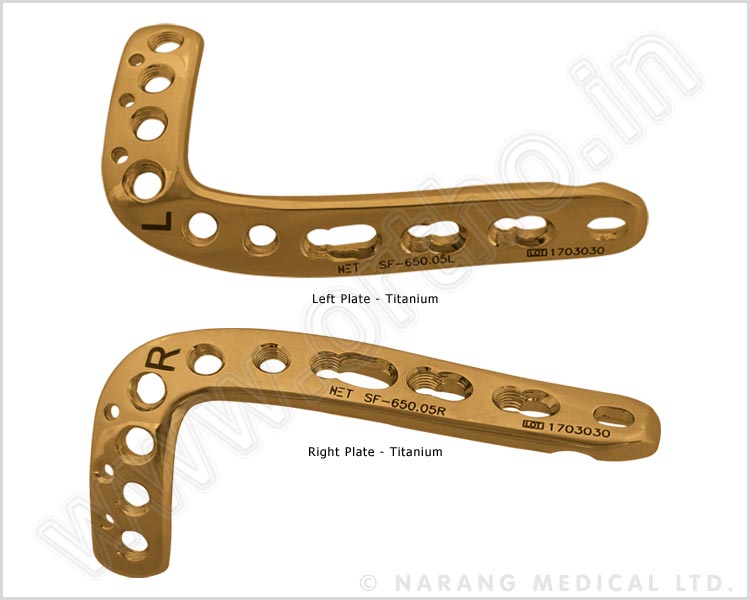

Distal Tibia Safety Lock Plate 3.5, Anterolateral
Indications:
The 3.5 mm LCP Anterolateral Distal Tibia Plate is indicated for fractures, osteotomies and nonunions of the distal tibia, particularly in osteopenic bone.
Plate Features:
- Four distal head holes angle 7º inferiorly to capture the posterior malleolus.
- Elongated hole aids in plate positioning
- Distal locking screws provide support for the articular surface.
- Targeted locking for Volkman's triangle and the Chaput fragment.
- The head of the plate is designed to provide a low profile construct when using locking screws or cortex screws Ø 2.7 mm, resulting in less soft tissue irritation.
- 60°twist in shaft is contoured for the distal tibia anatomy: less plate contouring is required.
- Anatomic reduction: Anatomic plate profile and four parallel screws near the joint assist reduction of metaphysis to diaphysis to restore alignment and functional anatomy. Anatomic reduction is mandatory for intra-articular fractures to restore joint congruency.
- Stable fixation: The combination of conventional and locking screws offers optimum fixation regardless of bone density.
- Preservation of blood supply: Limited-contact plate design reduces plate-to-bone contact and helps to preserve the periosteal blood supply.
Click to Zoom
No. of Holes |
STAINLESS STEEL |
Left |
Right |
5 |
SF-650.05L |
SF-650.05R |
7 |
SF-650.07L |
SF-650.07R |
9 |
SF-650.09L |
SF-650.09R |
11 |
SF-650.11L |
SF-650.11R |
13 |
SF-650.13L |
SF-650.13R |
15 |
SF-650.15L |
SF-650.15R |
17 |
SF-650.17L |
SF-650.17R |
19 |
SF-650.19L |
SF-650.19R |
21 |
SF-650.21L |
SF-650.21R |
No. of Holes |
TITANIUM |
Left |
Right |
5 |
Ti-SF-650.05L |
Ti-SF-650.05R |
7 |
Ti-SF-650.07L |
Ti-SF-650.07R |
9 |
Ti-SF-650.09L |
Ti-SF-650.09R |
11 |
Ti-SF-650.11L |
Ti-SF-650.11R |
13 |
Ti-SF-650.13L |
Ti-SF-650.13R |
15 |
Ti-SF-650.15L |
Ti-SF-650.15R |
17 |
Ti-SF-650.17L |
Ti-SF-650.17R |
19 |
Ti-SF-650.19L |
Ti-SF-650.19R |
21 |
Ti-SF-650.21L |
Ti-SF-650.21R |

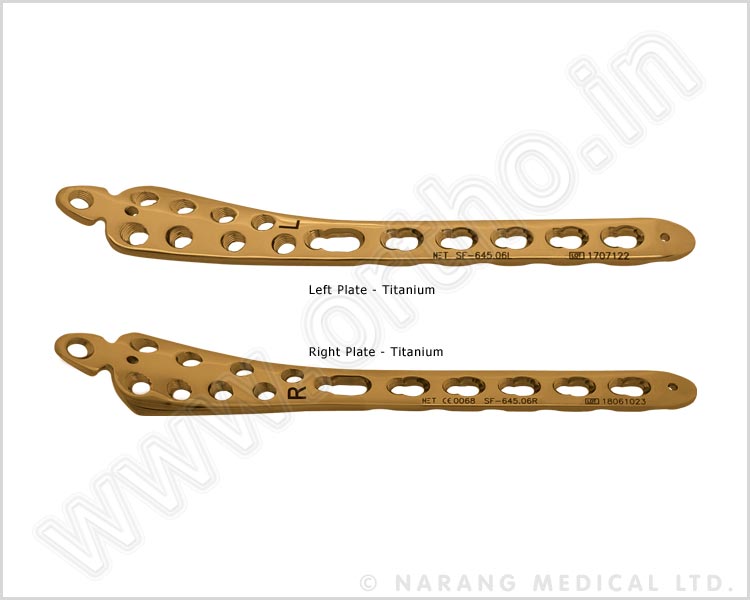

Medial Distal Tibia Safety Lock Plate 3.5 with Tab
Indications:
- Extra-articular and simple intra-articular distal tibial fractures.
- Distal tibial fractures, percutaneous or reducible by limited arthrotomy.
- Distal tibial fracture extending into the diaphyseal area.
Plate Features:
- These Plates can be anatomically contoured to match with the Distal Medial Tibia.
- These plates are designed for both right and left tibia and are available in a variety of lengths.
- The head hole allows only 3.5 mm Safty Lock screws, rest holes allow both 3.5 mm Safety Lock and Cortical screws.
- Screws : For Combi holes - 3.5 Locking, 3.5 Cortical, 4.0 Cancellous.
For Round Locking Holes - 3.5 Locking, 2.7 or 3.5 Cortical, 4.0 Cancellous.
Click to Zoom
No. of Holes |
STAINLESS STEEL |
Left |
Right |
4 |
SF-645.04L |
SF-645.04R |
6 |
SF-645.06L |
SF-645.06R |
8 |
SF-645.08L |
SF-645.08R |
10 |
SF-645.10L |
SF-645.10R |
12 |
SF-645.12L |
SF-645.12R |
14 |
SF-645.14L |
SF-645.14R |
No. of Holes |
TITANIUM |
Left |
Right |
4 |
Ti-SF-645.04L |
Ti-SF-645.04R |
6 |
Ti-SF-645.06L |
Ti-SF-645.06R |
8 |
Ti-SF-645.08L |
Ti-SF-645.08R |
10 |
Ti-SF-645.10L |
Ti-SF-645.10R |
12 |
Ti-SF-645.12L |
Ti-SF-645.12R |
14 |
Ti-SF-645.14L |
Ti-SF-645.14R |

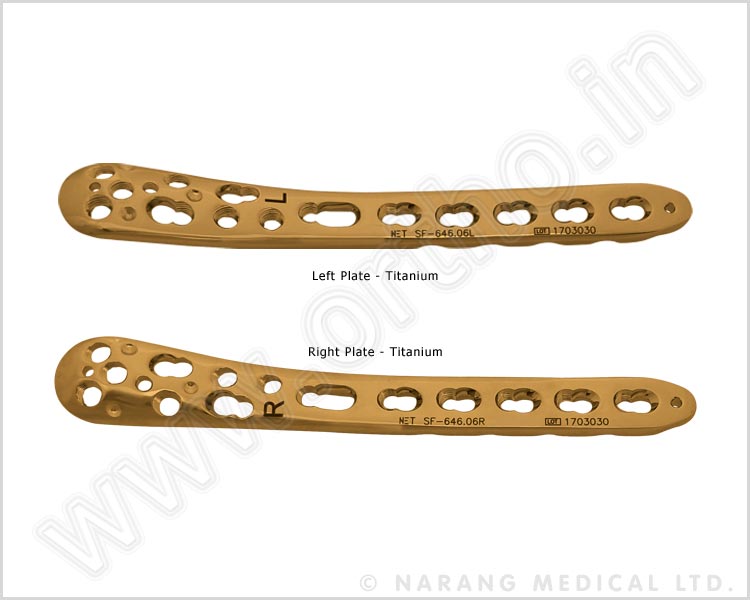

Medial Distal Tibia Safety Lock Plate 3.5 without Tab
Click to Zoom
No. of Holes |
STAINLESS STEEL |
Left |
Right |
4 |
SF-646.04L |
SF-646.04R |
6 |
SF-646.06L |
SF-646.06R |
8 |
SF-646.08L |
SF-646.08R |
10 |
SF-646.10L |
SF-646.10R |
12 |
SF-646.12L |
SF-646.12R |
14 |
SF-646.14L |
SF-646.14R |
No. of Holes |
TITANIUM |
Left |
Right |
4 |
Ti-SF-646.04L |
Ti-SF-646.04R |
6 |
Ti-SF-646.06L |
Ti-SF-646.06R |
8 |
Ti-SF-646.08L |
Ti-SF-646.08R |
10 |
Ti-SF-646.10L |
Ti-SF-646.10R |
12 |
Ti-SF-646.12L |
Ti-SF-646.12R |
14 |
Ti-SF-646.14L |
Ti-SF-646.14R |

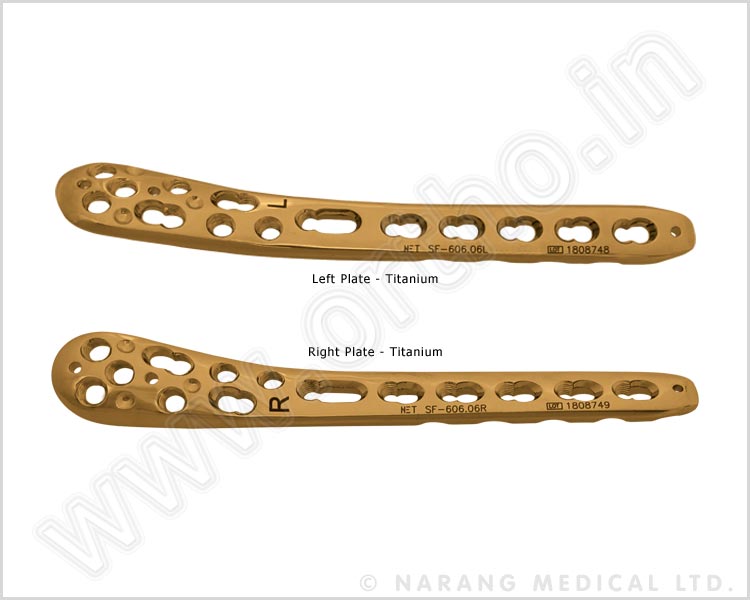

Medial Distal Tibia Safety Lock Plate 3.5 Low Bend
Click to Zoom
No. of Holes |
STAINLESS STEEL |
Left |
Right |
4 |
SF-606.04L |
SF-606.04R |
6 |
SF-606.06L |
SF-606.06R |
8 |
SF-606.08L |
SF-606.08R |
10 |
SF-606.10L |
SF-606.10R |
12 |
SF-606.12L |
SF-606.12R |
14 |
SF-606.14L |
SF-606.14R |
No. of Holes |
TITANIUM |
Left |
Right |
4 |
Ti-SF-606.04L |
Ti-SF-606.04R |
6 |
Ti-SF-606.06L |
Ti-SF-606.06R |
8 |
Ti-SF-606.08L |
Ti-SF-606.08R |
10 |
Ti-SF-606.10L |
Ti-SF-606.10R |
12 |
Ti-SF-606.12L |
Ti-SF-606.12R |
14 |
Ti-SF-606.14L |
Ti-SF-606.14R |

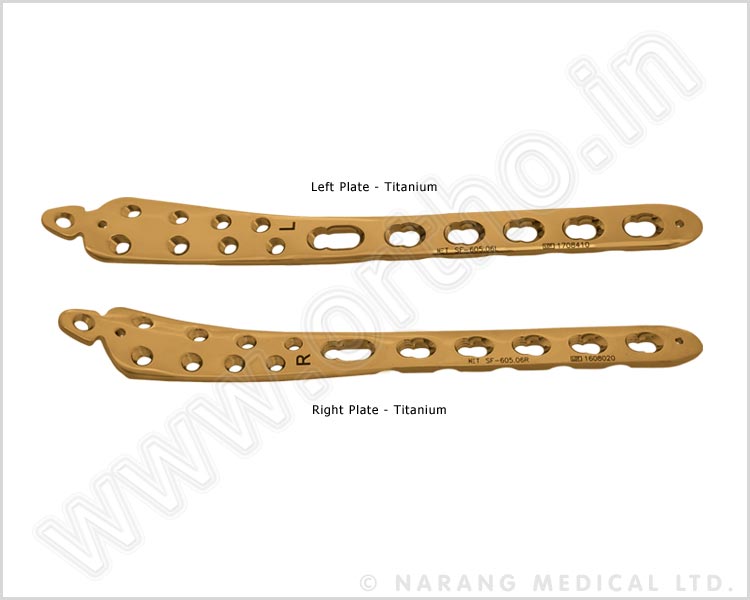

Distal Tibia Safety Lock Plate 3.5/5.0
Click to Zoom
No. of
Holes |
STAINLESS STEEL |
Left |
Right |
4 |
SF-605.04L |
SF-605.04R |
6 |
SF-605.06L |
SF-605.06R |
8 |
SF-605.08L |
SF-605.08R |
10 |
SF-605.10L |
SF-605.10R |
12 |
SF-605.12L |
SF-605.12R |
14 |
SF-605.14L |
SF-605.14R |
No. of
Holes |
TITANIUM |
Left |
Right |
4 |
Ti-SF-605.04L |
Ti-SF-605.04R |
6 |
Ti-SF-605.06L |
Ti-SF-605.06R |
8 |
Ti-SF-605.08L |
Ti-SF-605.08R |
10 |
Ti-SF-605.10L |
Ti-SF-605.10R |
12 |
Ti-SF-605.12L |
Ti-SF-605.12R |
14 |
Ti-SF-605.14L |
Ti-SF-605.14R |

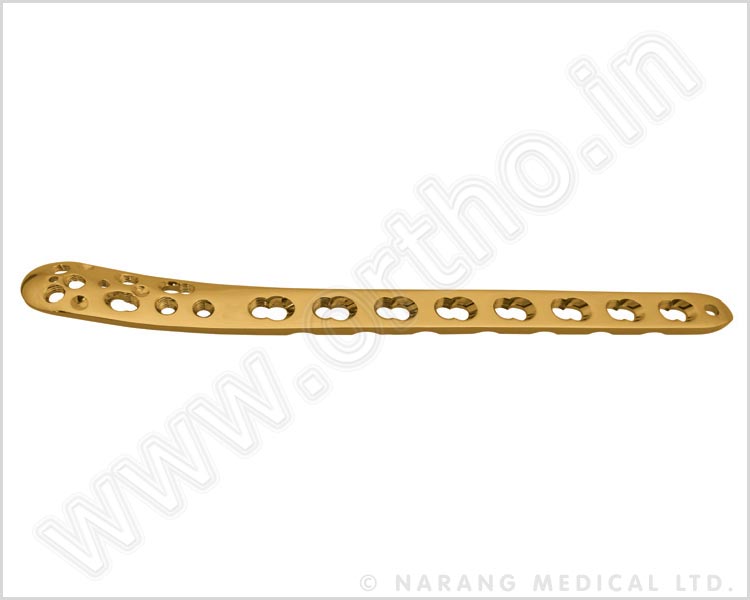

Distal Tibia Safety Lock Plate 3.5/5.0 Without Tab
Click to Zoom
No. of
Holes |
STAINLESS STEEL |
Left |
Right |
4 |
SF-602.04L |
SF-602.04R |
6 |
SF-602.06L |
SF-602.06R |
8 |
SF-602.08L |
SF-602.08R |
10 |
SF-602.10L |
SF-602.10R |
12 |
SF-602.12L |
SF-602.12R |
14 |
SF-602.14L |
SF-602.14R |
No. of
Holes |
TITANIUM |
Left |
Right |
4 |
Ti-SF-602.04L |
Ti-SF-602.04R |
6 |
Ti-SF-602.06L |
Ti-SF-602.06R |
8 |
Ti-SF-602.08L |
Ti-SF-602.08R |
10 |
Ti-SF-602.10L |
Ti-SF-602.10R |
12 |
Ti-SF-602.12L |
Ti-SF-602.12R |
14 |
Ti-SF-602.14L |
Ti-SF-602.14R |

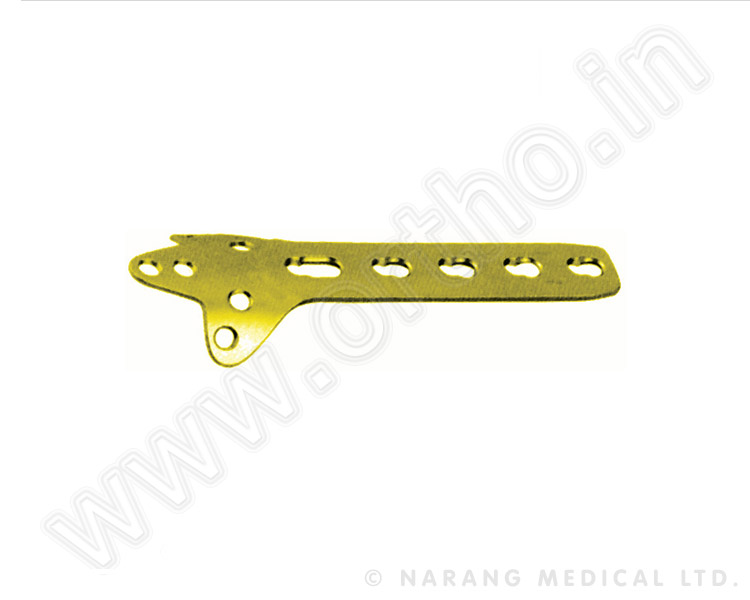

Cloverleaf Safety Lock Plate 3.5
Indications:
- For medial buttressing of comminuted distal tibial fractures.
- For comminuted humeral head fractures.
- The Safety locking feature provide angular stability.
- The holes on head allow only 3.5 mm Safety Lock screws and shaft allows both 3.5 mm Safety Lock and Cortical screws.
Click to Zoom
No. of Holes |
STAINLESS STEEL |
3 |
SF-146.103 |
4 |
SF-146.104 |
5 |
SF-146.105 |
6 |
SF-146.106 |
No. of Holes |
TITANIUM |
3 |
Ti-SF-146.103 |
4 |
Ti-SF-146.104 |
5 |
Ti-SF-146.105 |
6 |
Ti-SF-146.106 |
