Dorsolateral  |  Dorsolateral with Lateral Support  |  Distal Medial  |   Metaphyseal
Distal Humerus Safety Lock Plate 2.7/3.5, Dorsolateral

  • The Distal Humerus Safety Lock Plate 2.7/3.5, Dorsolateral is available in various lengths. There are two version of the plate left and right separately designed for right and left humerus. The plates are pre-shaped to match the anatomy of the distal humerus with a limited contact low profile design.
  • The Head Region of the plate accommodates safety Lock Screw Φ 2.7 mm-Self Tapping and shaft region accommodates both cortex screw Φ 3.5 mm-self tapping and Saftey Lock screw Φ 3.5 mm-self tapping
  • The Distal Humerus safety Lock Plate 2.7/3.5, Dorsolateral is indicated for intraarticular fractures of the distalo humerus, comminuted supracondylar fractures, osteotormies, and non-unions of the distal humerus.

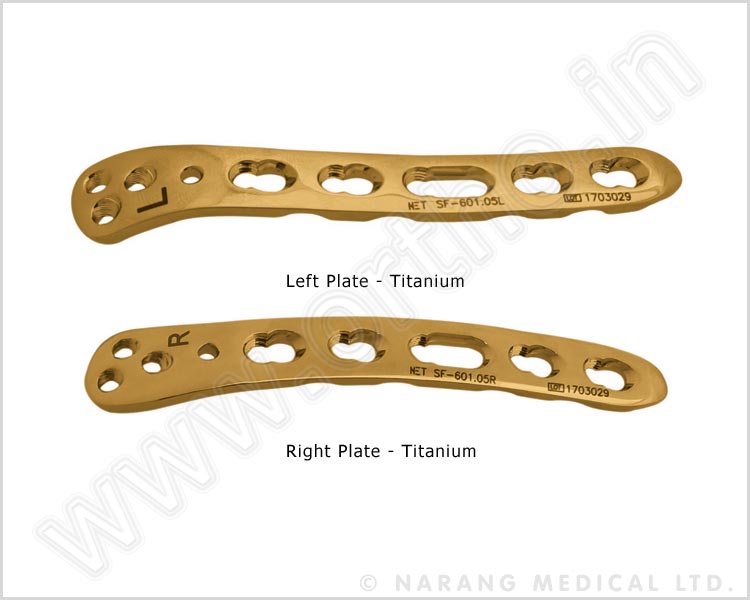

Distal Humerus Safety Lock Plate 2.7/3.5, Dorsolateral
Click to Zoom
No. of
Holes		 STAINLESS STEEL
Left Right
3 SF-601.03L SF-601.03R
5 SF-601.05L SF-601.05R
7 SF-601.07L SF-601.07R
9 SF-601.09L SF-601.09R
14 SF-601.14L SF-601.14R
No. of
Holes		 TITANIUM
Left Right
3 Ti-SF-601.03L Ti-SF-601.03R
5 Ti-SF-601.05L Ti-SF-601.05R
7 Ti-SF-601.07L Ti-SF-601.07R
9 Ti-SF-601.09L Ti-SF-601.09R
14 Ti-SF-601.14L Ti-SF-601.14R

Top

Distal Humerus Safety Lock Plate 2.7/3.5, Dorsolateral with Lateral Support

  • The Distal Humerus Safety Lock Plate 2.7/3.5, Dorsolateral with Lateral Spport is available in various lengths. There are two version of the plate left and right separately designed for right and left humerus. The plates are pre-shaped to match the anatomy of the distal humerus with a limited contact low profile design.
  • The Head Region of the plate accommodates Safety Lock Screw Φ 2.7 mm-Self Tapping and Shaft Region accommodates both Cortex Screw Φ 3.5 mm - Self Tapping and Saftey Lock Screw Φ 3.5 mm - Self Tapping
  • The Distal Humerus safety Lock Plate 2.7/3.5, Dorsolateral with Lateral Support is indicated for intraarticular fractures of the Distal Humerus, comminuted supracondylar fractures, osteotormies, and non-unions of the Distal Humerus.

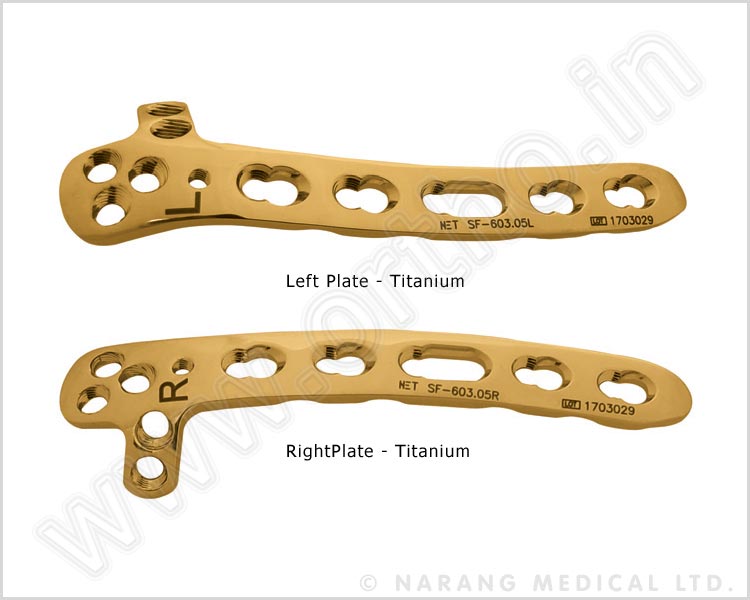

Distal Humerus Safety Lock Plate 2.7/3.5, Dorsolateral with Lateral Support
Click to Zoom
No. of
Holes		 STAINLESS STEEL
Left Right
3 SF-603.03L SF-603.03R
5 SF-603.05L SF-603.05R
7 SF-603.07L SF-603.07R
9 SF-603.09L SF-603.09R
14 SF-603.14L SF-603.14R
No. of
Holes		 TITANIUM
Left Right
3 Ti-SF-603.03L Ti-SF-603.03R
5 Ti-SF-603.05L Ti-SF-603.05R
7 Ti-SF-603.07L Ti-SF-603.07R
9 Ti-SF-603.09L Ti-SF-603.09R
14 Ti-SF-603.14L Ti-SF-603.14R

Top

Distal Humerus Safety Lock Plate 3.5, Extra-Articular

    Indications: The 3.5 mm LCP Extra-articular Distal Humerus Plates are indicated for fractures of the distal humerus.

    Plate features

  • Left and right plates are anatomically contoured to match the posterolateral distal humerus.
  • Two most distal holes are angled toward the capitulum and trochlea.
  • Plate head tapered to minimize soft tissue irritation.
  • A limited-contact plate design reduces plate-to-bone contact and helps to preserve the periosteal blood supply.

    • Anatomic reduction: Fracture reduction and fixation to restore anatomical relationships.

    Stable fixation: Fracture fixation providing absolute or relative stability, as required by the patient, the injury, and the personality of the fracture.

    Early, active mobilization: Early and safe mobilization and rehabilitation of the injured part and the patient as a whole.

    Preservation of blood supply: Preservation of the blood supply to soft tissues and bone by gentle reduction techniques and careful handling.

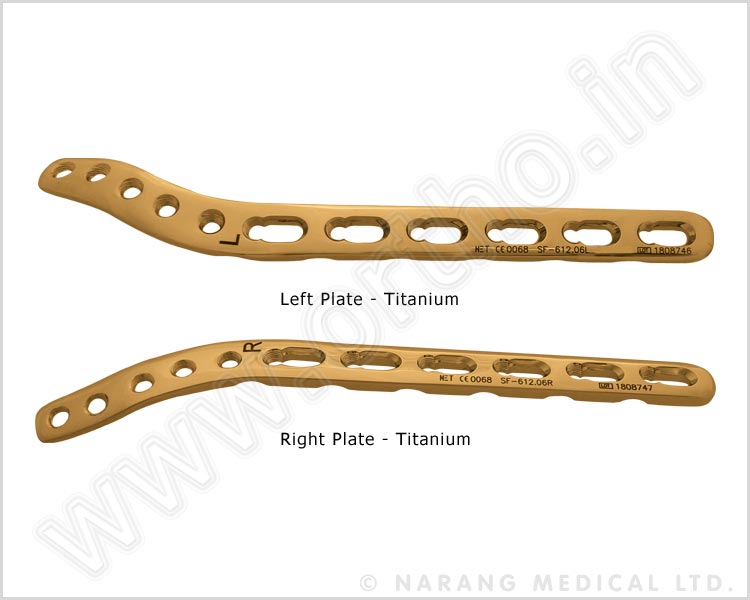

Distal Humerus Safety Lock Plate 3.5, Extra-articular
Click to Zoom
No. of
Holes		 STAINLESS STEEL
Left Right
4 SF-612.04L SF-612.04R
6 SF-612.06L SF-612.06R
8 SF-612.08L SF-612.08R
10 SF-612.10L SF-612.10R
12 SF-612.12L SF-612.12R
14 SF-612.14L SF-612.14R
No. of
Holes		 TITANIUM
Left Right
4 Ti-SF-612.04L Ti-SF-612.04R
6 Ti-SF-612.06L Ti-SF-612.06R
8 Ti-SF-612.08L Ti-SF-612.08R
10 Ti-SF-612.10L Ti-SF-612.10R
12 Ti-SF-612.12L Ti-SF-612.12R
14 Ti-SF-612.14L Ti-SF-612.14R
Top

Medial Distal Humerus Safety Lock Plate 2.7/3.5

  • The Medial Distal Humerus Safety Lock Plate 2.7/3.5, is available in various lengths. There are two version of the plate left and right separately designed for right and left humerus. The plates are pre-shaped to match the anatomy of the distal humerus with a limited contact low profile design.
  • The Head Region of the plate accommodates safety Lock Screw Ø 2.7 mm-Self Tapping and shaft region accommodates both cortex screw Ø 3.5 mm - Self Tapping and Saftey Lock Screw Ø 3.5 mm - Self Tapping
  • The Medial Distal Humerus safety Lock Plate 2.7/3.5, Left Direction is indicated for intraarticular fractures of the Distal Humerus, comminuted supracondylar fractures, osteotormies, and non-unions of the Distal Humerus.

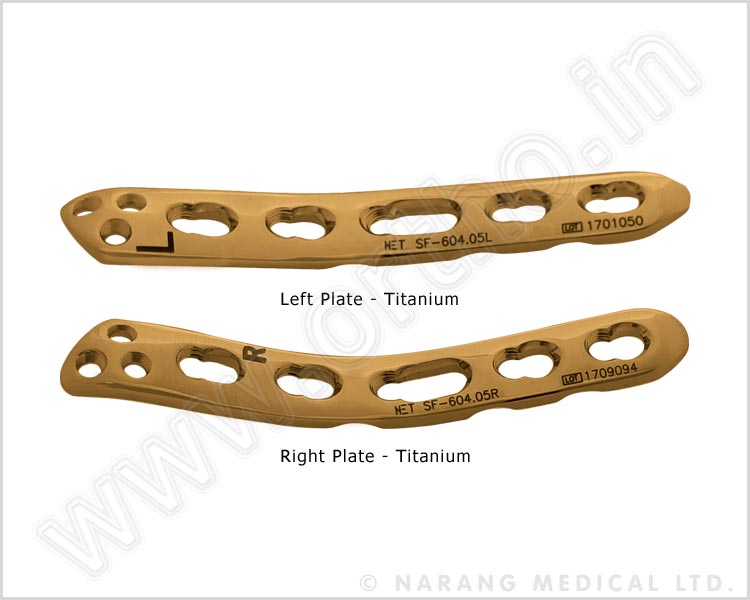

Medial Distal Humerus Safety Lock Plate 2.7/3.5
Click to Zoom
No. of
Holes		 STAINLESS STEEL
Left Right
3 SF-604.03L SF-604.03R
5 SF-604.05L SF-604.05R
7 SF-604.07L SF-604.07R
9 SF-604.09L SF-604.09R
14 SF-604.14L SF-604.14R
No. of
Holes		 TITANIUM
Left Right
3 Ti-SF-604.03L Ti-SF-604.03R
5 Ti-SF-604.05L Ti-SF-604.05R
7 Ti-SF-604.07L Ti-SF-604.07R
9 Ti-SF-604.09L Ti-SF-604.09R
14 Ti-SF-604.14L Ti-SF-604.14R

Top

Metaphyseal Safety Lock Plate 3.5 for Distal, Medial Humerus

    Plate Features:

    Anatomically precontoured plate: plateThe anatomical shape of the plate has been especially designed to fit the complex shape of the medial part of the distal humerus.

    Thinned plate profile: The distal part of the plate is tapered to preserve the thin soft tissue envelope of the distal humerus.

    Notches on the plate shaft: The notches allow for additional lateral bending of the plate to deal with the wide anatomical variance of the humeri. The plate can be bent at max. 4° at each notch.

    Optimal distal application of the locking screws: The distal end of the plate has been equipped with three threaded round holes intended for angular stable locking screws. Their specific orientation in combination with the thin plate profile allows stable fixation of the condylar zone and the articular surface while fully pre-serving the soft tissue, without any risk of screws penetrating the articulation.

    Increased hole density for improved anchorage: The three distal LCP round holes allow inserting the screws closer to one another and hence an optimal fixation of the bone fragments.
    The elongated hole in the shaft facilitates fine tuning of the reduction and plate positioning in the longitudinal axis.
    Improved vascularization of the bone due to plate undercuts that reduce the plate-to-bone contact.

    Indications:

    Metaphyseal Safety Lock Plate 3.5 for Distal, Medial Humerus is an anatomically precontoured plate that permits an optimal treatment of juxta-articular distal humerus fractures. It takes into account the following peculiarities of the distal humerus: Thin soft-tissue envelope & complex shape of the bone.

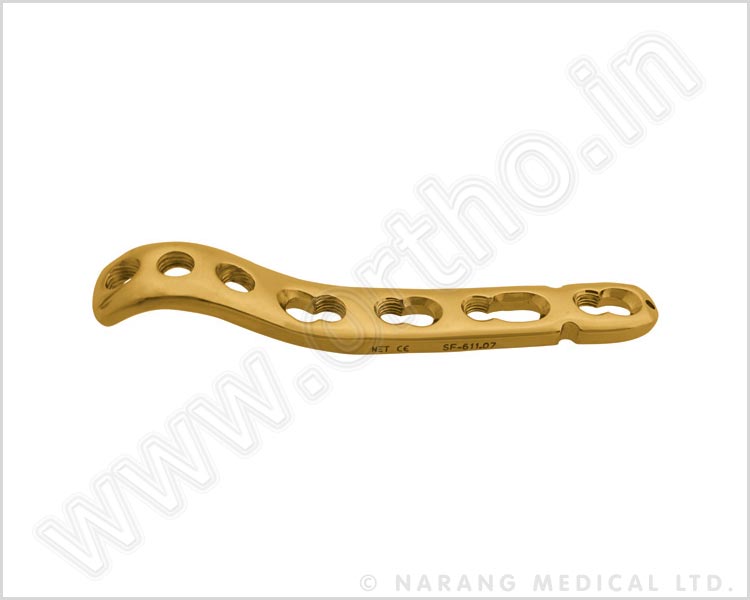

Metaphyseal Safety Lock Plate 3.5 for Distal, Medial Humerus
Click to Zoom
No. of Holes STAINLESS STEEL
7 SF-611.07
9 SF-611.09
11 SF-611.11
13 SF-611.13
15 SF-611.15
No. of Holes TITANIUM
7 Ti-SF-611.07
9 Ti-SF-611.09
11 Ti-SF-611.11
13 Ti-SF-611.13
15 Ti-SF-611.15

Top
