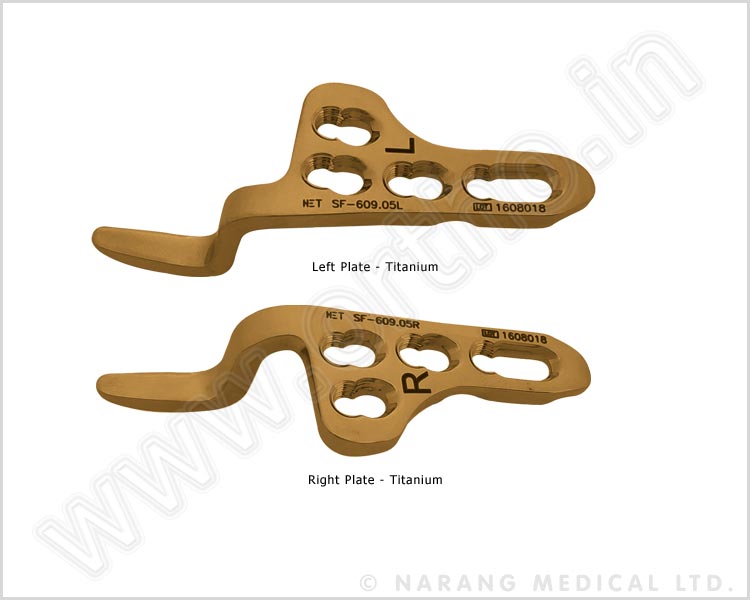

Clavicle Hook Safety Lock Plate 3.5
- Clavicle Hook Safety Lock Plate 3.5 is indicated for Extra-articular and Intra-articular fractures of Lateral Clavicle ends with dislocations of Acromioclavicular joint.
- Anatomically precontoured: The plate facilitates optimal implant placement and surgery to provide an improved outcome.
- Rounded shaft profile minimizes the risk of soft tissue irritation between the plate and surrounding soft tissue, the acromioclavicular joint and the rotator cuff.
- Undercuts in shaft reduce impairment of blood supply.
- The plates are designed for both Right and Left Clavicle bones and are available in a varying lengths and Hook depths.
- All holes of plate accept 3.5 mm cortex, 3.5mm safety lock and 4.0 mm cancellous screws.
Click to Zoom
No. of
Holes |
Hook
Depth |
STAINLESS STEEL |
| Left |
Right |
| 4 |
12mm |
SF-609.01L |
SF-609.01R |
| 4 |
15mm |
SF-609.03L |
SF-609.03R |
| 4 |
18mm |
SF-609.05L |
SF-609.05R |
| 5 |
12mm |
SF-609.07L |
SF-609.07R |
| 5 |
15mm |
SF-609.09L |
SF-609.09R |
| 5 |
18mm |
SF-609.11L |
SF-609.11R |
| 6 |
15mm |
SF-609.13L |
SF-609.13R |
| 6 |
18mm |
SF-609.15L |
SF-609.15R |
| 7 |
15mm |
SF-609.17L |
SF-609.17R |
| 7 |
18mm |
SF-609.19L |
SF-609.19R |
No. of
Holes |
Hook
Depth |
TITANIUM |
| Left |
Right |
| 4 |
12mm |
Ti-SF-609.01L |
Ti-SF-609.01R |
| 4 |
15mm |
Ti-SF-609.03L |
Ti-SF-609.03R |
| 4 |
18mm |
Ti-SF-609.05L |
Ti-SF-609.05R |
| 5 |
12mm |
Ti-SF-609.07L |
Ti-SF-609.07R |
| 5 |
15mm |
Ti-SF-609.09L |
Ti-SF-609.09R |
| 5 |
18mm |
Ti-SF-609.11L |
Ti-SF-609.11R |
| 6 |
15mm |
Ti-SF-609.13L |
Ti-SF-609.13R |
| 6 |
18mm |
Ti-SF-609.15L |
Ti-SF-609.15R |
| 7 |
15mm |
Ti-SF-609.17L |
Ti-SF-609.17R |
| 7 |
18mm |
Ti-SF-609.19L |
Ti-SF-609.19R |

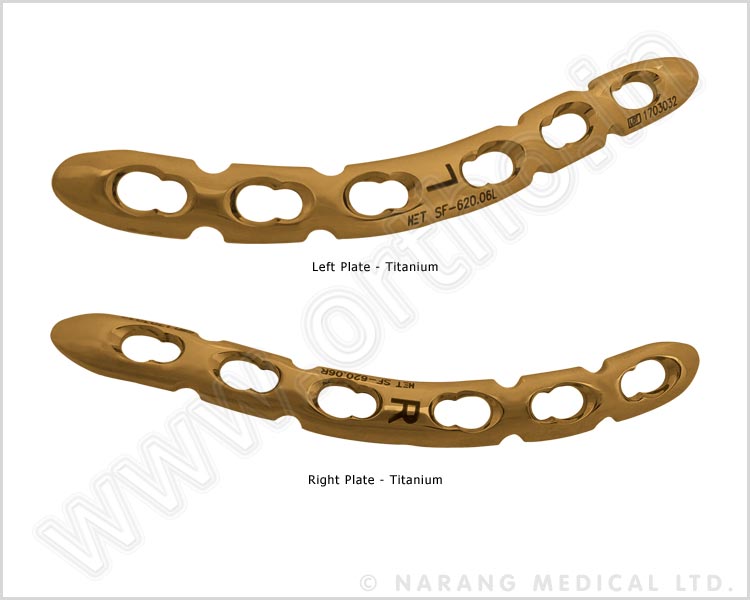

Clavicle Safety Lock Plate 3.5 - Anterior
Indications:
- Fractures of the clavicle shaft
- Malunions of the clavicle shaft
- Non-unions of the clavicle shaft
Plate Features:
- Anatomically pre-shaped, twisted design.
- Due to Lateral superior placement, there is less need to detach muscles than with anterior placement.
- Undercuts reduce impairment of blood supply.
- Good purchase also in osteoporotic bone and in multifragment fractures.
- Tapered plate tip facilitates percutaneous insertion and prevents soft tissue irritation.
Click to Zoom
No. of
Holes |
STAINLESS STEEL |
| Left |
Right |
| 6 |
SF-620.06L |
SF-620.06R |
| 7 |
SF-620.07L |
SF-620.07R |
| 8 |
SF-620.08L |
SF-620.08R |
No. of
Holes |
TITANIUM |
| Left |
Right |
| 6 |
Ti-SF-620.06L |
Ti-SF-620.06R |
| 7 |
Ti-SF-620.07L |
Ti-SF-620.07R |
| 8 |
Ti-SF-620.08L |
Ti-SF-620.08R |

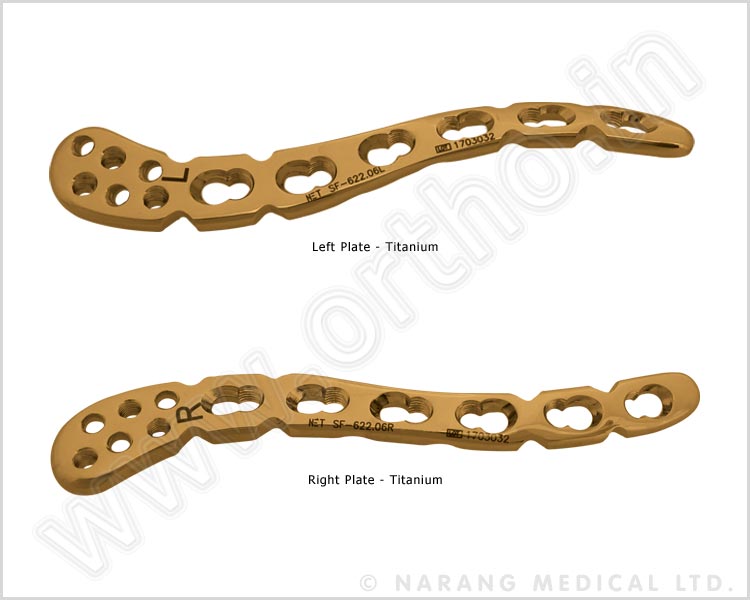

Clavicle Safety Lock Plate 3.5 - Anterior with Lateral Extension
Indications:
- Fractures of the lateral clavicle
- Malunions of the lateral clavicle
- Non-unions of the lateral clavicle
- Available in longer versions for lateral fractures with associated shaft fractures
Plate Features:
- Anatomically pre-shaped, twisted design.
- Due to Lateral superior placement, there is less need to detach muscles than with anterior placement.
- Undercuts reduce impairment of blood supply.
- Good purchase also in osteoporotic bone and in multifragment fractures.
- Tapered plate tip facilitates percutaneous insertion and prevents soft tissue irritation.
Click to Zoom
No. of
Holes |
STAINLESS STEEL |
| Left |
Right |
| 3 |
SF-622.03L |
SF-622.03R |
| 4 |
SF-622.04L |
SF-622.04R |
| 5 |
SF-622.05L |
SF-622.05R |
| 6 |
SF-622.06L |
SF-622.06R |
| 7 |
SF-622.07L |
SF-622.07R |
| 8 |
SF-622.08L |
SF-622.08R |
No. of
Holes |
TITANIUM |
| Left |
Right |
| 3 |
Ti-SF-622.03L |
Ti-SF-622.03R |
| 4 |
Ti-SF-622.04L |
Ti-SF-622.04R |
| 5 |
Ti-SF-622.05L |
Ti-SF-622.05R |
| 6 |
Ti-SF-622.06L |
Ti-SF-622.06R |
| 7 |
Ti-SF-622.07L |
Ti-SF-622.07R |
| 8 |
Ti-SF-622.08L |
Ti-SF-622.08R |
