Straight Plate 2.0  |  L Plate 2.0  |  T Plate 2.0  |  DCP Plate 2.0  |  Condylar Plate

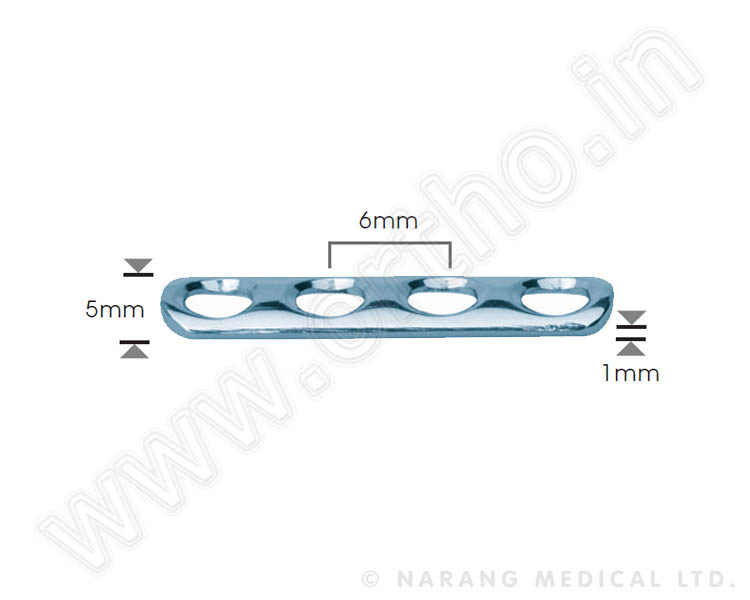

Straight Plate 2.0

  • Mini Straight Plates for 2mm Screws is used for i) Diaphysis Noncomminuted ii) Diaphysis wedge Comminuted iii) Diaphysis Comminuted fracture of both Hand and Foot Phalanges.
  • All holes of plate support 1.5 and 2.0 mm cortical screw.
Straight Plate 2.0
Click to Zoom
No. of Holes Stainless Steel
2 121.102
3 121.103
4 121.104
5 121.105
6 121.106
7 121.107
8 121.108
No. of Holes Titanium
2 Ti-121.102
3 Ti-121.103
4 Ti-121.104
5 Ti-121.105
6 Ti-121.106
7 Ti-121.107
8 Ti-121.108

Top

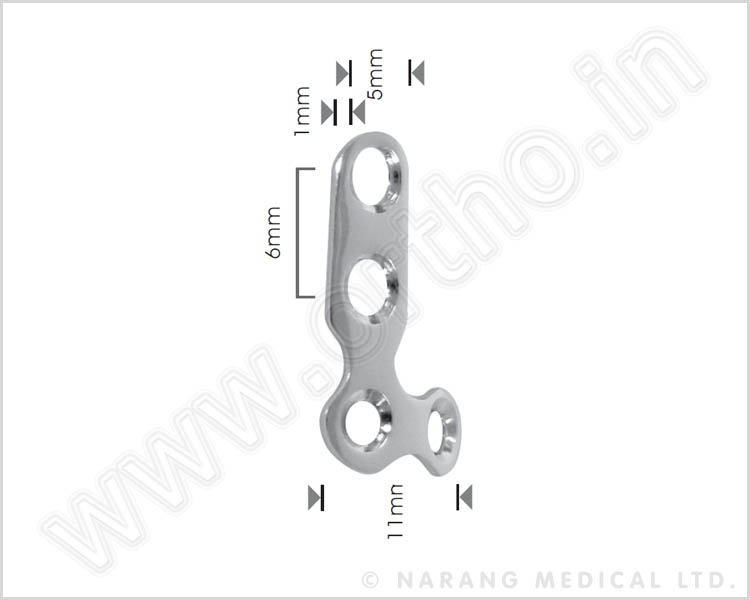

L Plate 2.0

  • L Plate 2.0 is used for i) Proximal and Distal Extra-articular ii) Proximal and Distal partial Articular iii) Proximal and Distal complete Articular fractures of both Hand and Foot Phalanges.
  • All holes of plate support 1.5 and 2.0 mm Cortical screw.
L Plate 2.7
Click to Zoom
No. of Holes Left / Right Right Angle Oblique Angle
2 Left 122.101 122.103
2 Right 122.102 122.104
3 Left 122.105 122.107
3 Right 122.106 122.108
4 Left 122.109 122.111
4 Right 122.110 122.112
5 Left 122.113 122.115
5 Right 122.114 122.116
No. of Holes Left / Right Right Angle Oblique Angle
2 Left TI-122.101 TI-122.103
2 Right TI-122.102 TI-122.104
3 Left TI-122.105 TI-122.107
3 Right TI-122.106 TI-122.108
4 Left TI-122.109 TI-122.111
4 Right TI-122.110 TI-122.112
5 Left TI-122.113 TI-122.115
5 Right TI-122.114 TI-122.116

Parte superior

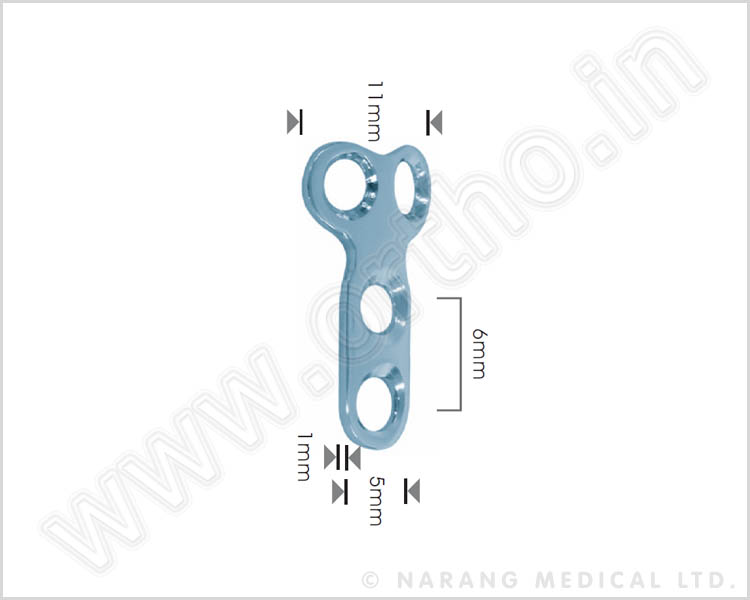

T Plate 2.0

  • Mini T Plate for 2mm Screw is used for i) Proximal and Distal Extra-articular ii) Proximal and Distal partial Articular iii) Proximal and Distal complete Articular fractures of both Hand and Foot Phalanges.
  • All holes of plate support 1.5 and 2.0 mm Cortical screw.
T Plate 2.0
Click to Zoom
No. of Holes Code
2 123.100
3 123.103
4 123.104
5 123.105
No. of Holes Code
2 Ti-123.100
3 Ti-123.103
4 Ti-123.104
5 Ti-123.105
Top

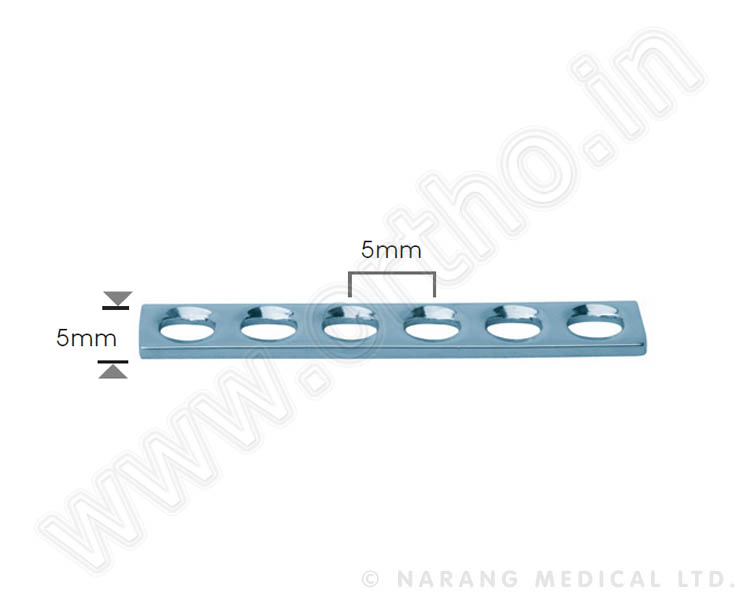

Dynamic Compression Plate 2.0

  • Dynamic Compression Plate 2.0mm is used for Diaphyseal Noncomminuted (Spiral, Oblique or Transverse) and Diaphysis Wedge ( Spiral or Bending) fractures of both Hand and Foot Phalanges.
  • All holes of plate support 1.5 and 2.0 mm Cortical Screws.
Dynamic Compression Plate 2.0
Click to Zoom
No. of Holes STAINLESS STEEL
4 121.554
5 121.555
6 121.556
7 121.557
8 121.558
No. of Holes TITANIUM
4 Ti-121.554
5 Ti-121.555
6 Ti-121.556
7 Ti-121.557
8 Ti-121.558

Top
Condylar Plate

  • Condylar Plate is used for Proximal Partial Articular (Unicondyle Medial or Unicondyle Lateral) and Distal Partial Articular (Unicondyle Medial or Unicondyle Lateral) fracture of both Hand and Foot Phalanges.
  • All holes of plate support 1.5/2.0 and 2.7mm Cortical screws.
Condylar Plate
Click to Zoom
Screw Ø mm Type Stainless Steel
1.5 Pin Left 74.01
1.5 Pin Right 74.02
2.0 Pin Left 74.03
2.0 Pin Right 74.04
2.7 Pin Left 74.05
2.7 Pin Right 74.06
Screw Ø mm Type Titanium
1.5 Pin Left Ti-74.01
1.5 Pin Right Ti-74.02
2.0 Pin Left Ti-74.03
2.0 Pin Right Ti-74.04
2.7 Pin Left Ti-74.05
2.7 Pin Right Ti-74.06


Top
