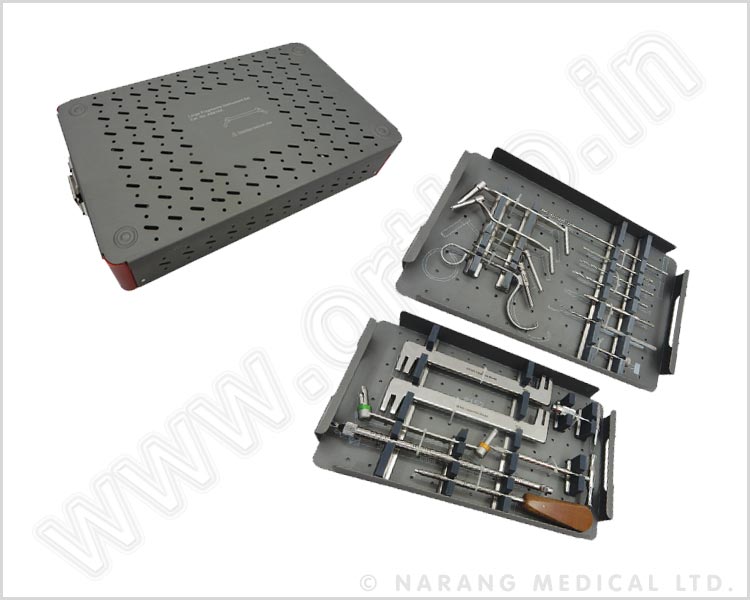

| AS010A Large Fragment Instruments Set | ||
| Set Consisting of : | Units | |

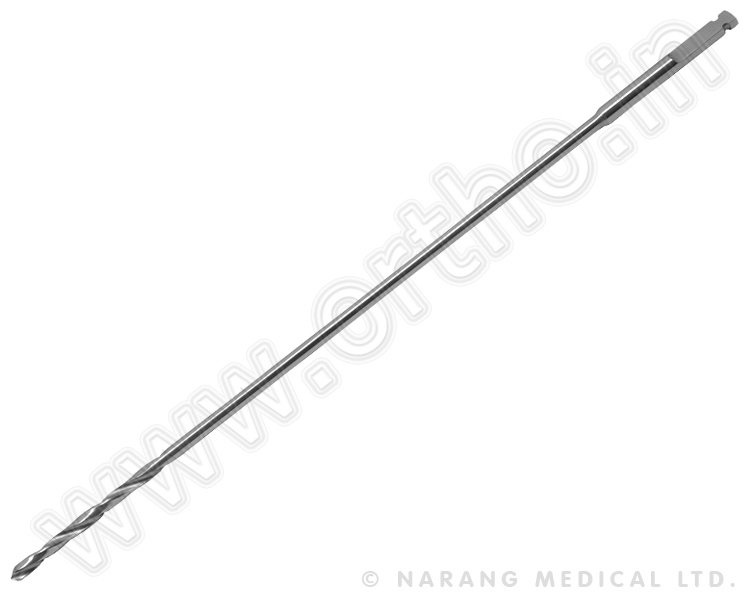

| 260.320 - Drill Bit (Quick Coupling), 3.2mm x 130mm | 1 | |
| 260.450 - Drill Bit (Quick Coupling), 4.5mm x 130mm | 1 | |
| 305.030 - Counter Sink for 4.5 & 6.5mm Screws (8.0mm Head) | 1 | |

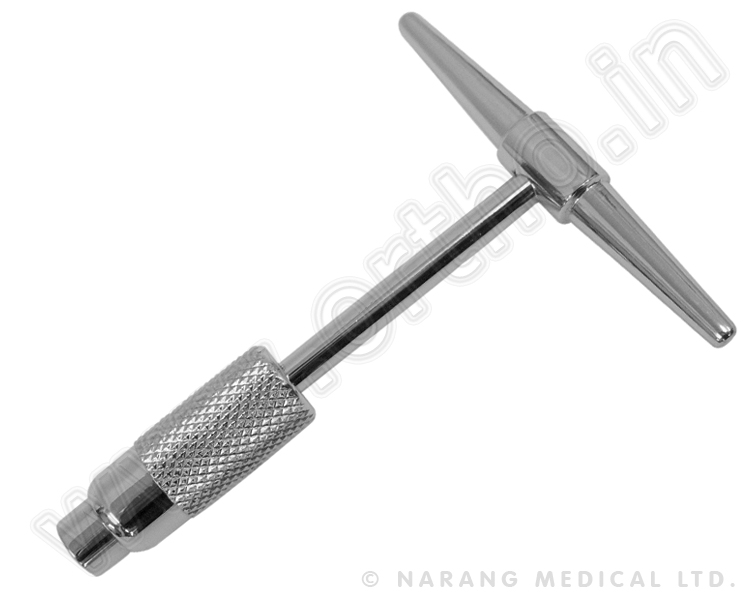

| 306.010 - Quick Coupling Handle (T-Type) | 1 | |

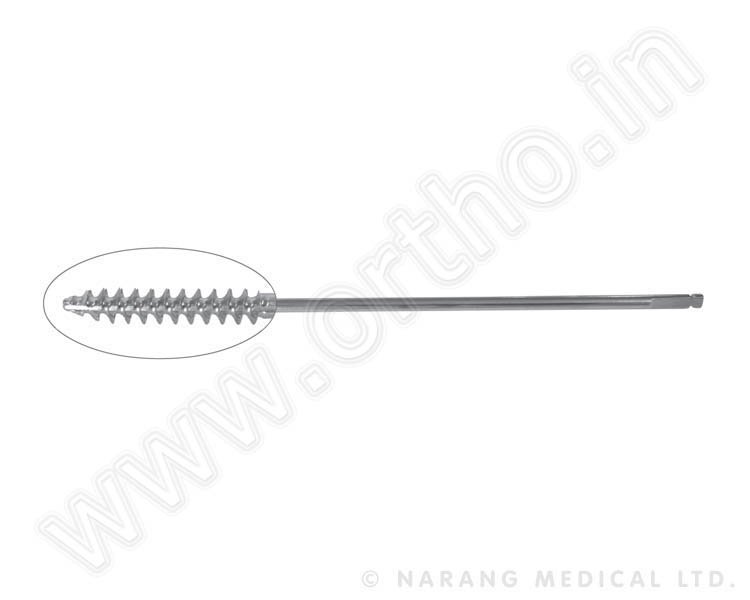

| 264.040 - Bone Tap with Quick Coupling for 4.5mm Cortex Screws, L:130mm | 1 | |
| 264.050 - Bone Tap with Quick Coupling for 6.5mm Cancellous Screws | 1 | |

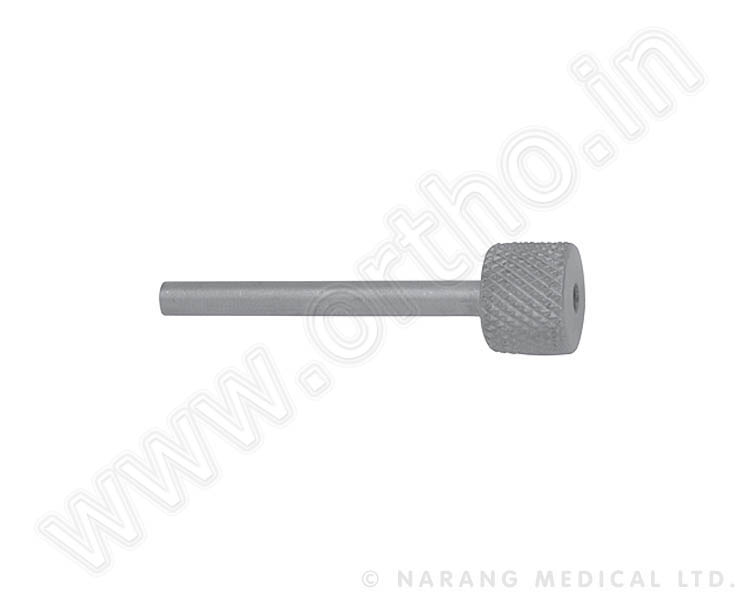

| 307.095 - Insert Drill Sleeve 4.5/3.2mm | 1 | |
| 307.070 - Drill & Tap Sleeve combined 3.2/4.5mm | 1 | |

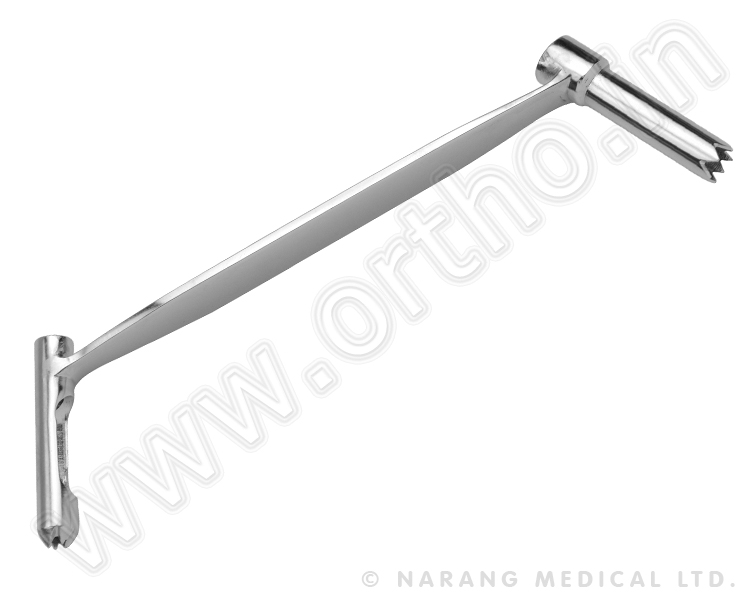

| 307.080 - Drill & Tap Sleeve combined 3.2/6.5mm | 1 | |
| 301.070 - Screw Driver Shaft, Q.C. End - 3.5mm Tip | 1 | |
|
1 | |

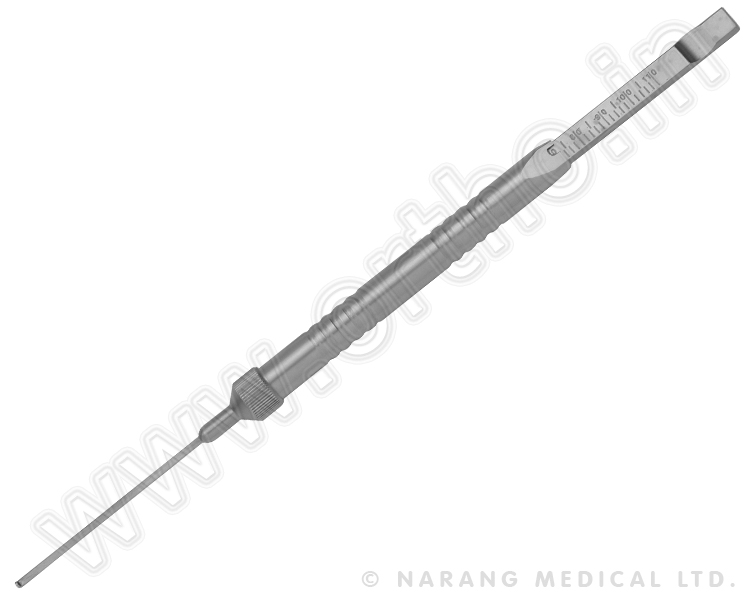

| 303.020 - Depth Gauge for 4.5mm & 6.5mm Screws | 1 | |
| 371.000 - Sharp Hook | 1 | |

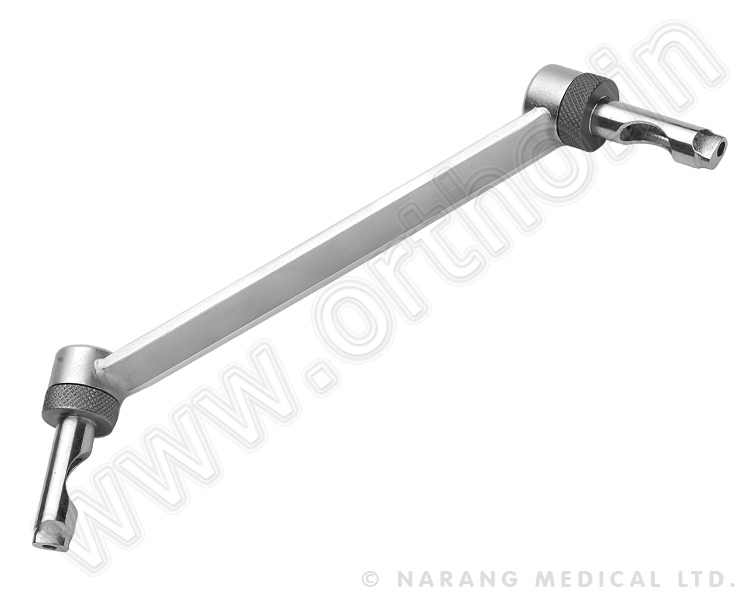

304.020 - Large Neutral & Loaded Drill Guide
|
1 | |
| 308.000 - Pointed Drill Guide | 1 | |

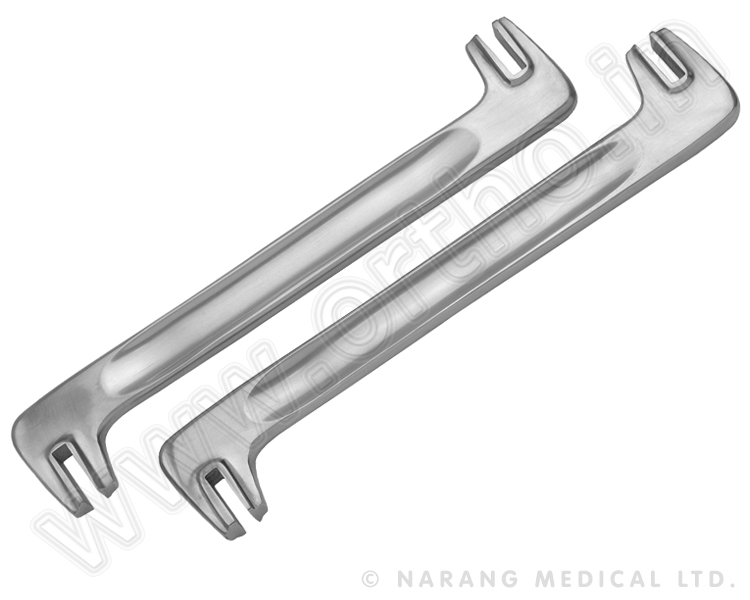

302.020 - Large Plate Bender (pair)
|
1 | |
| 900.048 - Empty Container | ||
| Optional Instruments for Large Fragments | ||

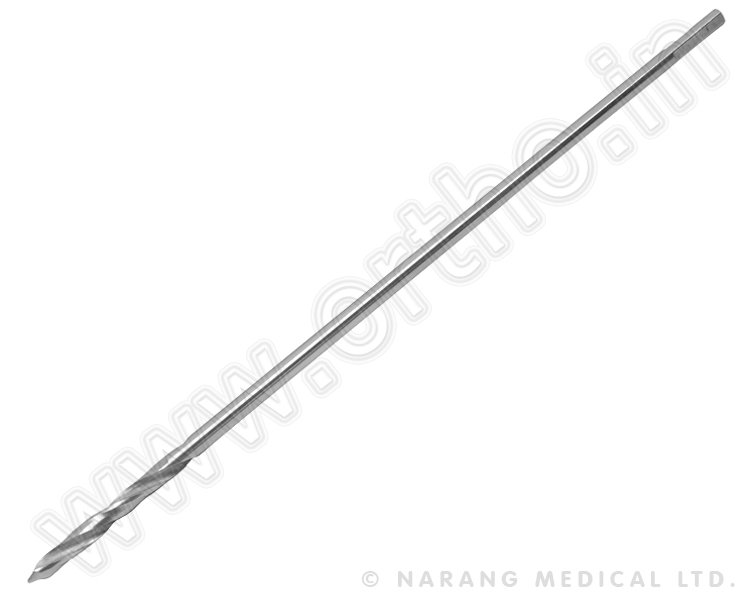

| 261.632 - Drill Bit - Plain Shank / Jacob Chuck End | ||

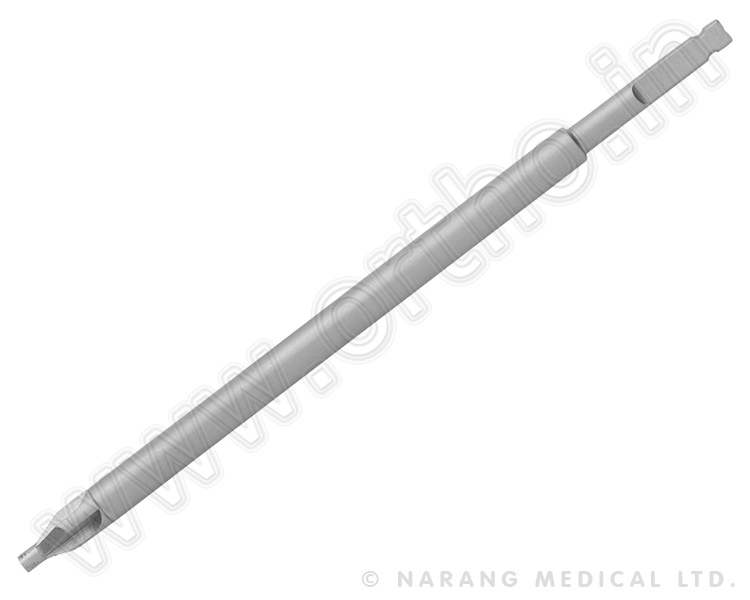

| 305.060 - Counter Sink Quick Coupling for 4.5 & 6.5mm Screws (8.0mm Head) | ||

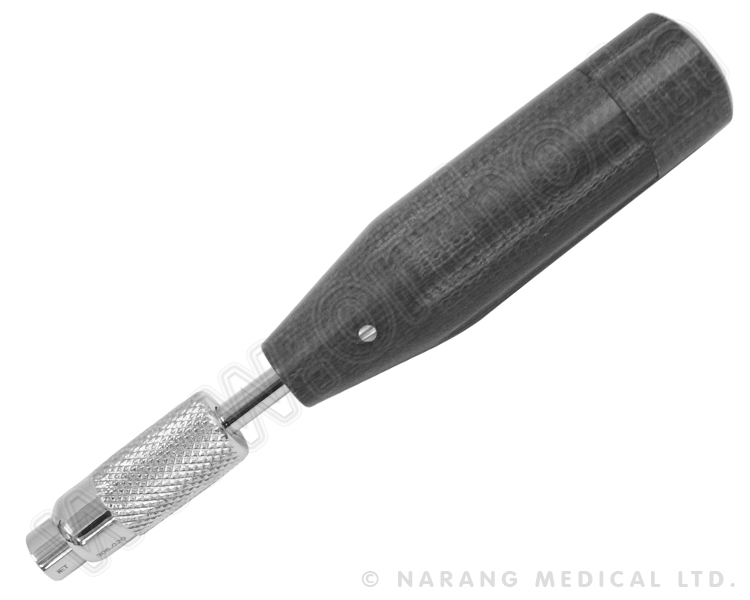

| 306.020 - Quick Coupling Fibre Handle with Rotation | ||
| 306.030 - Quick Coupling Adaptor with Jacob End | ||

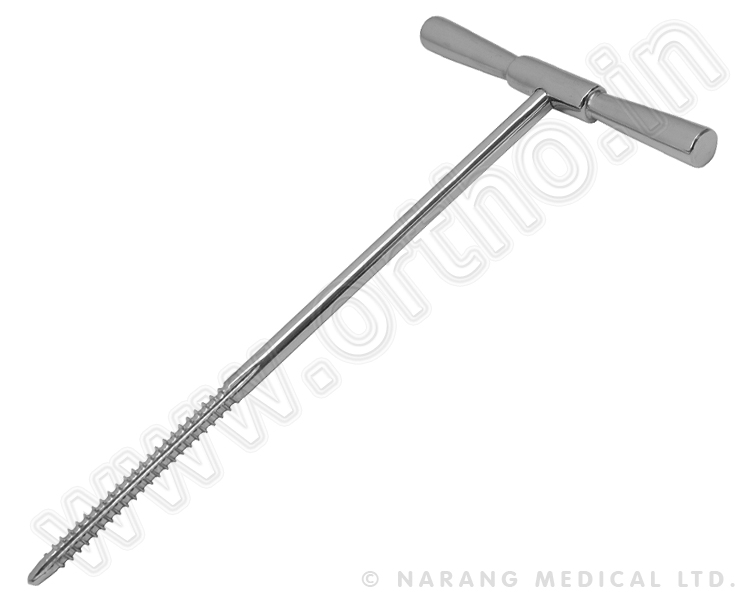

| 263.040 - Bone Tap with T-Handle | ||

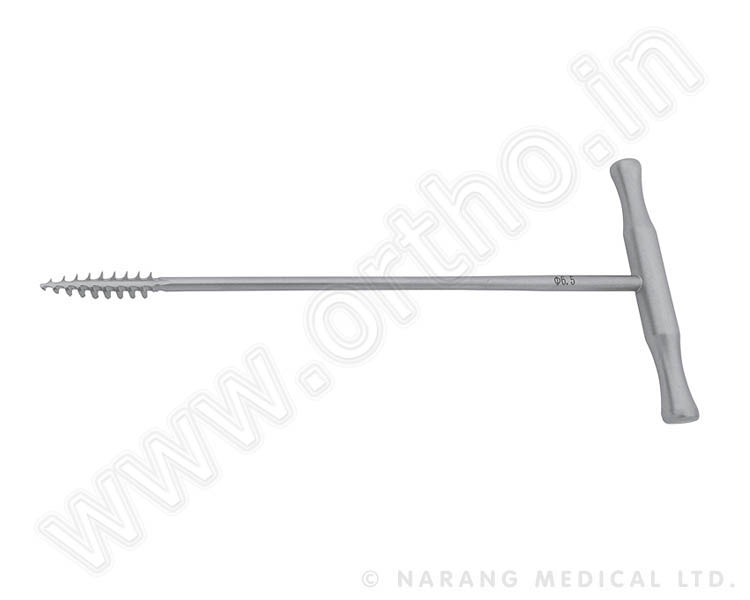

| 263.050 - Bone Tap with T-Handle Cancellous | ||

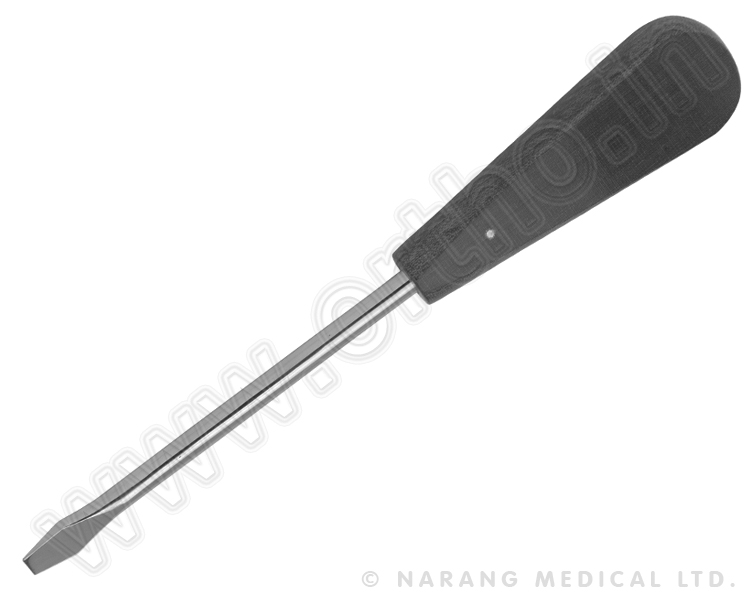

| 301.010 - Lane Screw Driver | ||

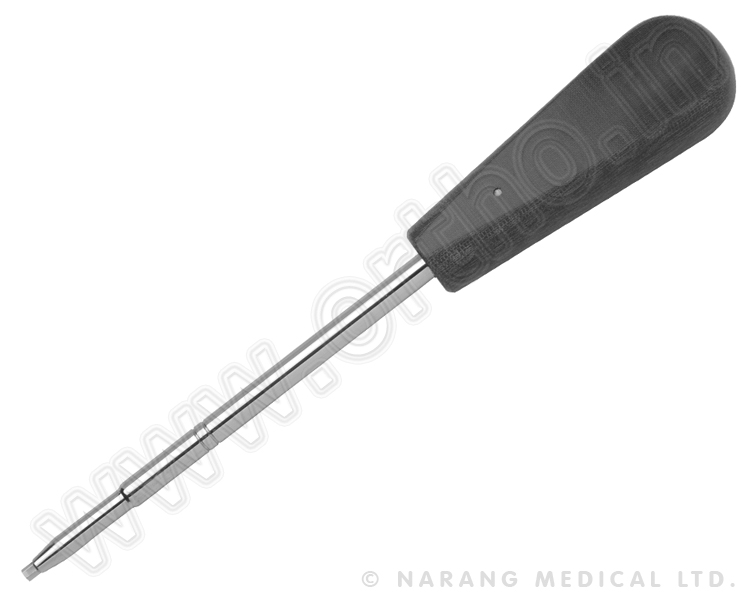

| 301.050 - Large Hexagonal Screw Driver 3.5mm Tip | ||
| 307.040 - Drill Sleeve 3.5mm | ||
| 307.030 - Drill Sleeve 3.2mm | ||

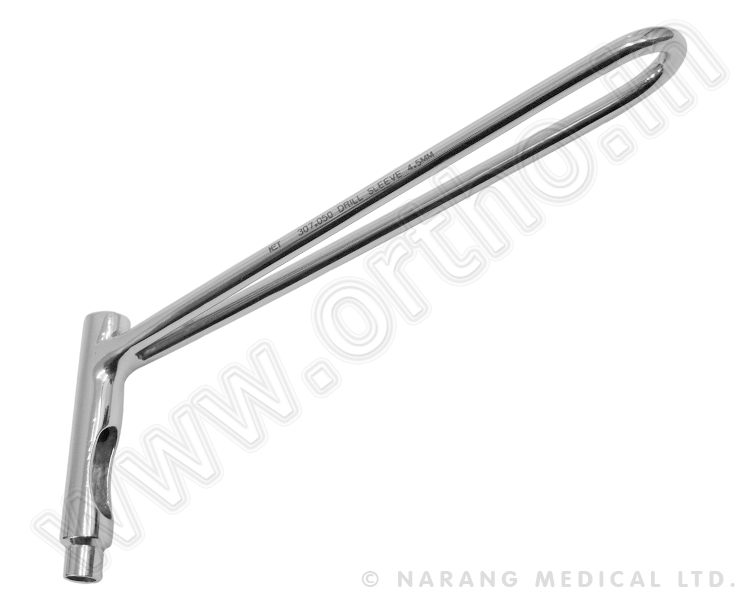

| 307.050 - Drill Sleeve 4.5mm | ||
| 307.045 - Tap Sleeve 4.5mm | ||
| 307.046 - Tap Sleeve 6.5mm | ||

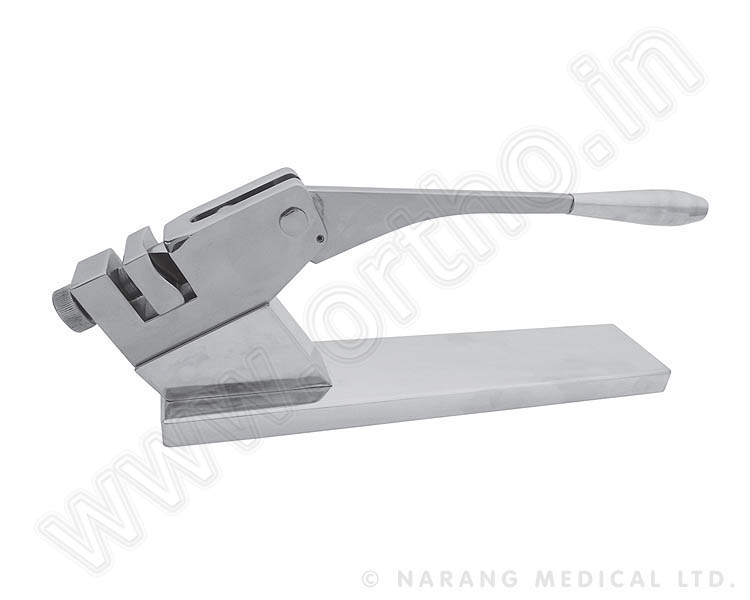

| 302.070 - Plate Bending Press | ||

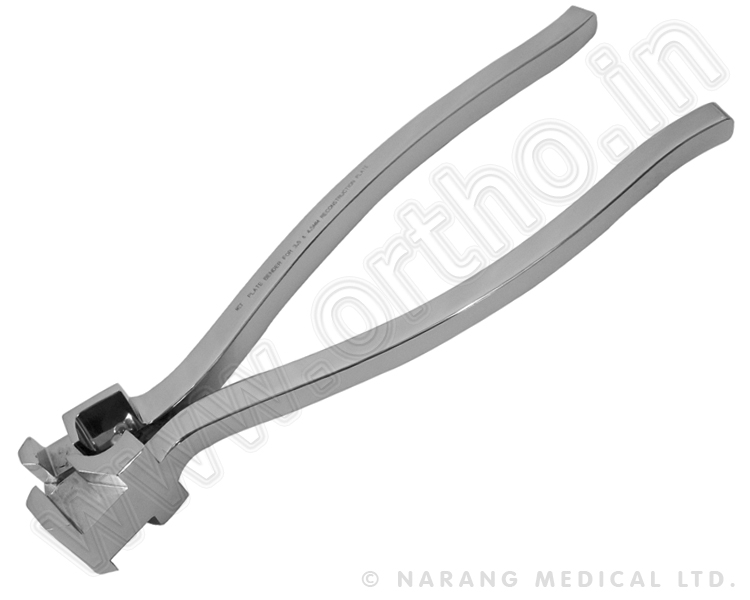

| 302.060 - Plate Bender for 4.5mm Reconstruction Plates | ||

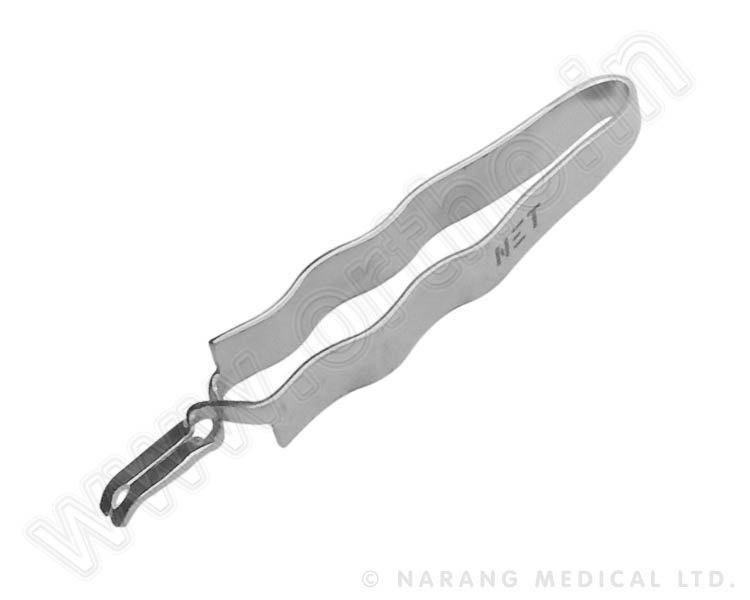

| 309.000 - Screw Holding Forceps | ||

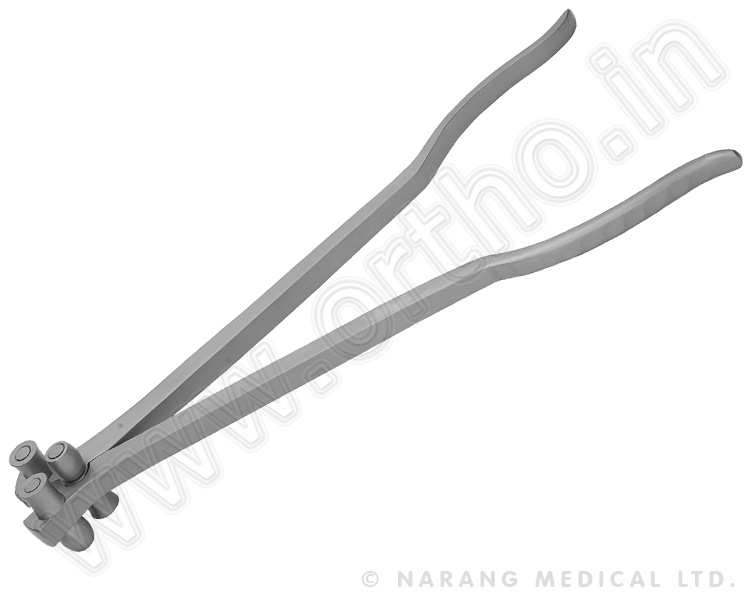

| 302.030 - Plate Bending Pliers (Roller Type) | ||

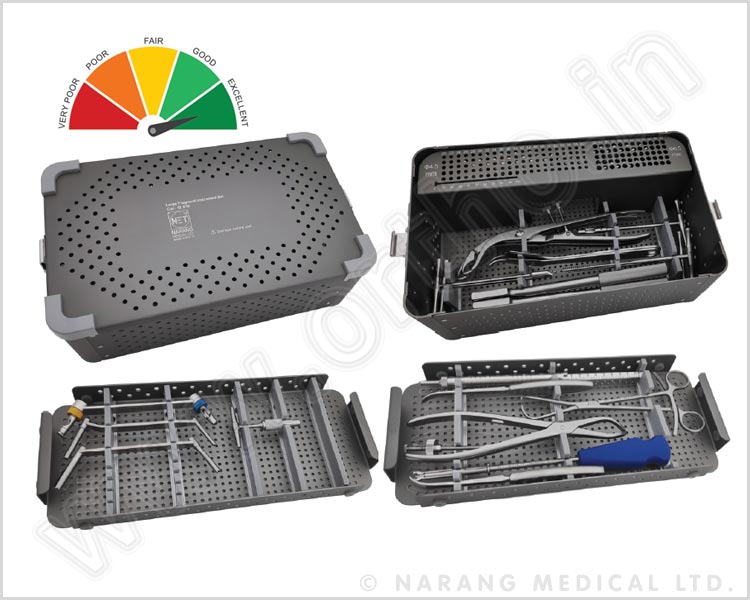

| Q.010 Large Fragment Instruments Set Q-Series | ||
| Set Consisting of : | Units | |

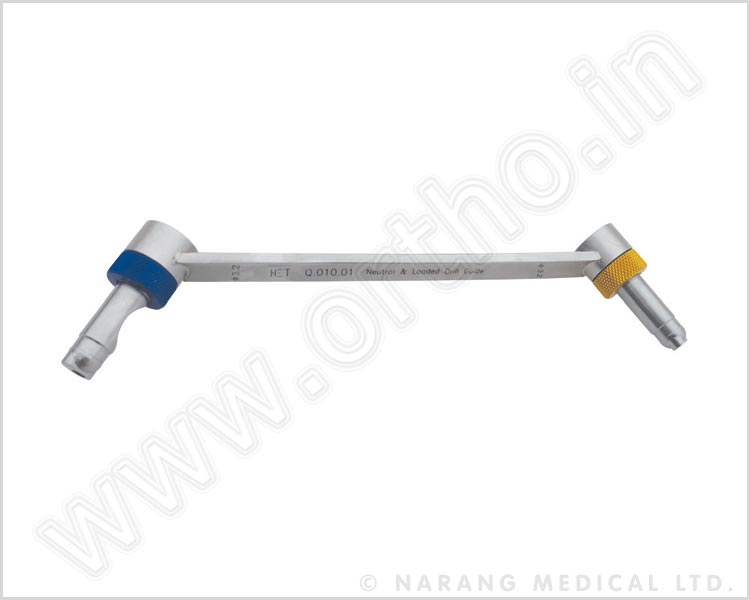

| Q.010.01 - Neutral & Loaded Drill Guide Ø3.2 | 1 | |

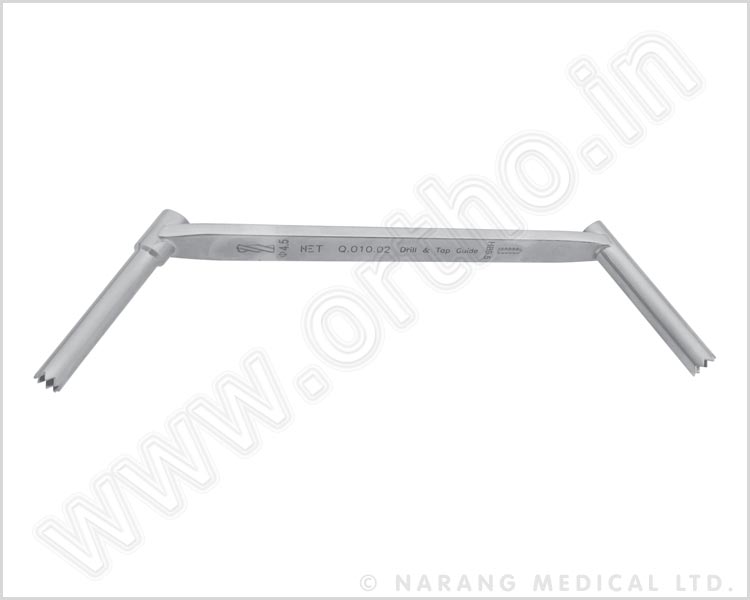

| Q.010.02 - Drill & Tap Guide (Ø4.5/Ø6.5) | 1 | |

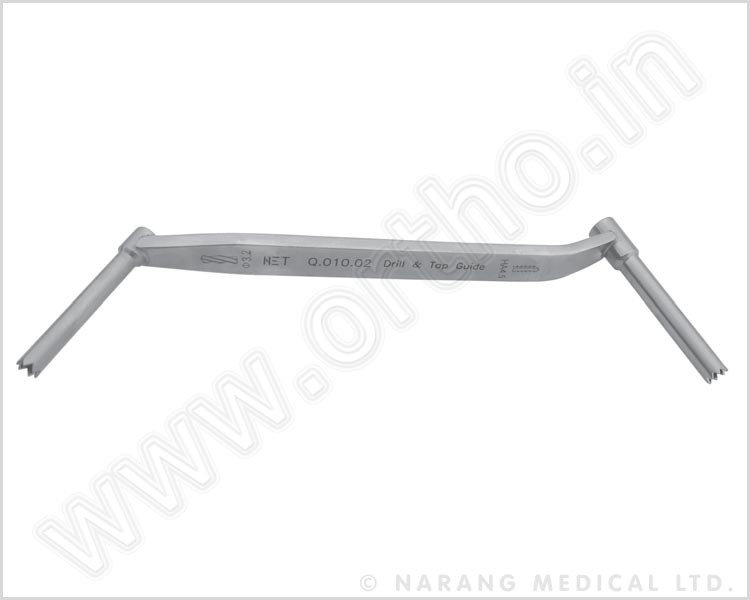

| Q.010.03 - Drill & Tap Guide (Ø3.2/Ø4.5) | 1 | |

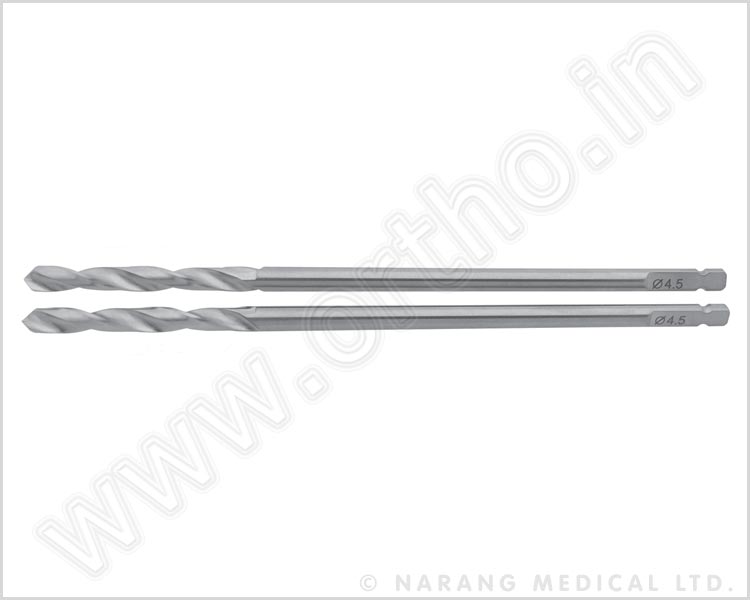

| Q.010.04 - Drill Bit Ø4.5 x 115mm | 2 | |

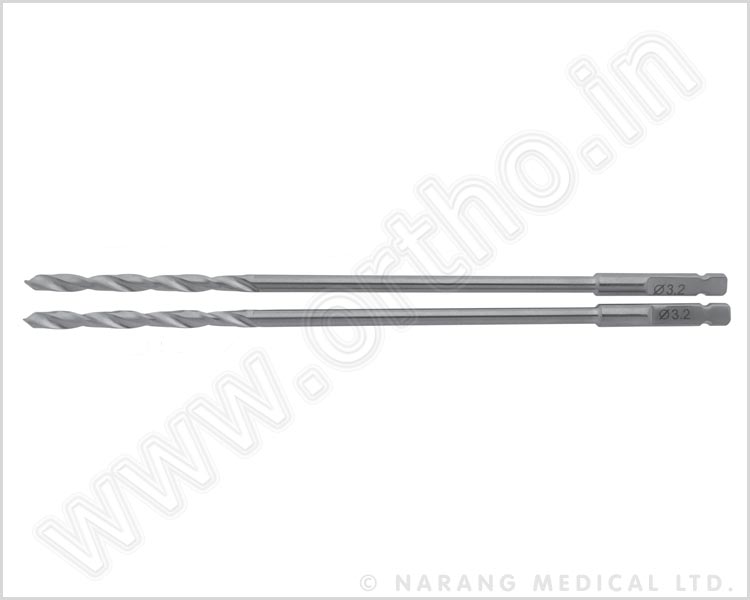

| Q.010.05 - Drill Bit Ø3.2 x 115mm | 2 | |

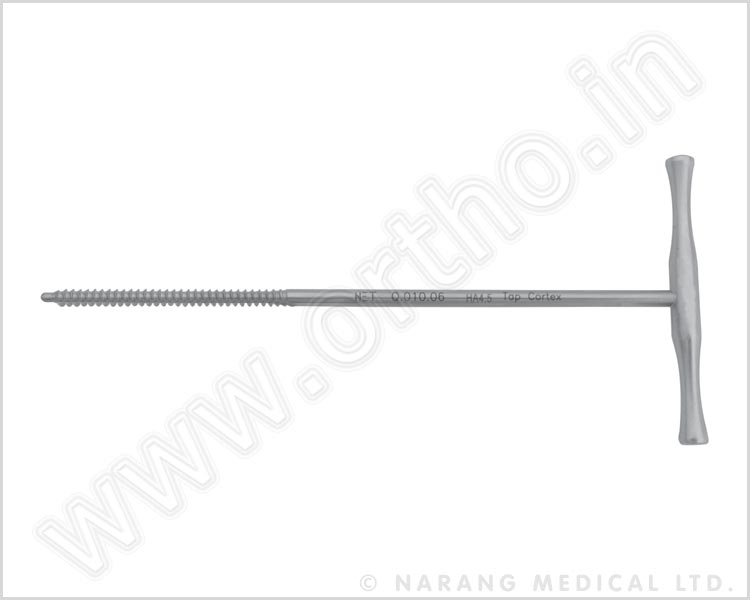

| Q.010.06 - Tap for 4.5mm Cortex Screw | 1 | |

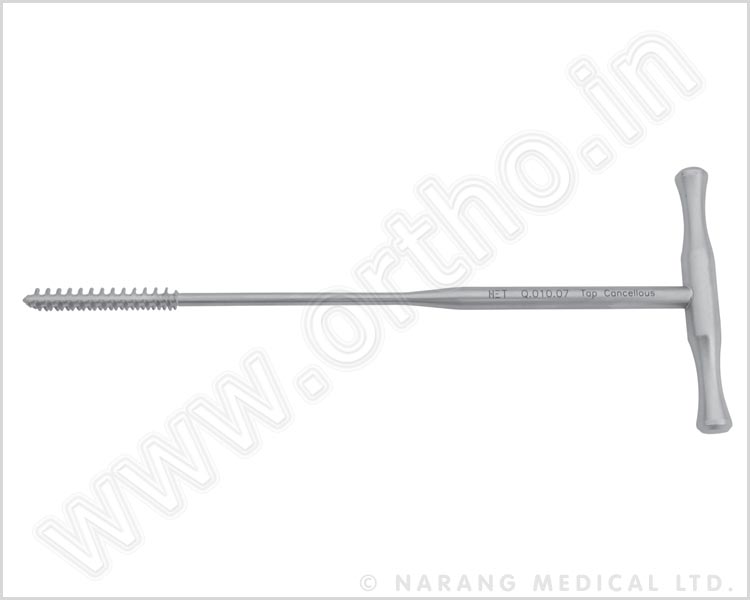

| Q.010.07 - Tap for 6.5mm Cancellous Screw | 1 | |

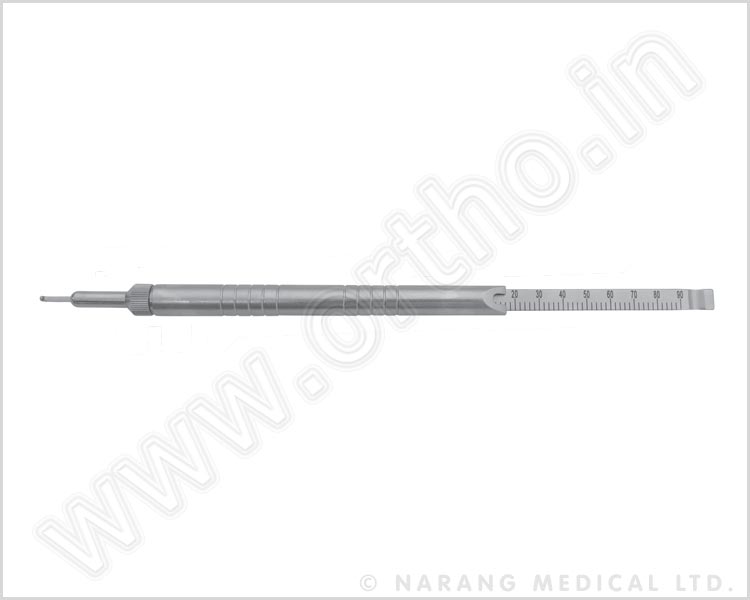

| Q.010.08 - Depth Gauge (0-90mm) | 1 | |

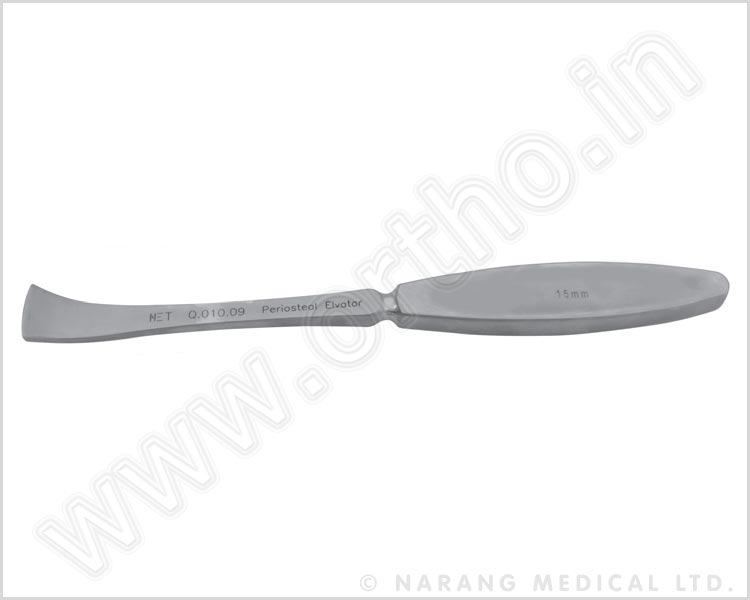

| Q.010.09 - Periosteal Elevator 15mm | 1 | |

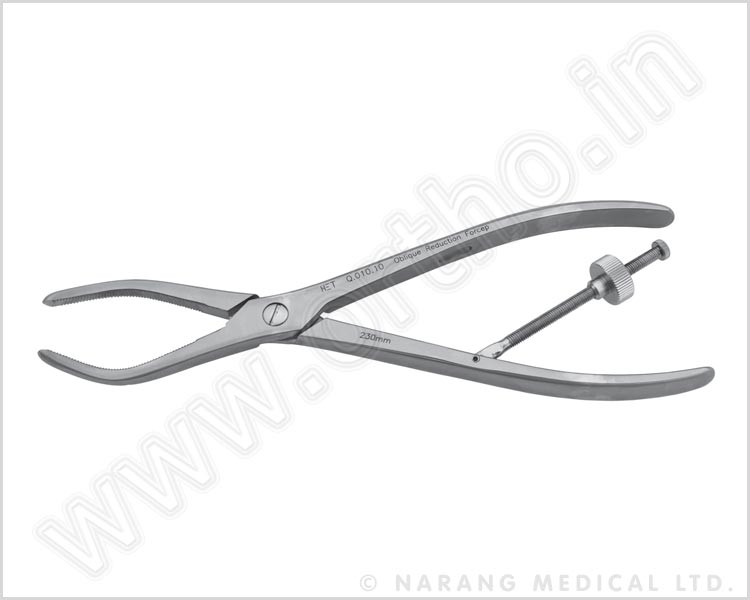

| Q.010.10 - Oblique Reduction Forcep 230mm | 1 | |
| Q.010.11 - Periosteal Elevator 8mm | 1 | |

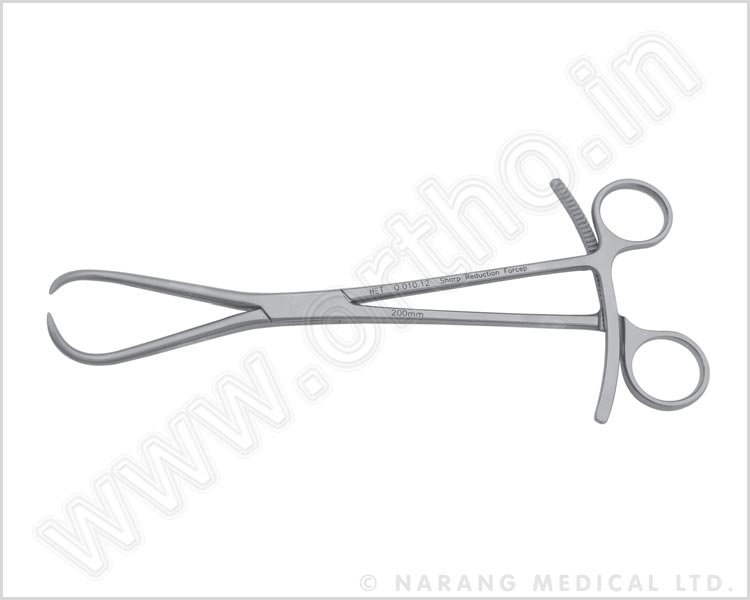

| Q.010.12 - Sharp Reduction Forcep 200mm | 1 | |

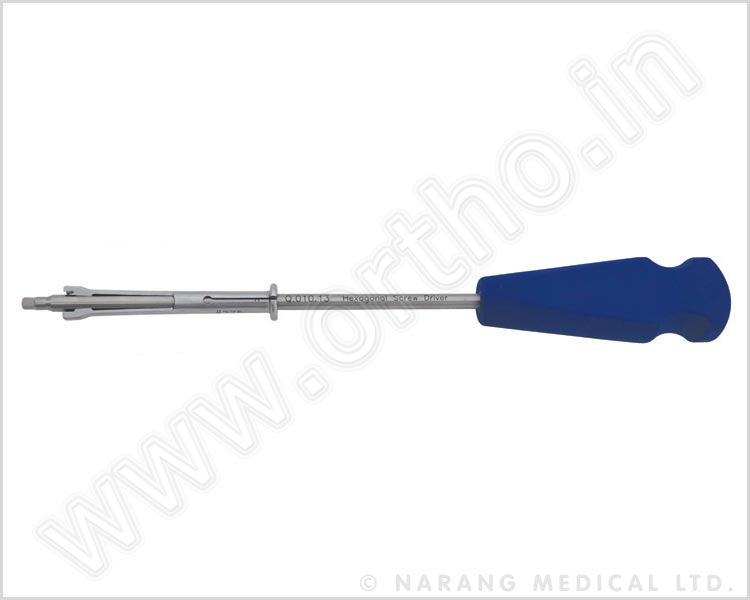

| Q.010.13 - Hexagonal Screwdriver 3.5mm (Silicon Handle) | 1 | |

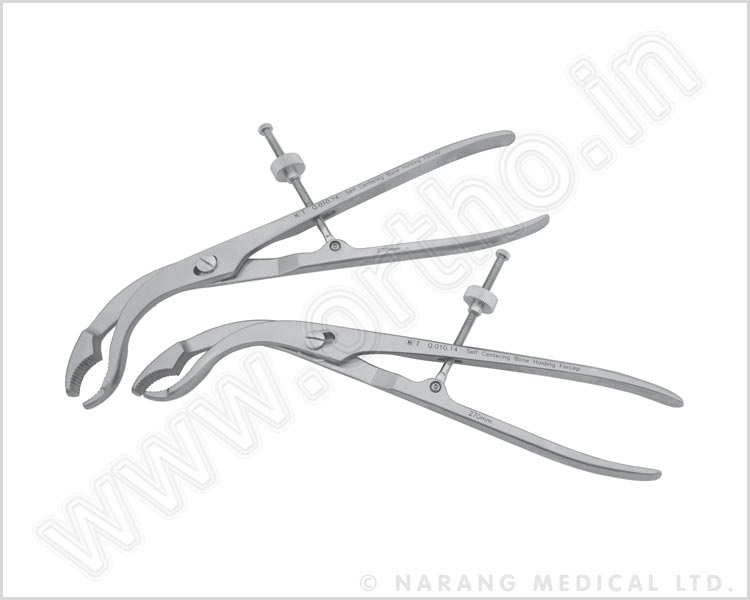

| Q.010.14 - Self Centering Bone Holding Forcep 270mm | 2 | |

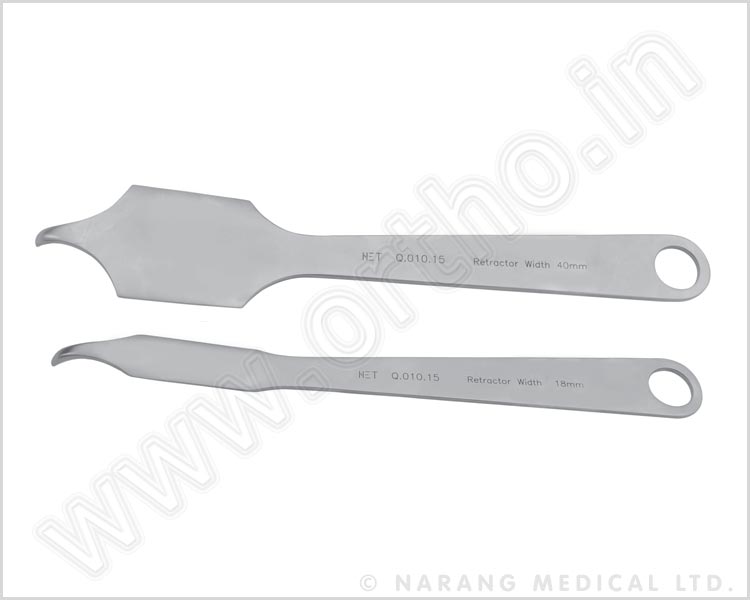

| Q.010.15 - Retractor Width 18mm & 40mm | 1 Pair | |

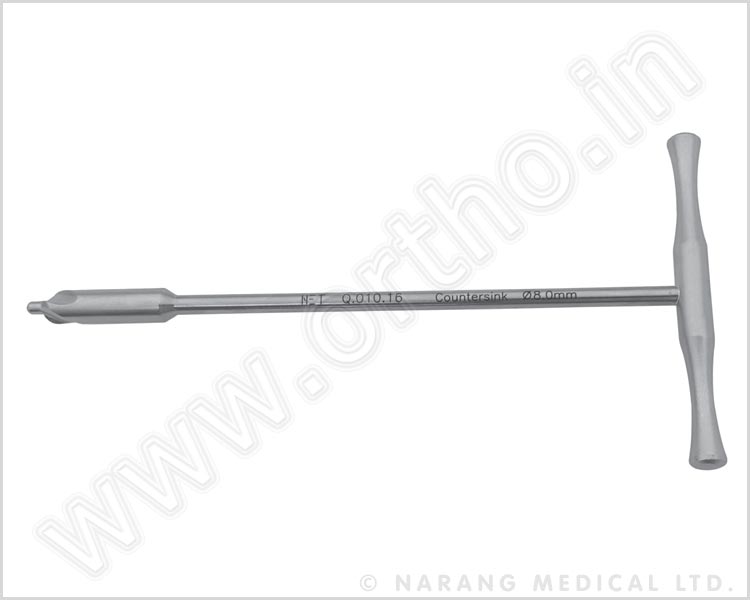

| Q.010.16 - Countersink Ø8.0 | 1 | |

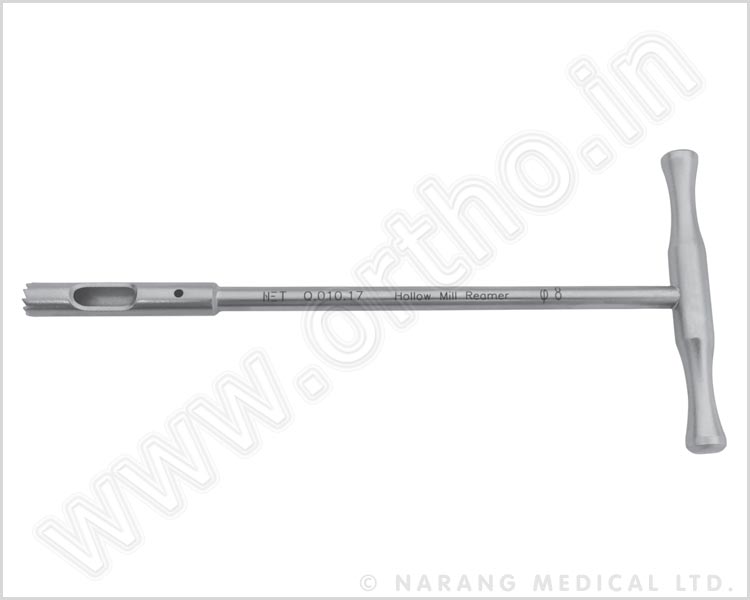

| Q.010.17 - Hollow Mill Reamer Ø8.0 | 1 | |

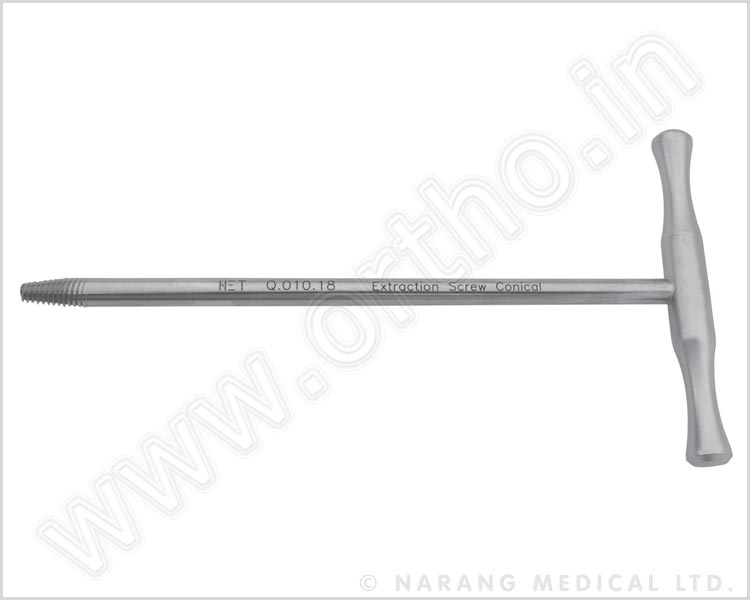

| Q.010.18 - Extraction Screw Hexagonal 3.5mm Conical | 1 | |

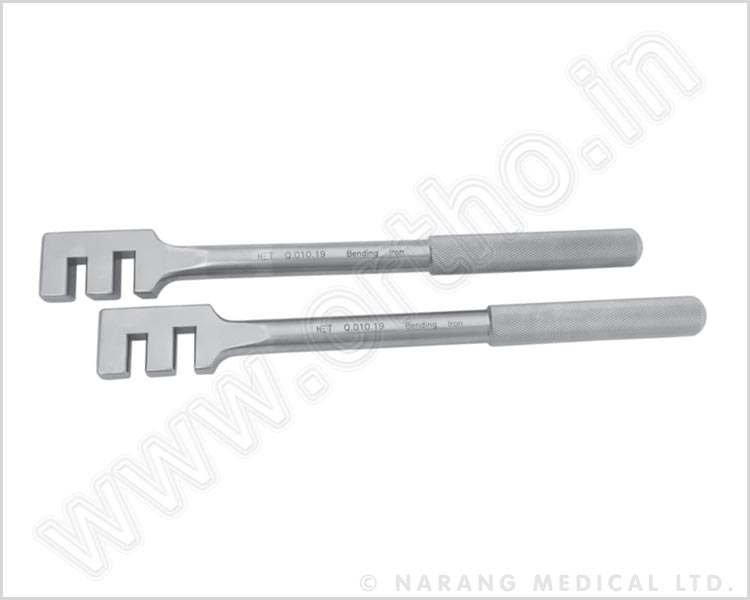

| Q.010.19 - Bending Iron | 2 | |

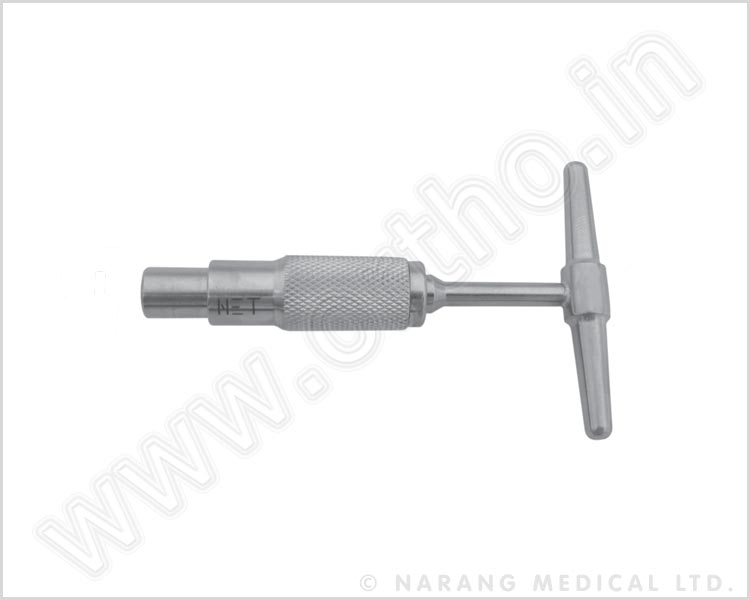

| Q.010.20 - Quick Coupling Handle (T-Type) | 1 | |
| Q.010.000 - Empty Container with Screw Rack | ||
