Cannulated (Long) for Right Leg  |  Perfect Femoral Nail - Cannulated (Long) for Left Leg  |  Perfect Femoral Nail - Cannulated (Short)  |  End Caps  |  Perfect Femoral Nail Implants Sets

Perfect Femoral Nails:

  • Our Perfect Femoral Nail with standard locking is indicated for fractures in femoral shaft and with Recon Locking for fractures in the femoral shaft in combination with femoral neck fractures. Additionally our Perfect Femoral Nail is indicated for fractures in the subtrochanteric section with :
  • Advanced Anatomical Nail Design : Optimal fit in bone & easier insertion and extraction. Titanium Alloy for improved mechanical and fatigue properties.

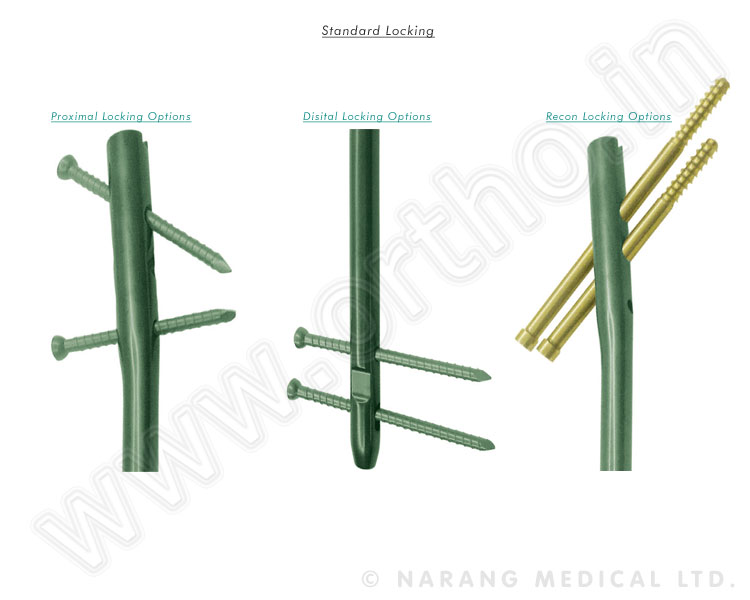

  • Optimized Locking Options : Standard Locking of femoral shaft fractures & Recon Locking in subtrochanteric fractures and comined femoral shaft and neck fractures.
  • Optimal Lateral entry point : Time saving surgical technique, Easier and safer access to entry site, Less soft tissue damage.
  • Improved Locking Options : Higher angular stability through multiplaner screws, less damage of soft tissues and improved mechanical resistance.
  • Anatomical Design with Right and Left Nail.
  • Use with Instrument Set - AS074

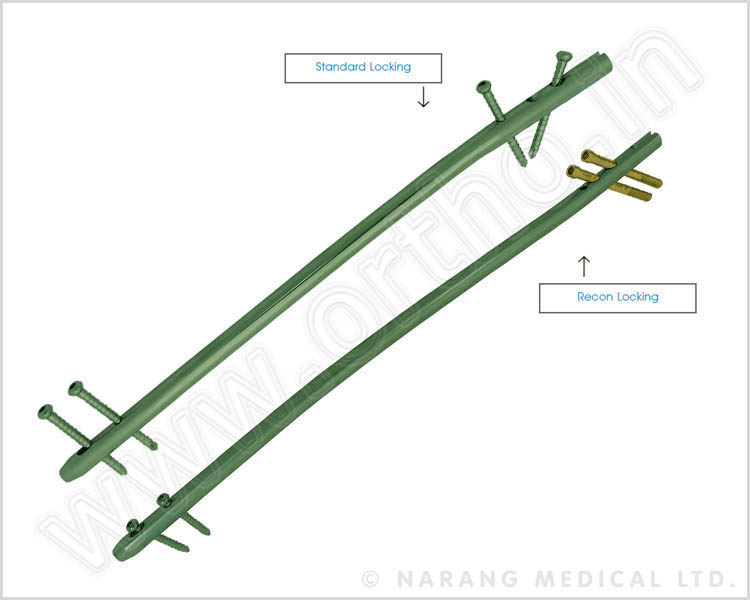

Perfect Femoral Nails
Click to Zoom

Perfect Femoral Nail - Cannulated (Long) for Right Leg

  • Use 4.8mm Locking Screw for Standard Locking
  • Use 6.35mm Hip Screws for Recon Locking
  • Note: Distal Jig will work upto the length of 440mm.For longer nails C arm is required for Distal Locking.
Perfect Femoral Nail - Cannulated (Long) For Right Leg
Click to Zoom
Length
in mm		 STAINLESS STEEL - Diameter in mm
9 mm 10 mm 11 mm 12 mm 13 mm
320 PF09-32R PF10-32R PF11-32R PF12-32R PF13-32R
340 PF09-34R PF10-34R PF11-34R PF12-34R PF13-34R
360 PF09-36R PF10-36R PF11-36R PF12-36R PF13-36R
380 PF09-38R PF10-38R PF11-38R PF12-38R PF13-38R
400 PF09-40R PF10-40R PF11-40R PF12-40R PF13-40R
420 PF09-42R PF10-42R PF11-42R PF12-42R PF13-42R
440 PF09-44R PF10-44R PF11-44R PF12-44R PF13-44R
460 PF09-46R PF10-46R PF11-46R PF12-46R PF13-46R
480 PF09-48R PF10-48R PF11-48R PF12-48R PF13-48R
Length
in mm 		TITANIUM - Diameter in mm
9 mm 10 mm 11 mm 12 mm 13 mm
320 Ti-PF09-32R Ti-PF10-32R Ti-PF11-32R Ti-PF12-32R Ti-PF13-32R
340 Ti-PF09-34R Ti-PF10-34R Ti-PF11-34R Ti-PF12-34R Ti-PF13-34R
360 Ti-PF09-36R Ti-PF10-36R Ti-PF11-36R Ti-PF12-36R Ti-PF13-36R
380 Ti-PF09-38R Ti-PF10-38R Ti-PF11-38R Ti-PF12-38R Ti-PF13-38R
400 Ti-PF09-40R Ti-PF10-40R Ti-PF11-40R Ti-PF12-40R Ti-PF13-40R
420 Ti-PF09-42R Ti-PF10-42R Ti-PF11-42R Ti-PF12-42R Ti-PF13-42R
440 Ti-PF09-44R Ti-PF10-44R Ti-PF11-44R Ti-PF12-44R Ti-PF13-44R
460 Ti-PF09-46R Ti-PF10-46R Ti-PF11-46R Ti-PF12-46R Ti-PF13-46R
480 Ti-PF09-48R Ti-PF10-48R Ti-PF11-48R Ti-PF12-48R Ti-PF13-48R
Top

Perfect Femoral Nail - Cannulated (Long) for Left Leg

  • Use 4.8mm Locking Screw for Standard Locking
  • Use 6.35mm Hip Screws for Recon Locking
  • Note: Distal Jig will work upto the length of 440mm. For longer nails C arm is required for Distal Locking.
Perfect Femoral Nail - Cannulated (Long) For Left Leg
Click to Zoom
Length
in mm		 STAINLESS STEEL - Diameter in mm
9 mm 10 mm 11 mm 12 mm 13 mm
320 PF09-32L PF10-32L PF11-32L PF12-32L PF13-32L
340 PF09-34L PF10-34L PF11-34L PF12-34L PF13-34L
360 PF09-36L PF10-36L PF11-36L PF12-36L PF13-36L
380 PF09-38L PF10-38L PF11-38L PF12-38L PF13-38L
400 PF09-40L PF10-40L PF11-40L PF12-40L PF13-40L
420 PF09-42L PF10-42L PF11-42L PF12-42L PF13-42L
440 PF09-44L PF10-44L PF11-44L PF12-44L PF13-44L
460 PF09-46L PF10-46L PF11-46L PF12-46L PF13-46L
480 PF09-48L PF10-48L PF11-48L PF12-48L PF13-48L
Length
in mm 		TITANIUM - Diameter in mm
9 mm 10 mm 11 mm 12 mm 13 mm
320 Ti-PF09-32L Ti-PF10-32L Ti-PF11-32L Ti-PF12-32L Ti-PF13-32L
340 Ti-PF09-34L Ti-PF10-34L Ti-PF11-34L Ti-PF12-34L Ti-PF13-34L
360 Ti-PF09-36L Ti-PF10-36L Ti-PF11-36L Ti-PF12-36L Ti-PF13-36L
380 Ti-PF09-38L Ti-PF10-38L Ti-PF11-38L Ti-PF12-38L Ti-PF13-38L
400 Ti-PF09-40L Ti-PF10-40L Ti-PF11-40L Ti-PF12-40L Ti-PF13-40L
420 Ti-PF09-42L Ti-PF10-42L Ti-PF11-42L Ti-PF12-42L Ti-PF13-42L
440 Ti-PF09-44L Ti-PF10-44L Ti-PF11-44L Ti-PF12-44L Ti-PF13-44L
460 Ti-PF09-46L Ti-PF10-46L Ti-PF11-46L Ti-PF12-46L Ti-PF13-46L
480 Ti-PF09-48L Ti-PF10-48L Ti-PF11-48L Ti-PF12-48L Ti-PF13-48L

Perfect Femoral Nail - Cannulated (Short)

  • Use 4.8mm Locking Screw for Standard Locking
  • Use 6.35mm Hip Screws for Recon Locking
Perfect Femoral Nail - Cannulated (Short)
Click to Zoom
Length
in mm		 STAINLESS STEEL - Diameter in mm
9 mm 10 mm 11 mm 12 mm 13 mm
180 PF09-18 PF10-18 PF11-18 PF12-18 PF13-18
200 PF09-20 PF10-20 PF11-20 PF12-20 PF13-20
220 PF09-22 PF10-22 PF11-22 PF12-22 PF13-22
240 PF09-24 PF10-24 PF11-24 PF12-24 PF13-24
Length
in mm 		TITANIUM - Diameter in mm
9 mm 10 mm 11 mm 12 mm 13 mm
180 Ti-PF09-18 Ti-PF10-18 Ti-PF11-18 Ti-PF12-18 Ti-PF13-18
200 Ti-PF09-20 Ti-PF10-20 Ti-PF11-20 Ti-PF12-20 Ti-PF13-20
220 Ti-PF09-22 Ti-PF10-22 Ti-PF11-22 Ti-PF12-22 Ti-PF13-22
240 Ti-PF09-24 Ti-PF10-24 Ti-PF11-24 Ti-PF12-24 Ti-PF13-24
Top

End Cap for Perfect Femoral Nails

  • 0mm - sits flush with end of nail 5, 10, 15 and 20 mm extension - extend nail height if nail is overinserted
Extn. in mm ITEM CODE
S.S TITANIUM
0 PFE-00 Ti-PFE-00
5 PFE-05 Ti-PFE-05
10 PFE.10 Ti-PFE-10
15 PFE.15 Ti-PFE.15
20 PFE.20 Ti-PFE.20
End Cap for Perfect Femoral Nails
Click to Zoom
Top

Perfect Femoral Nail Implants Sets

Perfect Femoral Nail Implants Sets
Click to Zoom

AS102 Perfect Femoral Nail Implants Set - For Right leg
Set Consisting of : Units
Femoral Nails
9mm Dia
1 Each Length 320, 340, 360, 380, 400, 420, 440mm 7
10mm Dia
1 Each Length 320, 340, 360, 380, 400, 420, 440mm 7
11mm Dia
1 Each Length 320, 340, 360, 380, 400, 420, 440mm 7
Locking Screw 4.8mm Dia
4 Each Length 26, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50mm 52
2 Each Length 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 85 32
Hip Screw 6.35mm Dia
2 Each Length 60, 65, 70mm 6
4 Each Length 75, 80, 85, 90, 95, 100, 105, 110, 115mm 36
End Caps
2 Each Extn 0, 5, 10, 15, 20 10
102.000 Empty Containder 1
AS103 Perfect Femoral Nail Implants Set - For Left Leg (diameter and lengths as above)
