Locking Bolts Manufacturer USA

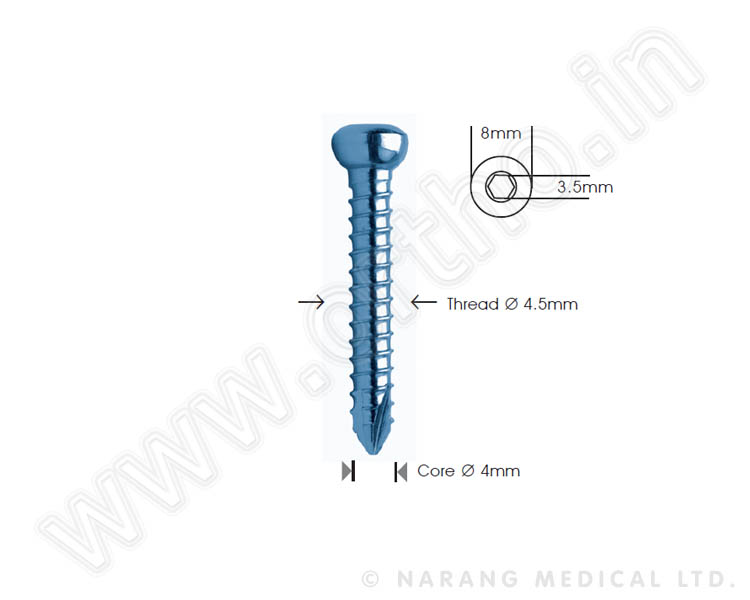

Locking Bolt, Ø 4.5mm (Self Tapping) are used for the fixation of Multifix Femoral and Tibial Nail.
Self tapping feature eliminates the use of bone tap.
Drill Bit: 3.5mm

Click to Zoom

Length in mm	Locking Bolt, Ø 4.5mm (Self Tapping)
Length in mm	STAINLESS STEEL	TITANIUM
24	045-24	Ti-045-24
26	045-26	Ti-045-26
28	045-28	Ti-045-28
30	045-30	Ti-045-30
32	045-32	Ti-045-32
34	045-34	Ti-045-34
36	045-36	Ti-045-36
38	045-38	Ti-045-38
40	045-40	Ti-045-40
42	045-42	Ti-045-42
44	045-44	Ti-045-44
46	045-46	Ti-045-46
48	045-48	Ti-045-48
50	045-50	Ti-045-50
55	045-55	Ti-045-55
60	045-60	Ti-045-60
65	045-65	Ti-045-65
70	045-70	Ti-045-70
75	045-75	Ti-045-75
80	045-80	Ti-045-80
85	045-85	Ti-045-85
90	045-90	Ti-045-90
95	045-95	Ti-045-95
100	045-100	Ti-045-100
105	045-105	Ti-045-105
110	045-110	Ti-045-110
115	045-115	Ti-045-115
120	045-120	Ti-045-120

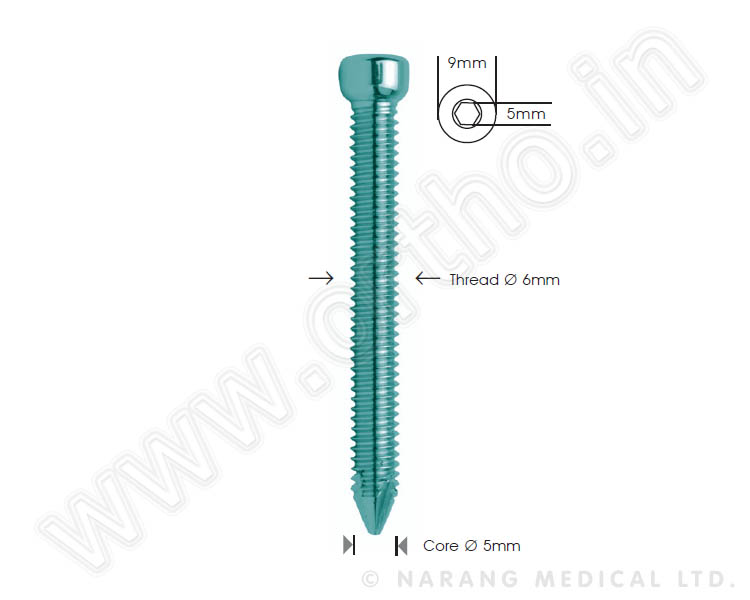

Locking Bolt, Ø 6mm (Self Tapping) are used for the fixation in proximal holes of the Multifix Femoral Nails.
Self tapping feature eliminates the use of bone tap.
Drill Bit: 5mm

Click to Zoom

Length in mm	Locking Bolt, Ø 6mm (Self Tapping)
Length in mm	STAINLESS STEEL	TITANIUM
40	050-40	Ti-050-40
45	050-45	Ti-050-45
50	050-50	Ti-050-50
55	050-55	Ti-050-55
60	050-60	Ti-050-60
65	050-65	Ti-050-65
70	050-70	Ti-050-70
75	050-75	Ti-050-75
80	050-80	Ti-050-80
85	050-85	Ti-050-85
90	050-90	Ti-050-90
95	050-95	Ti-050-95
100	050-100	Ti-050-100
105	050-105	Ti-050-105
110	050-110	Ti-050-110
115	050-115	Ti-050-115
120	050-120	Ti-050-120
