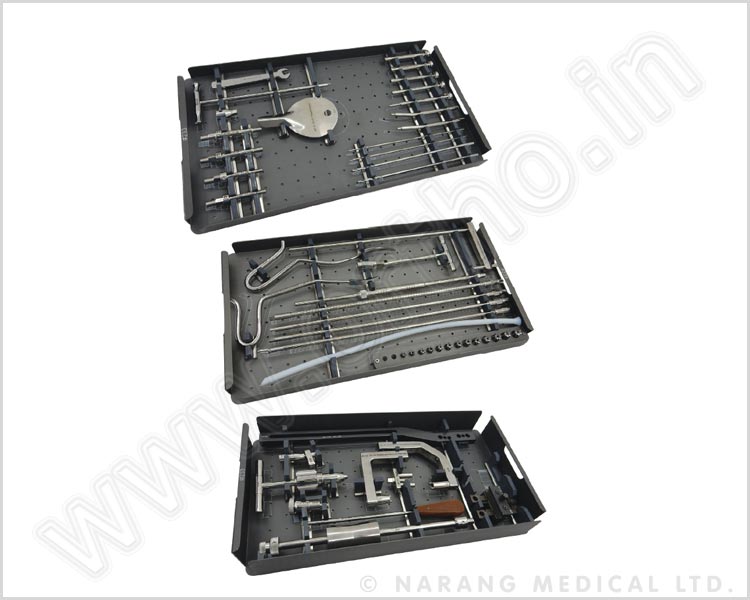

AS071 Instruments Set For Multi-Fix Tibial & Multi-Fix Femoral Nails |
| |
Set Consisting of : |
Units |
| |

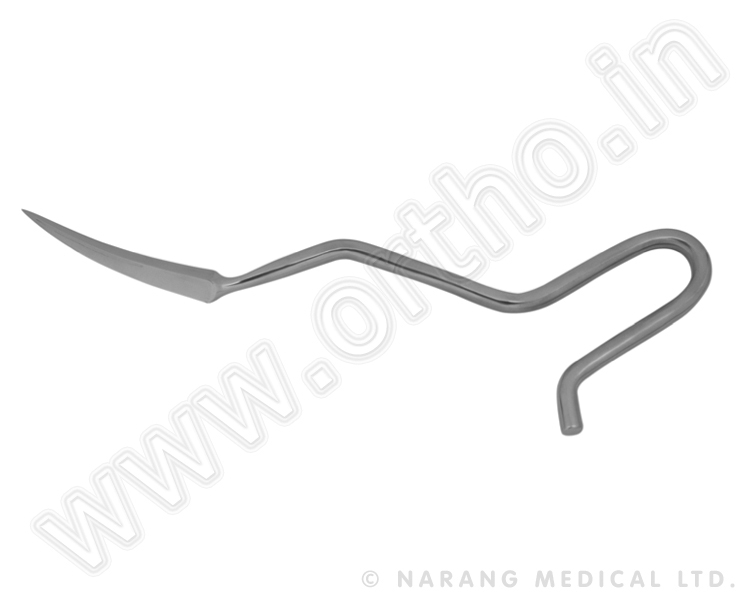

507.01 - Diamond Pointed Bone Awl for Femur |
1 |
| |
507.02 - Tissue Protector |
1 |
| |

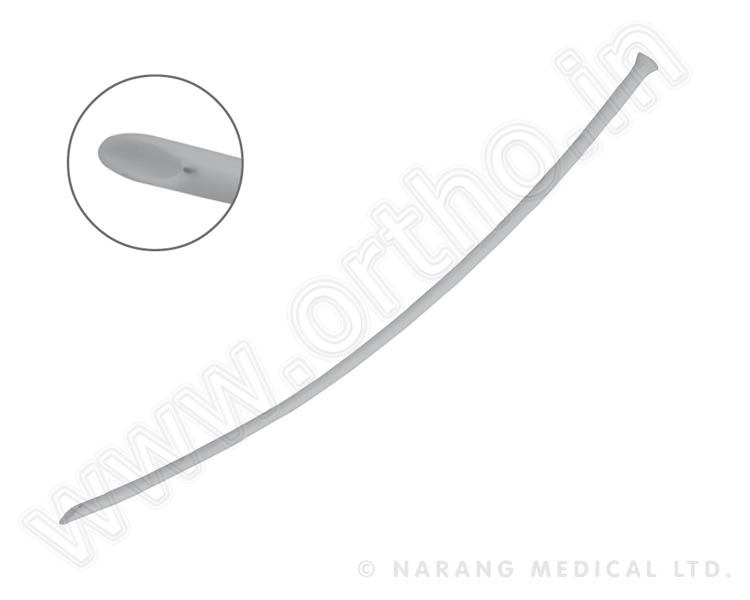

507.04 - Medullary Tube |
1 |
| |
507.05 - Reaming Rod 2.5mm Dia |
1 |
| |

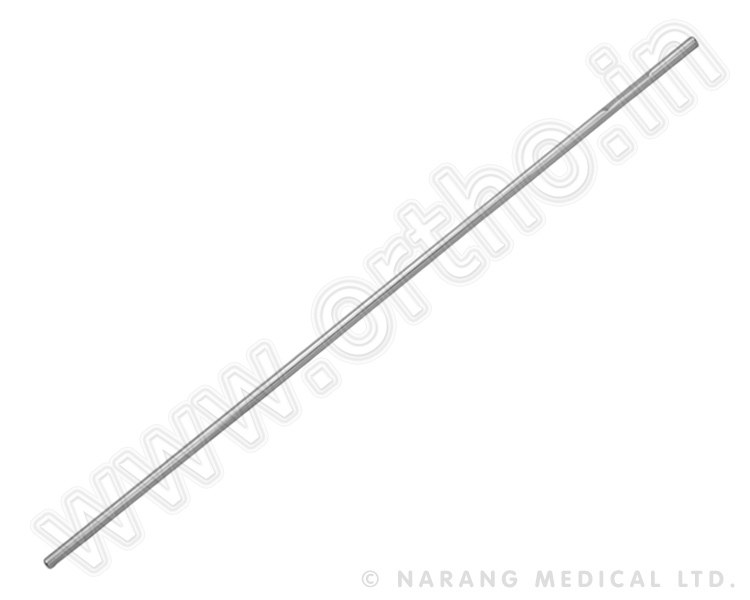

507.08 - Guide Rod 2.5mm Dia |
1 |
| |

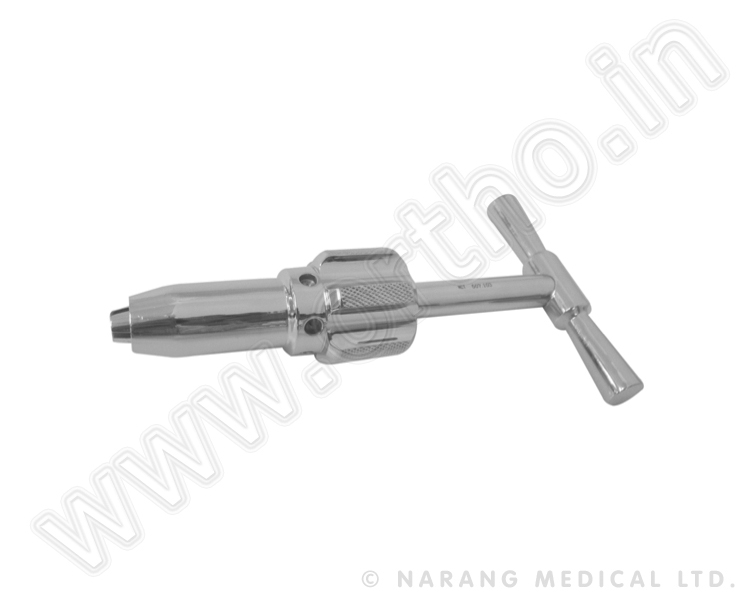

507.103 - Guide Rod / Reaming Rod Introducer |
1 |
| |

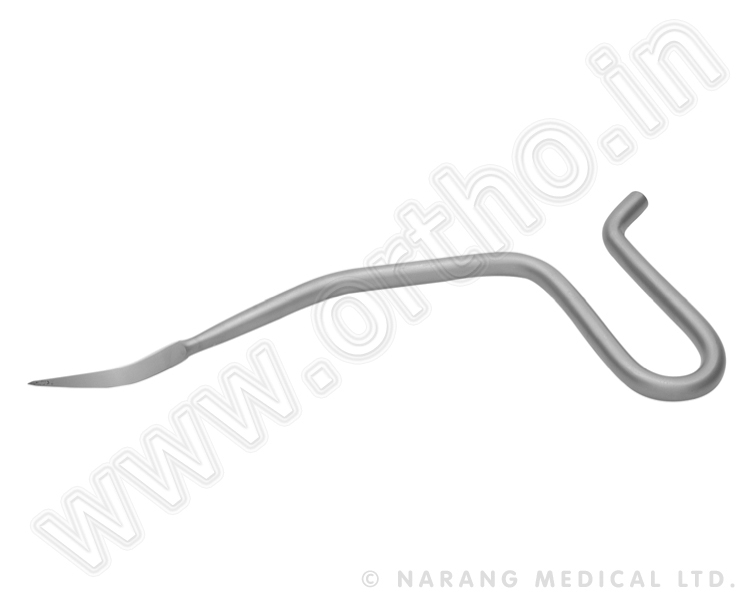

208.15 - Diamond Pointed Bone Awl for Tibia |
1 |
| |
507.038 - Flexible reaming Shaft with fixed reamer dia 8.0mm |
1 |
| |
507.03 - Flexible Reamer Shaft only (For Reamer Head upto 13mm) |
2 |
| |
507.23 - Flexible Reamer Shaft only (For Reamer Head from 13.5mm to 15mm) |
1 |
| |

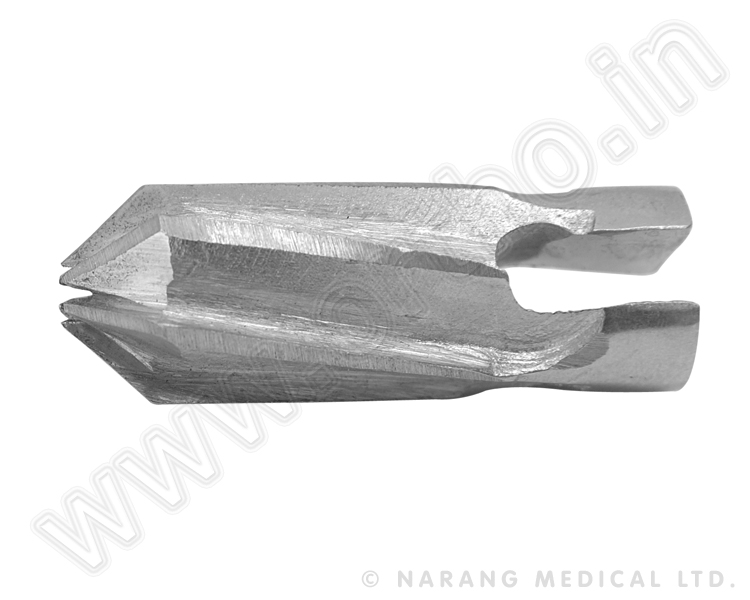

510.9 - Reamer Heads (Medullary), 9mm |
1 |
| |
510.95 - Reamer Heads (Medullary), 9.5mm |
1 |
| |
510.10 - Reamer Heads (Medullary), 10mm |
1 |
| |
510.105 - Reamer Heads (Medullary), 10.5mm |
1 |
| |
510.11 - Reamer Heads (Medullary), 11mm |
1 |
| |
510.115 - Reamer Heads (Medullary), 11.5mm |
1 |
| |
510.12 - Reamer Heads (Medullary), 12mm |
1 |
| |
510.125 - Reamer Heads (Medullary), 12.5mm |
1 |
| |
510.13 - Reamer Heads (Medullary), 13mm |
1 |
| |
510.135 - Reamer Heads (Medullary), 13.5mm |
1 |
| |
510.14 - Reamer Heads (Medullary), 14mm |
1 |
| |
510.145 - Reamer Heads (Medullary), 14.5mm |
1 |
| |
510.15 - Reamer Heads (Medullary), 15mm |
1 |
| |

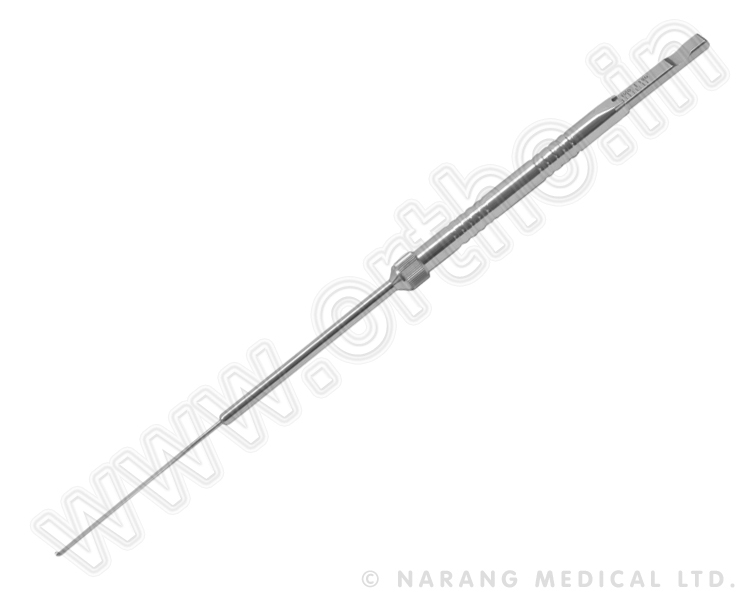

507.16 - Depth Gauge |
1 |
| |

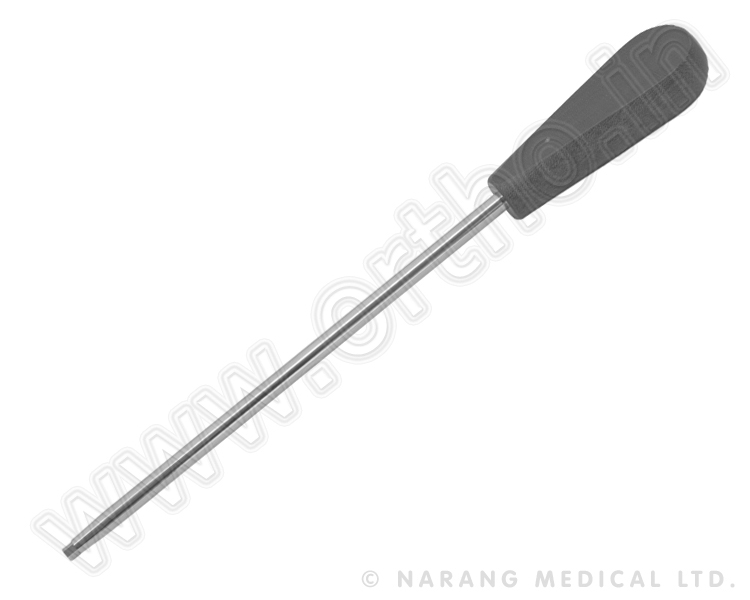

208.10 - Extra Long Hexagonal Screws Driver for 4.5mm Locking Bolt |
1 |
| |

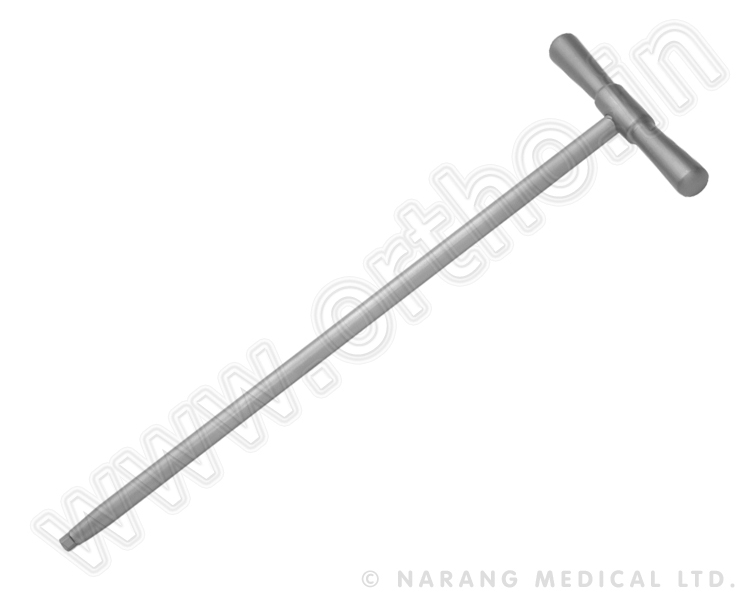

208.16 - Screw Driver for 6mm Locking Bolt |
1 |
| |

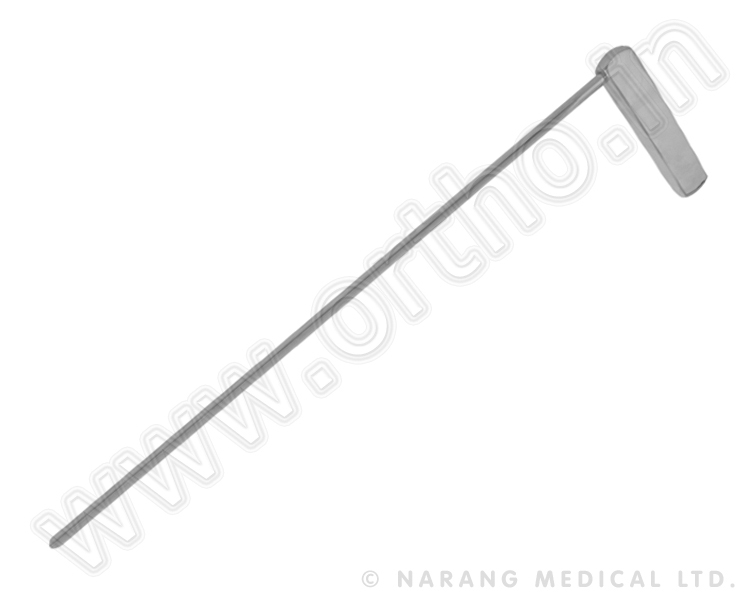

507.115 - Internal Fracture Alignment Device |
1 |
| |

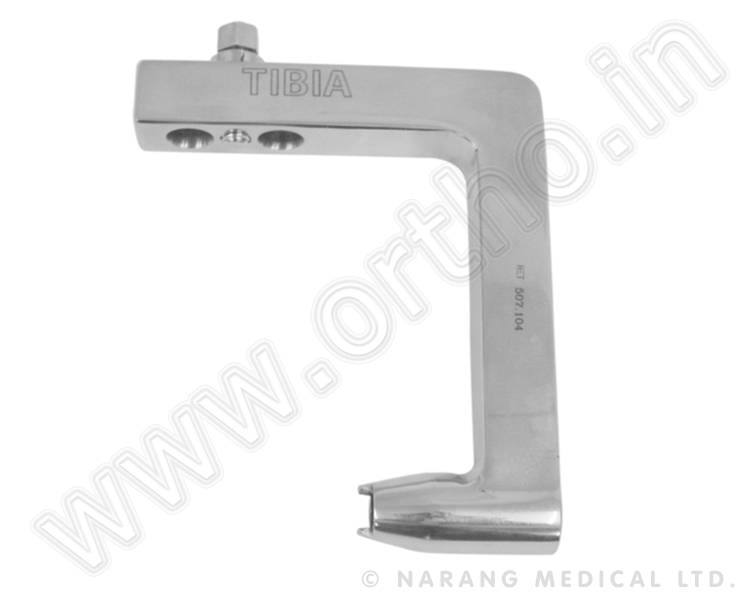

507.104 - Proximal Jig for Multi-Fix Tibial Nails |
1 |
| |

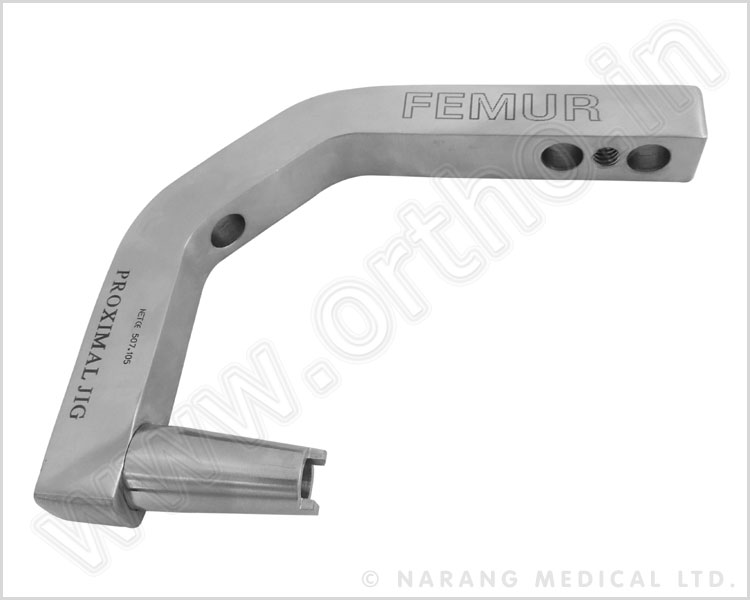

507.105 - Proximal Jig for Multi-Fix Femoral Nails |
1 |
| |
507.106 - Hex Cap (for Tibia & Femur Proximal Jig Assembly) |
1 |
| |

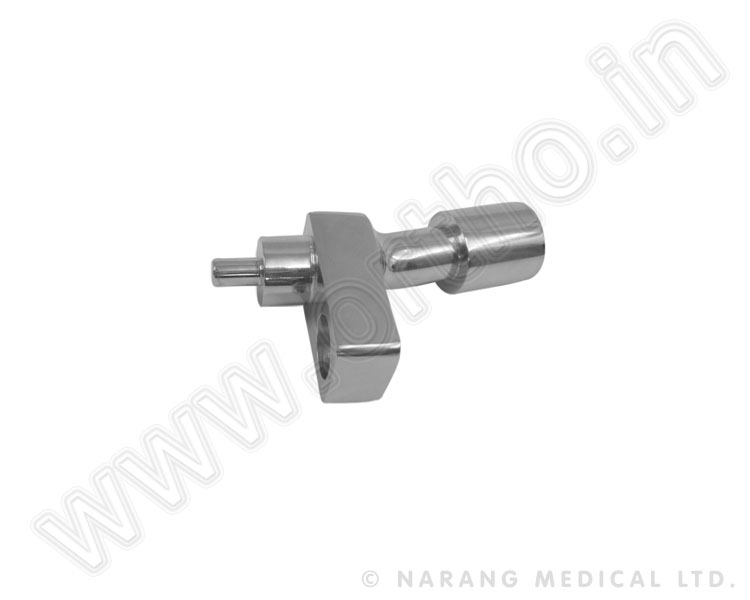

507.30 - Jig Assembly Connecting Part |
1 |
| |
507.109 - Nail Holding Bolt for Multi-Fix Tibial Nails |
2 |
| |

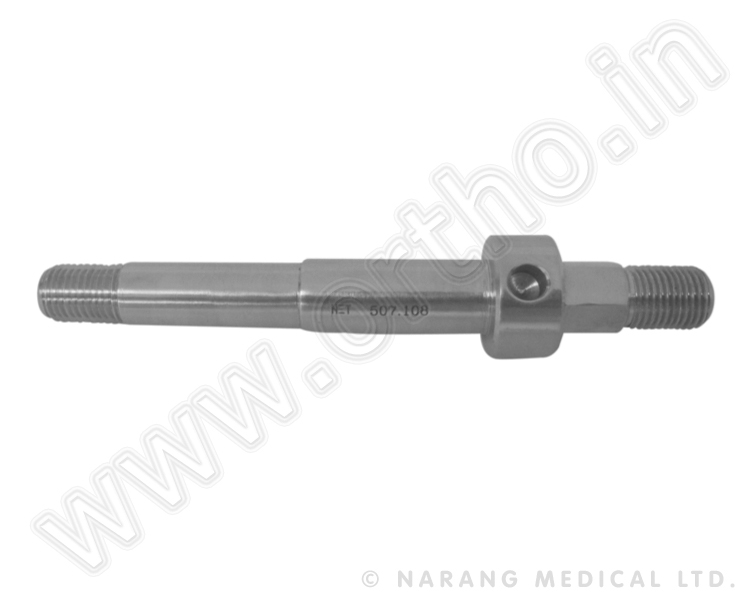

507.108 - Nail Holding Bolt for Multi-Fix Femoral Nails |
2 |
| |

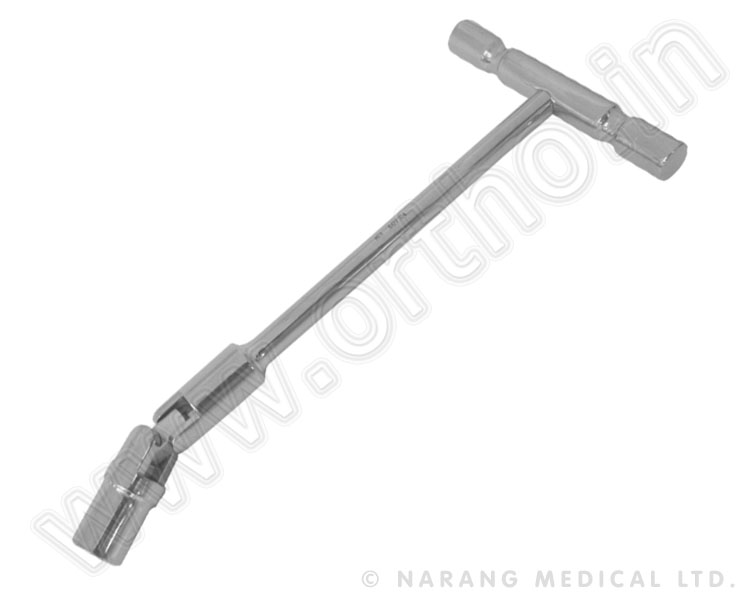

507.24 - Universal Socket Wrench,10mm |
1 |
| |

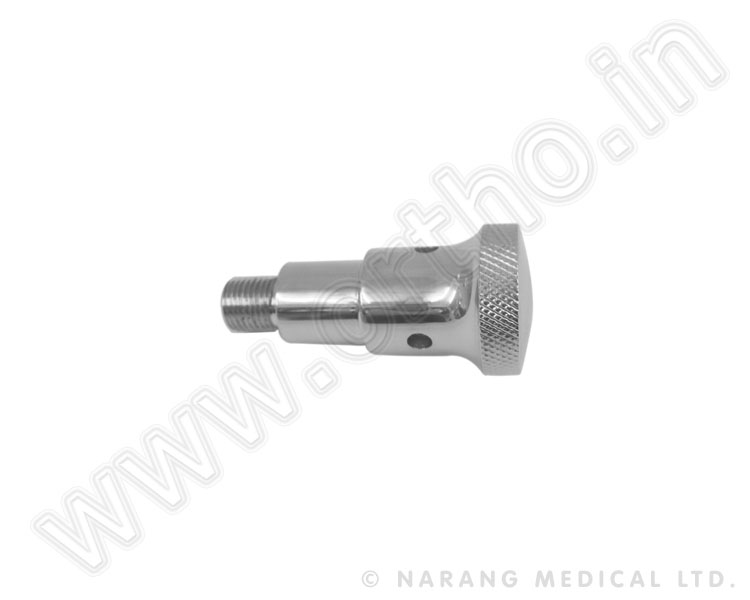

507.28 - Hammering Device |
1 |
| |
507.84 - Extractor-Impactor |
1 |
| |

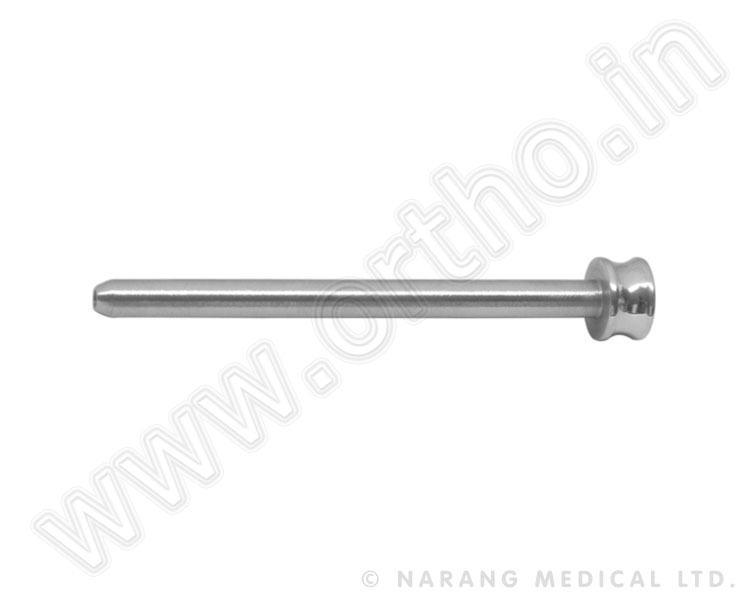

507.66 - Drill Sleeve for 6mm Locking Bolt |
1 |
| |
507.64 - Drill Sleeve of 4.5mm Locking Bolt |
1 |
| |

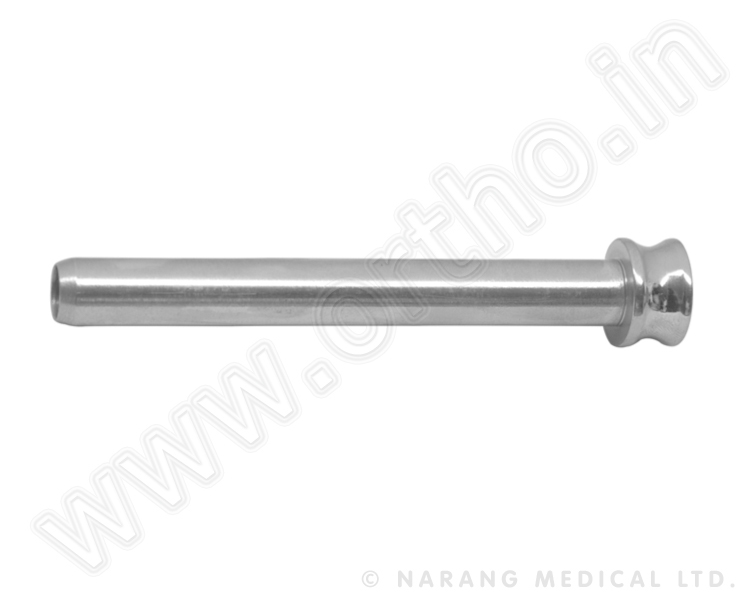

507.111 - Protection Sleeve for 4.5mm Locking Bolt |
1 |
| |

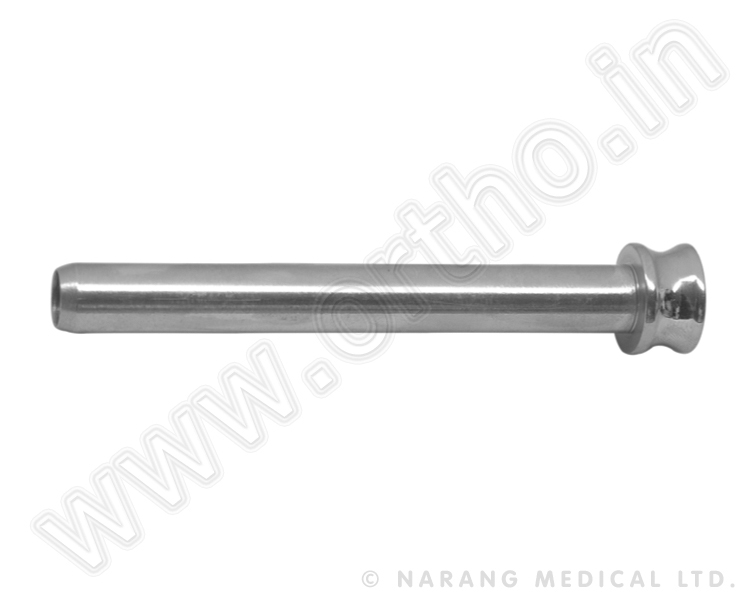

507.112 - Protection Sleeve for 6mm Locking Bolt |
1 |
| |

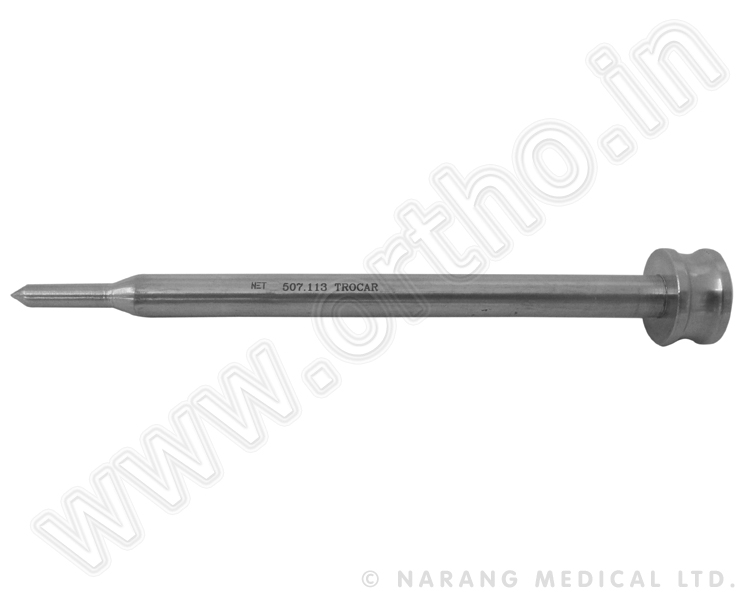

507.113 - Trocar |
1 |
| |

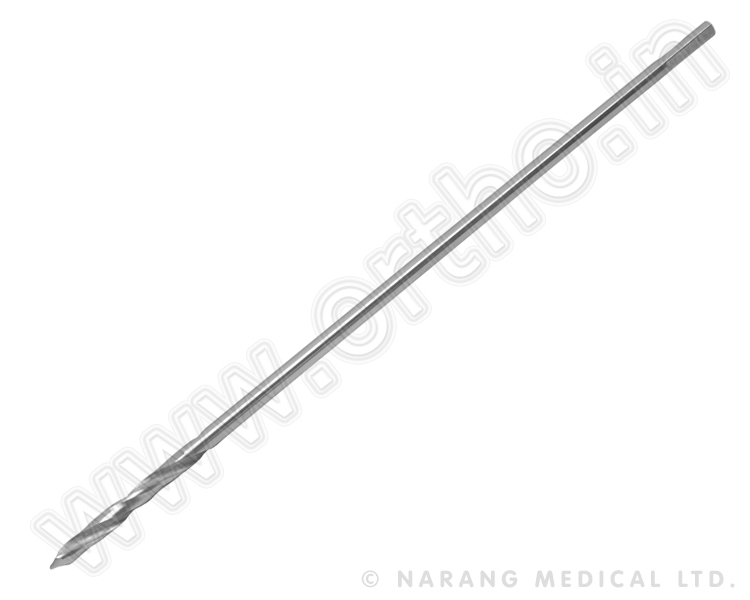

261.650 - Drill Bit- SS - Plain Shank, Dia.:5.0mm, L250mm |
2 |
| |

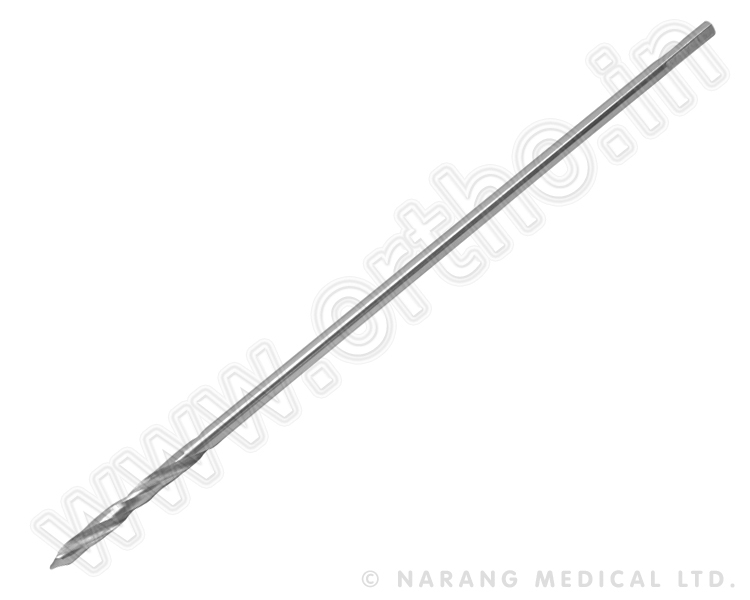

261.637 - Drill Bits - SS, Dia. 3.5mm x 250mm, Straight Shank, with Trocar End |
2 |
| |

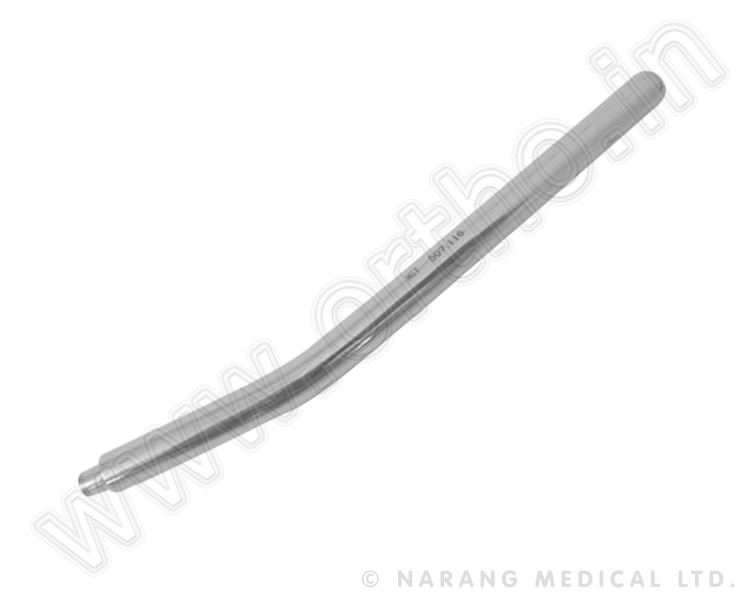

507.116 - Tomy Bar |
2 |
| |

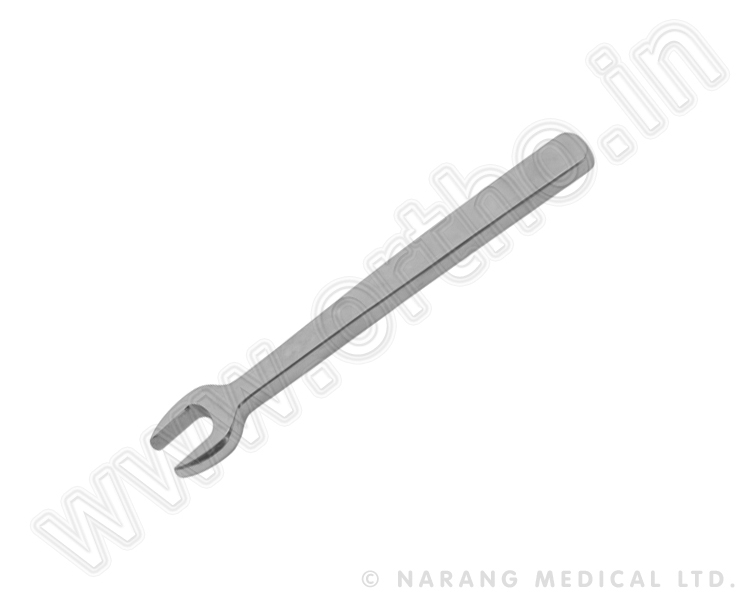

507.110 - Spanner SS, 10mm |
1 |
| |
901.005 Empty Container |
|
| |
Reamer Heads and Shaft also available in Titanium Nitrate.
Prefix ‘TN’ to above codes. |
|
