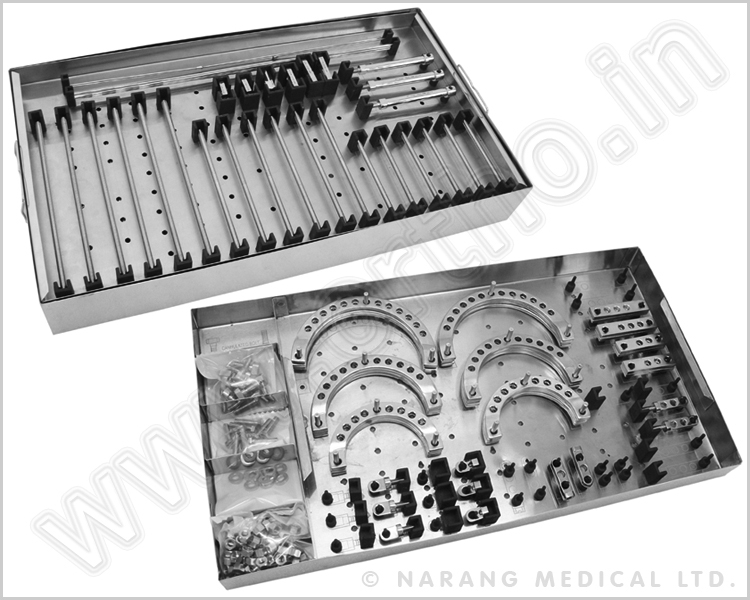

| AS161 Ilizarov Set - Small | Video | |
| Set Consisting of: | Units | |
| Half Rings | ||
| 230.008 - Ilizarov- 1/2 Ring, Size: 80mm, SS | 6 | |
| 230.010 - Ilizarov- 1/2 Ring, Size: 100mm, SS | 6 | |
| 230.012 - Ilizarov- 1/2 Ring, Size: 120mm, SS | 6 | |
| 249.101 - Wire fixation Bolt - Cannulated, SS | 15 | |
| 249.106 - Connection Bolt
|
10 | |
| 239.010 - Telescopic Rod : 100mm | 3 | |
| 249.107 - Nut : 10mm, SS | 100 | |

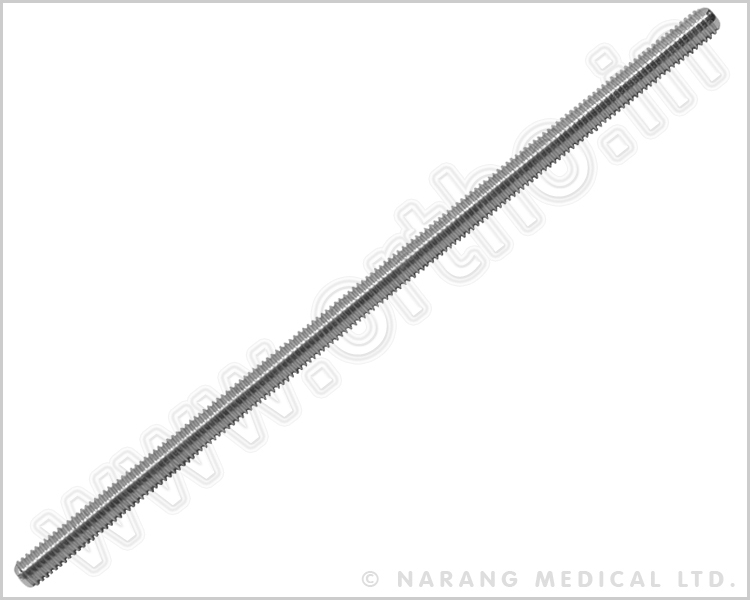

237.004 to 010 - Threaded Rod, Length:100 to 200mm, SS
|
6 | |
| Short Connection Plate : | ||
| 244.003 - Short Connection Plate, 3 Holes, SS | 4 | |
| 244.004 - Short Connection Plate, 4 Holes, SS | 4 | |

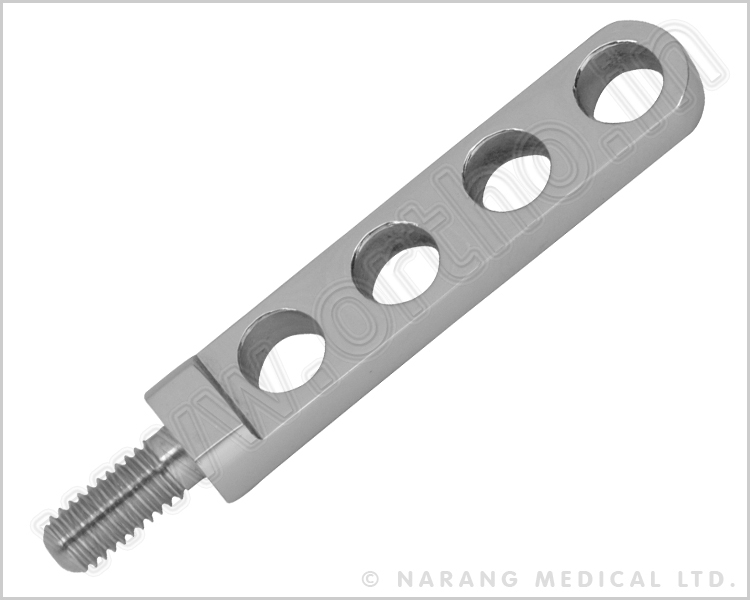

| 242.002 - Post Male,2 Holes, SS | 2 | |

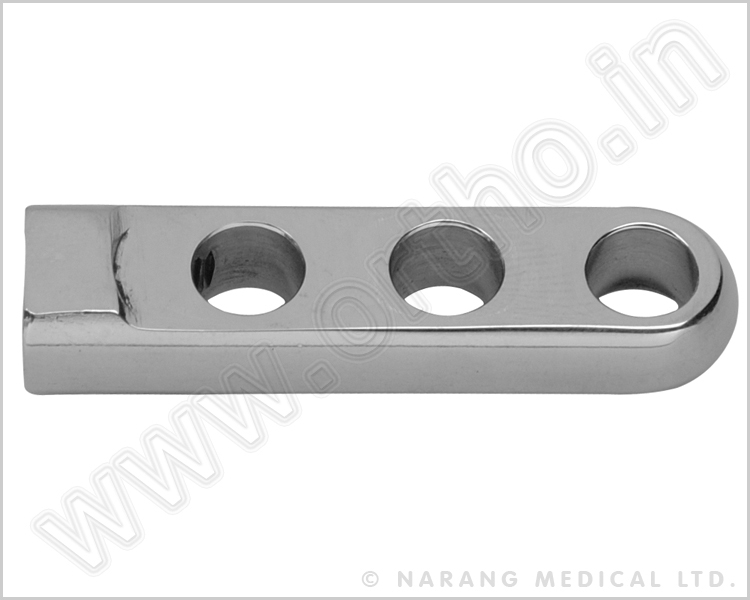

| 241.002 - Post Female,2 Holes, SS | 2 | |
| 249.112 - Spacing Washer, SS | 10 | |

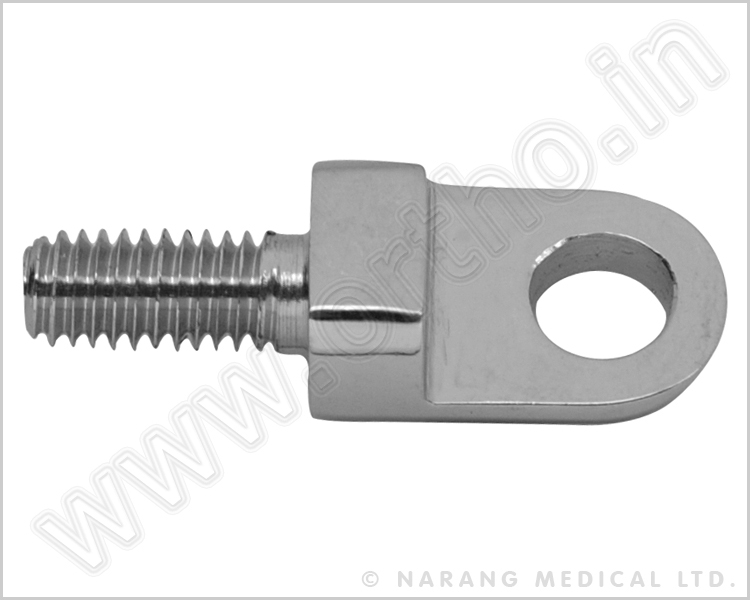

| 243.020 - Hinge- Male, SS | 3 | |

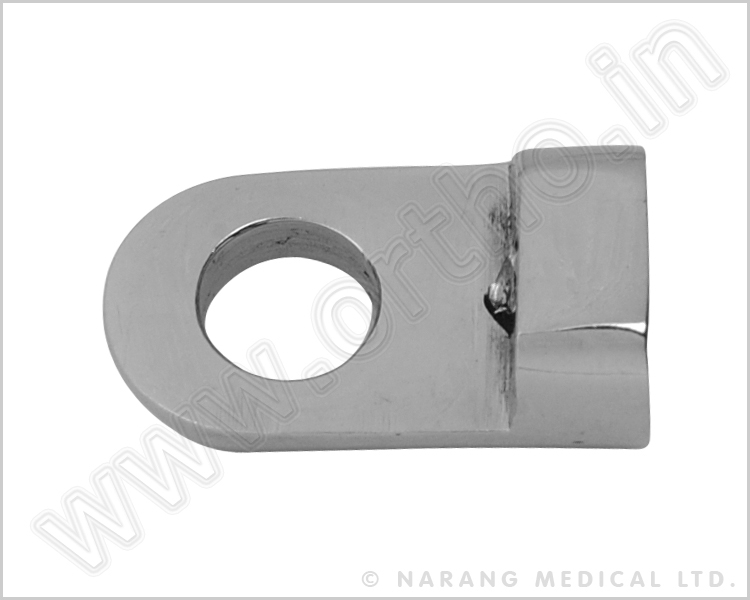

| 243.010 - Hinge- Female, SS | 3 | |

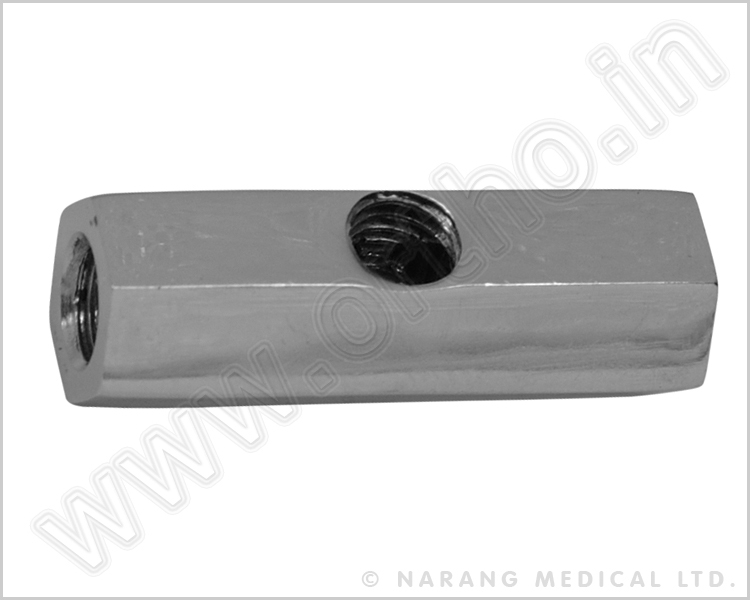

| 247.002 - Threaded Socket, Length : 20mm, SS | 2 | |
| 247.003 - Threaded Socket, Length : 30mm, SS | 2 | |
| 247.004 - Threaded Socket, Length : 40mm, SS | 2 | |
| 248.012 - Ilizarov Wire, 1.8mm x 400mm, Bayonet Point, SS | 10 | |
| 248.020 - Olive Wire- 1.8mm x 400mm, SS | 2 | |
| 900.077 - Empty Container | ||
|
|||
| Set Consisting of: | Units | ||
| Half Rings | |||
| 230.014 - Ilizarov- 1/2 Ring, Size: 140mm, SS | 8 | ||
| 230.016 - Ilizarov- 1/2 Ring, Size: 160mm, SS | 8 | ||
| 5/8 Rings: | |||
| 231.014 - Ilizarov- 5/8th Ring, Size: 140mm, SS | 2 | ||
| 231.016 - Ilizarov- 5/8th Ring, Size: 160mm, SS | 2 | ||
| 249.101 - Wire Fixation Bolt- Cannulated, SS | 20 | ||
249.106 - Connection Bolt, SS
|
10 | ||
| 239.010 - Telescopic Rod, Length:100mm, SS | 3 | ||
| 239.015 - Telescopic Rod, Length:150mm, SS | 3 | ||
| 237.004 - Threaded Rod, Length:100mm, SS | 6 | ||
| 237.008 - Threaded Rod, Length:150mm, SS | 6 | ||
| 237.010 - Threaded Rod, Length:200mm, SS | 6 | ||
| 249.107 - Nut- 10mm, SS | 100 | ||
| 244.003 - Short Connection Plate, 3 Holes, SS | 4 | ||
| 244.004 - Short Connection Plate, 4 Holes, SS | 4 | ||
| 244.005 - Short Connection Plate, 5 Holes, SS | 2 | ||
| 244.006 - Short Connection Plate, 6 Holes, SS | 2 | ||
| 244.007 - Short Connection Plate, 7 Holes, SS | 2 | ||
| 242.003 - Post Male, 3 Holes, SS | 2 | ||
| 241.003 - Post Female, 3 Holes, SS | 2 | ||
| 249.112 - Spacing Washer, SS | 20 | ||
| 243.020 - Hinge- Male, SS | 3 | ||
| 243.010 - Hinge- Female, SS | 3 | ||
| 247.002 - Threaded Socket, Length : 20mm, SS | 2 | ||
| 247.003 - Threaded Socket, Length : 30mm, SS | 2 | ||
| 247.004 - Threaded Socket, Length : 40mm, SS | 2 | ||

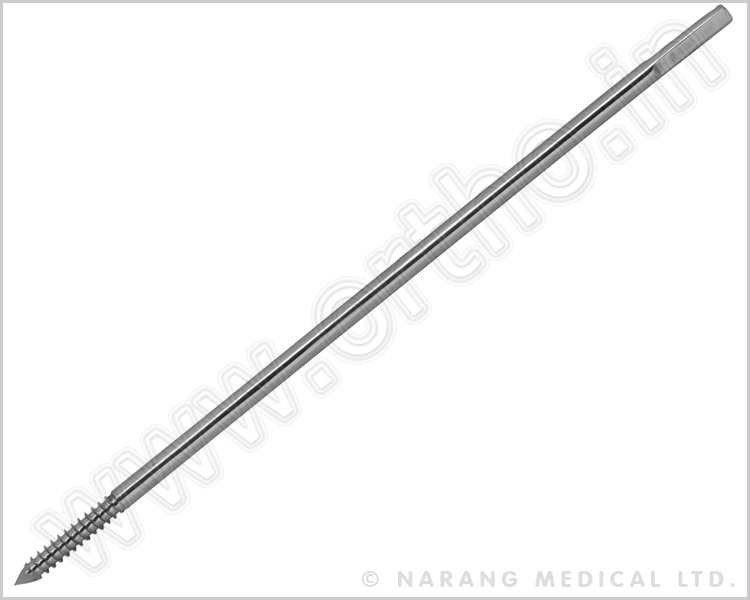

| 211.032 - Front Threaded Pin (Shanz Screws), Dia: 5.0mm, L 200mm, Thread: 32mm, SS | 4 | ||
| 235.000 - Shanz Pins Fixation bolt | 5 | ||
| 248.012 - Ilizarov Wire 1.8 x 400mm Bayonet Point, SS | 10 | ||
| 248.020 - Olive Wires 1.8 x 400mm, SS | 2 | ||
| 900.078 - Empty Container | |||
| Code - Description | |

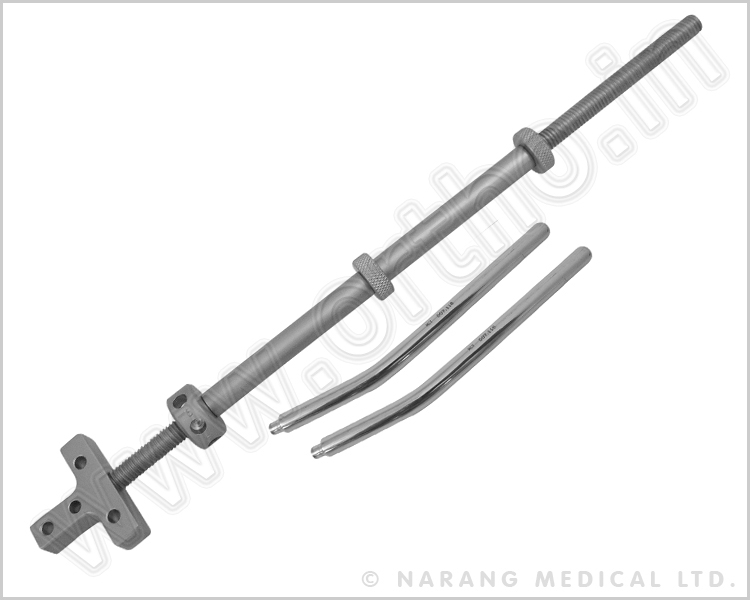

| 255.002 - Lengthening Device, 12″ Long. | |
| 255.004 - Lengthening Device, 14″ Long. | |
| 255.006 - Lengthening Device, 16″ Long. | |
| Remaining Items of Set: | Units |
| 8mm Threaded Rod. | 1 |
| Wheel Bolts. | 6 |
| Wheel Bolt with Hex Nut. | 1 |
| Tubular Rod 3″ /4″ . | 3 |
| Tommy Bar. | 2 |
| Ilizarov External Fixators : 1 2 3 |
