Reconstruction Plate 2.5 Round Holes  |  150degree Angled Plate 2.5 Round Holes  |  150degree Double Angled Plate 2.5 Round Holes

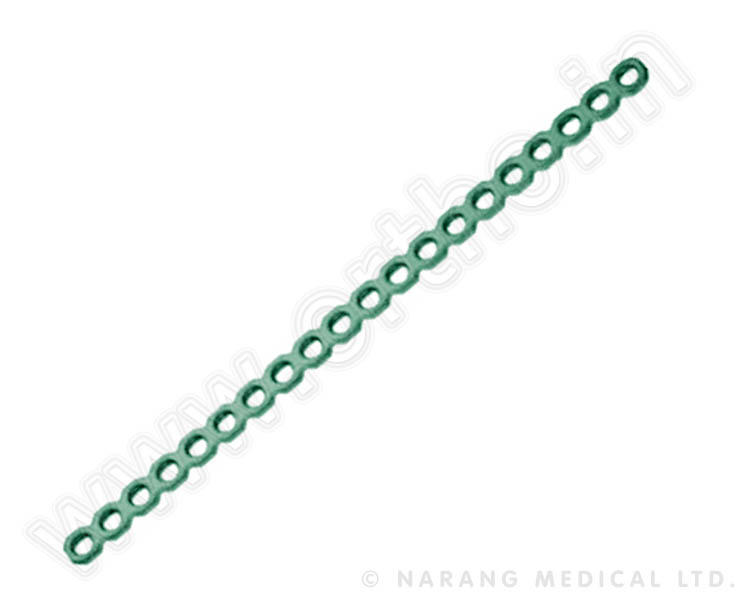

Reconstruction Plate 2.5 - Round Holes

NET Mandible Reconstruction Plates are intended for primary mandibular reconstruction, comminuted fractures and temporary bridging until delayed secondary reconstruction, including fractures of edentulous and/or atrophic mandibles, as well as unstable fractures.

Reconstruction Plate 2.5 - Round Holes
Click to Zoom
No. of Holes Length mm Stainless Steel
8 62 80.08
10 78 80.10
12 92 80.12
14 108 80.14
16 124 80.16
18 142 80.18
20 154 80.20
24 188 80.24
No. of Holes Length mm Titanium
8 62 Ti-80.08
10 78 Ti-80.10
12 92 Ti-80.12
14 108 Ti-80.14
16 124 Ti-80.16
18 142 Ti-80.18
20 154 Ti-80.20
24 188 Ti-80.24
Top

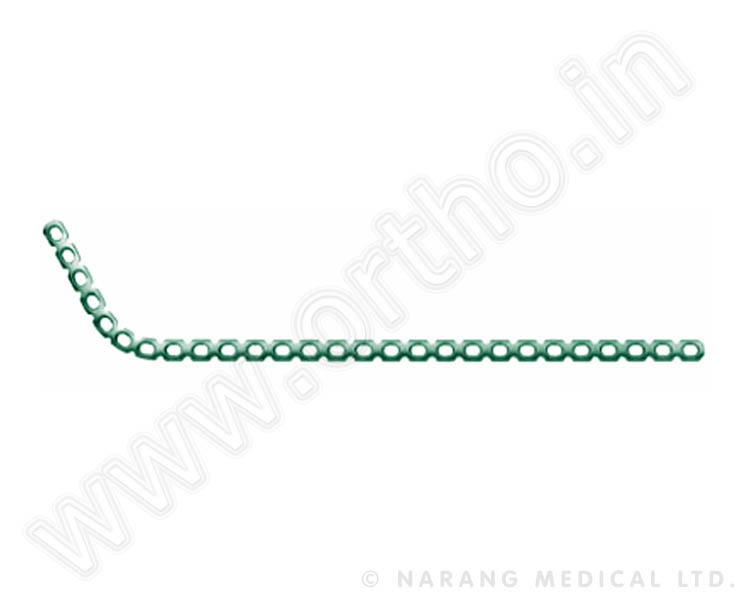

150° Angled Plate for 2.5 - Round Holes

150° Angled Plate for 2.5 - Round Holes
Click to Zoom
No. of Holes Length in mm Type L/R Stainless Steel
4+12 33/96 Left 81.01L
4+12 33/96 Right 81.01R
4+14 33/112 Left 81.02L
4+14 33/112 Right 81.02R
4+16 33/128 Left 81.03L
4+16 33/128 Right 81.03R
4+18 33/142 Left 81.04L
4+18 33/142 Right 81.04R
4+20 33/160 Left 81.05L
4+20 33/160 Right 81.05R
4+24 33/188 Left 81.06L
4+24 33/188 Right 81.06R
No. of Holes Length in mm Type L/R Titanium
4+12 33/96 Left Ti-81.01L
4+12 33/96 Right Ti-81.01R
4+14 33/112 Left Ti-81.02L
4+14 33/112 Right Ti-81.02R
4+16 33/128 Left Ti-81.03L
4+16 33/128 Right Ti-81.03R
4+18 33/142 Left Ti-81.04L
4+18 33/142 Right Ti-81.04R
4+20 33/160 Left Ti-81.05L
4+20 33/160 Right Ti-81.05R
4+24 33/188 Left Ti-81.06L
4+24 33/188 Right Ti-81.06R
Top

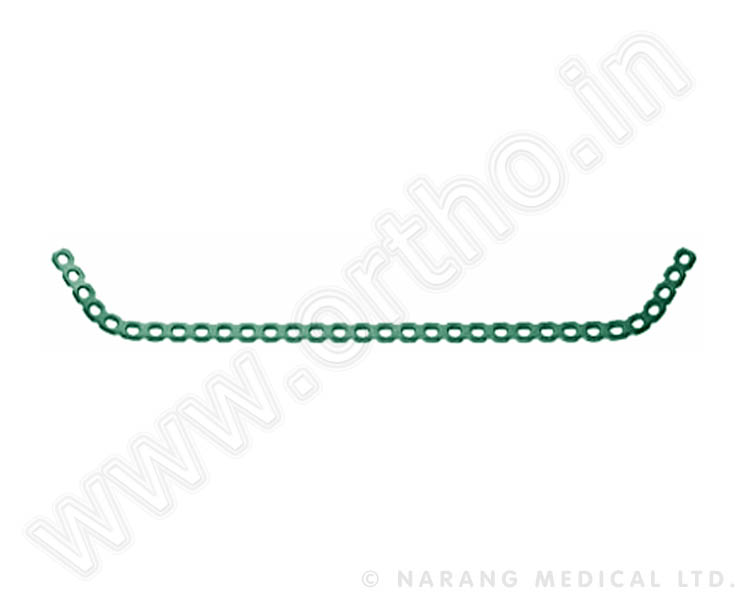

150° Double Angled Plate 2.5 - Round Holes

150º Double Angled Plate 2.5 - Round Holes
Click to Zoom
No. of Holes Length in mm Stainless Steel
4+16+4 33/123/33 82.01
4+20+4 33/155/33 82.11
4+24+4 33/187/33 82.21
4+28+4 33/219/33 82.31
No. of Holes Length in mm Titanium
4+16+4 33/123/33 Ti-82.01
4+20+4 33/155/33 Ti-82.11
4+24+4 33/187/33 Ti-82.21
4+28+4 33/219/33 Ti-82.31
Top
